dashio 2.2.6

DashIO interface library

DashIO

DashIO - a python library to connect and display widgets on the DashIO app.

Beta Testers

We are currently looking for beta testers for our products. If you are interested in using and testing our app and a free DashIO account, please contact us at [e-mail]

Getting Started

See https://github.com/dashio-connect/python-dashio

cd Examples
python3 iot_monitor.py -s dash.dashio.io -p 8883 -u user -w password -c`hostname`

Will create a graph of network traffic with a connection_id of your hostname. The control and data topics are hostname_data and hostname_control.

Requirements

• python3
• paho-mqtt
• pyzmq
• python-dateutil
• zeroconf
• shortuuid

Install

pip3 install dashio

Guide

This guide covers the DashIO python library. For information on the DashIO phone app please visit the website.

Basics

So what is DashIO? It is a quick effortless way to connect your IoT device to your phone. It allows easy setup of controls such as Dials, Text Boxes, Maps, Graphs, Notifications..., from your Device. You can define the look and layout of the controls on your phone from your IoT device. There are three methods to connect to your phone tcp, mqtt, dash, and BLE. What's Dash then? Dash is a mqtt server with extra bits added in to allow you to send notifications, share your devices, and save your settings from your phone via the DashIO app.

Show me some code!

import dashio
import random
import time

device = dashio.Device("aDeviceType", "aDeviceID", "aDeviceName")
tcp_con = dashio.tcpConnection()
tcp_con.add_device(device)
first_dial_control = dashio.Dial("FirstDial")
device.add_control(first_dial_control)

while True:
    dial_control.dial_value = random.random() * 100
    time.sleep(5)

This is about the fewest lines of code to get talking to the app. There is a lot happening under the hood to make this work. After the import we create a device with three attributes. These attributes describe the device to the app and allow you to distinguish one of your devices from another. The next two lines create a TCP connection and then add the device to the connection. The connection will be created with the default setting of port 5000 and will also advertise the service using zeroconf, also known as bonjour. This allows the DashIO app to find your device. After that we create a dial add it to the device and then every five seconds send a randomly generated dial value to the DashIO app.

This device is discoverable by the app. It would be nice to have the DashIO app automagically setup a new DeviceView and place your control on the new DeviceView. To do that we need to add a few more lines of code:

import dashio
import random
import time

device = dashio.Device("aDeviceType", "aDeviceID", "aDeviceName")
tcp_con = dashio.tcpConnection()
tcp_con.add_device(device)
first_dial_control = dashio.Dial("FirstDial", control_position=dashio.ControlPosition(0.24, 0.36, 0.54, 0.26))
device.add_control(first_dial_control)

dv_dial = dashio.DeviceView("aDeviceViewID", "A Dial")
dv_dial.add_control(first_dial_control)
device.add_control(dv_dial)

while True:
    dial_control.dial_value = random.random() * 100
    time.sleep(5)

First we altered the instantiation of a Dial by including a control_position. This allows us to place the control at a set location. The added lines instantiated a DeviceView control, which we than added the dial control. Finally we added the dv to the device.

The next piece of the puzzle to consider is how do we get data from the DashIO app? Lets add a Knob and connect it to the Dial:

import dashio
import random
import time

device = dashio.Device("aDeviceType", "aDeviceID", "aDeviceName")
tcp_con = dashio.tcpConnection()
tcp_con.add_device(device)
first_dial_control = dashio.Dial("FirstDial", control_position=dashio.ControlPosition(0.24, 0.36, 0.54, 0.26))
device.add_control(first_dial_control)

dv_dial = dashio.DeviceView("aDeviceViewID", "A Dial")
dv_dial.add_control(first_dial_control)
device.add_control(dv_dial)

def knob_event_handler(msg):
    first_dial_control.dial_value = float(msg[3])

aknob = dashio.Knob("aKNB", control_position=dashio.ControlPosition(0.24, 0.14, 0.54, 0.26))
aknob.message_rx_event = knob_event_handler
dv_dial.add_control(aknob)
device.add_control(aknob)

while True:
    time.sleep(5)

First we added a function that sets the dial value. Next we added a Knob control and set our new function to be called when it receives data from the DashIO app. We also add it to the DeviceView and to the device. Now when the knob in the DashIO app is moved the dial is set to the same value.

Controls

Controls are objects that represent actions and widgets in the DashIO application. All controls have a ControlID, Title, and TitlePosition. The ControlID should be a string that can uniquely identifiy that control per device. The control Title is text that is displayed on DashIO with the Contol. The TitlePosition can be either TitlePosition.TOP, TitlePosition.BOTTOM, or TitlePosition.NONE. Controls that are displayed have a dashio.ControlPosition that is composed of four size and position variables: x_position_ratio, y_position_ratio, width_ratio, height_ratio. The first two are position ratios that place the top left corner of the widget on the DeviceView. The last two are ratios that govern the size of the widget. The ratios are propertional to the size of the screen with the full size of the screen representing 1.0. All controls have a message_rx_event callback that is used to return messages from the DashIO app.

Alarm

alarm = dashio.Alarm("alarm1_ID", description="An alarming alarm", sound_name=SoundName.SHIPHORN)
alarm.send("Alarm Header", "Alarm Body")

An alarm sends a notification throught the dashio mqtt server to registered phones. The ability to send alarms to specific phones, and the notification sound can be configured through the DashIO app. Alarms are only available if you have an account registered on the DashIO server and you send the the alarm through a dash connection.

Audio Visual Display

An Audio Visual display allows the IoT Device to send a URL to the DashIO app to play or display the contents of the URL. The URL may be a video or audio stream or an image

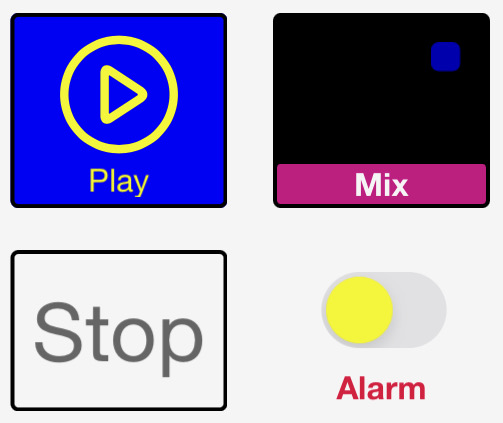

Button

A Button allow the user to send a simple action, informing the IoT device that the button has been pressed. The button state (on or off color) is not changed by tapping the button. After the IoT device receives a message containing the action, it sends a message back to the control in the dashboard to set the button state.

A Button control behaves as both as a momentary push button for user input and as a status indicator to provide feedback from the IoT device.

The IoT device may also change the button icon and text of the control.

button1 = Button("button1_id", "Button Title")
button1.state = ButtonState.ON
button1.send_button(ButtonState.ON, Icon.UP, "Going Up")
button1.send_button(ButtonState.OFF, Icon.DOWN, "Going Down")

Attributes

• control_id : str a unique identity string. The identity string must be a unique string for each ButtonGroup per device
• title : str A short title for the button group
• text : str The text that appears on the ButtonGroup
• title_position : TitlePosition Can be TitlePosition.BOTTOM, TitlePosition.TOP, TitlePosition.OFF
• button_enabled : boolean True allows the app to send button events. False disables button pushes
• icon_name : Icon Set the icon for the button
• off_color : Color Set the off color
• on_color : Color Set the on color
• control_position : ControlPosition Set the size and position of the button on a DeviceView

Methods

• toggle_btn () : Toggles the button state
• send_button(btn_state, btn_icon, text) : Updates the button state, button icon and text

Callbacks

• message_rx_event(msg) : Returns msg from DashIO app

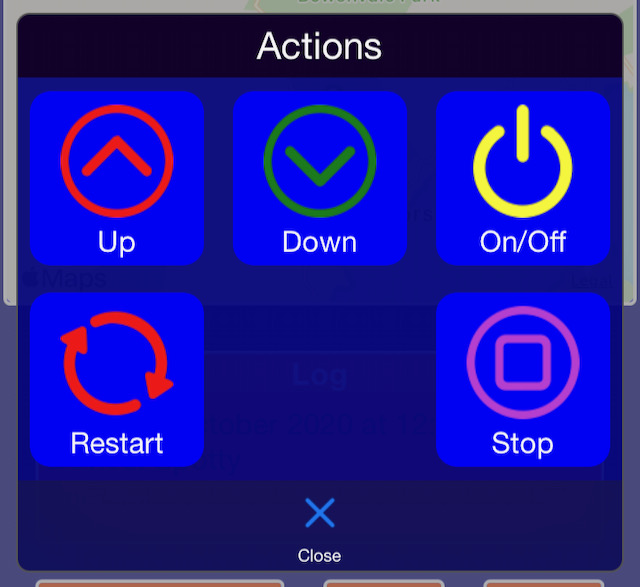

Button Group

A Button Group control is used to present a popup grid or table of Button controls. The Button Group does not receive messages directly, but presents Button controls that send and receive messages.

Attributes

• control_id : str a unique identity string. The identity string must be a unique string for each ButtonGroup per device
• title: str A short title for the button group
• text : str The text that appears on the ButtonGroup

Methods

• add_button(Button) Add a button to the ButtonGroup

Color Picker

A Color Picker control is used to select a colour to send to the IoT device. The Colour Picker may be shown as either a spectrum or as a colour wheel and brightness slider.

Direction

A Direction display is used to graphically present a decimal direction value from 0 to 360 degrees. The Direction display receives messages from the IoT device to set the direction indicator position.

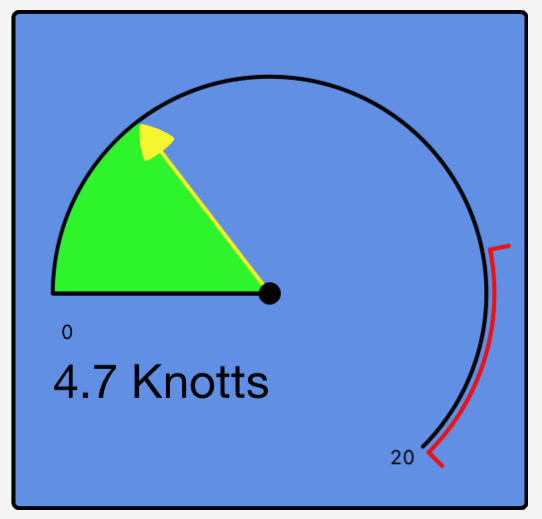

Dial

A Dial display is used to present a numerical value in a graphical circular dial. The Dial display receives messages from the IoT device to set the dial position.

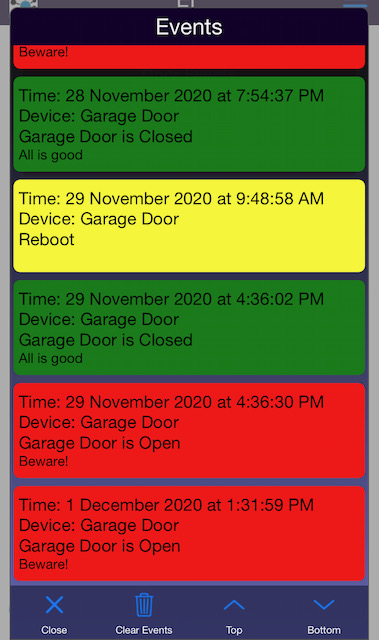

Event Log

An Event Log display is used to present time stamped events or alarms from IoT devices. The most recent event is shown on the control and a scrollable list of events is presented when the Event Log is tapped by the user.

Each event contains the time of the event, the color to display the event and the text to display.

Multiple IoT devices can be shown on a single Event Log control.

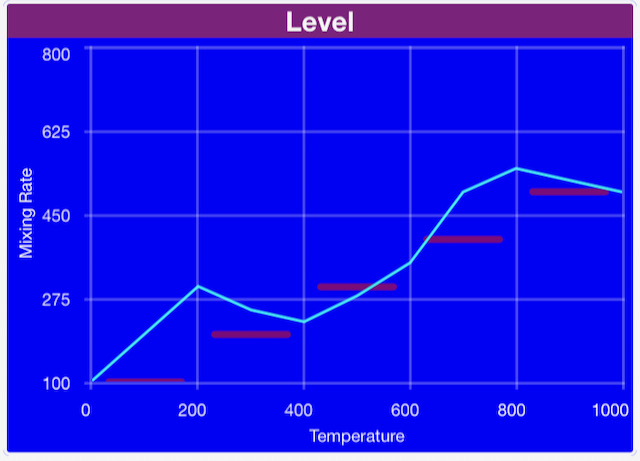

Graph

A Graph display is used to present graphical data on the DashIO Dashboard, where the data is a series of vertical (Y) axis data. The data is evenly spaced on the horizontal (X) axis. The IoT device sends a message for each line in the graph. The data may be shown as lines, bars or peak values.

Each line can be independently added, deleted or changed by the IoT device. Multiple IoT devices can add lines to a single Graph control.

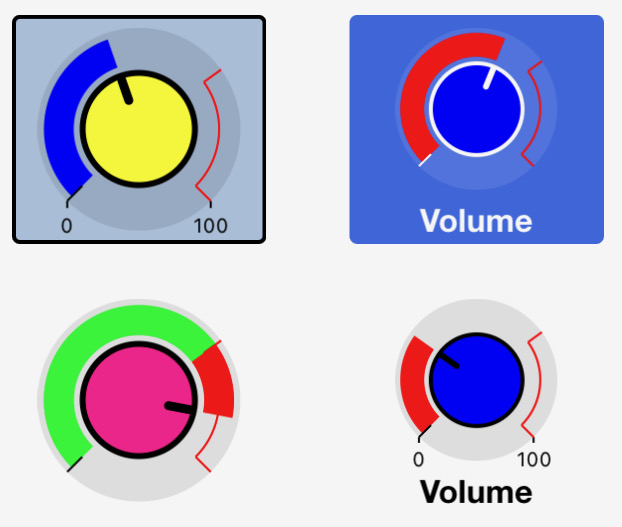

Knob

A Knob allow the user to send numerical values to the IoT device when the user drags the knob to a new position. A Knob control contains a user adjustable knob surrounded by a simple dial indicator. The dial can be controlled independently of the knob or can be used to provide feedback to the user from the IoT Device.

The IoT device may send messages to update both the dial and knob positions.

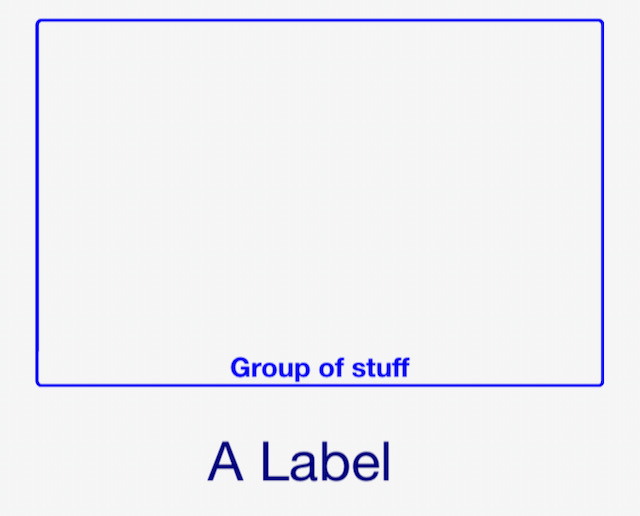

Label

A Label is a simple control to add structure to your layout on the dashboard. They do not transfer information with IoT devices.

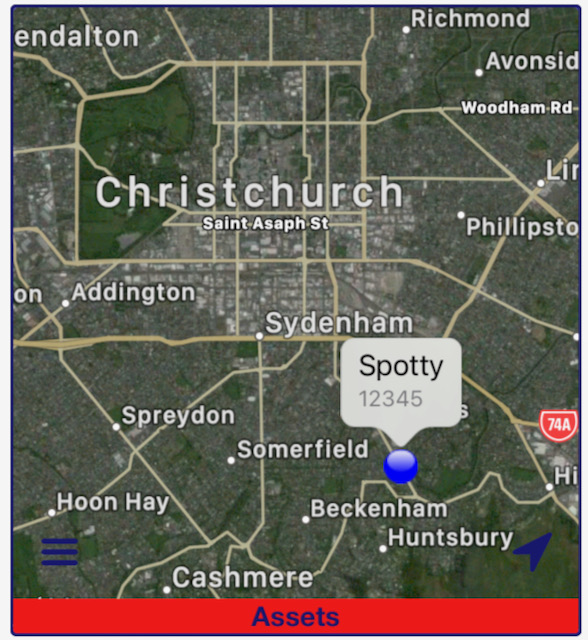

Map

A Map display is used to plot positions on a map. The Map display receives messages from the IoT Device that contain latitude and longitude to mark the position. Additional data, such as speed and altitude may also be included and shown on the Map display.

Multiple IoT devices can be shown on a single Map.

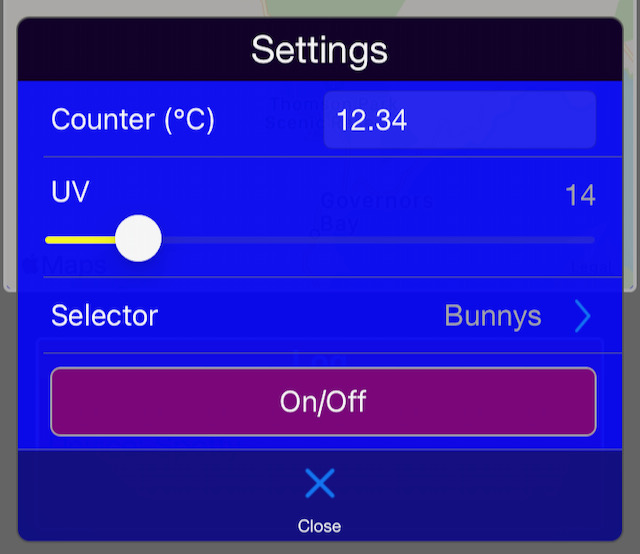

Menu

A Menu control is used to present a popup table of user adjustable controls and is ideal for presenting a list of IoT device setup parameters. The Menu does not receive messages directly, but presents a list of other controls (sub-controls) that send and receive messages of their own.

Controls that can be included in a Menu control are Text Boxes, Sliders, Selectors and Buttons.

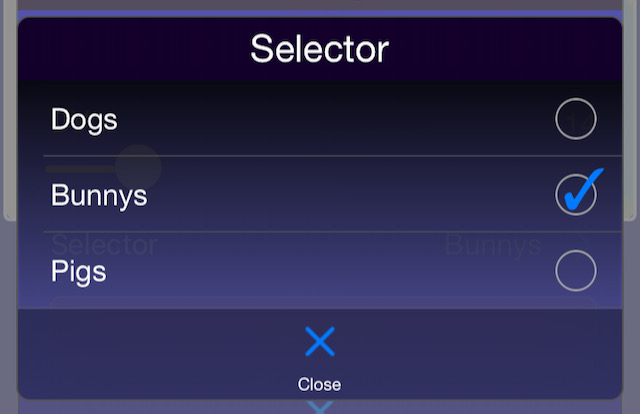

Selector

A Selector control is used to present a popup list of options that the user can select from. When a Selector is tapped, the DashIO Dashboard presents the list of text options to the user to make their selection from. The user can tap on an option to select is and the index of the selected option will be sent to the IoT device.

Feedback to the user of the dashboard is achieved when the IoT device responds to the selection message. The dashboard updates the Selector control check box with this value.

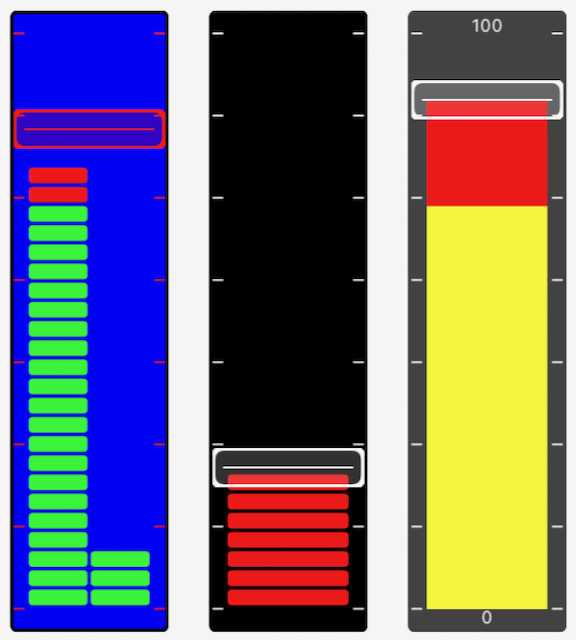

Slider

A Sliders allow the user to send a numerical values to the IoT device when the user drags the slider to a new position. The slider also includes bar graph that can be set by the IoT device. The bar graphs can be controlled independently of the slider or can be used to provide feedback to the user from the IoT Device.

The IoT device may send messages to update both the bar graph and the slider knob positions. The bar graph may set to have two bars.

The knob of the slider may be disabled so that the slider becomes a simple bar graph indicator.

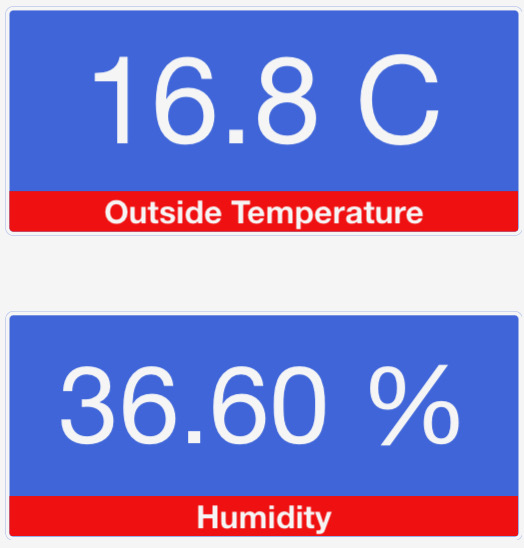

Text Box

A Text Box control receives simple line text messages from the IoT device to display on the DashIO Dashboard. The text may optionally be plain text, reformatted as a number or, when the text is ISO8601 date/time, it may be formatted to a date/time that is easy to read.

The Text Box may also allow the user to input text. Touching the control will present the user with a keyboard where the user can enter text. When the Send button on the keyboard is pressed, the message will be sent to the IoT device.

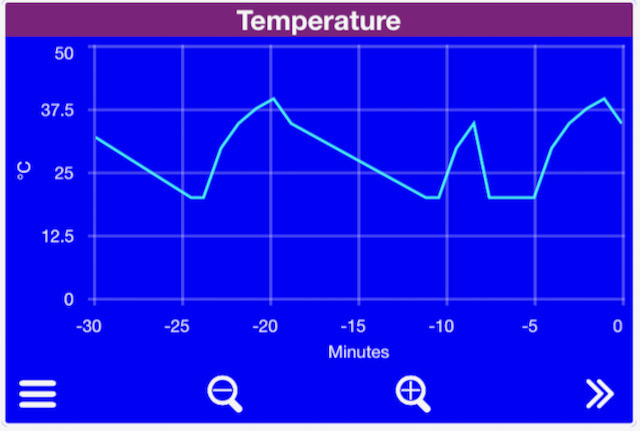

Time Graph

A Time Graph display is used to present time-series graphical data on the DashIO Dashboard, where the data is a series of points containing the time on the horizontal axis and other data on the vertical axis. The IoT device sends messages for each line in the graph. Each message contains one or more data points and the DashIO Dashboard appends the incoming data to create a data series that can be presented, panned and zoomed by the user. The data may be shown as lines, bars or blocked areas.

Each line can be independently added, deleted or changed by the IoT device. Multiple IoT devices can add lines to a single Time Graph control.

Graph data is stored in the dashboard.

Connections

TCPConnection

MQTTConnection

DashConnection

BLEConnection

The BLEConnection is only supported on Linux systems and requires bluez and dbus to be installed. It has been developed with the RaspberryPi Zero W in mind. The steps to get a Pi Zero to become a Device Server

Install bluez and bluetooth:

sudo apt-get install bluetooth bluez

Edit:

sudo nano /lib/systemd/system/bluetooth.service

Replace:

ExecStart=/usr/lib/bluetooth/bluetoothd

With:

ExecStart=/usr/lib/bluetooth/bluetoothd --noplugin=sap

Edit:

sudo nano /lib/systemd/system/bthelper@.service

Replace the [Service] segment with:

[Service]
Type=simple
ExecStartPre=/bin/sleep 2
ExecStart=/usr/bin/bthelper %I
ExecStartPost=sudo /etc/init.d/bluetooth restart

Edit:

sudo nano /etc/bluetooth/input.conf

Set:

LEAutoSecurity=false

To use the BLEConnection it has to be imported explicitly:

from dashio.bleconnection import BLEConnection

Dash Server

Advanced Architecture
