datacentertracesdatasets-cli 1.0

Datacentertracesdatasets-cli is an open-source tool designed to facilitate the usage of Datacentertracesdatasets package from a command line interface

Datacentertracesdatasets_clicli: Command-line interface for datacentertracesdatasets package

Table of Contents

• Description
• Installation
• Usage
• License
• Acknowledgements

Description

Datacentertracesdatasets-cli is a command-line interface tool that act as an interface of the datacentertracesdatasets package. Datacentertracesdatasets package facilitates the access to three dataset traces: Alibaba2018, Azure_v2 and Google2019.

This command-line interface is OS independent and can be easily installed and used.

Available original datasets

Public datasets organized for machine learning or artificial intelligence usage. The following dasets can be used:

Alibaba 2018 machine usage

Processed from the original files found at: https://github.com/alibaba/clusterdata/tree/master/cluster-trace-v2018

This repository dataset of machine usage includes the following columns:

+--------------------------------------------------------------------------------------------+
| Field            | Type       | Label | Comment                                            |
+--------------------------------------------------------------------------------------------+
| cpu_util_percent | bigint     |       | [0, 100]                                           |
| mem_util_percent | bigint     |       | [0, 100]                                           |
| net_in           | double     |       | normarlized in coming network traffic, [0, 100]    |
| net_out          | double     |       | normarlized out going network traffic, [0, 100]    |
| disk_io_percent  | double     |       | [0, 100], abnormal values are of -1 or 101         |
+--------------------------------------------------------------------------------------------+

Three sampled datasets are found: average value of each column grouped every 10 seconds as original, and downsampled to 30 seconds and 300 seconds as well. Every column includes the average utilization of the whole data center.

Figures

Some figures were generated from these datasets

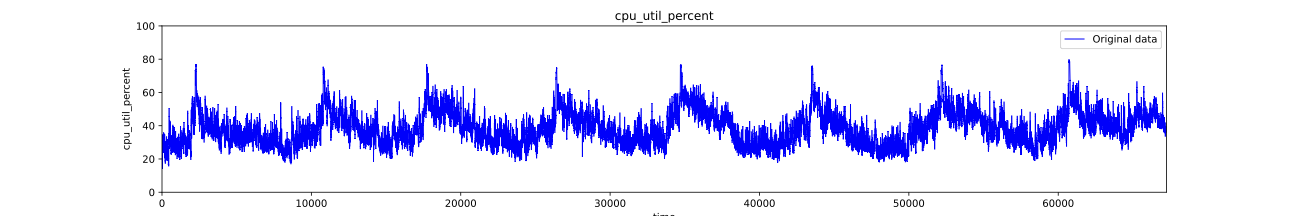

Figure: CPU utilization sampled every 10 seconds

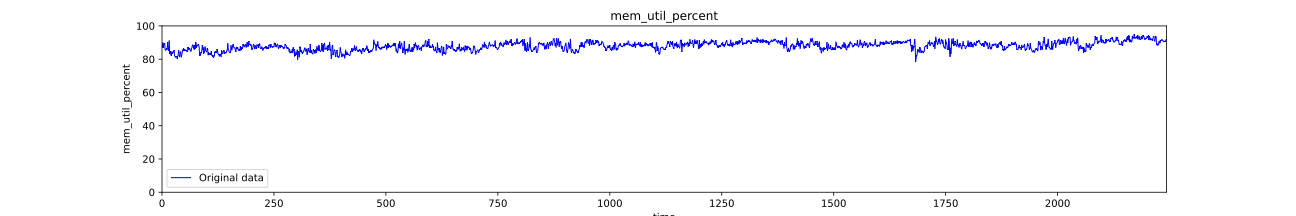

Figure: Memory utilization sampled every 300 seconds

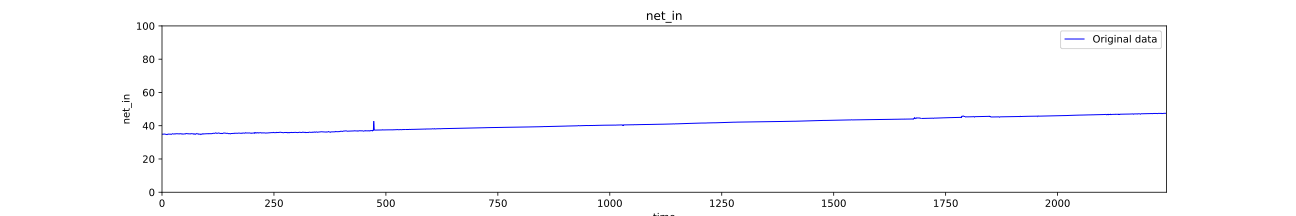

Figure: Net in sampled every 300 seconds

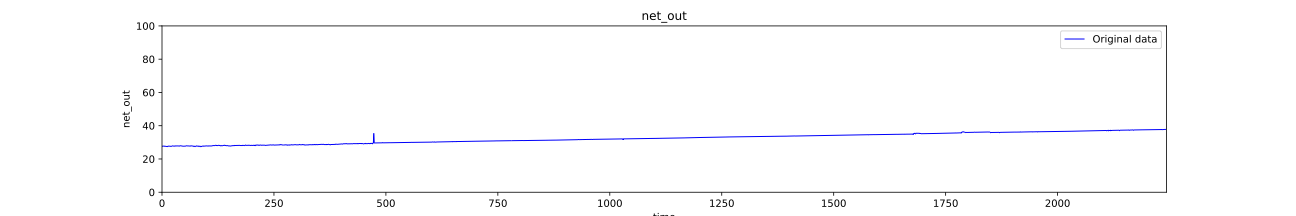

Figure: Net out sampled every 300 seconds

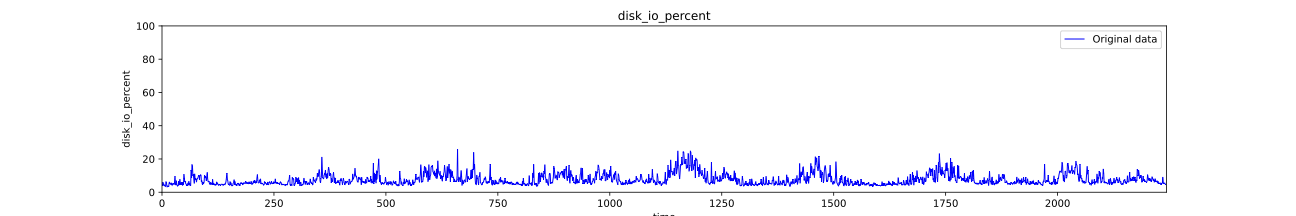

Figure: Disk io sampled every 300 seconds

Google 2019 instance usage

Processed from the original dataset and queried using Big Query. More information available at: https://research.google/tools/datasets/google-cluster-workload-traces-2019/

This repository dataset of instance usage includes the following columns:

+--------------------------------------------------------------------------------------------+
| Field                         | Type       | Label | Comment                               |
+--------------------------------------------------------------------------------------------+
| avg_cpu                       | double     |       | [0, 1]                                |
| avg_mem                       | double     |       | [0, 1]                                |
| avg_assigned_mem              | double     |       | [0, 1]                                |
| avg_cycles_per_instruction    | double     |       | [0, _]                                |
+--------------------------------------------------------------------------------------------+

One sampled dataset is found: average value of each column grouped every 300 seconds as original. Every column includes the average utilization of the whole data center.

Figures

Some figures were generated from these datasets

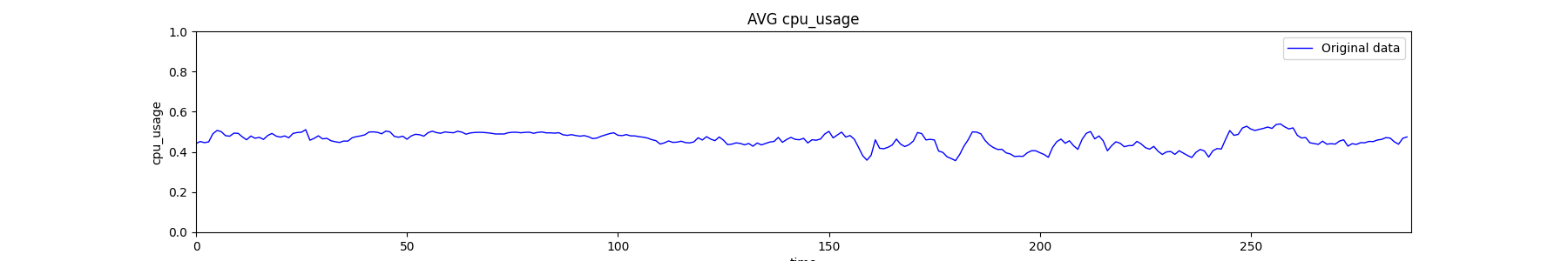

Figure: CPU usage day 26 sampled every 300 seconds

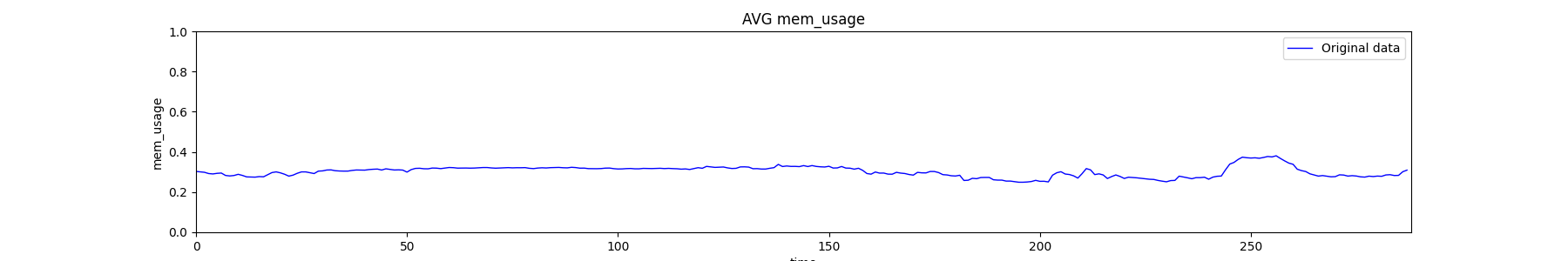

Figure: Mem usage day 26 sampled every 300 seconds

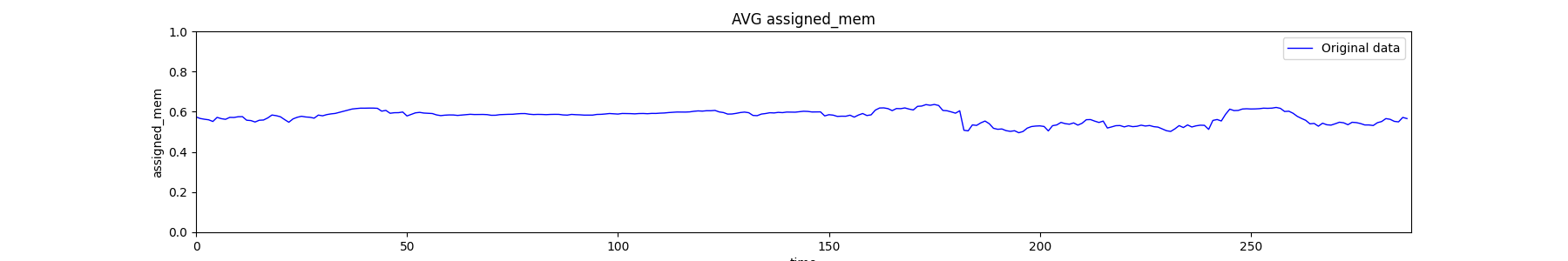

Figure: Assigned mem day 26 sampled every 300 seconds

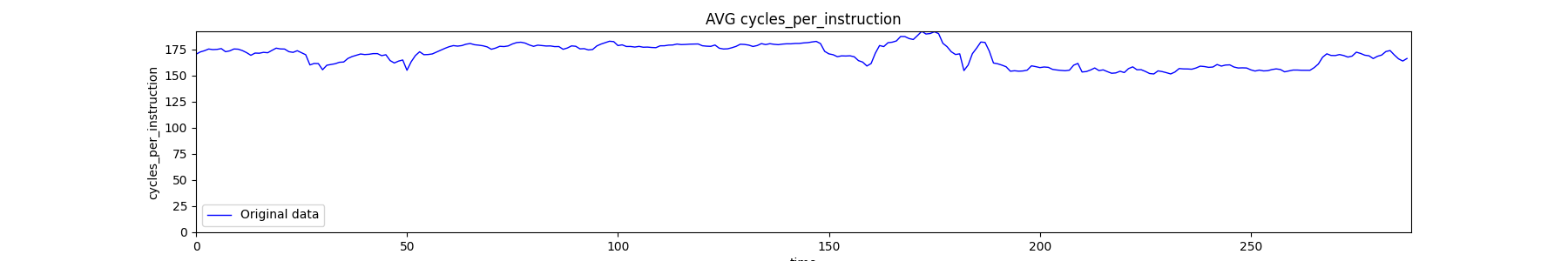

Figure: Cycles per instruction day 26 sampled every 300 seconds

Azure v2 virtual machine workload

Processed from the original dataset. More information available at: https://github.com/Azure/AzurePublicDataset/blob/master/AzurePublicDatasetV2.md

This repository dataset of instance usage includes the following columns:

+--------------------------------------------------------------------------------------------+
| Field                         | Type       | Label | Comment                               |
+--------------------------------------------------------------------------------------------+
| cpu_usage                     | double     |       | [0, _]                                |
| assigned_mem                  | double     |       | [0, _]                                |
+--------------------------------------------------------------------------------------------+

One sampled dataset is found: sum value of each column grouped every 300 seconds as original. For computing CPU_usage, we used core_count usage of each virtual machine. Every column includes the total consumption of the whole data center virtual machines. There is a version of each file including timestamp (from 0 to 2591700, in 300 seconds timestep), and other version without timestamp

Figures

Some figures were generated from these datasets

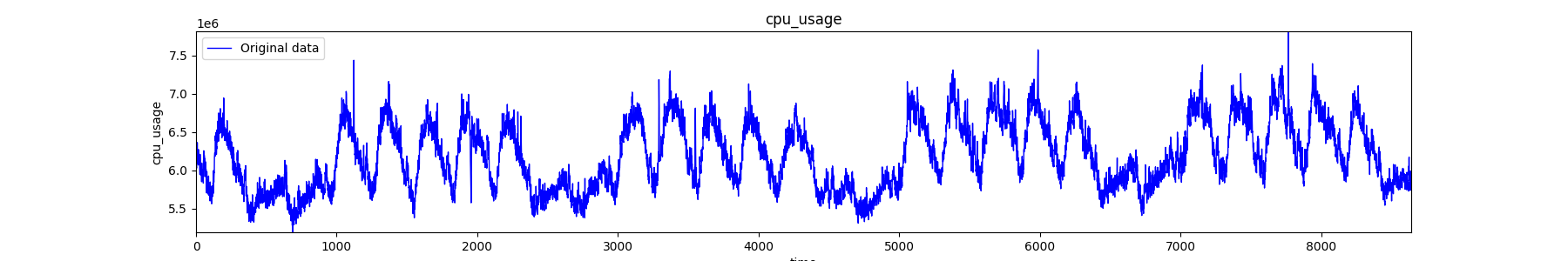

Figure: CPU total usage by virtual machines sampled every 300 seconds.

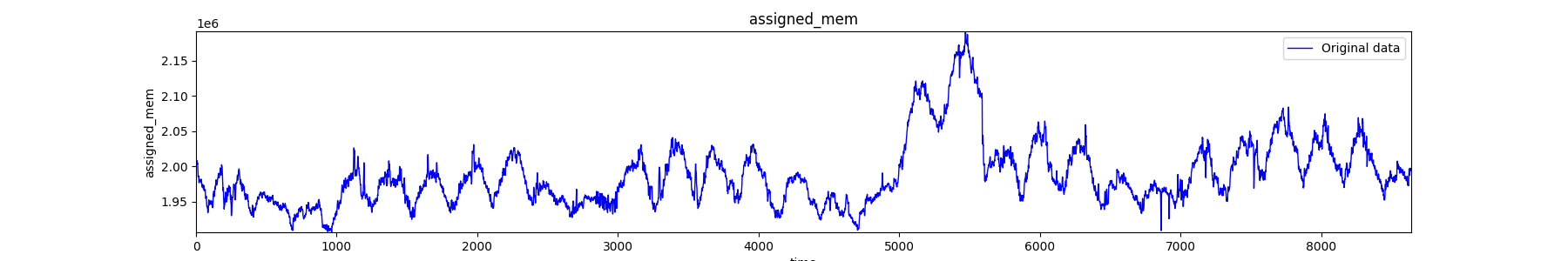

Figure: Total assigned memory for virtual machines sampled every 300 seconds.

Available sythetic datasets

Moreover, for dataset augmentation and deep learning purposes, the datasets have been augmented using TimeGAN (https://github.com/DamianUS/timegan-pytorch) trained models.

The augmented datasets are composed of time series of lenght 288 and sampled to 300 seconds, that would correspond to one operational day of the data center.

Installation

To install the tool in your local environment, just run follow command:

pip install datacentertracesdatasets-cli

Basic usage examples:

Some examples for obtaining the datasets are shown below.

1. Full Azure_V2 original dataset sampled at 300 seconds:

   datacentertracesdatasets-cli -trace azure_v2


   The resulting file will be found at:

2. Full Alibaba2018 original dataset sampled at 10 seconds:

   datacentertracesdatasets-cli -trace alibaba2018 -stride 10


3. A synthetic sample of 1 day for Google2019 sampled at 300 seconds:

   datacentertracesdatasets-cli -trace google2019 -generation synthetic


4. A synthetic sample of 1 day for Google2019 sampled at 300 seconds providing a filename:

   datacentertracesdatasets-cli -trace google2019 -generation synthetic -file my_dataset.csv


License

Datacentertracesdatasets-cli is free and open-source software licensed under the MIT license.

Acknowledgements

Project PID2021-122208OB-I00, PROYEXCEL_00286 and TED2021-132695B-I00 project, funded by MCIN / AEI / 10.13039 / 501100011033, by Andalusian Regional Government, and by the European Union - NextGenerationEU.
