defisheye 1.4.1

Fast defisheye algorithm

Defisheye

Fast Corrects for fisheye distortion in an image.

Defisheye is designed to transform a fisheye image into a normal perspective view looking towards the center of the fisheye image.

Install

python setup.py install

or:

pip install defisheye

Usage

CLI

For individual Image

defisheye --image example/images/example3.jpg

Process all image in a folder

defisheye --images_folder example/images --save_dir example/Defisheye

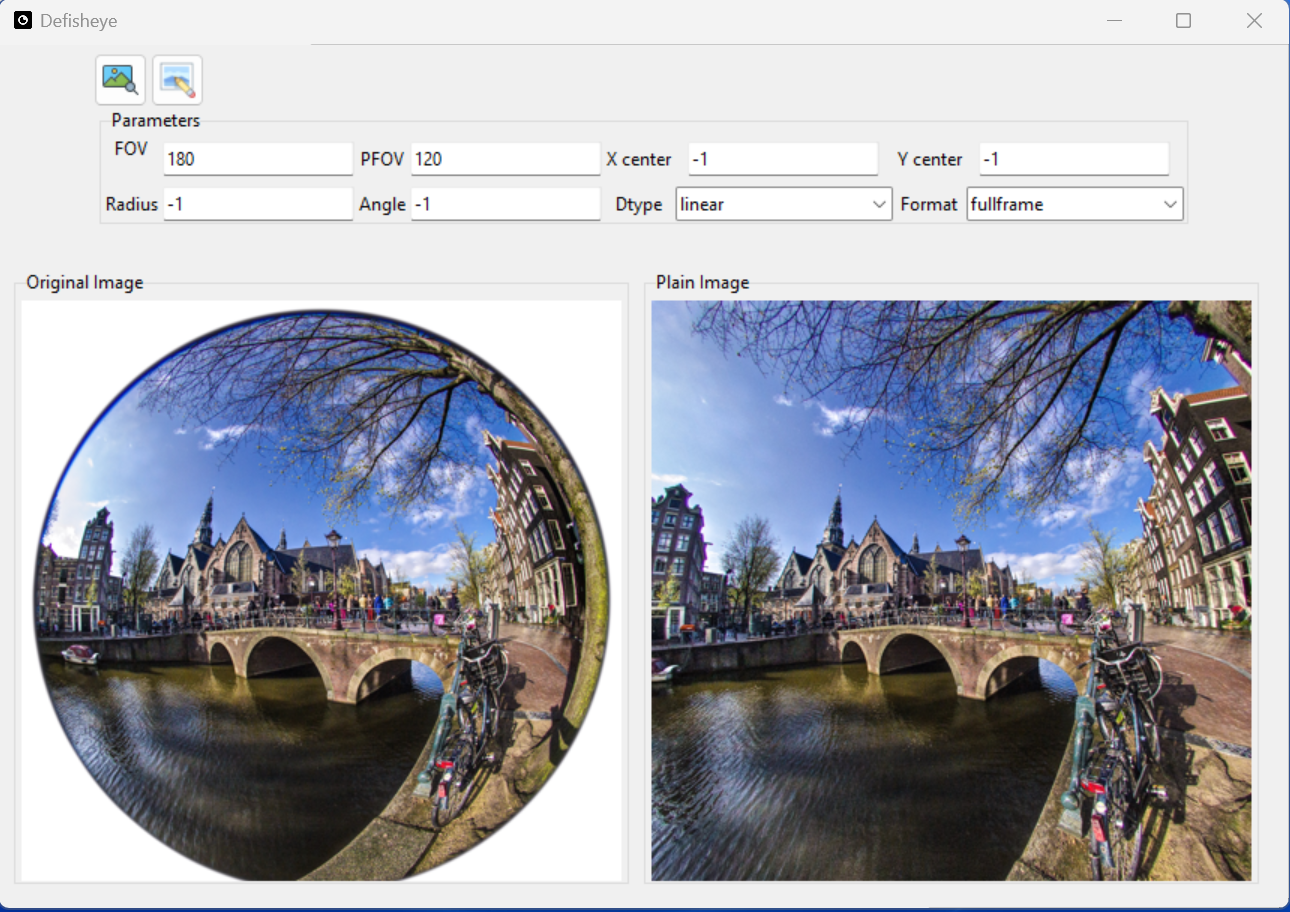

Defisheye App

The GUI version to analyse parameters

defisheyeapp

Python Code

from defisheye import Defisheye

dtype = 'linear'
format = 'fullframe'
fov = 180
pfov = 120

img = "./images/example3.jpg"
img_out = f"./images/out/example3_{dtype}_{format}_{pfov}_{fov}.jpg"

obj = Defisheye(img, dtype=dtype, format=format, fov=fov, pfov=pfov)

# To save image locally
obj.convert(outfile=img_out)

# To use the converted image in memory

new_image = obj.convert()

Parameter/ Atributes:

For CLI command, use "--" and the parameter to pass for the command line: Exemple

defisheye --images_folder example/images --save_dir example/Defisheye --fov 140

The default fov is 180, but now was changed by 140 from command line. Same rule for the following parameters.

fov

fisheye field of view (aperture) in degrees.

IFOV is the input fisheye image field of view in degrees. A value of 180 will correspond to a hemispherical fisheye image within the circular area. Values are floats in the range 0<ifov<=180. The default is 180 degrees for a full hemisphere.

pfov

perspective field of view (aperture) in degrees.

OFOV is the output perspective image field of view in degrees. Values are floats in the range 0<ofov<180. The default is to use 120 degrees both vertically and horizontally for a circular fisheye and diagonally for a full frame fisheye. The value for ofov relative to the ifov determines the proportional amount of the fisheye area that will be transformed. Note that in comparison, a value of 48.8 degrees corresponds to a diagonal field of view from a 35 mm camera (film size 36mm x 24mm) with a 50mm focal length lens, i.e. a "normal" view. Similarly, when the image diagonal is equal to the focal length of the camera, the field of view is about 53.1 degrees. Although the default value is perhaps not appropriate to a normal perspective image, this will produce an image that maximizes the area covered, but without too much distortion. If the original fisheye image was viewed obliquely, i.e. the camera was tilted between horizontal and vertical, then the resulting perspective view will have perspective distortion. That is vertical edges will be tilted outward or inward. Post processing with my 3Drotate or rotate3D script will then correct for this perspective distortion. Perspective distortion will be more pronounced with larger values for ofov.

dtype

linear, equalarea, orthographic, stereographic

TYPE is the type of fisheye lens. The choices are: linear (equidistant), equalarea (equisolid), orthographic and stereographic. The default is linear.

format

circular, fullframe

FORMAT is the format of the fisheye lens image. The choices are: circular (image fills a circle that spans the minimum of the width or height) or fullframe (image spans a circle that spans the diagonal dimension). The default is circular.

xcenter

x center of fisheye area

ycenter

y center of fisheye area

radius

radius of fisheye area

RADIUS is the radius of the fisheye circular area in the input image. Values are floats greater than zero. The default is half the minimum value between the input image width and height.

angle

image rotation in degrees clockwise

ANGLE is the clockwise positive rotation angle for the output perspective image relative to the orientation of the input fisheye image. Values are non-negative floats in range 0<=angle<360. The default is 0.

pad

Expand original image (padding), used to get final processed image with size next to original image.

Example

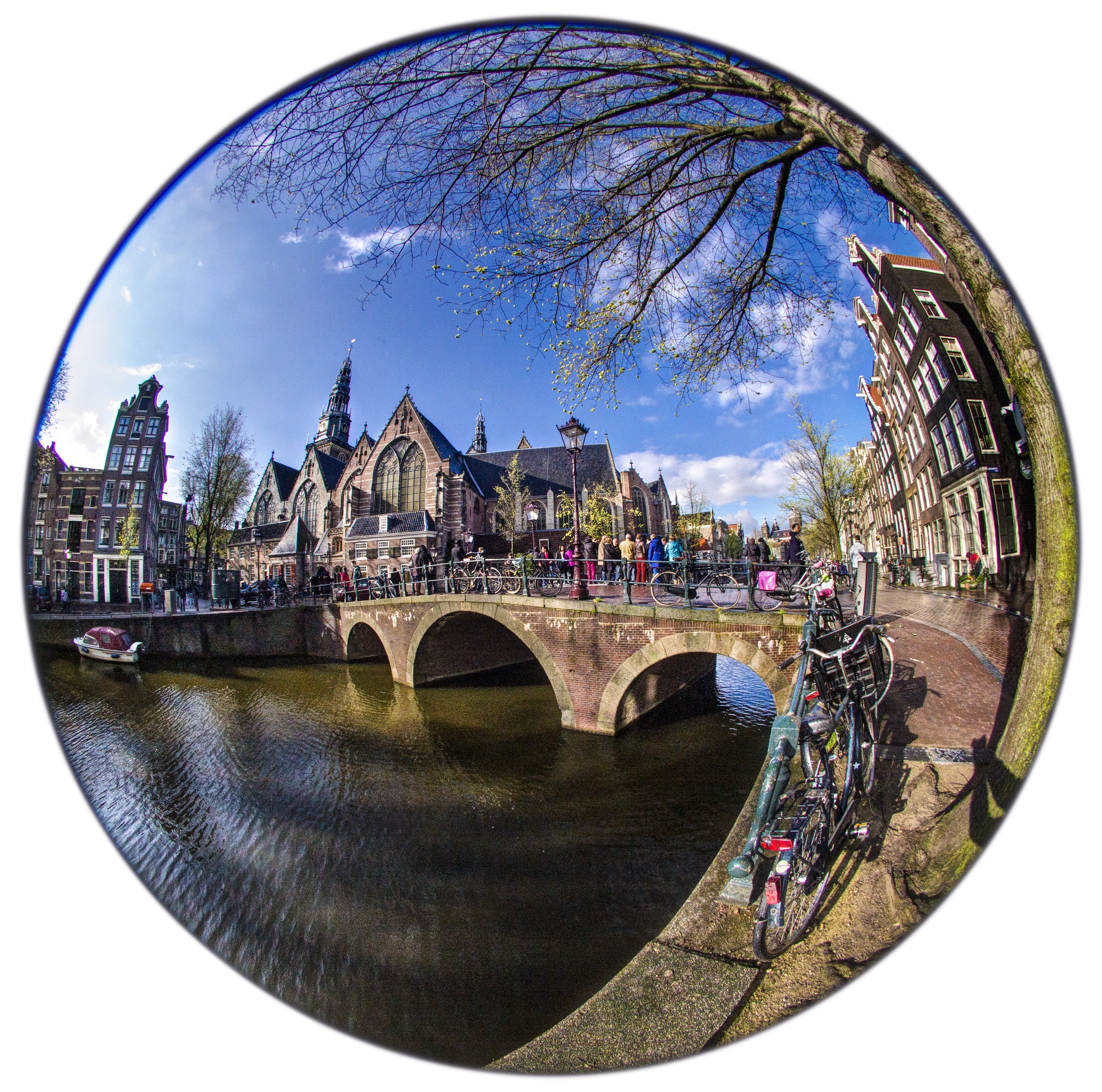

Original

pfov = 120

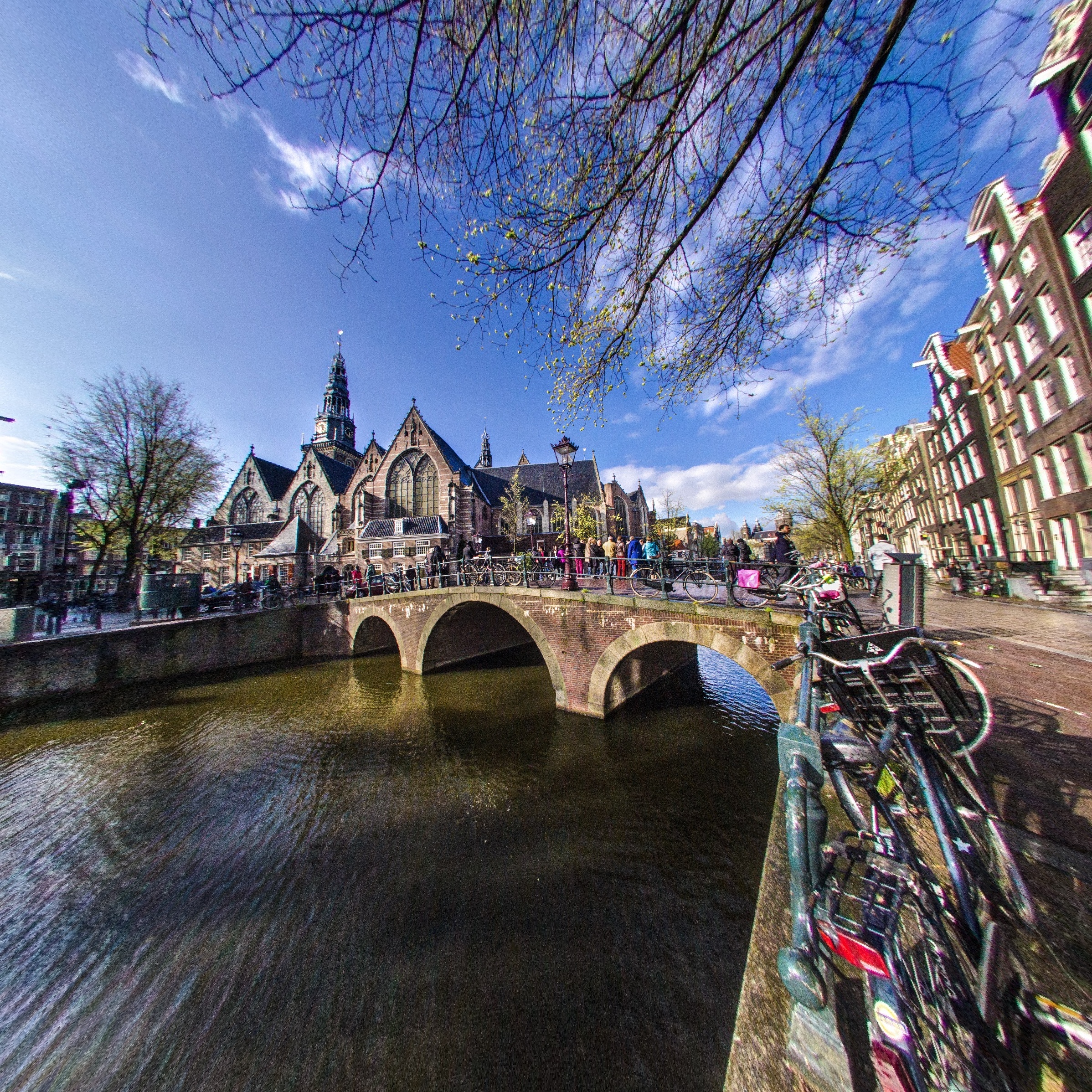

Equal area Circular

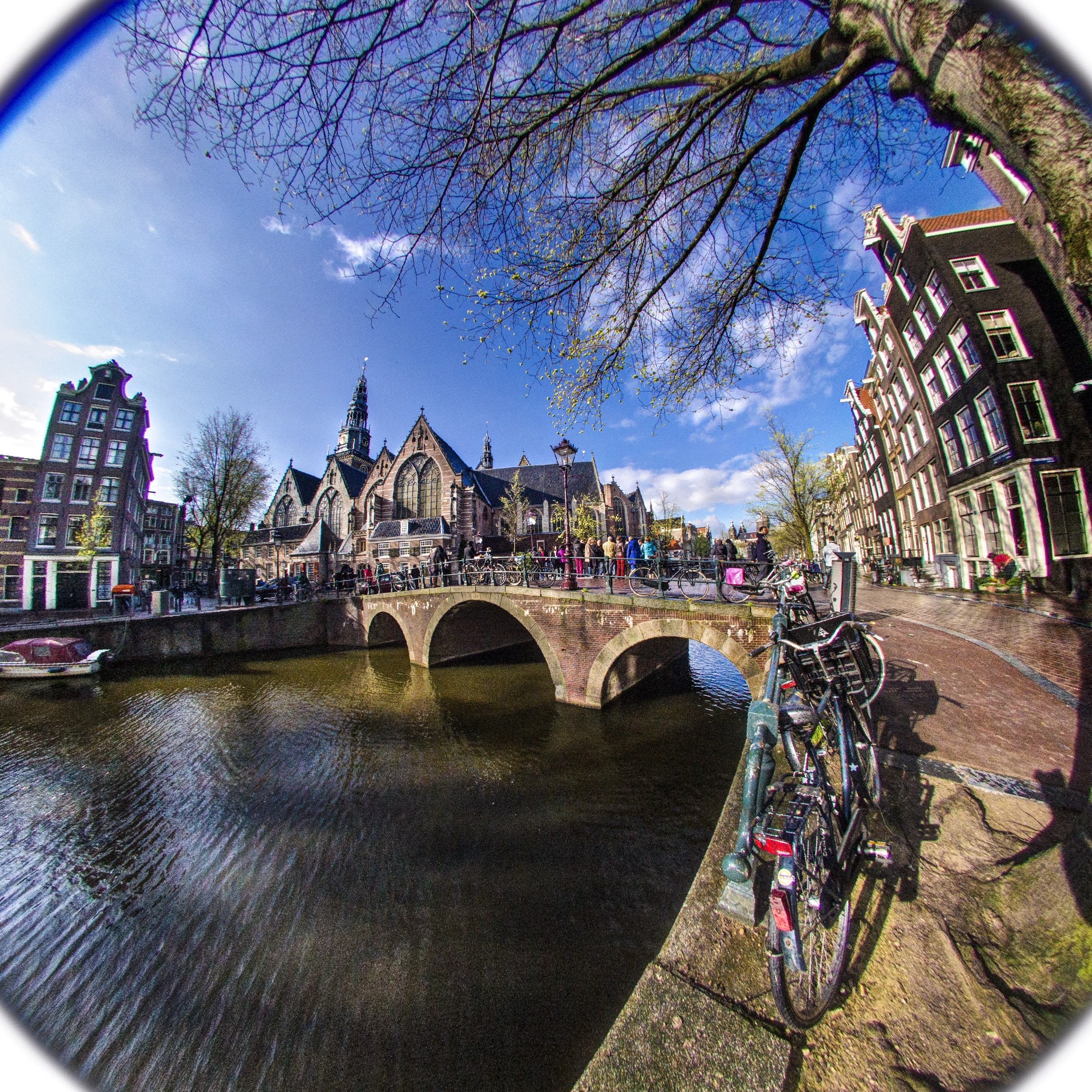

Equal area Fullframe

Linear Circular

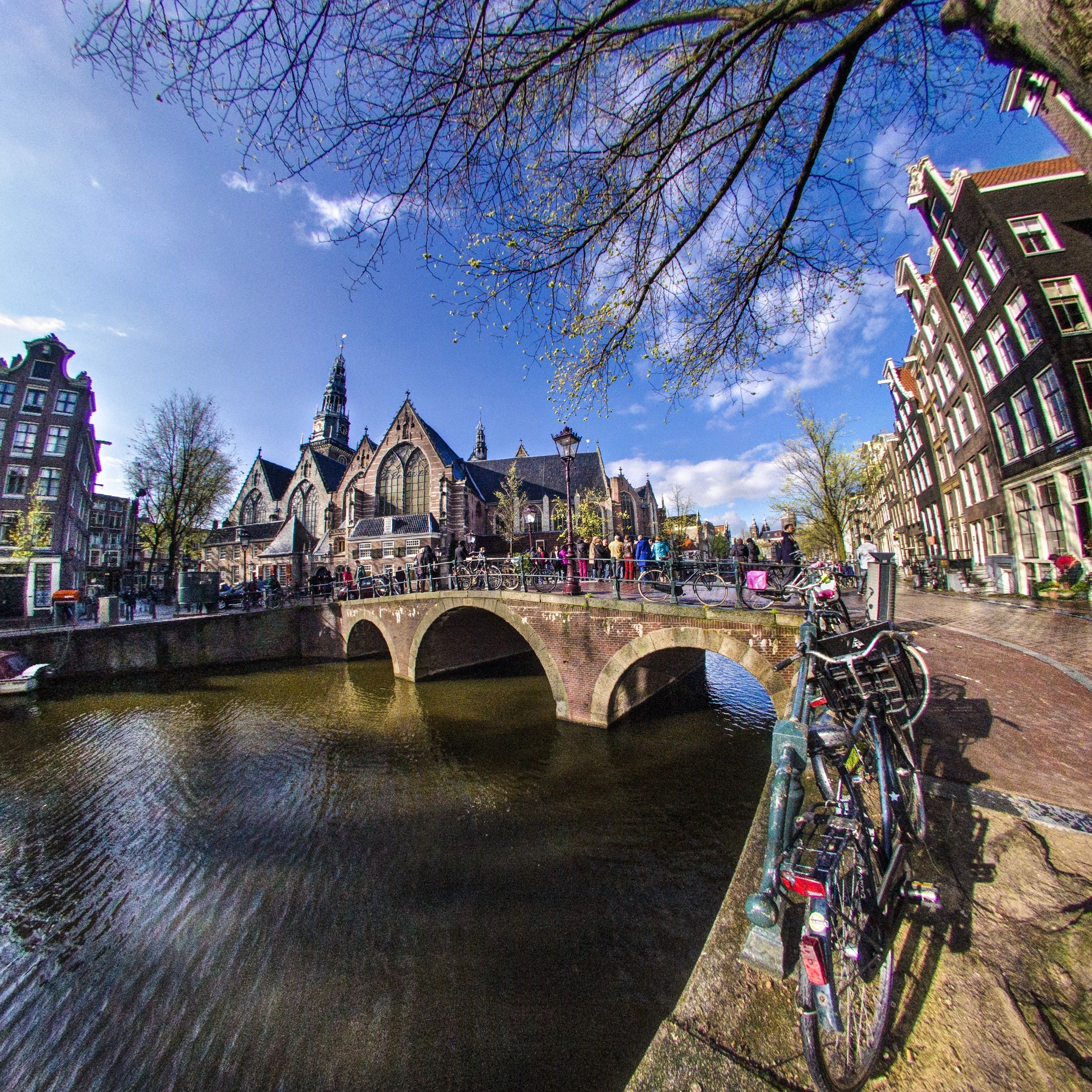

Linear Fullframe

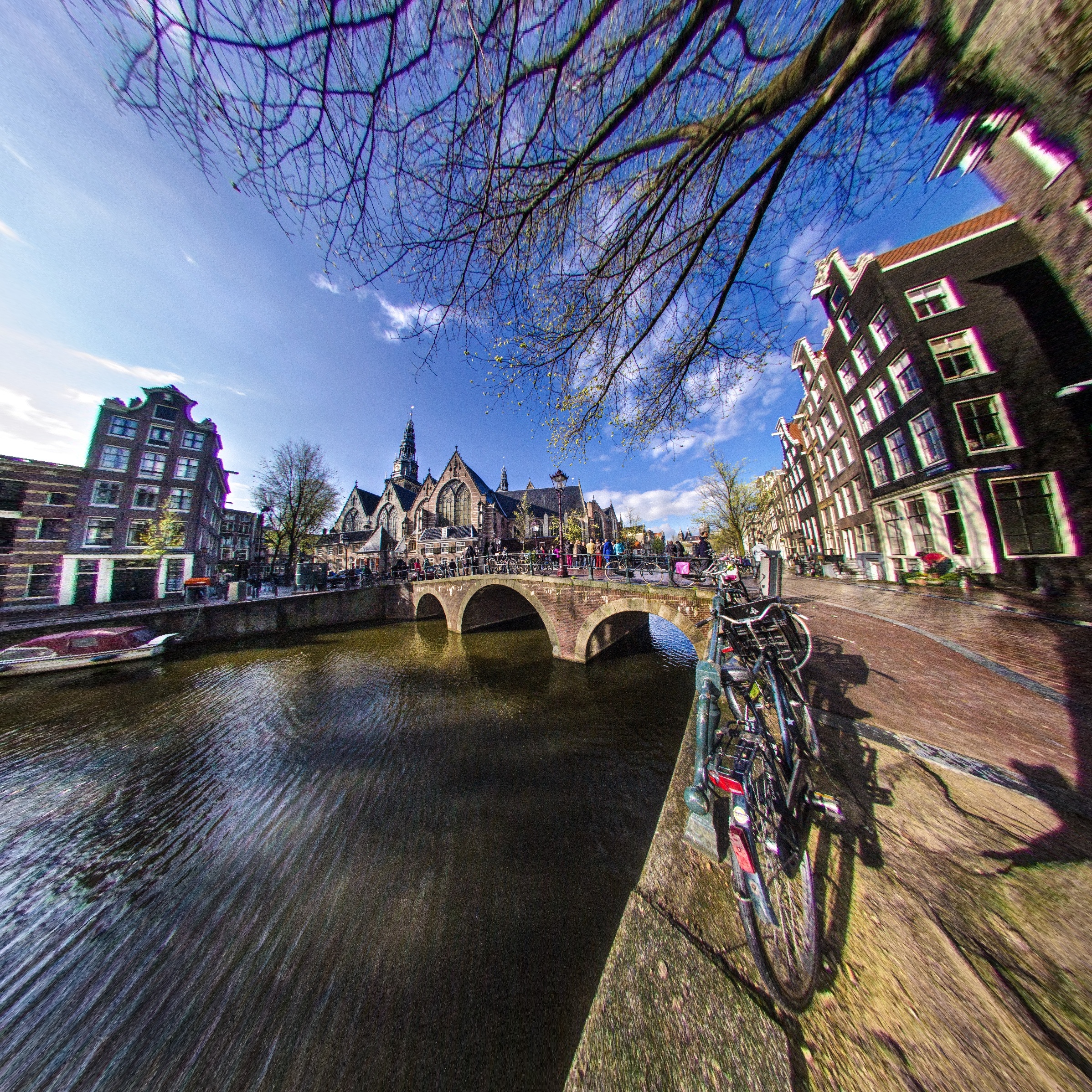

orthographic Circular

Stereographic Circular

Extra
