denonremote 0.10.0

A desktop GUI remote for the Denon DN-500 AV receiver.

Denon Remote

Control Denon Professional DN-500AV surround preamplifier remotely.

Features

Target hardware

• Denon Professional DN-500AV (Seems to be based on the same platform as the Denon AVR-1912 and AVR-2112CI)
• More? Contributions welcome!

Communication

• Ethernet
  • Using Twisted
  • connection status detection
  • automatically try to reconnect with exponential backoff
• RS-232? also using Twisted
• General MIDI input using Mido
  • Define control scheme. See: Summary of MIDI 1.0 Messages , MIDI 1.0 Control Change Messages
    • CC7 = Master Volume
    • CC120 = Mute
    • CC? = On/Standby
    • Program Changes -> Inputs select
      • Mapping?
  • Virtual ports
    • using loopMidi for Windows
    • rt-midi native for *NIX OSes
    • rtpMIDI?

Controls

• Setup
  • IP address
  • Serial port?
    • COM (Windows)
    • tty (*NIX OSes)
• On/Standby
• Main volume
  • Get
    • Relative
    • Absolute
  • Set
    • Relative
    • Absolute
  • Mute
• SPL calibrated display
  • EBU/SMPTE RP200: 85dB C SPL @ -18 dBFS (Equivalent to 83 dB C SPL @ -20 dBFS)
  • K meter
    • K-20: -20dBFS = 83dB C SPL (Same as SMPTE and EBU)
    • K-14: -14dBFS = 83dB C SPL
      • Can be compensated from SMPTE/EBU levels by lowering the output volume by 6dB
    • K-12: -12dBFS = 83dB C SPL
      • Can be compensated from SMPTE/EBU levels by lowering the output volume by 8dB
  • EBU R 128: -23LUFS (-23dBFS) = 73dB C SPL (Debatable/unclear removed for now)
  • Presets!
    • Relative (-18dB, -24dB…)
    • Absolute
    • SPL calibrated
• Zone 2
• Per Channel level (Up to 7.1)
• Tone
• EQ
• Sound presets
• Input select
  • Favorites
• Security
  • Panel Lock
  • IR Remote Lock
• Settings backup/restore
  • All
  • Subsystems?
• Retrieve status
  • Logger
  • Update the GUI
• Import EQ settings
  • From REW value file
    • Only use negative values! You can’t compensate a destructive room mode by adding energy to it.
• Full Profiles/presets?

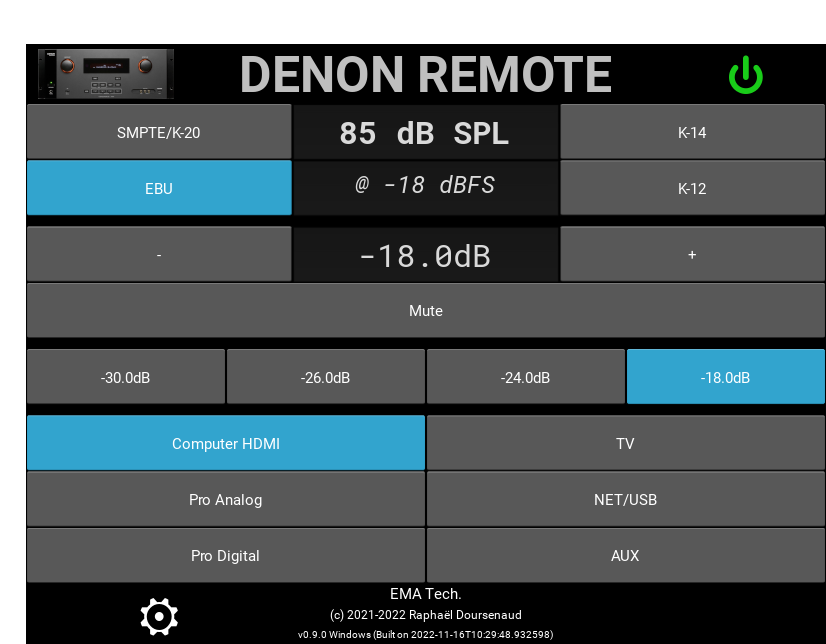

GUI

• Using Kivy
  • Keyboard shortcuts:
    • M for Mute
    • Up/Down Vol +/-
    • Left/Right VolPreset +/-
    • PgUp/PgDwn SrcPreset +/-
• Systray/Taskbar support using pystray
• Only one instance is allowed (Microsoft Windows only)
• Option to make window stay always on top (Microsoft Windows only)
• Touch doesn't activate the window and doesn't steal focus (Microsoft Windows only)
• Trigger events without having to activate the window first (Microsoft Windows only)
• Draw it on the first touch enabled display if available instead of the main one

Windows executable

• Handle shutdown to power off the device
• Generate icon with IconMaker
• PyInstaller (Fairly stable for Microsoft Windows)
  • UPX support
  • How to build:
    • Review denonremote.spec
    • Use hatch build; hatch run build:pyinstaller
• Nuitka (Alpha support for Microsoft Windows)
  • Use hatch build; hatch run build:nuitka
• PyOxidiser
• cx-Freeze for multiplatform support?
• VST plugin? (Not required if MIDI input is implemented but would be neat to have in the monitoring section of a DAW)
  • See PyVST

Mobile

• Autonomous mobile app? Kivy enables that!
  • Android
  • iOS/iPadOS

Proxy/background service?

The receiver only allows 1 active connection. A dispatcher proxy could allow multiple simultaneous remotes (Desktop and mobile).

Other opportunities

Open ports:

• 23/tcp (TELNET): BridgeCo AG Telnet server
  AVR serial protocol used here
• 80/tcp (HTTP): GoAhead WebServer
  Web control (index.asp) Shows nothing.
  Most of the useful code is commented!
  CSS loading at "css/mainMenu.css" times out.
  Main control is available at "MainZone/index.html"!
• 443/tcp (HTTPS):
  ERR_SSL_PROTOCOL_ERROR in Google Chrome
  SSL_ERROR_EXTRACT_PUBLIC_KEY_FAILURE in Mozilla Firefox
• 1026/tcp (RTSP): Apple AirTunes rtspd 103.2
• 6666/tcp: ?
• 8080/tcp (HTTP): AV receiver http config

Similar projects

Android

• AVR-Remote

JavaScript:

• https://github.com/phillipsnick/denon-avr
• https://github.com/murderbeard/com.moz.denon
• https://github.com/jtangelder/denon-remote

PHP

• https://github.com/Wolbolar/IPSymconDenon (IP Symcon automation)

Python:

• https://github.com/jeroenvds/denonremote (XBMC plugin)
• https://github.com/Tom360V/DenonAvr (Similar objectives?)
• https://github.com/toebsen/python-denonavr (HTTP RESTful server)
• https://github.com/MrJavaWolf/DenonPhoneController (Landline phone controller)
• https://github.com/troykelly/python-denon-avr-serial-over-ip (Library)
• https://github.com/auchter/denonavr_serial (Library)
• https://github.com/jphutchins/pyavreceiver (Nice library)
• https://github.com/frawau/aiomadeavr (Library)
• https://github.com/scarface-4711/denonavr (Uses the HTTP/XML interface. Library)
