distance3d 0.9.0

Distance computation and collision detection in 3D.

distance3d

Distance computation and collision detection in 3D.

Robot collision detection	Capsule collision detection

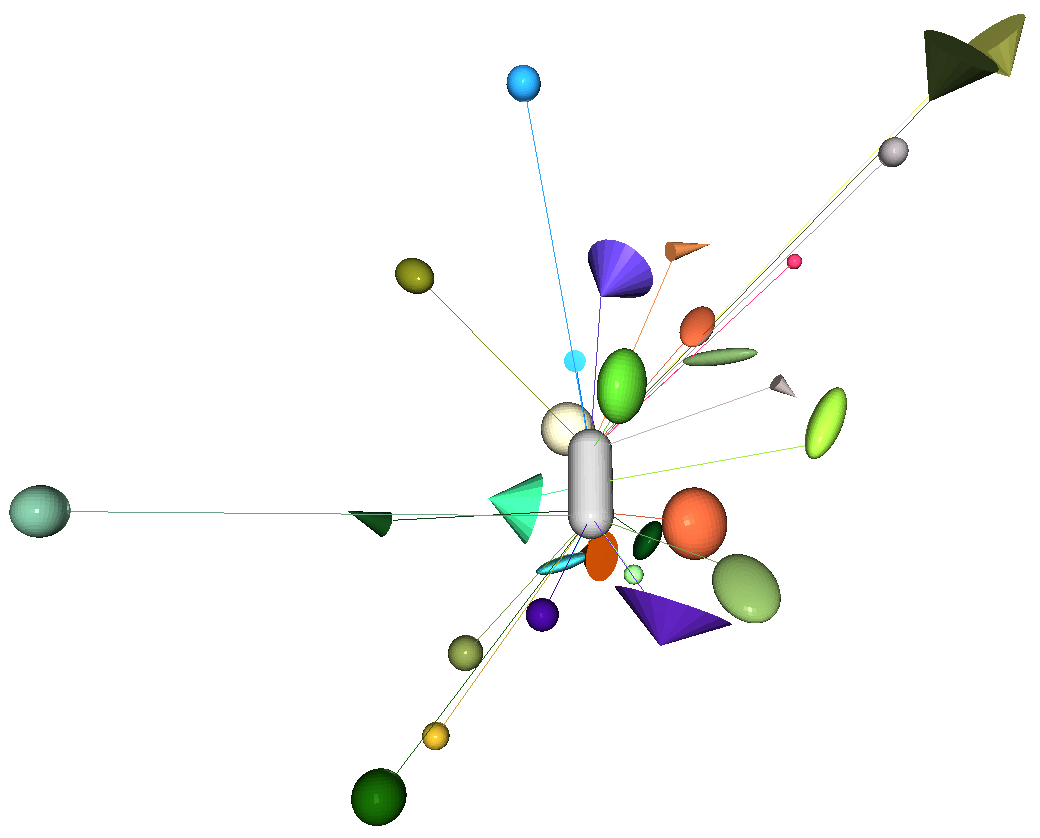

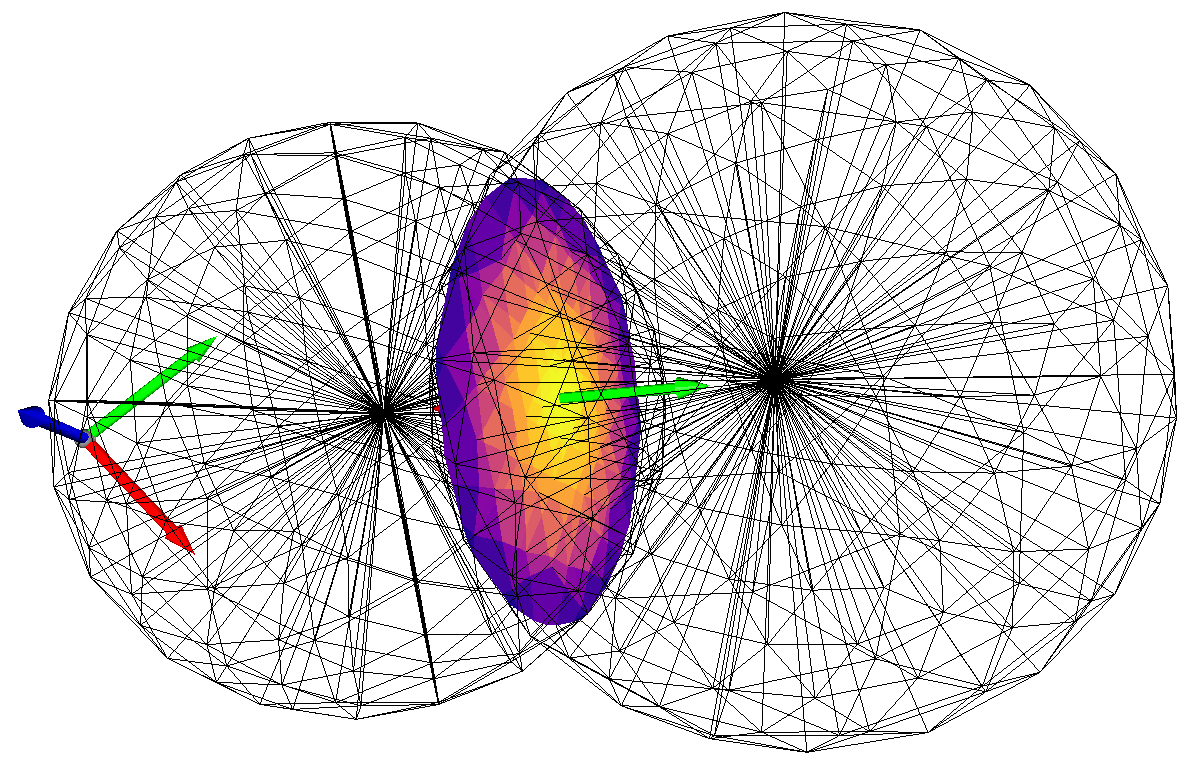

Closest points	Hydroelastic contact

Features

• Collision detection and distance computation with GJK.
• Calculation of penetration depth with EPA.
• Collision detection and calculation of penetration depth with MPR.
• Various specific distance calculations for points, lines, line segments, planes, triangles, rectangles, circles, disks, boxes, cylinders, ellipsoids, ...
• Broad phase collision detection with bounding volume hierarchy (AABB tree).
• Self-collision detection for robots.
• Contact wrench computation with hydroelastic contact model (pressure field model).

Dependencies

distance3d relies on numba to speed up computations. numba in its latest version requires at least Python 3.7 and NumPy 1.18. See here for current requirements. Required Python libraries will automatically be installed during installation of distance3d.

Installation

Install the package with

pip install -e .[all]

or from PyPI with

pip install distance3d[all]

Unit Tests

Install dependencies with

pip install -e .[test]

Run unit tests with

NUMBA_DISABLE_JIT=1 pytest

You will find the coverage report in htmlcov/index.html.

API Documentation

Install dependencies with

pip install -e .[doc]

Build API documentation with

cd doc
make html

You will find the documentation in doc/build/html/index.html.

Licenses

These implementations are mostly based on

• Christer Ericson: Real-Time Collision Detection, CRC Press, 2004.
• David H. Eberly: 3D Game Engine Design, CRC Press, 2006.

and accompanying implementations. These are marked as such.

The distance computation between a line and a circle is based on David Eberly's implementation, Copyright (c) 1998-2022 David Eberly, Geometric Tools, Redmond WA 98052, distributed under the Boost Software License, Version 1.0.

The original GJK algorithm is a translation to Python of the translation to C of the original Fortran implementation. The C implementation is from Diego Ruspini. It is available from http://realtimecollisiondetection.net/files/gilbert.c

Some features related to the GJK algorithm have been inspired by Bullet (zlib license) and are marked as such in the source code.

The EPA algorithm is adapted from Kevin Moran's GJK implementation (MIT License or Unlicense).

A GJK intersection test and the MPR algorithm are based on libccd (for details, see https://github.com/danfis/libccd). For the original code the copyright is of Daniel Fiser [e-mail]. It has been released under 3-clause BSD license.

The main GJK implementation is based on Jolt Physics, Copyright 2021 Jorrit Rouwe, MIT license.

The translation to Python has been done by Alexander Fabisch and the glue code around it is licensed under the 3-clause BSD license.
