django-uniauth 1.4.1

A Django app for managing CAS and custom user authentication.

django-uniauth

django-uniauth is an app for allowing authentication through services commonly used by universities, such as CAS, while also permitting custom authentication schemes. This approach allows developers to leverage the user data contained within university databases, without strictly tethering themselves to those services. It also allows educational software to have a drop-in authentication solution utilizing the single-sign-on mechanisms of universities, typically CAS, to avoid requiring students to create an additional username or password.

The app was designed to replace key features of the built-in django.contrib.auth package. Developers may simply replace the appropriate backends and URLs and let Uniauth handle authentication entirely if they wish. However, the app is also fully customizable, and components may be swapped with compatible replacements if desired.

Features

• Supports Python 2.7, 3.5+
• Supports Django 1.11, 2.x, 3.x, 4.x
• Supports using a custom User model
• Supports using email addresses as the "username" field
• Users can link multiple email addresses and use any for authentication
• Supports CAS authentication and Single Sign On
• Multiple CAS servers can be configured and users may use any for authentication

Major Updates

• 1.4.0: Added support for custom JWT token serializers
• 1.3.1: Added support for Django 4.x and newer Python versions
• 1.3.0: Added JWT Support
• 1.2.0: Uniauth UserProfile model now backreferenced from the Django User model via user.uniauth_profile instead of user.profile.

Tutorials

• How to add CAS authentication with Uniauth: link

Table of Contents

• Installation
• Email Setup
• Settings
• Users in Uniauth
• Models
• Backends
• Commands
• Views
• Template Customization
• URLs
• User Migration
• Using JWT Authentication
• Demo Application
• Acknowledgements

Installation

Install using pip:

pip install django-uniauth

Add 'uniauth' to your INSTALLED_APPS setting:

INSTALLED_APPS = [
    ...
    uniauth,
]

Add the desired Uniauth authentication backends. For example:

AUTHENTICATION_BACKENDS = [
    'uniauth.backends.LinkedEmailBackend',
    'uniauth.backends.CASBackend',
]

Include the uniauth URLS in your urls.py:

urlpatterns = [
    ...
    path('accounts/', include('uniauth.urls', namespace='uniauth')),
]

Lastly, add your desired institution CAS server(s). For example:

python manage.py add_institution "Example Institution" https://cas.example.edu/

See the commands section for more information regarding adding and removing institution CAS servers.

Email Setup

Uniauth will send emails to users when necessary, such as to verify email addresses or for resetting passwords. During development, it may be sufficient to log these emails to the console - this is accomplished by adding the following to settings.py:

EMAIL_BACKEND = 'django.core.mail.backends.console.EmailBackend'

On production, a real email backend should be properly set up. See the docs on setting up an SMTP backend for more information.

Settings

Uniauth uses the following settings from the django.contrib.auth package:

• LOGIN_URL: Determines where to redirect the user for login, particularly when using the @login_required decorator. Defaults to /accounts/login/.
• PASSWORD_RESET_TIMEOUT_DAYS: Determines how long password reset and email verification links are valid after being generated. Defaults to 3.

The following custom settings are also used:

• UNIAUTH_ALLOW_SHARED_EMAILS: Whether to allow a single email address to be linked to multiple profiles. Primary email addresses (the value set in the user's email field) must be unique regardless. Defaults to True.
• UNIAUTH_ALLOW_STANDALONE_ACCOUNTS: Whether to allow users to log in via an Institution Account (such as via CAS) without linking it to a Uniauth profile first. If set to False, users will be required to create or link a profile to their Institution Accounts before being able to access views protected by the @login_required decorator. Defaults to True.
• UNIAUTH_FROM_EMAIL: Determines the "from" email address when Uniauth sends an email, such as for email verification or password resets. Defaults to [e-mail].
• UNIAUTH_LOGIN_DISPLAY_STANDARD: Whether the email address / password form is shown on the login view. If False, the form, "Create an Account" link, and "Forgot Password" link are hidden, and POST requests for the view will be ignored. Defaults to True.
• UNIAUTH_LOGIN_DISPLAY_CAS: Whether the option to sign in via CAS is shown on the login view. If True, there must be at least one Institution in the database to log into. Also, at least one of UNIAUTH_LOGIN_DISPLAY_STANDARD or UNIAUTH_LOGIN_DISPLAY_CAS must be True. Violating either of these constraints will result in an ImproperlyConfigured Exception. Defaults to True.
• UNIAUTH_LOGIN_REDIRECT_URL: Where to redirect the user after logging in, if no next URL is provided. Defaults to /.
• UNIAUTH_LOGOUT_REDIRECT_URL: Where to redirect the user after logging out, if no next URL is provided. If this setting is None, and a next URL is not provided, the logout template is rendered instead. Defaults to None.
• UNIAUTH_LOGOUT_CAS_COMPLETELY: Whether to log the user out of CAS on logout if the user originally logged in via CAS. Defaults to False.
• UNIAUTH_MAX_LINKED_EMAILS: The maximum number of emails a user can link to their profile. If this value is less than or equal to 0, there is no limit to the number of linked emails. Defaults to 20.
• UNIAUTH_PERFORM_RECURSIVE_MERGING: Whether to attempt to recursively merge One-to-One fields when merging users due to linking two existing accounts together. If False, One-to-One fields for the user being linked in will be deleted if the primary user has a non-null value for that field. Defaults to True.
• UNIAUTH_USE_JWT_AUTH: In a REST API + UI split architecture, set to True to save JWT refresh and access tokens in session cookie on the domain of the API. Tokens will then be retrievable by UI via GET request to /jwt-tokens/. Defaults to False.

Users in Uniauth

Uniauth supports any custom User model, so long as the model has username and email fields. The email serves as the primary identifying field within Uniauth, with the username being set to an arbitrary unique value to support packages that require it. Once a user's profile has been activated, other apps are free to change the username without disrupting Uniauth's behavior.

Users are created by either completing the Sign Up form, or logging in via an InstitutionAccount. In the former case, they are given a username beginning with tmp-, followed by a unique suffix, and an empty email field. When the first email for a user has been verified, their profile is considered fully activated, the email field is set to the verified email, and the username field is arbitrarily set to that email address as well, unless it is taken. In the latter case, they are given a username describing how they were authenticated, along with the institution they signed into and their ID for that institution. They will keep this username and have an empty email field until they link their account to a verified Uniauth profile.

Users may have multiple email addresses linked to their profile, any of which may be used for authentication (if one of the LinkedEmail Uniauth backends are used), or for password reset. The address set in the user's email field is considered the "primary email", and is the only one that must be unique across all users. Users may change which linked email is their primary email address at any point via the settings page, so long as that primary email is not taken by another user.

Users may also have multiple InstitutionAccounts linked to their profile. These represent alternative ways of logging in, other than the standard username/email + password form. For example, if a University offers authentication via CAS, a user may link their CAS username for that university to their Uniauth profile, so that logging in with CAS authenticates them as the proper user.

Models

Uniauth has the following models:

UserProfile:

This model is automatically attached to each User upon creation, and extends the User model with the extra data Uniauth requires. The other Uniauth models all interact with the UserProfile model rather than the User model directly. Accessible via user.uniauth_profile.

• get_display_id: This method returns a more display-friendly ID for the user, using their username. If the User was created via CAS authentication, it will return their username without the institution prefix (so a User with username "cas-exampleinst-id123" would return "id123"). If their username is an email address, it will return everything before the "@" symbol (so "[e-mail]" would become "johndoe"). Otherwise the username is returned unmodified. These generated IDs are not guaranteed to be unique.

LinkedEmail:

Represents an email address linked to a User's account. Accessible via user.uniauth_profile.linked_emails.

Institution:

Represents an organization possesing an authentication server that can be logged into. You will need to add an Institution for each CAS server you wish to support. The add_institution and remove_institution commands are provided to help with this.

InstitutionAccount:

Represents an account a User holds with a particular Institution. Accessible via user.uniauth_profile.accounts.

Backends

To use Uniauth as intended, either the LinkedEmailBackend or the UsernameOrLinkedEmailBackend should be included in your AUTHENTICATION_BACKENDS setting, along with the backends for any other authentication methods you wish to support.

CASBackend:

The CASBackend is inspired from the django-cas-ng backend of the same name, and is largely a streamlined version of that class, modified to support multiple CAS servers. This backend's authenticate method accepts an institution, a ticket, and a service URL to redirect to on successful authentication, and attempts to verify that ticket with the institution's CAS server.

If verification succeeds, it looks for an InstitutionAccount matching that CAS username, and returns the user for the associated profile. If it succeeds, but there is no such InstitutionAccount, a temporary user is created, and the client will eventually be prompted to link this username to an existing Uniauth profile, or create one. If verification fails, authentication fails as well.

LinkedEmailBackend:

This backend's authenticate method accepts an email and password as keyword arguments, and checks the password against all users with that email linked to their account. If an email is not explicitly provided, a few other common field names (such as email_address and username) are checked and used if found.

Note: Since the default Django admin page uses same Authentication Backends as the rest of the site, replacing the default ModelBackend with this one will result in usernames no longer being recognized on the admin login screen. You will need to log in with a superuser's email address and password, or use the below UsernameOrLinkedEmailBackend instead.

UsernameOrLinkedEmailBackend:

Identical to the above class, except the provided email argument is also checked against each user's username.

Commands

Uniauth provides the following management commands:

• add_institution <name> <cas_server_url>: Adds an Institution with the provided name and CAS server URL to the database. The name will be the text displayed in the CAS server dropdown on the Login page, and cas_server_url must point to the root URL of a CAS protocol compliant service. The command will return the institution's slug created from the provided name; this slug must be used when referring to the institution in other commands (such as remove_institution).
  • Example Usage: python manage.py add_institution "Example Inst" "https://www.example.com/cas/"
  • You may add the --update-existing option to update the CAS server URL of an existing institution with that name, or create one if it does not exist.
• remove_institution <slug>: Removes the Institution with the provided slug from the database. This action removes any InstitutionAccounts for that instiutiton in the process.
• migrate_cas <slug>: Migrates a project originally using CAS for authentication to using Uniauth. See the User Migration section for more information.
• migrate_custom: Migrates a project originally using custom User authentication to using Uniauth. See the User Migration section for more information.
• flush_tmp_users [days]: Deletes temporary users more than the specified number of days old from the database. The default number of days is 1.

Views

The five views you will likely care about the most are login, logout, signup, password-reset, and settings:

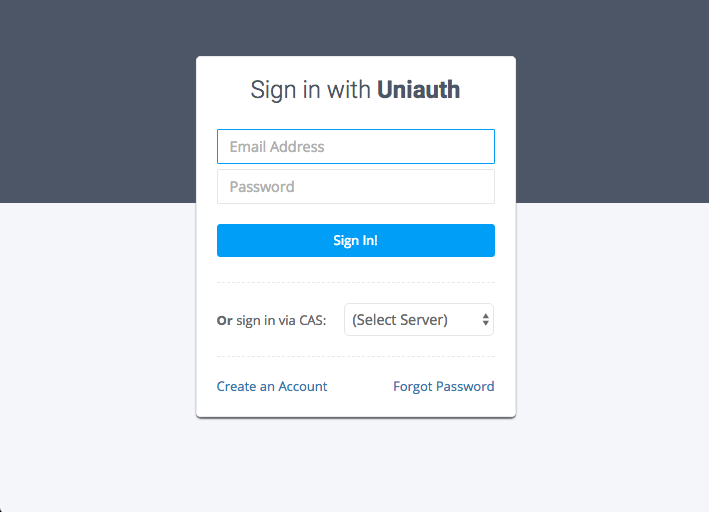

• /login/: Displays a page allowing users to log in by entering a username/email and password, or via a supported backend, such as CAS. Also displays links for creating an account directly, and for resetting passwords.
• /logout/: Logs out the user. The behavior and redirect location of the log out is determined by the app's settings.
• /signup/: Prompts user for a primary email address, and a password, then sends a verification email to that address to activate the account.
• /password-reset/: Prompts user for an email address, then sends an email to that address containing a link for resetting the password. If no users have the entered email address linked to their account, no email is sent. If multiple users have that address linked, an email is sent for each potential user.
• /settings/: Allows users to perform account related actions, such as link more email addresses, choose the primary email address, link more Institution Accounts, or change their password.
• /jwt-tokens/: In REST API + UI split, allows UI to pop JWT tokens from session cookie on API domain via method GET. Returns 404 status if refresh and access tokens are not set.

The remaining views are used internally by Uniauth, and should not be linked to from outside the app:

• /cas-login/: If a user chooses to log in via CAS, this view is called with the institution the user wishes to log into as an argument. The view will first redirect to the institution's CAS server and attempt to get a ticket, then return to the original page and attempt to authenticate with that ticket, via the CASBackend.
• /link-to-account/: If the user is logged into an InstitutionAccount not yet linked to a Uniauth profile, this view offers them the choice between linking it to an existing profile, or creating a new one, and linking it to that upon activation.
• /link-from-account/: If the user is logged into an activated Uniauth profile, this view gives them the opportunity to log into an institution via a supported backend, then link that InstitutionAccount to the current profile.
• /verify-token/: Intermediate page used during the email verification process. Verifies the token contained within the link sent to the email address.
• /password-reset-*/: Intermediate pages used during the password reset process. Are nearly identical to the built-in password reset views provided by the django.contrib.auth package.

Uniauth also implements its own version of the @login_required decorator, which ensure the user is logged in with an activated Uniauth profile before accessing the view. It may be used identically to the built-in @login_required decorator, and should be added to your own views in place of the default version.

Template Customization

The presentation of the views can be easily changed by overriding the appropriate template(s). For example, to add your own stylesheet to the Uniauth templates, create a uniauth folder in your templates directory, and add a base-site.html file to override the default one like so:

{% extends "uniauth/base.html" %}

{% load static from staticfiles %}

{% block shared-head %}
<link rel="shortcut icon" href="{% static 'uniauth/img/favicon.ico' %}"/>
<link href="{% static 'path/to/custom-style.css' %}" rel="stylesheet" type="text/css"/>
{% endblock %}

{% block body %}
<div id="wrapper">
    <div id="page-wrapper" class="lavender-bg">
        <div id="content-wrapper">
            <div id="top-background"></div>
            {% block content %}
            {% endblock %}
        </div>
    </div>
</div>
{% endblock %}

More specific changes can be made by overriding the appropriate template.

URLs

To add the Uniauth views to your app, you must add an entry to your urlpatterns which includes them with the namespace "uniauth". For example:

path('accounts/', include('uniauth.urls', namespace='uniauth'))

Including the uniauth.urls module will add all of Uniauth's views to your app. However, if you only wish to use CAS authentication, you may choose to include the uniauth.urls.cas_only module instead, which will only expose the login, cas-login, and logout views.

URL Parameters

All views except /settings/ persist URL parameters to their final destination. This means you can add a query string to the login URL, and have it apply to the UNIAUTH_LOGIN_REDIRECT_URL page, for example.

The only URL parameter that is not preserved is the next variable, which indicates the desired location to redirect to after business in the current view is completed. This variable is consumed upon successful redirection to that location, and can be used to dynamically control how the app behaves after visiting a view.

User Migration

If you wish to use Uniauth with a project that already has users, a UserProfile (and, if applicable, LinkedEmail or InstitutionAccount) will need to be created for each existing user. You may use one of the provided commands to assist with this, provided your project meets one of the following conditions:

• If you were previously using CAS for authentication, and the username for each user matches the CAS ID (as would be the case if you were using a package like django-cas-ng), you should first add an Institution for the CAS server you were using, then use the migrate_cas command with the slug of the created Institution to peform the migration. A UserProfile will be created for all users, and the usernames of all Users will be changed to conform to Uniauth's expectations (to cas-<institution_slug>-<original_username>). To get the original username (without the CAS institution prefix), use the get_display_id method provided by the UserProfile model.
• If you were previously using custom user authentication (as in, Users would sign up with a username / email address and password), you may use the migrate_custom command to migrate the users. A UserProfile will be created for each migrated user, and a verified LinkedEmail will also be created for all users with a non-blank email field. Note that any users lacking a username / email or password will not be migrated. Also note that if the LinkedEmailBackend is used, users that don't have a LinkedEmail created will not be able to log in until one is linked.

If your project does not fit either of these conditions, you will need to manually migrate the users as appropiate. Please create a UserProfile for each user, and LinkedEmails or InstitutionAccounts as appropiate.

Using JWT Authentication

If you wish to use django-uniauth with JWT authentication (API + UI split), you will need to enable SessionMiddleware in addition to the following settings:

• UNIAUTH_USE_JWT_AUTH explicitly set to True.
• UNIAUTH_LOGIN_REDIRECT_URL set to any route of your choice to your UI (ex: http://your-ui-domain.com/)
• UNIAUTH_LOGOUT_REDIRECT_URL set to any route of your choice to your UI (ex: http://your-ui-domain.com/)

Additionally, you may need the django-cors-headers package to allow your UI to make requests with your API. From this package, you will need

• CORS_ALLOWED_ORIGINS = ["http://you-ui-domain.com/"]
• CORS_ALLOW_CREDENTIALS = True

On the UI, you can link your login/signup buttons to the respective django-uniauth views. Upon logging in, Uniauth will save your JWT tokens in a session cookie on the API's domain. To retrieve and save these tokens, make a GET request with credentials: "include" in the request headers.

If you have created a TokenObtainPairSerializer subclass for customizing token claims, set the TOKEN_OBTAIN_SERIALIZER simplejwt setting accordingly, and Uniauth will use the custom serializer for its JWT tokens as well.

Please refer to django-rest-framework-simplejwt for more information on customizing tokens (i.e. token expiration) and more.

Demo Application

The source repository contains a demo_app directory which demonstrates how to setup a simple Django app to use Uniauth. This app has no functionality, and exists solely to show off the installable uniauth app. A quick-start guide for integrating Uniauth can be found here.

Acknowledgements

Special thank you to Jérémie Lumbroso for his guidance in developing this package.
