drf-spectacular-websocket 1.2.7

Extend websocket schema decorator for Django Channels

Extend websocket schema decorator for Django Channels

Project		Status
CI/CD
Quality
Package
Meta

Provides extend_ws_schema decorator to documentation Cunsumer methods from channels just like it does drf-spectacular

Install

1. Install package

   pip install drf-spectacular-websocket


2. Create sidecar static

   python manage.py collectstatic


3. Add app name to INSTALLED_APPS

   drf_spectacular_websocket must be higher than drf_spectacular

   INSTALLED_APPS = [
       'drf_spectacular_websocket',
       'drf_spectacular',
       'drf_spectacular_sidecar',
   ]


Configure settings

ASGI_APPLICATION = 'path.to.your.application'

# (Optional) this is default settings are automatically set by the drf_spectacular_websocket.
# You can override them in your application if necessary.
SPECTACULAR_SETTINGS = {
    'DEFAULT_GENERATOR_CLASS': 'drf_spectacular_websocket.schemas.WsSchemaGenerator',
    'SWAGGER_UI_DIST': 'SIDECAR',
    'SWAGGER_UI_FAVICON_HREF': 'SIDECAR',
    'REDOC_DIST': 'SIDECAR',
    'SWAGGER_UI_SETTINGS': {
        'connectSocket': True,  # Automatically establish a WS connection when opening swagger
        'socketMaxMessages': 8,  # Max number of messages displayed in the log window in swagger
        'socketMessagesInitialOpened': False,  # Automatically open the log window when opening swagger
    },
}

drf_spectacular_websocket automatically finds websocket urls and related consumer using ASGI_APPLICATION setting.

About decorator

extend_ws_schema decorator accepts one new type parameter relative to drf_spectacular extend_schema.

• possible values:
  • send - Type of interaction, [request -> response]
  • receive - Type of interaction, [response without request]

Usage example

from channels.generic.websocket import AsyncJsonWebsocketConsumer
from rest_framework.serializers import Serializer, CharField
from drf_spectacular_websocket.decorators import extend_ws_schema


class SomeMethodInputSerializer(Serializer):
    some_field = CharField()


class SomeMethodOutputSerializer(Serializer):
    some_field = CharField()


class SendMessageOutputSerializer(Serializer):
    some_field = CharField()


class SomeConsumer(AsyncJsonWebsocketConsumer):

    async def receive_json(self, content, **kwargs):
        some_value = content.get('some_key')
        if some_value:
            await self.some_method(some_value)

    @extend_ws_schema(
        type='send',
        summary='some_method_summary',
        description='some_method_description',
        request=SomeMethodInputSerializer,
        responses=SomeMethodOutputSerializer,
    )
    async def some_method(self, some_value):
        input_serializer = SomeMethodInputSerializer(data=some_value)
        input_serializer.is_valid(raise_exception=True)

        return_value = await some_business_logic(input_serializer.validated_data)

        output_serializer = SomeMethodOutputSerializer(data=return_value)
        output_serializer.is_valid(raise_exception=True)

        await self.send_json(output_serializer.validated_data)

    @extend_ws_schema(
        type='receive',
        summary='send_message_summary',
        description='send_message_description',
        request=None,
        responses=SendMessageOutputSerializer,
    )
    async def send_message(self, message):
        await self.send_json(message)

Contributing

We would love you to contribute to drf-spectacular-websocket, pull requests are very welcome! Please see CONTRIBUTING.md for more information.

Swagger Examples

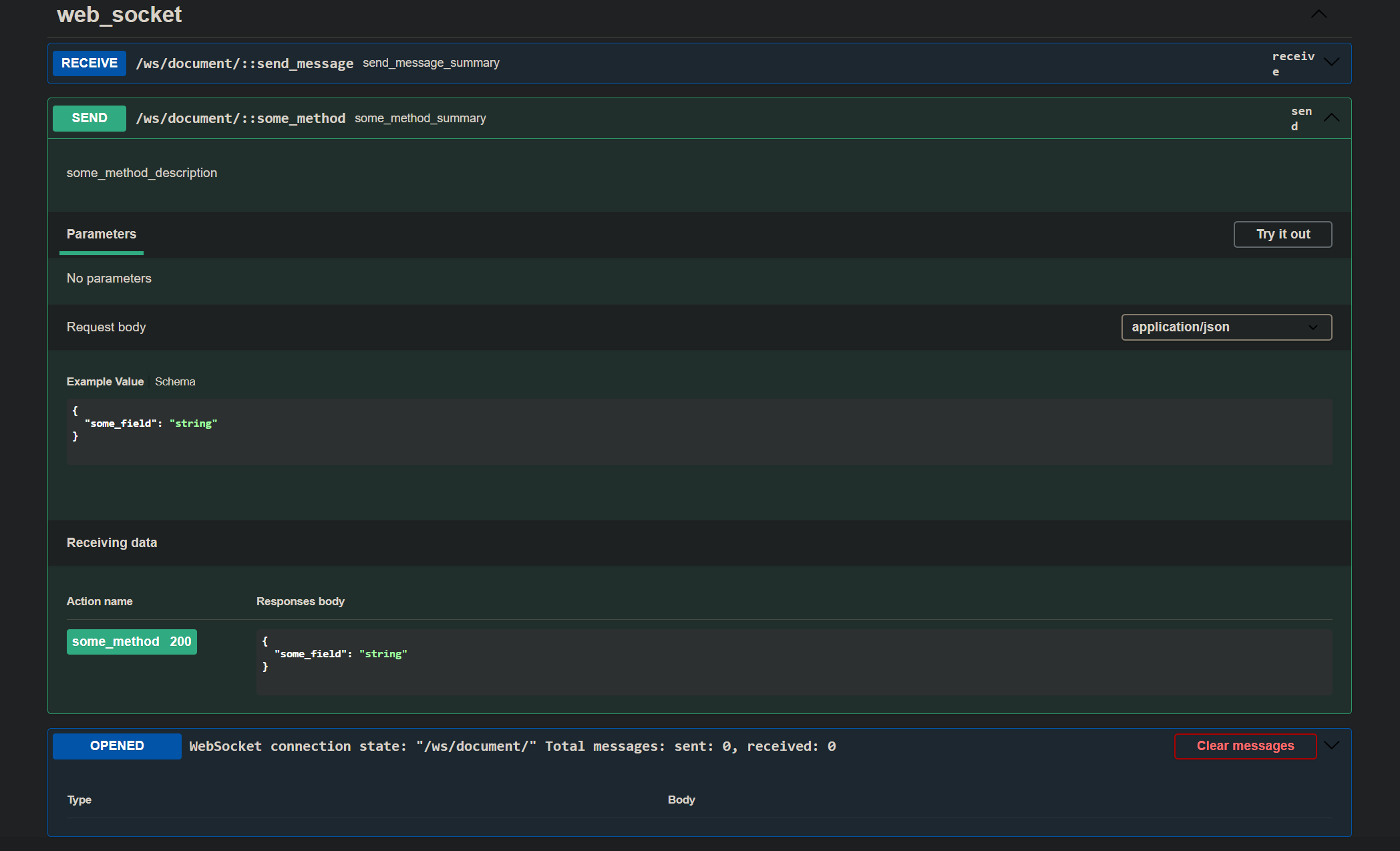

Send

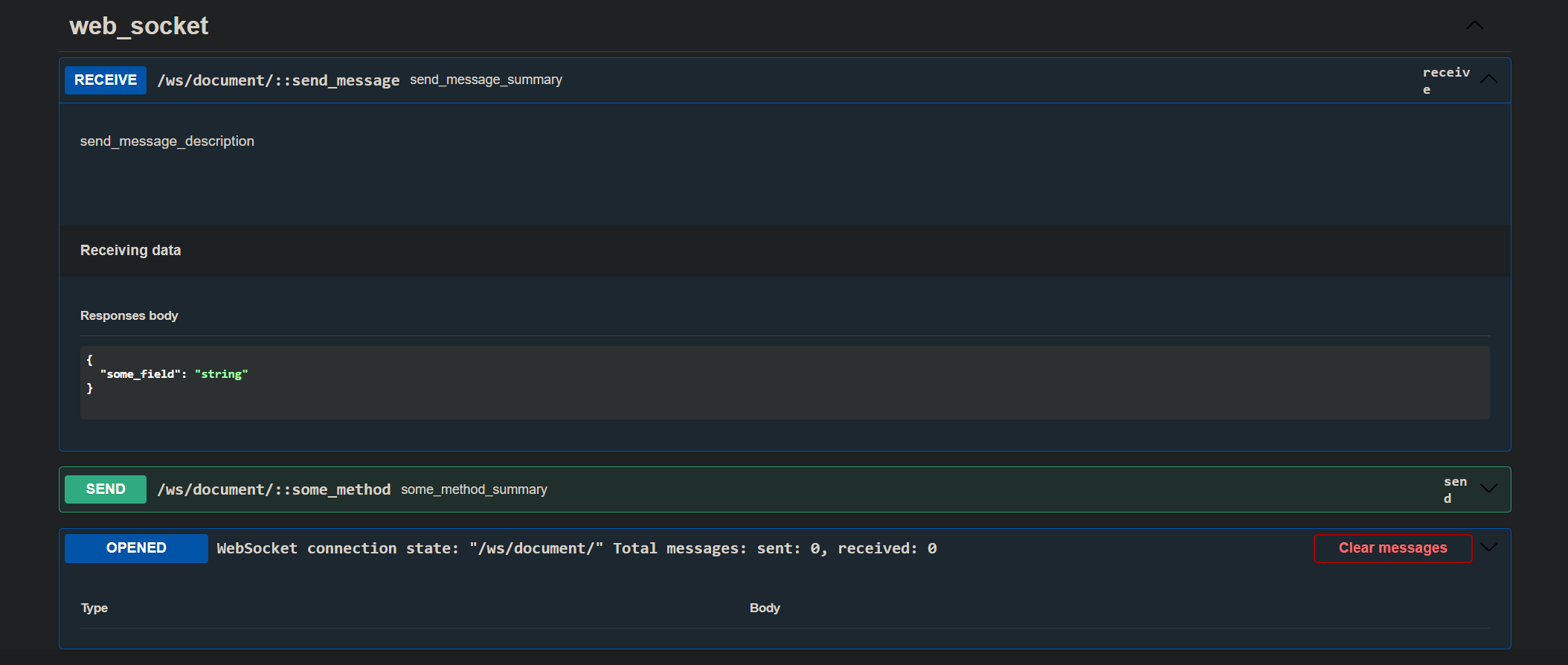

Receive
