dtaidistance 1.2

Distance measures for time series

Library for time series distances (e.g. Dynamic Time Warping) used in the DTAI Research Group. The library offers a pure Python implementation and a faster implementation in C.

Documentation: http://dtaidistance.readthedocs.io

Citing this work:

Installation

This packages is available on PyPI:

$ pip install dtaidistance

In case the C based version is not available, see the documentation for alternative installation options. In case OpenMP is not available on your system add the --noopenmp global option.

The source code is available at github.com/wannesm/dtaidistance.

Usage

Dynamic Time Warping (DTW) Distance Measure

from dtaidistance import dtw
from dtaidistance import dtw_visualisation as dtwvis
import numpy as np
s1 = np.array([0., 0, 1, 2, 1, 0, 1, 0, 0, 2, 1, 0, 0])
s2 = np.array([0., 1, 2, 3, 1, 0, 0, 0, 2, 1, 0, 0, 0])
path = dtw.warping_path(s1, s2)
dtwvis.plot_warping(s1, s2, path, filename="warp.png")

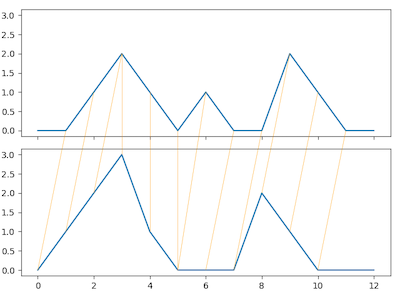

Dynamic Time Warping (DTW) Example

DTW Distance Measure Between Two Series

Only the distance measure based on two sequences of numbers:

from dtaidistance import dtw
s1 = [0, 0, 1, 2, 1, 0, 1, 0, 0]
s2 = [0, 1, 2, 0, 0, 0, 0, 0, 0]
distance = dtw.distance(s1, s2)
print(distance)

The fastest version (30-300 times) uses c directly but requires an array as input (with the double type):

from dtaidistance import dtw
import array
s1 = array.array('d',[0, 0, 1, 2, 1, 0, 1, 0, 0])
s2 = array.array('d',[0, 1, 2, 0, 0, 0, 0, 0, 0])
d = dtw.distance_fast(s1, s2)

Or you can use a numpy array (with dtype double or float):

from dtaidistance import dtw
import numpy as np
s1 = np.array([0, 0, 1, 2, 1, 0, 1, 0, 0], dtype=np.double)
s2 = np.array([0.0, 1, 2, 0, 0, 0, 0, 0, 0])
d = dtw.distance_fast(s1, s2)

Check the __doc__ for information about the available arguments:

print(dtw.distance.__doc__)

A number of options are foreseen to early stop some paths the dynamic programming algorithm is exploring or tune the distance measure computation:

• window: Only allow for shifts up to this amount away from the two diagonals.

• max_dist: Stop if the returned distance measure will be larger than this value.

• max_step: Do not allow steps larger than this value.

• max_length_diff: Return infinity if difference in length of two series is larger.

• penalty: Penalty to add if compression or expansion is applied (on top of the distance).

• psi: Psi relaxation to ignore begin and/or end of sequences (for cylical sequencies) [2].

DTW Distance Measure all warping paths

If, next to the distance, you also want the full matrix to see all possible warping paths:

from dtaidistance import dtw
s1 = [0, 0, 1, 2, 1, 0, 1, 0, 0]
s2 = [0, 1, 2, 0, 0, 0, 0, 0, 0]
distance, paths = dtw.warping_paths(s1, s2)
print(distance)
print(paths)

The matrix with all warping paths can be visualised as follows:

from dtaidistance import dtw
from dtaidistance import dtw_visualisation as dtwvis
import numpy as np
x = np.arange(0, 20, .5)
s1 = np.sin(x)
s2 = np.sin(x - 1)
d, paths = dtw.warping_paths(s1, s2, window=25, psi=2)
best_path = dtw.best_path(paths)
dtwvis.plot_warpingpaths(s1, s2, paths, best_path)

DTW Example

Notice the psi parameter that relaxes the matching at the beginning and end. In this example this results in a perfect match even though the sine waves are slightly shifted.

DTW Distance Measures Between Set of Series

To compute the DTW distance measures between all sequences in a list of sequences, use the method dtw.distance_matrix. You can set variables to use more or less c code (use_c and use_nogil) and parallel or serial execution (parallel).

The distance_matrix method expects a list of lists/arrays:

from dtaidistance import dtw
import numpy as np
series = [
    np.array([0, 0, 1, 2, 1, 0, 1, 0, 0], dtype=np.double),
    np.array([0.0, 1, 2, 0, 0, 0, 0, 0, 0, 0, 0]),
    np.array([0.0, 0, 1, 2, 1, 0, 0, 0])]
ds = dtw.distance_matrix_fast(series)

or a matrix (in case all series have the same length):

from dtaidistance import dtw
import numpy as np
series = np.matrix([
    [0.0, 0, 1, 2, 1, 0, 1, 0, 0],
    [0.0, 1, 2, 0, 0, 0, 0, 0, 0],
    [0.0, 0, 1, 2, 1, 0, 0, 0, 0]])
ds = dtw.distance_matrix_fast(series)

DTW Distance Measures Between Set of Series, limited to block

You can instruct the computation to only fill part of the distance measures matrix. For example to distribute the computations over multiple nodes, or to only compare source series to target series.

from dtaidistance import dtw
import numpy as np
series = np.matrix([
     [0., 0, 1, 2, 1, 0, 1, 0, 0],
     [0., 1, 2, 0, 0, 0, 0, 0, 0],
     [1., 2, 0, 0, 0, 0, 0, 1, 1],
     [0., 0, 1, 2, 1, 0, 1, 0, 0],
     [0., 1, 2, 0, 0, 0, 0, 0, 0],
     [1., 2, 0, 0, 0, 0, 0, 1, 1]])
ds = dtw.distance_matrix_fast(series, block=((1, 4), (3, 5)))

The output in this case will be:

#  0     1    2    3       4       5
[[ inf   inf  inf     inf     inf  inf]    # 0
 [ inf   inf  inf  1.4142  0.0000  inf]    # 1
 [ inf   inf  inf  2.2360  1.7320  inf]    # 2
 [ inf   inf  inf     inf  1.4142  inf]    # 3
 [ inf   inf  inf     inf     inf  inf]    # 4
 [ inf   inf  inf     inf     inf  inf]]   # 5

Clustering

A distance matrix can be used for time series clustering. You can use existing methods such as scipy.cluster.hierarchy.linkage or one of two included clustering methods (the latter is a wrapper for the SciPy linkage method).

from dtaidistance import clustering
# Custom Hierarchical clustering
model1 = clustering.Hierarchical(dtw.distance_matrix_fast, {})
# Augment Hierarchical object to keep track of the full tree
model2 = clustering.HierarchicalTree(model1)
# SciPy linkage clustering
model3 = clustering.LinkageTree(dtw.distance_matrix_fast, {})
cluster_idx = model3.fit(series)

For models that keep track of the full clustering tree (HierarchicalTree or LinkageTree), the tree can be visualised:

model.plot("myplot.png")

Dynamic Time Warping (DTW) hierarchical clusteringt

Dependencies

• Python 3

• Numpy

Optional: - Cython - tqdm - matplotlib

Development: - pytest - pytest-benchmark

Contact

• Wannes Meert [e-mail]
