ecape-parcel 1.2.2

A simple Python package that computes entrainment CAPE parcels.

ecape-parcel-py

A simple Python package that computes ECAPE values and parcel paths.

By default, the package calculates the parcel for entraining irreversible adiabatic (sometimes referred to by the author as "true adiabatic") ascent. Irreversible adiabatic ascent has been noted to be more accurate than pseudoadiabatic parcels (Peters et. al. 2022). However, three other parcel paths are available, including non-entraining irreversible adiabatic, entraining pseudoadiabatic, and non-entraining pseudoadiabatic. Non-entraining pseudoadiabatic ascent is the method most often currently used in meteorology, but Dr. John Peters does provide a formula that accounts for more nuances in the thermodynamic processes involved.

Code has been verified by checking it against the ECAPE_FUNCTIONS script written by Dr. Peters.

Authors and Contributors

AUTHOR: Amelia R H Urquhart

CONTRIBUTOR: Daryl Herzmann

Installation

Installation through PyPI is recommended. Copy-paste the following line into your terminal:

pip install ecape-parcel

After that, include the following line in your Python script, and you should be good to go.

from ecape_parcel.calc import calc_ecape_parcel, density_temperature

The package can also be installed through Anaconda with these commands.

conda config --add channels conda-forge
conda config --set channel_priority strict
conda install ecape-parcel

or

mamba install ecape-parcel

How To Use

This package has been written with the intention of using the same input data format as MetPy. This example script was used as a test during development, utilizing Kyle Gillett's SounderPy to get test data.

import sounderpy as spy
from ecape_parcel.calc import calc_ecape_parcel, density_temperature

# This file uses real-world meteorological data as a test for the ECAPE parcel code.
# May be removed from repository later on if any circular dependency issues come up
year  = '2023'
month = '05'
day   = '12'
hour  = '00'
latlon = [35.18, -97.44]
method = 'rap'

clean_data = spy.get_model_data(method, latlon, year, month, day, hour)

p = clean_data['p']
T = clean_data['T']
Td = clean_data['Td']
z = clean_data['z']
u = clean_data['u']
v = clean_data['v']

parcel_p, parcel_z, parcel_T, parcel_qv, parcel_qt = calc_ecape_parcel(p, z, T, Td, u, v, True)

# The last parameter controls the vertical resolution of the returned parcel path.
# If set to `False`, the parcel path will have a constant vertical resolution of 20
# meters, which is the `dz` value used by the parcel path solver internally. If set
# to `True`, the parcel path will only contain values from the exact same pressure
# levels as the pressure array used as an input.

parcel_T_rho = density_temperature(parcel_T, parcel_qv, parcel_qt)

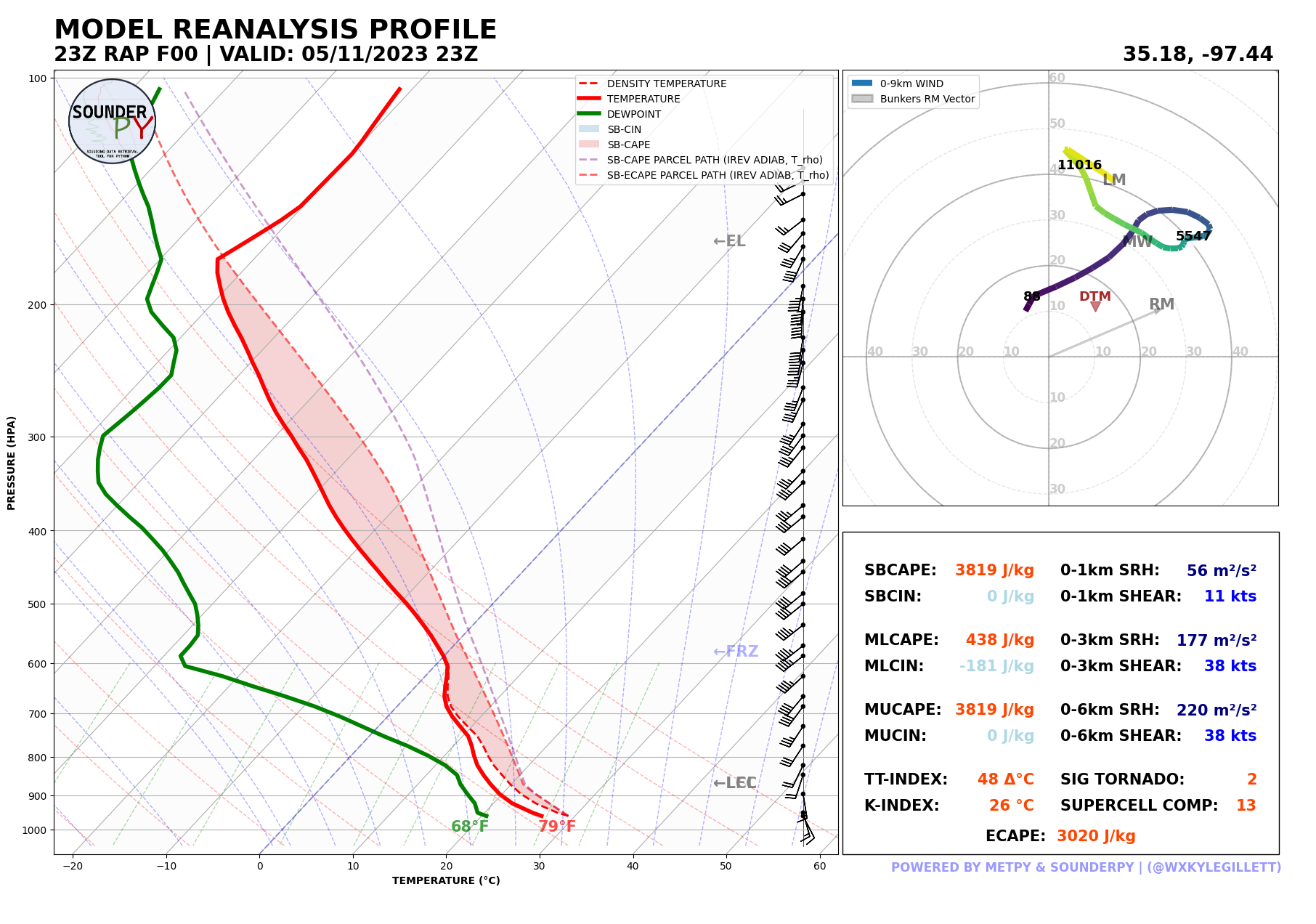

Plot parcel_T_rho on a Skew-T and you'll be good to go. I've also plotted an undiluted CAPE parcel alongside the ECAPE parcel to better illustrate the difference.

Note: While you could plot parcel_T on its own, using the density temperature is required to get the most amount of benefit from Dr. Peters's work.

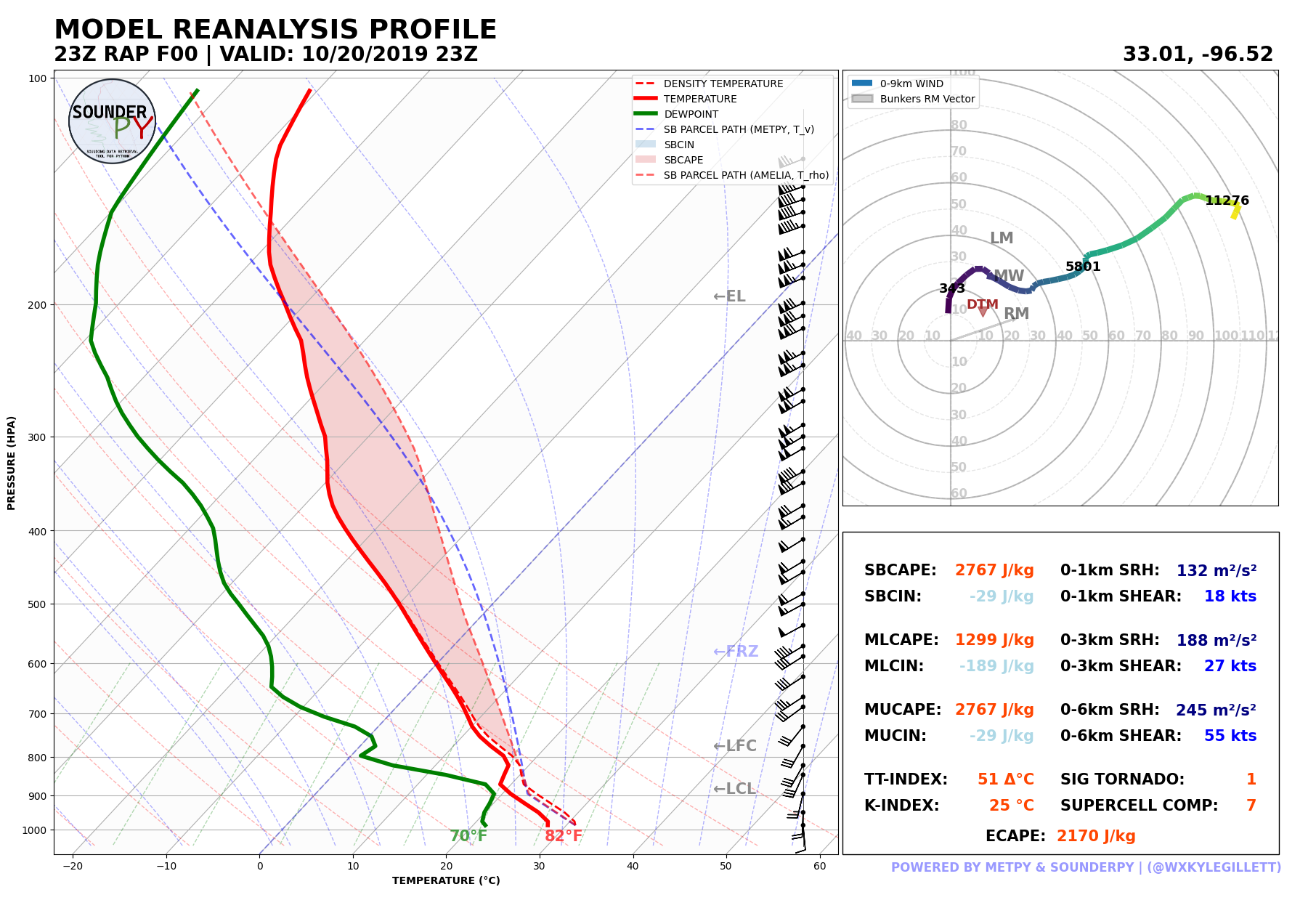

This parcel trace may look a little different than you were expecting. As part of Dr. Peters's work with deriving lapse rate formulas that considered entrainment, he also accounted for the effect of cloud condensate on the density of the parcel, and therefore the buoyancy. When accounting for this, the parcel is said to be undergoing "irreversible adiabatic ascent". I usually call it "true adiabatic ascent" since I usually don't feel like explaining what's so irreversible about it.

This causes two noticeable effects from what we're used to.

• Due to the weight of cloud condensate, the buoyancy in the lower levels is significantly reduced, up to even 30%-40%.
• Since the liquid cloud droplets are still in the parcel, they can freeze and release latent heat. This release of latent heat causes a significant increase in buoyancy in the upper levels and also raises the EL by a significant amount.

In cases where you would prefer to use the traditional method of parcel ascent that assumes all precipitate is removed from the parcel immediately, called "pseudoadiabatic ascent", ecape-parcel-py supports that too. The following code shows all four parcel ascent processes available to users.

# Uses Non-Entraining Pseudoadiabatic Ascent
# Currently the traditional method of computing parcels
# Returns a slightly different parcel from MetPy since it uses a more detailed lapse rate equation
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=False, pseudoadiabatic_switch=True)

# Uses Entraining Pseudoadiabatic Ascent
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, pseudoadiabatic_switch=True)

# Uses Non-Entraining True Adiabatic Ascent
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=False, pseudoadiabatic_switch=False)

# Uses Entraining True Adiabatic Ascent
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, pseudoadiabatic_switch=False)

Plotting pseudoadiabatic parcels for undiluted CAPE and ECAPE might return a result more like what you're expecting.

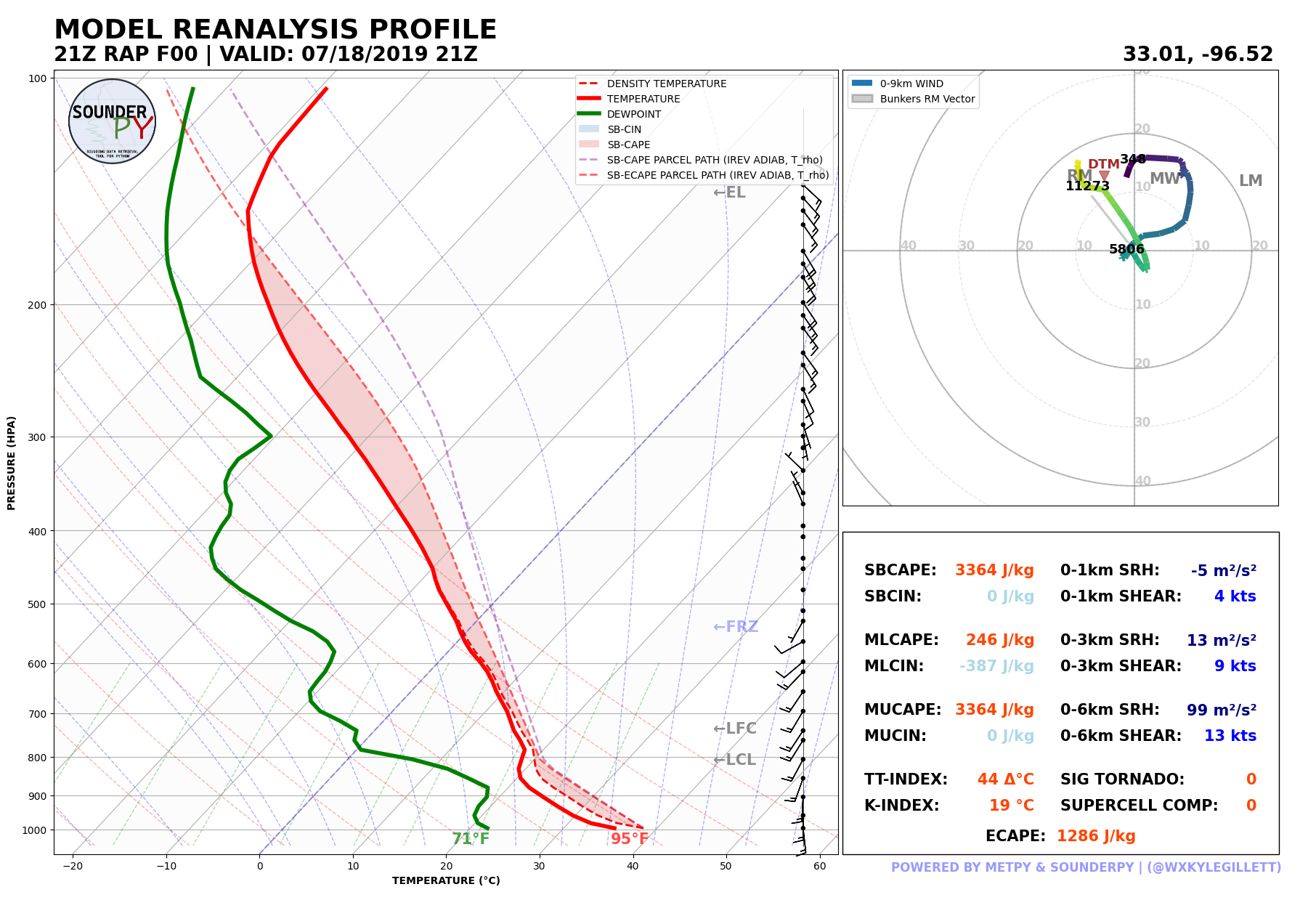

Also keep in mind that entrainment rates can vary widely depending on many factors, including EL height and storm-relative inflow magnitude. Most soundings here are of supercells with very low entrainment rates. Most non-supercell environments will have much narrower updrafts and therefore much higher entrainment rates.

Additional configuration options are available for users who want to make more specific calculations.

# Computes a parcel for Surface Based ECAPE
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, pseudoadiabatic_switch=False, cape_type="surface_based")

# Computes a parcel for 100 mb Mixed Layer ECAPE
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, pseudoadiabatic_switch=False, cape_type="mixed_layer")

# Computes a parcel for Most Unstable ECAPE (default)
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, pseudoadiabatic_switch=False, cape_type="most_unstable")

# Uses the Left-Moving 0-500 m storm relative inflow
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, pseudoadiabatic_switch=False, storm_motion_type="left_moving", inflow_layer_bottom: pint.Quantity = 0 * units.kilometer, inflow_layer_top: pint.Quantity = 0.5 * units.kilometer)

# Uses the Mean Wind 0-3 km storm relative inflow
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, pseudoadiabatic_switch=False, storm_motion_type="mean_wind", inflow_layer_bottom: pint.Quantity = 0 * units.kilometer, inflow_layer_top: pint.Quantity = 3 * units.kilometer)

# Uses custom storm motion vector
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, pseudoadiabatic_switch=False, storm_motion_type="user_defined", storm_motion_u = 20 *  * units("m/s"), storm_motion_v = 15 * units("m/s"))

# Uses user-computed CAPE, LFC, and EL values
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, cape=3500 * units("J/kg"), lfc=500 * units("m"), el=12500 * units("m"))

# Uses custom T/Td values for the parcel origin
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, origin_temperature=305 * units('degK'), origin_dewpoint=300 * units('degK'))

# Uses custom T/Td/p/z values for the parcel origin
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, origin_temperature=305 * units('degK'), origin_dewpoint=300 * units('degK'), origin_pressure=70000 * units('Pa'), origin_height=3000 * units('m'))

# Uses a custom mixed layer depth of 50 hPa
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, mixed_layer_depth_pressure = 50 * units('hPa'))

# Uses a custom mixed layer depth of 500 m
calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, mixed_layer_depth_height = 500 * units('m'))

# Computes the 3CAPE of the non-entraining true adiabatic parcel using the package's onboard CAPE computation
parcel = calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=False, pseudoadiabatic_switch=False)
from ecape_parcel.calc import custom_cape_cin_lfc_el
q = ... # compute specific humidity from dewpoint, I recommend using MetPy for this
threeCape, _, _, _ = custom_cape_cin_lfc_el(parcel[1], parcel[2], parcel[3], parcel[4], z, T, q, integration_bound_upper = 3000 * units('m'))

# Computes the HGZ-CAPE of the entraining true adiabatic parcel
parcel = calc_ecape_parcel(p, z, T, Td, u, v, True, entrainment_switch=True, pseudoadiabatic_switch=False)

hgz_bottom = ... # make sure this is a pint.Quantity of units [length]
hgz_top = ... # and this too

hgzCape = custom_cape_cin_lfc_el(parcel[1], parcel[2], parcel[3], parcel[4], z, T, q, integration_bound_lower = hgz_bottom, integration_bound_upper=hgz_top)

Verification

This package uses Equation 24 from Peters et. al. 2022. I have double-checked the outputs of my code against the outputs of Dr. Peters's ECAPE_FUNCTIONS script for the four different configurations of parcel ascent and plotted the results of both his parcel and mine using Kyle Gillett's SounderPy. Accuracy is to within about 0.75 Kelvins, and I expect that these discrepancies are caused by differences in the numerical integration methods used.

1. Non-Entraining Pseudoadiabatic Ascent (the currently conventional way to compute parcel paths)

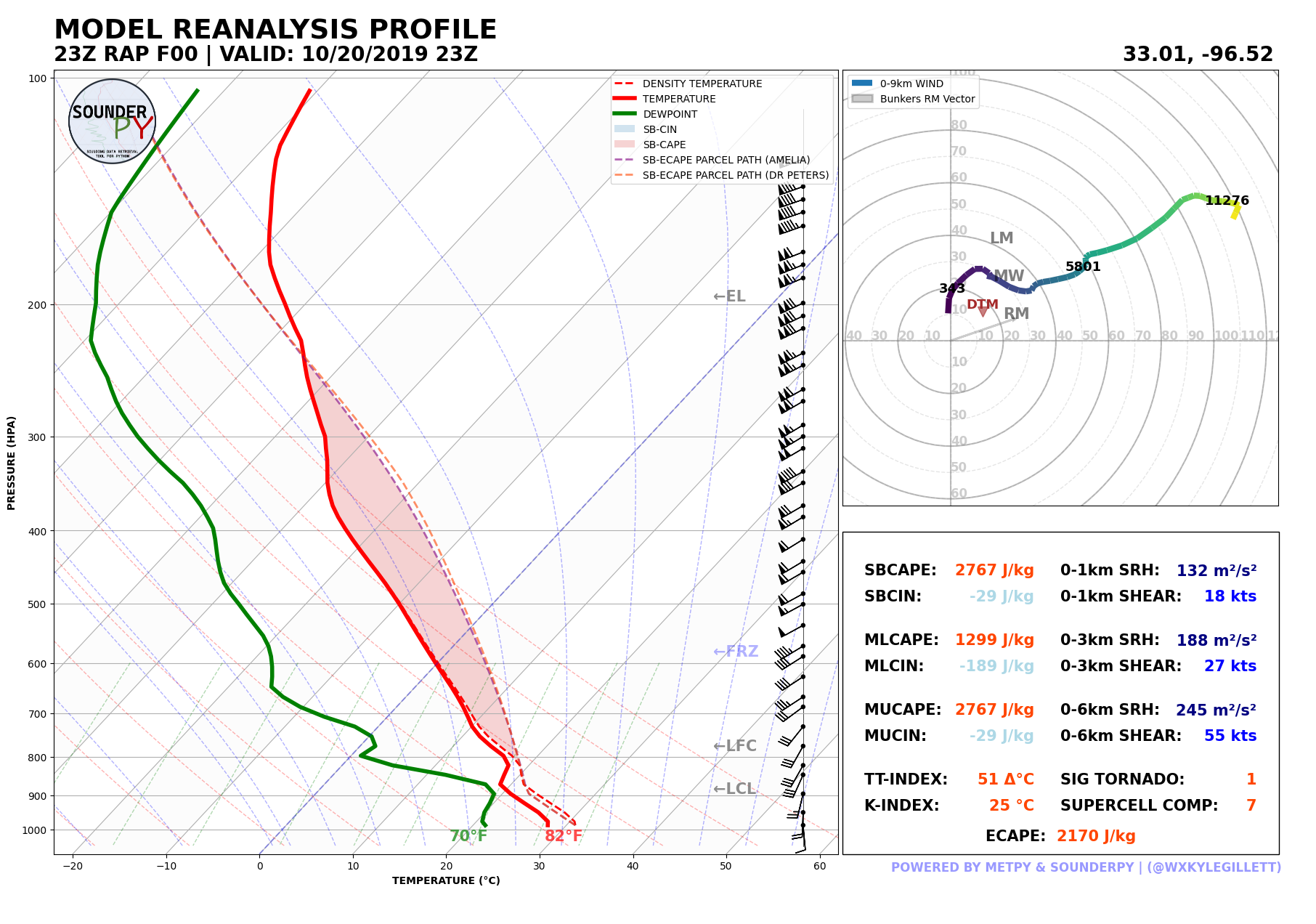

2. Entraining Pseudoadiabatic Ascent

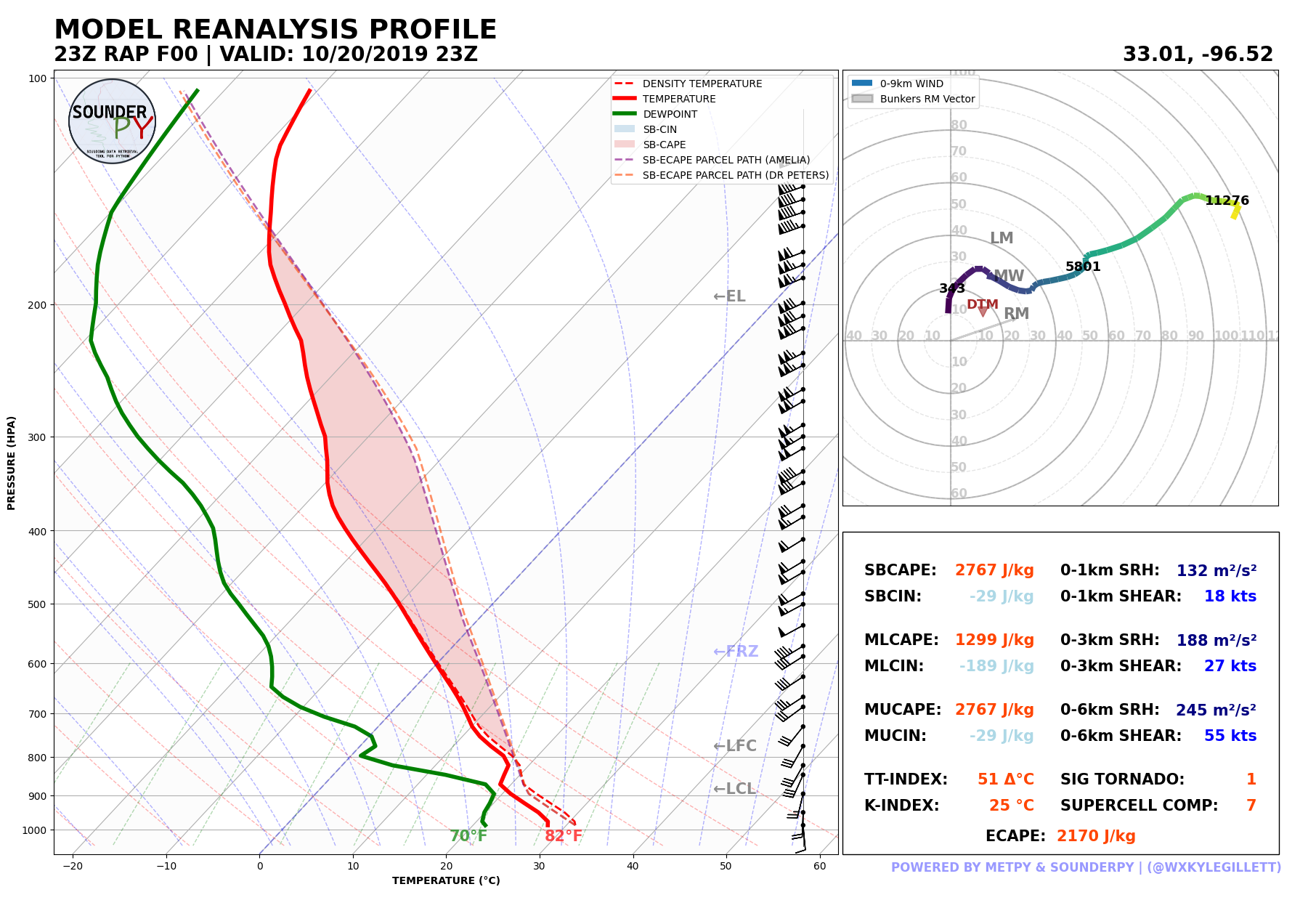

3. Non-Entraining Irreversible Adiabatic Ascent

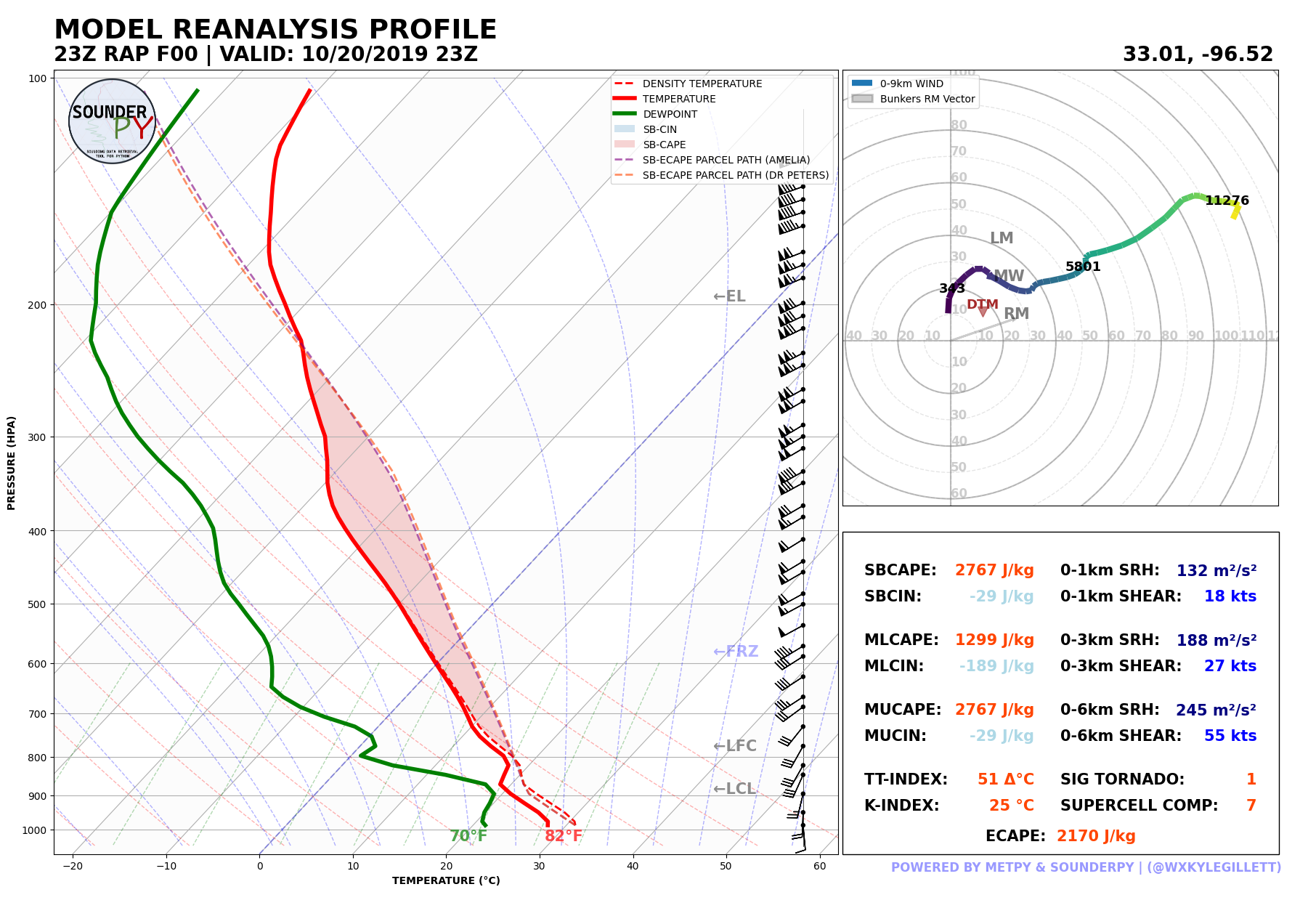

4. Entraining Irreversible Adiabatic Ascent
