The enigma machine in python

Enigma

The enigma cipher machine in python.

Getting started

Get the library:

pip install enigma-cipher-machine

We use pure python, no dependency required and tested on python 3.10.6.

To run tests please install pytest.

The Machine

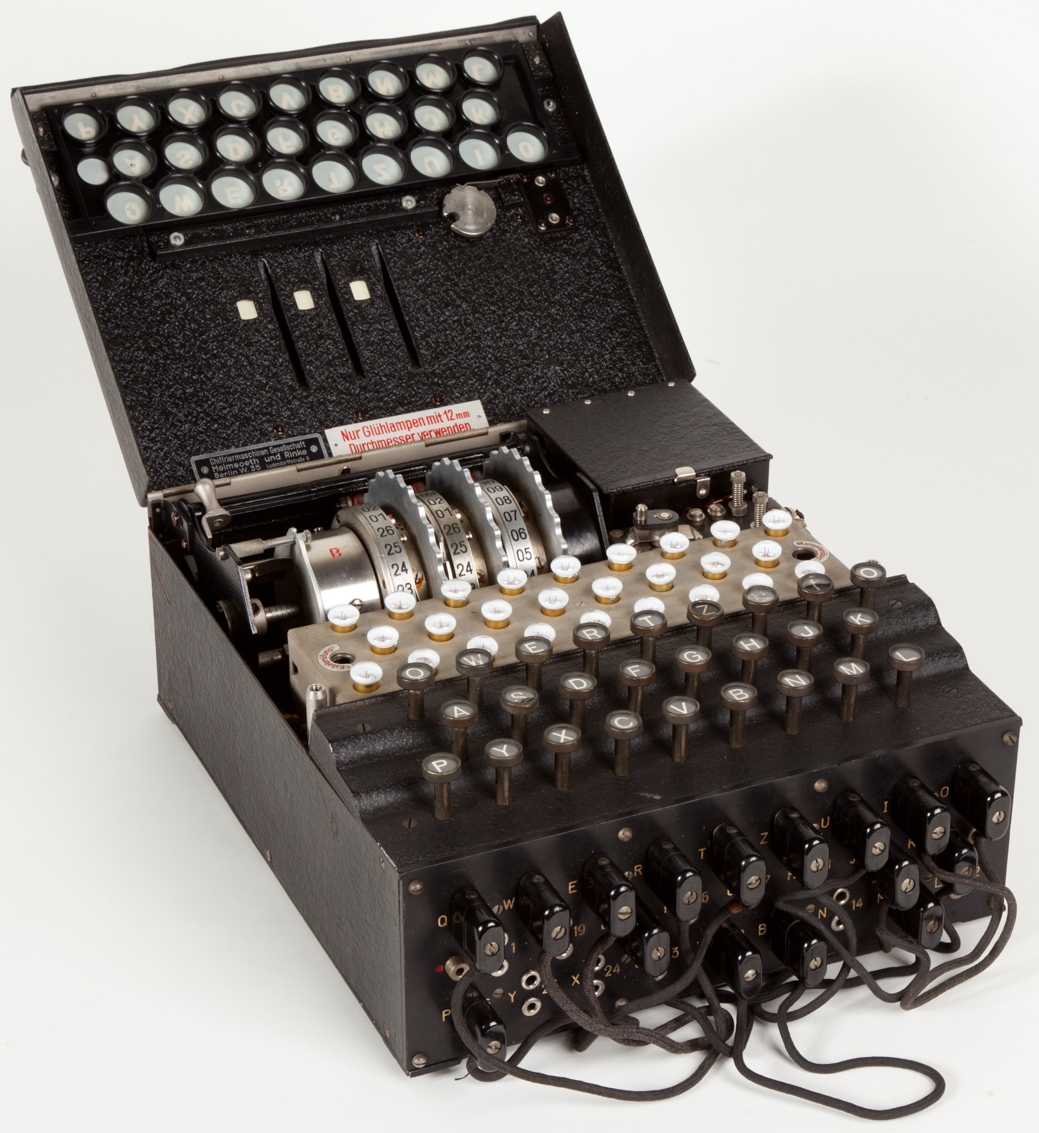

Built by the German Scherbius & Ritter company in the early 20th century, the enigma machine is a cipher machine. The machine performs substitution: it encodes a letter from the alphabet to another one.

The machine is composed of the following elements:

• a keyboard for user input,
• multiple rotors which are rotating parts that perform the cipher operation using a scrambled electrical wiring,
• a front panel plugboard allowing an additional substitution. This make the deciphering operation insanely more difficult (over 150,738,274,937,250 additional substitutions using 10 pairs),
• a light panel with 26 lamps labeled from A to Z.

The cipher process can be described as follow :

Keyboard -> Plugboard -> Entry Wheel -> Rotors (from 1 to x) -> Reflector -> Rotors (from x to 1) -> Entry Wheel -> Plugboard -> Light Panel

The user press a letter on the keyboard making the first rotor to rotate. The keyboard press close an electrical circuit, allowing the current to enter the plugboard, the entry wheel, each rotor and the reflector (a non rotating wheel). From there the electrical current makes its way back to the light panel, lighting up the alphabet letter corresponding to the scrambled letter.

Rotors

Rotors are the rotating part of the enigma machine. Most machines contains three of them but an additional one can be found on some variant (e.g. M4 variant for the Kriegsmarine with the greek wheel).

Rotors' positions are numbered from A to Z and possess turnover positions. When a rotor reach a turnover position, it rotates its closest left neighbour.

Rotors' internal wiring can be shifted prior any operation by rotating a ring to a certain position. This setting is often called the Ringstellung.

The wiring pattern is usually represented with an alphabet string. Each alphabet character is replaced by the corresponding letter in the string. For instance the string: EKMFLGDQVZNTOWYHXUSPAIBRCJ means that a A substitute to an E, a B to an K and so on. The same logic applies for the remaining characters as shown below.

ABCDEFGHIJKLMNOPQRSTUVWXYZ      keyboard    reflector
||||||||||||||||||||||||||         ↓            ↑
EKMFLGDQVZNTOWYHXUSPAIBRCJ      reflector   keyboard

On each rotor increment, we rotate the alphabet by one (please pay attention to the position of the letter A):

BCDEFGHIJKLMNOPQRSTUVWXYZA
||||||||||||||||||||||||||
EKMFLGDQVZNTOWYHXUSPAIBRCJ

Moving the ring to a B position is equivalent to the inverse of a rotation.

ZABCDEFGHIJKLMNOPQRSTUVWXY
||||||||||||||||||||||||||
EKMFLGDQVZNTOWYHXUSPAIBRCJ

We can represent the shift with the following equations:

From the keyboard to the reflector (alphabet to rotor's wiring)

wiring_letter = letter + position - ringstellung
cipher_letter = wire.at(wiring_letter) - position + ringstellung

From the reflector to the light panel (rotor's wiring to alphabet)

wiring_letter = letter + position - rinsgtellung
cipher_letter = wire.index(wiring_letter) - position + ringstellung

The reflector is considered as a one-way (keyboard to reflector), non rotating "rotor".

Enigma machines that use a lever suffer an abnormal rotation when the center rotor reaches its turnover position. If so, all the rotors are increment one step further. Let's illustrate this anomaly.

• Rotor I turnover position is Q : if reached Rotor II increment,
• Rotor II turnover position is E : if reached Rotor III increment.

We setup the machine to the A-D-Q position and we increment the Rotor I.

Expected rotation:

III	II	I
A	D	Q
A	E	R
A	E	S

Double stepping rotation:

III	II	I
A	D	Q
A	E	R
B	F	S

Rotor III, II and I increment. This software enables double stepping rotation by default as it was present on the M3 and M4 machine. You can desactivate this behaviour by setting double_stepping=False in the Machine constructor.

Plugboard

The plugboard is a front panel with 26 electrical sockets. A male-male cable is used to connect letters between them. 10 connections (20 pairs) is a common setup.

An AB pair will substitute every A to B and every B to an A.

We use this notation : AE BF CM DQ HU JN LX PR SZ VW. Every pairs are space separated.

Example

We use the M3 machine and the following setup:

Object	Value
Reflector	C
Rotors	III-II-I
Positions	A-B-C
Ringstellung	D-E-F
Plugboard	qd fe rw jn il ps cm ax kg yu
Text	Hello world

The enigma produces: fsqsj fusta

Usage

We want to decode the following message: xgytk npnkq ssnxw kyf with the settings extracted from the above example.

We initialise a plugboard. A plugboard object contains from 0 to 10 pairs of letters. A letter can only appears one time in the plugboard.

from enigma.plugboard import Plugboard

plugboard = Plugboard("qd fe rw jn il ps cm ax kg yu")

Then, we construct the machine using the predefined M3 rotors from the enigma.rotor.Rotors class (see below if you want to create yours).

from enigma.rotor import Rotors
from enigma.machine import Machine

M3 = Machine(
    "M3",
    [
        Rotors.M3.ETW,
        Rotors.M3.I,
        Rotors.M3.II,
        Rotors.M3.III,
        Rotors.M3.UKWC
    ],
    plugboard
)

Now set the positions and the ringstellung:

M3.set_rotor_position("I", "A")
M3.set_rotor_position("II", "B")
M3.set_rotor_position("III", "C")

M3.set_rotor_ringstellung("I", "D")
M3.set_rotor_ringstellung("II", "E")
M3.set_rotor_ringstellung("III", "F")

And then provide the input text (split is optional it adds an additional space every n character):

plaintext = M3.encode("xgytk npnkq ssnxw kyf", split=0)
print(plaintext)
>> alanmathisonturing

Here is a full example using a M4 enigma machine with double stepping. We are decoding a real world message sent by GrossAdmiral Donitz on the 1st May 1945.

from enigma.machine import Machine
from enigma.plugboard import Plugboard
from enigma.rotor import Rotors

plugboard = Plugboard("AE BF CM DQ HU JN LX PR SZ VW")

M4 = Machine(
    "M4",
    [
        Rotors.M4.ETW,
        Rotors.M4.VIII,
        Rotors.M4.VI,
        Rotors.M4.V,
        Rotors.M4.Beta,
        Rotors.M4.UKWC
    ],
    plugboard
)

M4.set_rotor_position("Beta", "C")
M4.set_rotor_position("V", "D")
M4.set_rotor_position("VI", "S")
M4.set_rotor_position("VIII", "Z")

M4.set_rotor_ringstellung("Beta", "E")
M4.set_rotor_ringstellung("V", "P")
M4.set_rotor_ringstellung("VI", "E")
M4.set_rotor_ringstellung("VIII", "L")

print(M4)

ciphertext = """LANO TCTO UARB BFPM HPHG CZXT DYGA HGUF XGEW KBLK GJWL QXXT
GPJJ AVTO CKZF SLPP QIHZ FXOE BWII EKFZ LCLO AQJU LJOY HSSM BBGW HZAN
VOII PYRB RTDJ QDJJ OQKC XWDN BBTY VXLY TAPG VEAT XSON PNYN QFUD BBHH
VWEP YEYD OHNL XKZD NWRH DUWU JUMW WVII WZXI VIUQ DRHY MNCY EFUA PNHO
TKHK GDNP SAKN UAGH JZSM JBMH VTRE QEDG XHLZ WIFU SKDQ VELN MIMI THBH
DBWV HDFY HJOQ IHOR TDJD BWXE MEAY XGYQ XOHF DMYU XXNO JAZR SGHP LWML
RECW WUTL RTTV LBHY OORG LGOW UXNX HMHY FAAC QEKT HSJW"""

plaintext = M4.encode(ciphertext, split=0, debug=False)

print(plaintext)

The machine returns :

krkrallexxfolgendesistsofortbekanntzugebenxxichhabefolgelnbebefehlerhaltenxxjansterledesbisherigxnreichsmarschallsjgoeringjsetztderfuehrersieyhvrrgrzssadmiralyalsseinennachfolgereinxschriftlschevollmachtunterwegsxabsofortsollensiesaemtlichemassnahmenverfuegenydiesichausdergegenwaertigenlageergebenxgezxreichsleiteikktulpekkjbormannjxxobxdxmmmdurnhfkstxkomxadmxuuubooiexkp

After formating

krkr alle xx
folgendes ist sofort bekanntzugeben xx
ich habe folgelnbe befehl erhalten xx
j ansterle des bisherigxn reichsmarschalls j goering j setzt der fuehrer sie y hvrr grzssadmiral y als seinen nachfolger ein x schriftlsche vollmacht unterwegs x absofort sollen sie saemtliche massnahmen verfuegen y die sich aus der gegenwaertigen lage ergeben x gez x reichsleitei kk tulpe kk j bormann j xx
ob x d x mmm durnh fkst x kom x adm x uuu booie x kp

Please see cryptomuseum.com for more.

Going further

You can randomise the plugboard and specify a number of pairs to generate. 11 is the best combination (please see cryptomuseum.com).

from enigma.plugboard import Plugboard

plugboard = Plugboard("")
plugboard.randomise(pairs=10)

You can create additionnal rotors by using the Rotor class from the enigma.rotor package.

A Rotor object requires an unique name, the wiring sequence containing every letter of the alphabet (len(wiring) == 26) and the turnover positions. See rotor.py for the full api description.

from enigma.rotor import Rotor

# Commercial Enigma A27 wiring
KI = Rotor(
    "KI",                           #name
    "LPGSZMHAEOQKVXRFYBUTNICJDW",   # wiring
    "Y"                             # turnover
)

KII = Rotor(
    "KII",
    "SLVGBTFXJQOHEWIRZYAMKPCNDU",
    "E"
)

KIII = Rotor(
    "KII",
    "CJGDPSHKTURAWZXFMYNQOBVLIE",
    "N"
)

ETWK = Rotor(
    "ETWK",
    "QWERTZUIOASDFGHJKPYXCVBNML",
    "",
    rotate=False                    # no rotation for an entry wheel
)

UKWK = Rotor(
    "UKWK",
    "IMETCGFRAYSQBZXWLHKDVUPOJN",
    "",
    reflector=True                  # this rotor is a reflector
)

A machine object requires a name, a list of rotors (starting from the entry wheel to the reflector) and a plugboard.

from enigma.machine import Machine

EK = Machine(
    "K-A27",
    [
        ETWK,
        KI,
        KII,
        KIII,
        UKWK
    ],
    plugboard
)

TODO

• set_rotor_position and set_rotor_ringstellung even if the rotor shares the same name

Licence

MIT of course.
