exponax 0.1.0

Efficient differentiable PDE solvers in JAX.

Efficient Differentiable n-d PDE solvers built on top of JAX & Equinox.

Installation • Documentation • Quickstart • Features • Background • Acknowledgements

Exponax is a suite for building Fourier spectral ETDRK time-steppers for semi-linear PDEs in 1d, 2d, and 3d. There are many pre-built dynamics and plenty of helpful utilities. It is extremely efficient, is differentiable (due to being fully written in JAX), and embeds seamlessly into deep learning.

Installation

pip install exponax

Requires Python 3.10+ and JAX 0.4.13+. 👉 JAX install guide.

Documentation

Documentation is available at fkoehler.site/exponax.

Quickstart

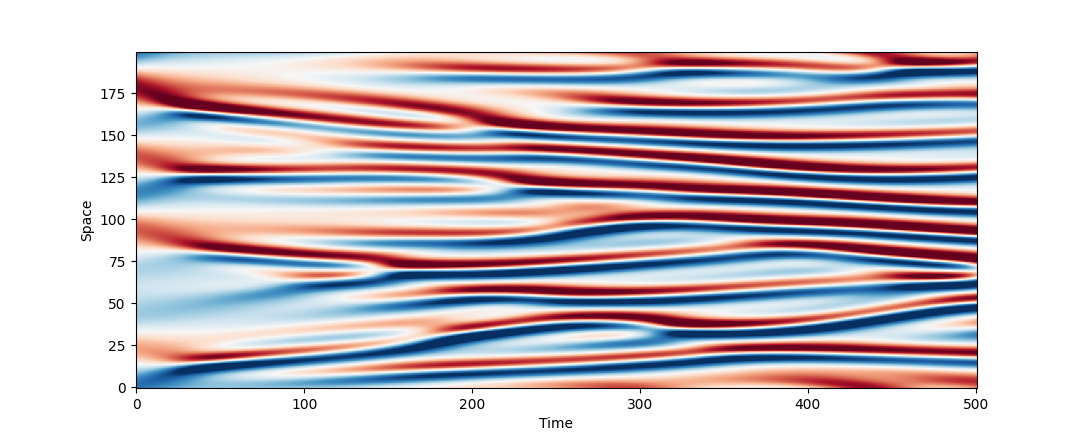

1d Kuramoto-Sivashinsky Equation.

import jax
import exponax as ex
import matplotlib.pyplot as plt

ks_stepper = ex.stepper.KuramotoSivashinskyConservative(
    num_spatial_dims=1, domain_extent=100.0,
    num_points=200, dt=0.1,
)

u_0 = ex.ic.RandomTruncatedFourierSeries(
    num_spatial_dims=1, cutoff=5
)(num_points=200, key=jax.random.PRNGKey(0))

trajectory = ex.rollout(ks_stepper, 500, include_init=True)(u_0)

plt.imshow(trajectory[:, 0, :].T, aspect='auto', cmap='RdBu', vmin=-2, vmax=2, origin="lower")
plt.xlabel("Time"); plt.ylabel("Space"); plt.show()

For a next step, check out this tutorial on 1D Advection that explains the basics of Exponax.

Features

1. JAX as the computational backend:
   1. Backend agnotistic code - run on CPU, GPU, or TPU, in both single and double precision.
   2. Automatic differentiation over the timesteppers - compute gradients of solutions with respect to initial conditions, parameters, etc.
   3. Also helpful for tight integration with Deep Learning since each timestepper is just an Equinox Module.
   4. Automatic Vectorization using jax.vmap (or equinox.filter_vmap) allowing to advance multiple states in time or instantiate multiple solvers at a time that operate efficiently in batch.
2. Lightweight Design without custom types. There is no grid or state object. Everything is based on JAX arrays. Timesteppers are callable PyTrees.

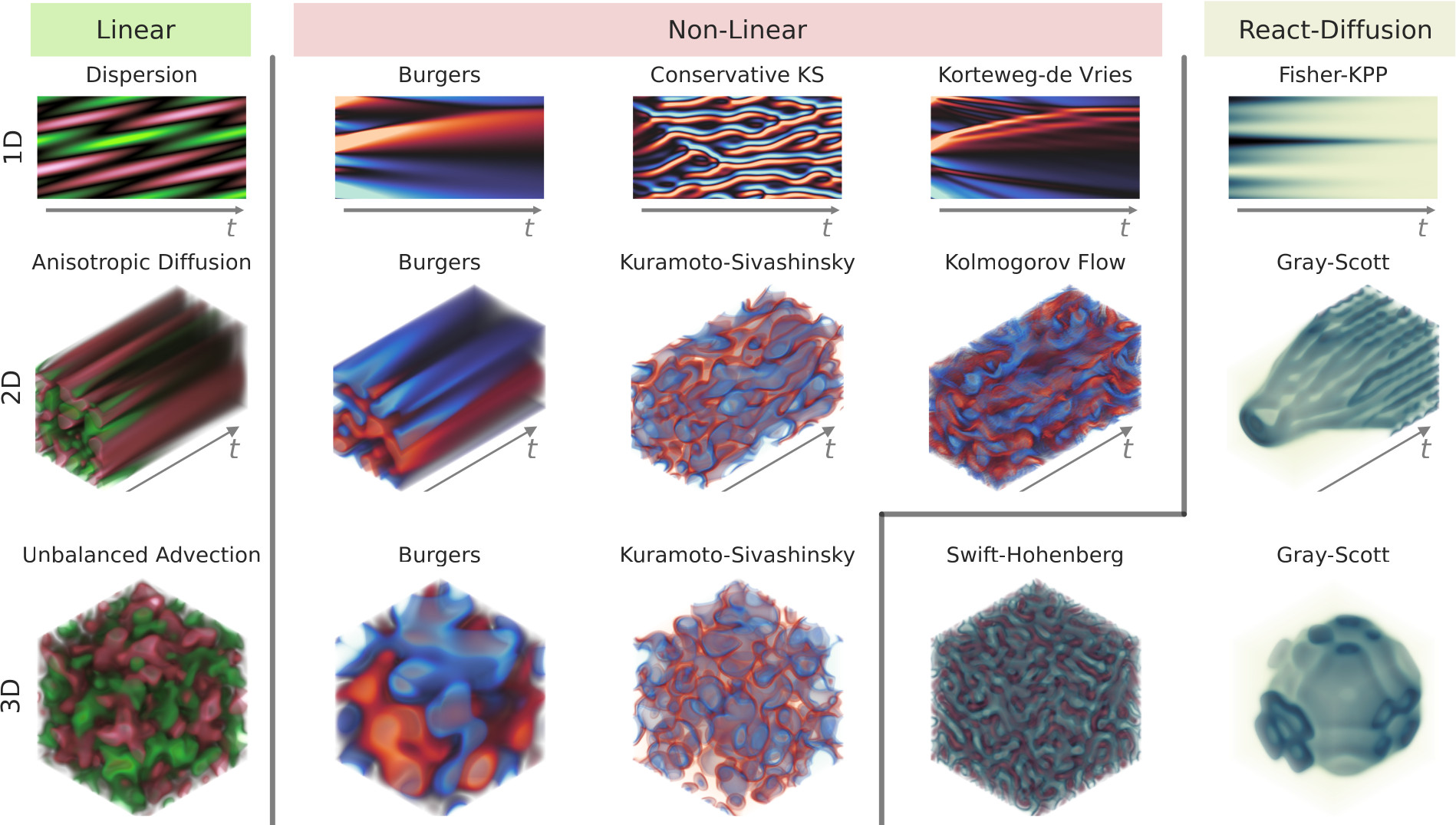

3. More than 46 pre-built dynamics across 1d, 2d, and 3d:
   1. Linear PDEs (advection, diffusion, dispersion, etc.)
   2. Nonlinear PDEs (Burgers, Kuramoto-Sivashinsky, Korteweg-de Vries, Navier-Stokes, etc.)
   3. Reaction-Diffusion (Gray-Scott, Swift-Hohenberg, etc.)
4. Collection of initial condition distributions (truncated Fourier series, Gaussian Random Fields, etc.)
5. Utilities for spectral derivatives, grid creation, autogressive rollout, interpolation, etc.
6. Easily extendable to new PDEs by subclassing from the BaseStepper module.
7. An alternative, reduced interface allowing to define PDE dynamics using normalized or difficulty-based idenfitiers.

Background

Exponax supports the efficient solution of (semi-linear) partial differential equations on periodic domains in arbitrary dimensions. Those are PDEs of the form

$$ \partial u/ \partial t = Lu + N(u), $$

where $L$ is a linear differential operator and $N$ is a nonlinear differential operator. The linear part can be exactly solved using a (matrix) exponential, and the nonlinear part is approximated using Runge-Kutta methods of various orders. These methods have been known in various disciplines in science for a long time and have been unified for a first time by Cox & Matthews [1]. In particular, this package uses the complex contour integral method of Kassam & Trefethen [2] for numerical stability. The package is restricted to the original first, second, third and fourth order method. A recent study by Montanelli & Bootland [3] showed that the original ETDRK4 method is still one of the most efficient methods for these types of PDEs.

We focus on periodic domains on scaled hypercubes with a uniform Cartesian discretization. This allows using the Fast Fourier Transform resulting in blazing fast simulations. For example, a dataset of trajectories for the 2d Kuramoto-Sivashinsky equation with 50 initial conditions over 200 time steps with a 128x128 discretization is created in less than a second on a modern GPU.

[1] Cox, Steven M., and Paul C. Matthews. "Exponential time differencing for stiff systems." Journal of Computational Physics 176.2 (2002): 430-455.

[2] Kassam, A.K. and Trefethen, L.N., 2005. Fourth-order time-stepping for stiff PDEs. SIAM Journal on Scientific Computing, 26(4), pp.1214-1233.

[3] Montanelli, Hadrien, and Niall Bootland. "Solving periodic semilinear stiff PDEs in 1D, 2D and 3D with exponential integrators." Mathematics and Computers in Simulation 178 (2020): 307-327.

Acknowledgements

Related & Motivation

This package is greatly inspired by the chebfun library in MATLAB, in particular the spinX (Stiff Pde INtegrator in X dimensions) module within it. These MATLAB utilties have been used extensively as a data generator in early works for supervised physics-informed ML, e.g., the DeepHiddenPhysics and Fourier Neural Operators (the links show where in their public repos they use the spinX module). The approach of pre-sampling the solvers, writing out the trajectories, and then using them for supervised training worked for these problems, but of course limits the scope to purely supervised problem. Modern research ideas like correcting coarse solvers (see for instance the Solver-in-the-Loop paper or the ML-accelerated CFD paper) require a coarse solvers to be differentiable. Some ideas of diverted chain training also requires the fine solver to be differentiable. Even for applications without differentiable solvers, we still have the interface problem with legacy solvers (like the MATLAB ones). Hence, we cannot easily query them "on-the-fly" for sth like active learning tasks, nor do they run efficiently on hardward accelerators (GPUs, TPUs, etc.). Additionally, they were not designed with batch execution (in the sense of vectorized application) in mind which we get more or less for free by jax.vmap. With the reproducible randomness of JAX we might not even have to ever write out a dataset and can re-create it in seconds!

This package also took much inspiration from the FourierFlows.jl in the Julia ecosystem, especially for checking the implementation of the contour integral method of [2] and how to handle (de)aliasing.

Citation

This package was developed as part of the APEBench paper (accepted at Neurips 2024), we will soon add the citation here.

Funding

The main author (Felix Koehler) is a PhD student in the group of Prof. Thuerey at TUM and his research is funded by the Munich Center for Machine Learning.

License

MIT, see here

---
