FarSSH

FarSSH provides secure on-demand connections into AWS VPCs.

You can easily connect to in-VPC resources like RDS and OpenSearch endpoints, using tools installed on your local machine.

FarSSH features a SOCKS proxy mode, enabling your browser to be "in" the target VPC; this works both for accessing VPC resources and as a quick way to tunnel all your browser traffic, so your browser's connections will appear to come from this AWS region's public IP addresses (like a VPN).

FarSSH integrates with the psql and mysql command line clients for easy database access.

Resources are deployed in your AWS account; there is no third party / no external service involved. AWS charges apply, at roughly $0.01 per hour (billed per second) per active client; no charges when no client is active.

Usage

SQL Client Mode

To launch a psql or mysql client directly to one of your RDS databases (instance or cluster), simply:

farssh psql [-U username] [database_name]

For MySQL / MariaDB:

farssh mysql -p [-u username] [database_name]

When not specified, username and database_name will be taken from the RDS configuration (master username and the initial database).

If only one matching RDS database is available, it will automatically be selected. If there are multiple databases, use --identifier to select one; otherwise, a list of available databases will be shown.

Tunnel mode

Forward a local port to your VPC like this:

farssh tunnel 5432 pg-cluster.cluster-foo.eu-central-1.rds.amazonaws.com

Then connect to the local port 5432 on your machine, e.g. just using psql -h localhost in another shell, or your favorite GUI client.

Remember to terminate the FarSSH session using ^C when done.

Proxy mode

Simply run

farssh proxy

Then configure your browser to use a SOCKS proxy on localhost, port 1080.

Remember to terminate the FarSSH session using ^C when done.

SSH mode

If you just need a shell inside your VPC, run

farssh ssh

Additional Arguments

The psql, mysql and ssh commands can be used with additional arguments that will be passed to the client, so you could do something like farssh ssh -- /sbin/ip address or farssh psql -- -c "select foo from bar".

Installation

Requirements

• The target VPC needs to have a public subnet
  • note that the connection target (FarSSH tunnel mode) can be in a private subnet, or, via VPC peering, even in a different VPC
• For the client machine:
  • local AWS configuration (appropriate credentials / profiles configured etc.)
  • Python 3
  • AWS SDK for Python, aka boto3
  • OpenSSH ssh client
  • The psql / mysql command line utilities if you want to use the respective mode

Deploy configuration on AWS

Use this Cloudformation quick-create link to deploy necessary resources in the target environment.

For Subnets, be sure to select one or more public subnets, i.e. that are connected to an Internet Gateway.

Make sure you have selected the correct region! For a list of created resources, see below.

NOTE: If you intend to use IPv6, please read below, before continuing

NOTE: If Cloudformation fails to create the stack with this error ...

Unable to assume the service linked role. Please verify that the ECS service linked role exists.

... then please delete the stack from Cloudformation and simply retry from the quick-create link above. That role is automatically created by AWS on first-ever ECS usage, but the cluster creation fails anyway. If you know how to properly fix this in Cloudformation, please let me know.

Allow connections from FarSSH

Adjust your existing Security Groups to allow inbound connections from the FarSSH Security Group.

For example, to allow tunnel connections to your RDS instance, modify a corresponding RDS instance Security Group:

• Edit inbound rules
• Type: PostgreSQL (or MySQL or ...)
• Source: custom: security group farssh-default

Install the FarSSH client

The FarSSH client is available in the Python Package Index, so you can simply use pip to install and update:

pip install farssh

FarSSH will use the target AWS account, region and credentials from the local AWS configuration, e.g. your configuration in ~/.aws, your AWS_PROFILE and AWS_REGION environment variables etc.

Note: Make sure that your local environment uses the same AWS account and region that you deployed the Cloudformation template to.

That's it. For usage, see above.

Updating

To update the FarSSH Cloudformation template, select the FarSSH stack in the Cloudformation console, hit "Update" and replace the template using this S3 url: https://farssh.s3.amazonaws.com/cloudformation/farssh.yaml

To update FarSSH settings, update the stack with the "Use current template" option.

IPv6 Support

Given that AWS now charges for any use of public IPv4 addresses, it's important to use IPv6 when possible.

FarSSH supports IPv6 both on the AWS side and on the client.

Client Side

Run the client with the option -6 (or --ipv6) to make it connect to the FarSSH ECS task via IPv6. The client will fail when the FarSSH ECS task does not have an IPv6 address.

Server Side (ECS)

IPv6 for the FarSSH ECS task is a bit more complicated, as we need to work around several IPv6 potholes in AWS.

To allow IPv6 connections from the client, you only need to make sure that the configured public subnets have IPv6 configured. Fargate tasks will automatically get an IPv6 address. If that doesn't work out of the box, double-check the ECS dualStackIPv6 setting.

But an ECS task also needs some IP connectivity to pull the image and to send logs to Cloudwatch. If you have neither VPC endpoints nor NAT in your VPC, this will cause the ECS task to fail when a FarSSH client uses IPv6.

The Cloudformation template has some knobs for this:

The easy fix is to set ForcePublicIpv4 to true in the Cloudformation stack; FarSSH will then always request a public IPv4 address, even when a clients connects via IPv6. With the public IPv4 address, everything works.

Alternatively, to fully avoid using public IPv4 addresses, change these options during the Cloudformation setup:

• set ImageUri to the docker.io address (the AWS ECR does not support IPv6)
• disable the awslogs driver (Cloudwatch Logs does not support IPv6)

How it works

FarSSH is basically a wrapper around an OpenSSH server and your local OpenSSH client. The latter does the actual work of tunneling (local port forwarding, parameter -L) and proxying (SOCKS proxy, parameter -D).

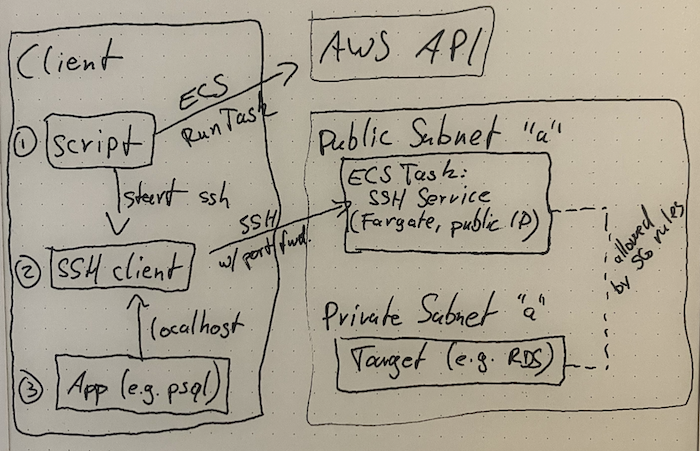

FarSSH consists of three rather simple components to glue it together. Here's a highly professional architecture diagram:

Container image

FarSSH publishes a container image in AWS Public ECR at public.ecr.aws/apparentorder/farssh. This is a tiny Alpine-based image that only runs an SSH server. There is also a background process that will terminate the task if there are no active connections.

The same image is also published to Dockerhub at docker.io/apparentorder/farssh, because Dockerhub supports IPv6 and AWS Public ECR does not. Using Dockerhub over IPv4 might result in pull errors due to rate limit though.

Resources in the target environment

The Cloudformation template creates the following resources so FarSSH tasks can be run in the target environment:

• IAM roles for the ECS task (TaskRole and ExecutionRole)
• ECS resources: cluster farssh, task definition farssh-default
• SSM Parameters /farssh/*
• Security Group farssh-default

Client

The "client" pulls a few parameters from SSM Parameter Store and then starts an ECS Task with the FarSSH image. The FarSSH task will be available after a few seconds.

The client will then start an ssh session to the public IP address of the FarSSH task.

Key pairs are generated locally for both the client connection and the FarSSH task's SSH host key, and the SSH client will "strictly" check the expected host key.

Caveats

• Currently, FarSSH can be deployed to only one VPC per region per account (deploying multiple times to different regions works fine)

Future ideas

• Support for multiple VPCs per region
• Optionally use some kind of "reverse SSH", so the FarSSH task does not need a public IP address
• Enable using existing ECS clusters (possibly including EC2-based)
• Only half-way through building this I realized that I could have built the same thing for an ad-hoc VPN endpoint instead of an SSH server; I have yet to think through what kind of sense that could make
• Properly tag the public ECR image(s) so it can be coupled with released versions

Motivation

To my knowledge, all alternative options use time-based billing, meaning that you pay a base fee for having them around, even if you're not using them at all. For example, while AWS ClientVPN does charge per connection hour, it also charges you just for being associated to your VPC.

AWS recently announced EC2 Instance Connect Endpoints which absolutely solve this problem, even without additional charges. For a few days after release, this allowed to make arbitrary TCP connections (e.g. to your RDS instance's port 5432!).

Unfortunately, AWS decided that while this works great and allows most customer to get rid of jump hosts once and for all, it's just too easy. As it stands today, it's artificially limited to target ports 22 (ssh) and 3389 (RDP). This move also influenced this project's name: While "FarSSH" is a play on "Fargate" and "SSH", it shall be pronounced "farce" – because this project shouldn't have to exist.

Contact

For bug reports, pull requests and other issues please use Github.

For everything else:

I'm (still) trying to get used to X/Twitter as @apparentorder. DMs are open. You can also try legacy message delivery to [e-mail].
