fastapi-opa 1.3.4

Fastapi OPA middleware incl. auth flow.

Open Policy Agent Middleware for FastAPI

Table of Contents

• Contributors
• What does fastapi-opa do
• Installation
• How to get started
• Open Policy Agent
• Authentication Flow
  • OIDC Authentication
  • SAML Authentication
• Custom Payload Enrichment
  • Graphql Enrichment

Contributors

Thanks to all our contributors! There is no specific order and hopefully nobody was left out.

What does fastapi-opa do

fastapi-opa is an extension to FastAPI that allows you to add a login flow to your application within minutes using open policy agent and your favourite identity provider.

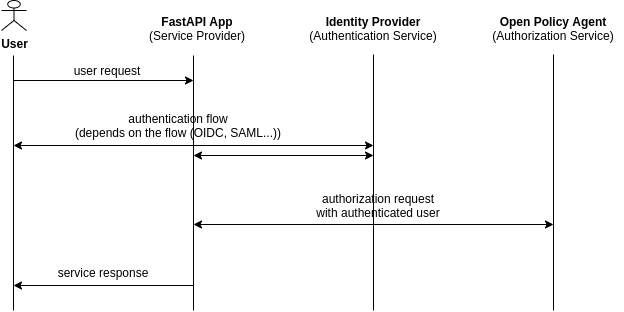

When a user tries to get a response from an endpoint he/she will be redirected to the identity provider for authorization. After the authentication the app validates the token provided. Once it was validated the user information is used to get an OPA decision whether the user is allowed to get any information from the endpoint.

Installation

poetry add [--extras "graphql"] [--extras "saml"] fastapi-opa

How to get started

:bulb: Checkout the wiki for a complete environment setup with Keycloak and Open Policy Agent:
Getting Started with FastAPI app with Authentication and Authorization

The package provides a very easy way to integrate authentication and authorization. We can decide what authentication flow we inject into the OPAMiddleware to be able choosing between different flows.

There are

• one example for oidc : fastapi_opa.example_oidc.py,
• one example for saml: fastapi_opa.example_saml.py

Open Policy Agent

The (validated/authenticated) user token is sent to the Open Policy Agent with the additional attributes request_method and request_path.

{
    "input": {
        "exp": 1617466243,
        "iat": 1617465943,
        "auth_time": 1617465663,
        "jti": "9aacb638-70c6-4f0a-b0c8-dbc67f92e3d1",
        "iss": "http://localhost:8080/auth/realms/example-realm",
        "aud": "example-client",
        "sub": "ccf78dc0-e1d6-4606-99d4-9009e74e3ab4",
        "typ": "ID",
        "azp": "david",
        "session_state": "41640fe7-39d2-44bc-818c-a3360b36fb87",
        "at_hash": "2IGw-B9f5910Sll1tnfQRg",
        "acr": "0",
        "email_verified": false,
        "hr": "true",
        "preferred_username": "david",
        "user": "david",
        "subordinates": [],
        "request_method": "GET",
        "request_path": ["finance", "salary", "david"]
    }
}

In open policy agent you can now easily create policies using user roles, routes, or request methods etc.

An example policy (from the official OPA docs) for this setup could be like:

package httpapi.authz

# bob is alice's manager, and betty is charlie's.
subordinates = {"alice": [], "charlie": [], "bob": ["alice"], "betty": ["charlie"]}

# HTTP API request
import input

default allow = false

# Allow users to get their own salaries.
allow {
  some username
  input.request_method == "GET"
  input.request_path = ["finance", "salary", username]
  input.user == username
}

# Allow managers to get their subordinates' salaries.
allow {
  some username
  input.request_method == "GET"
  input.request_path = ["finance", "salary", username]
  subordinates[input.user][_] == username
}

Authentication Flow

There is an interface provided to easily implement the desired authentication flow and inject it into OPAMiddleware (fastapi_opa.auth.auth_interface.AuthInterface), or you can open a pull request if you would like to contribute to the package.

Also there are implementations ready to use.

OIDC Authentication

The example in How to get started provides an example for the implementation of the OIDC Authentication.

SAML Authentication

For the saml implementation create your certs using openssl req -new -x509 -days 3652 -nodes -out sp.crt -keyout sp.key and add the keys to the sp section of your settings.json. Checkout the test settings to get an idea (tests/test_data/saml/*.json). The path to your own settings.json and advanced_settings.json has to be provided in the SAMLAuthConfig like in the example below (do not use the test data in production).

from fastapi_opa import OPAConfig
from fastapi_opa.auth.auth_saml import SAMLAuthentication
from fastapi_opa.auth.auth_saml import SAMLConfig

opa_host = "http://localhost:8181"

saml_config = SAMLConfig(settings_directory="./tests/test_data/saml")
saml_auth = SAMLAuthentication(saml_config)

opa_config = OPAConfig(authentication=saml_auth, opa_host=opa_host,
                       accepted_methods=["id_token", "access_token"])

The cert has to be uploaded to your identity provider. Using Keycloak as an idp you need to configure encrypt assertion, client signature required, force POST bindings on creating the client. Also configure: Client Scopes -> role_list (saml) -> Mappers tab -> role list -> Single Role Attribute

Custom Payload Enrichment

In fastapi_opa.opa.opa_config.Injectable an interface is provided to add more information to the payload sent to OPA.

The injectables can be added to the OPAConfig. Let's look at an example:

class FancyInjectable(Injectable):
    async def extract(self, request: Request) -> List:
        return ["some", "custom", "stuff"]

fancy_inj = FancyInjectable("fancy_key", skip_endpoints=["/health", "/api/[^/]*/test])

opa_config = OPAConfig(
    authentication=oidc_auth, opa_host=opa_host, injectables=[fancy_inj]
)

With skip_endpoints, you can define some endpoints where the injectable will not be applied. The endpoints can be defined either directly or through some regex.

Graphql Enrichment

For GraphQL there is a ready to use injectable:

from fastapi_opa.opa.enrichment.graphql_enrichment import GraphQLInjectable`

graphql = GraphQLInjectable("gql_injectable")
opa_config = OPAConfig(authentication=oidc_auth, opa_host=opa_host, injectables=[graphql])
