fastdtlmapper 0.3.4

Fast genome-wide DTL(Duplication-Transfer-Loss) event mapping tool

FastDTLmapper: Fast genome-wide DTL event mapper

Table of contents

• Overview
• Install
• Analysis Pipeline
• Command Usage
• Output Contents
• Further Analysis

Overview

Gene gain/loss is considered to be one of the most important evolutionary processes driving adaptive evolution, but it remains largely unexplored. Therefore, to investigate the relationship between gene gain/loss and adaptive evolution in the evolutionary process of organisms, I developed a software pipeline FastDTLmapper which automatically estimates and maps genome-wide gene gain/loss.
FastDTLmapper takes two inputs, 1. Species tree (Newick format) & 2. Genomic Protein CDSs (Fasta|Genbank format), and performs genome-wide mapping of DTL(Duplication-Transfer-Loss) events by DTL reconciliation of species tree and gene trees. Additionally, FastDTLmapper can perform Plot Gain/Loss Map Figure and Functional Analysis (GOEA) using packaged subtools.

Fig. Genome-wide gain/loss map result example (all_gain_loss_map.nwk)
Each node gain/loss data is mapped in following format (NodeID | GeneNum [gain=GainNum los=LossNum])
Map data is embeded in newick format bootstrap value field and user can visualize using SeaView.

Install

FastDTLmapper is implemented in Python3(>=3.7) and runs on Linux (Tested on Ubuntu20.04).

:warning: Additionally, dependent tools require Python2.7 and Perl5.

Install PyPI stable package:

pip install fastdtlmapper

Install latest development package:

pip install git+git://github.com/moshi4/FastDTLmapper.git

Use Docker (Image Registry):

docker pull ghcr.io/moshi4/fastdtlmapper:latest
docker run -it --rm ghcr.io/moshi4/fastdtlmapper:latest FastDTLmapper -h

Dependencies

Python package dependencies list here (auto installed with pip).

Well known python package numpy, pandas, scipy and

• BioPython
  Utility tools for computational molecular biology
• GOAtools
  GOEA(GO Enrichment Analysis) tool
• ETE3
  Tree analysis and visualization tool

Following dependencies are packaged in src/fastdtlmapper/bin directory.

• OrthoFinder [v2.5.2]
  Orthology inference tool
• mafft [v7.487]
  Sequences alignment tool
• trimal [v1.4]
  Alignment sequences trim tool
• IQ-TREE [v2.1.3]
  Phylogenetic tree reconstruction tool
• Treerecs [v1.2]
  Multifurcated gene tree correction tool
• AnGST
  DTL reconciliation tool (Requires Python 2.7 to run)
• parallel [v20200922]
  Job parallelization tool (Requires Perl5 to run)

Dependencies Citation List

BioPython:

Cock, P.J.A. et al.
Biopython: freely available Python tools for computational molecular biology and bioinformatics. (2009)
Bioinformatics 25(11) 1422-3

GOAtools:

Klopfenstein DV, Zhang L, Pedersen BS, ... Tang H
GOATOOLS: A Python library for Gene Ontologyy analyses (2018)
Scientific reports 8:10872

ETE:

Huerta-Cepas J., Serra F. and Bork P.
ETE 3: Reconstruction, analysis and visualization of phylogenomic data (2016)
Mol Biol Evol 33(6) 1635-1638

OrthoFinder:

Emms D.M. & Kelly S.
OrthoFinder: phylogenetic orthology inference for comparative genomics (2019)
Genome Biology 20:238

MAFFT:

Yamada, Tomii, Katoh.
Application of the MAFFT sequence alignment program to large data—reexamination of the usefulness of chained guide trees. (2016)
Bioinformatics 32:3246-3251

trimAl:

Salvador Capella-Gutierrez; Jose M. Silla-Martinez; Toni Gabaldon.
trimAl: a tool for automated alignment trimming in large-scale phylogenetic analyses. (2009)
Bioinformatics 25: 1972-1973.

IQ-TREE:

B.Q. Minh, H.A. Schmidt, O. Chernomor, D. Schrempf, M.D. Woodhams, A. von Haeseler, R. Lanfear.
IQ-TREE 2: New models and efficient methods for phylogenetic inference in the genomic era. (2020)
Mol. Biol. Evol. 37:1530-1534.

Treerecs:

Comte N, Morel B, Hasic D, Guéguen L, Boussau B, Daubin V, Penel S, Scornavacca C, Gouy M, Stamatakis A, et al.
Treerecs: an integrated phylogenetic tool, from sequences to reconciliations (2020)
Bioinformatics 36:4822–4824

AnGST:

Lawrence A David and Eric J Alm.
Rapid evolutionary innovation during an Archaean genetic expansion. (2010)
Nature. 469(7328):93-6

parallel:

O. Tange
GNU Parallel - The Command-Line Power Tool, ;login: (2011)
The USENIX Magazine, February 2011:42-47.

Analysis Pipeline

This is brief description of analysis pipeline. See wiki for details.

1. Grouping ortholog sequences using OrthoFinder
2. Align each OG(Ortholog Group) sequences using mafft
3. Trim each OG alignment using trimal
4. Reconstruct each OG gene tree using IQ-TREE
5. Correct each OG gene tree multifurcation using Treerecs
6. DTL reconciliation of species tree & each OG gene tree using AnGST
7. Aggregate and map genome-wide DTL reconciliation result

Command Usage

Basic Command

FastDTLmapper -i [fasta|genbank directory] -t [species tree file] -o [output directory]

Options

-i IN, --indir IN     Input Fasta(*.fa|*.faa|*.fasta), Genbank(*.gb|*.gbk|*.gbff) directory
-t TREE, --tree TREE  Input rooted species newick tree file
-o OUT, --outdir OUT  Output directory
-p , --process_num    Number of processor (Default: MaxProcessor - 1)
--dup_cost            Duplication event cost (Default: 2)
--los_cost            Loss event cost (Default: 1)
--trn_cost            Transfer event cost (Default: 3)
--inflation           OrthoFinder MCL inflation parameter (Default: 3.0)
--timetree            Use species tree as timetree in AnGST (Default: off)
--rseed               Number of random seed (Default: 0)
-v, --version         Print version information
-h, --help            Show this help message and exit

• Timetree Option

  If user set this option, input species tree must be ultrametric tree.
  --timetree enable AnGST timetree option below (See AnGST manual for details).

  If the branch lengths on the provided species tree represent times, AnGST can restrict the set of possible inferred gene transfers to only those between contemporaneous lineages

• Input Limitation

  fasta or genbank files (--indir option)

  :warning: Following characters cannot be included in file name '_', '-', '|', '.', '$'

  species tree file (--tree option)

  :warning: Species name in species tree must match fasta or genbank file name

Example Command

Click here to download dataset (5.8Mb).

This dataset is identical to example in this repository.

• Minimum test dataset

  7 species, 100 CDS limited fasta dataset

  FastDTLmapper -i example/minimum_dataset/fasta/ -t example/minimum_dataset/species_tree.nwk -o output_minimum


• Mycoplasma dataset (Input Format = Fasta)

  7 Mycoplasma species, 500 ~ 1000 CDS fasta dataset

  FastDTLmapper -i example/mycoplasma_dataset/fasta/ -t example/mycoplasma_dataset/species_tree.nwk -o output_mycoplasma_fasta


• Mycoplasma dataset (Input Format = Genbank)

  7 Mycoplasma species, 500 ~ 1000 CDS genbank dataset

  FastDTLmapper -i example/mycoplasma_dataset/genbank/ -t example/mycoplasma_dataset/species_tree.nwk -o output_mycoplasma_genbank


Output Contents

Output Top Directory

Top directory	Contents
00_user_data	Formatted user input fasta and tree files
01_orthofinder	OrthoFinder raw output results
02_dtl_reconciliation	Each OG(Ortholog Group) DTL reconciliation result
03_aggregate_map_result	Genome-wide DTL reconciliation aggregated and mapped results
log	Config log and command log files

Output Directory Structure & Files

.
├── 00_user_data/  -- User input data
│   ├── fasta/     -- Formatted fasta files
│   └── tree/      -- Formatted newick species tree files
│
├── 01_orthofinder/  -- OrthoFinder raw output results
│
├── 02_dtl_reconciliation/  -- Each OG(Ortholog Group) DTL reconciliation result
│   ├── OG0000000/
│   │   ├── OG0000000.fa                 -- OG fasta file
│   │   ├── OG0000000_aln.fa             -- OG alignment fasta file
│   │   ├── OG0000000_aln_trim.fa        -- Trimmed OG alignement fasta file
│   │   ├── OG0000000_dtl_map.nwk        -- OG DTL event mapped tree file
│   │   ├── OG0000000_gain_loss_map.nwk  -- OG Gain-Loss event mapped tree file
│   │   ├── iqtree/                      -- IQ-TREE gene tree reconstruction result
│   │   ├── treerecs/                    -- Treerecs multifurcated gene tree correction result
│   │   └── angst/                       -- AnGST DTL reconciliation result
│   │
│   ├── OG0000001/
│   .
│   .
│   └── OGXXXXXXX/
│
├── 03_aggregate_map_result/  -- Genome-wide DTL reconciliation aggregated and mapped results
│   ├── all_dtl_map.nwk              -- Genome-wide DTL event mapped tree file
│   ├── all_gain_loss_map.nwk        -- Genome-wide Gain-Loss event mapped tree file
│   ├── all_og_node_event.tsv        -- All OG DTL event record file
│   ├── all_transfer_gene_count.tsv  -- All transfer gene count file
│   └── all_transfer_gene_list.tsv   -- All transfer gene list file
│
└── log/
    ├── parallel_cmds/ -- Parallel run command log results
    └── run_config.log -- Program run config log file

See wiki for output files details.

Further Analysis

Plot Gain/Loss Map Figure

FastDTLmapper subtool plot_gain_loss_map supports for plotting publication-ready gain/loss map figure as shown below. User can plot easily and can output in any format user want by changing plotting parameter. See wiki for details.

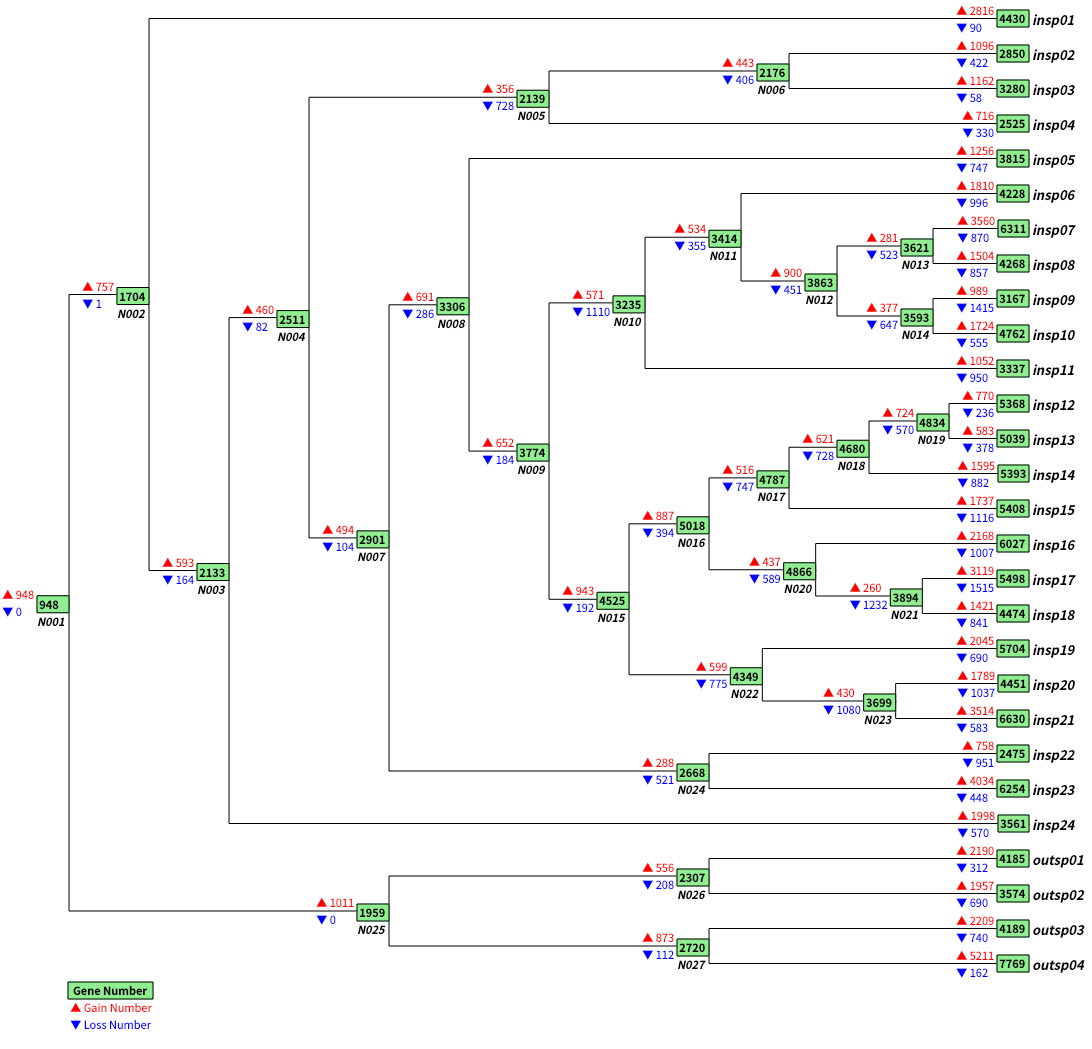

Fig. Gain/Loss map plot result example

Functional Analysis (GOEA)

FastDTLmapper subtool FastDTLgoea supports for performing GOEA(GO Enrichment Analysis) in each node gain/loss genes. Each node gain/loss gene's significant GOterms are listed and plotted as shown below. This GOEA functional analysis is useful for getting glasp of genome-wide functional trends in gain/loss genes. See wiki for details.

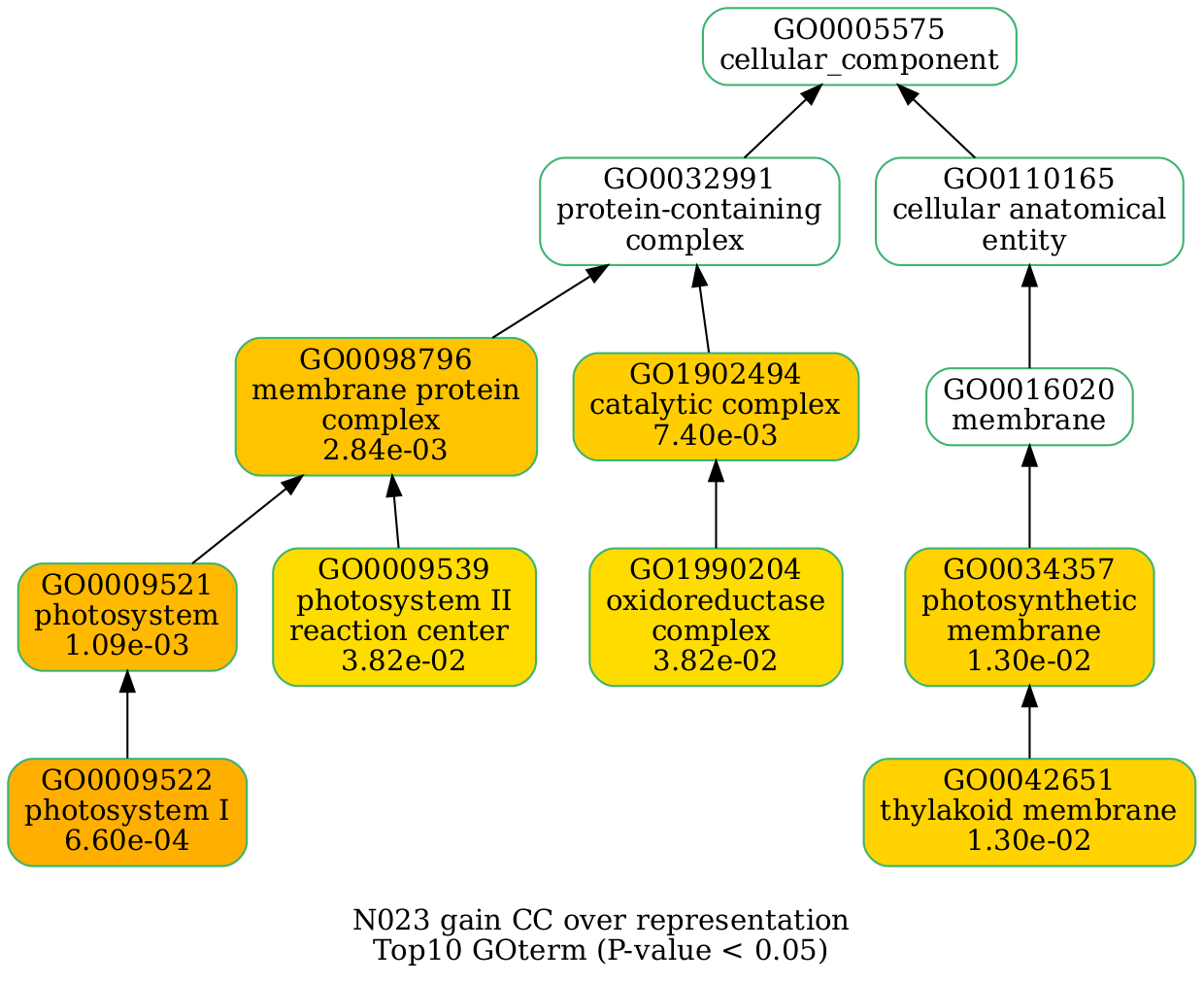

Fig. GOEA plot result example
In this example, gain gene's significant over representation GOterms in N023 node is plotted with color. CC indicates GO category of 'Cell Components'. 3 GO category BP,MF,CC exists.
