ft-Explore

ft-Explore allows to control motors and to check inputs by GUI and user-provided Python code.

ft-Explore was implemented to interface with hardware of technical models for educational purposes. It is open-source and contains interface modules for widely available hardware (RaspberryPi with Adafruit Motor HAT).

---

Features

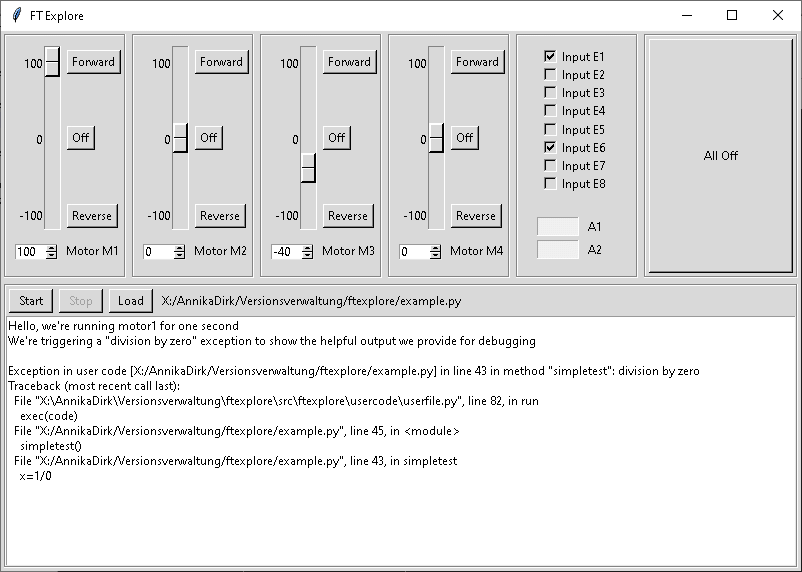

• Graphical user interface for controlling four motors/lights and showing the state of eight digital inputs
• Platform independent, tested on Windows and Linux (Debian and Raspbian)
• No dependencies except hardware drivers when operating locally
• Controlling motors/lights and getting the state of the inputs can be done by user-provided Python scripts
• The user-provided Python scripts can be executed and interrupted in the GUI. Script output and exceptions are shown there
• Manual control via GUI and script-based control is possible simultaneously
• GUI and hardware can be distributed to multiple machines, e.g. hardware on a headless RaspberryPi can be controlled via GUI on a Windows notebook

---

Installation

ft-Explore can be installed easily. See the sections below depending on your platform.

Windows

• Download msi installer file (can be found "dist_msi" folder in the repository)
• Install using the msi installer
• Afterwards the application can be started via shortcut "ft-Explore" in start menu

Alternatively, you can download the source code and run it after installing Python (e.g. via https://www.anaconda.com/distribution/). See the Linux section below for required Python packages.

Linux

• Make sure that you use Python version 3.5 or newer
• Install Python libraries as needed:

in case the application shall not just be used locally and shall use the network

$ pip install cffi pynng

in case you are running on a RaspberryPi and want to access the GPIOs as inputs

$ pip install RPi.GPIO

in case you are running on a RaspberryPi with an Adafruit Motor HAT

$ pip install adafruit_motorkit

in case you want to be able to watch for keyboard events

$ pip install keyboard

• Install ft-Explore:

$ pip install ftexplore

• Run ft-Explore

run and show help page

$ python -m ftexplore --help

---

Clone (for developers only)

• Clone this repo to your local machine using https://www.towalink.de/gitea/HNET/ftexplore.git

---

Usage

• Demo usage

Show GUI and use no real hardware for demo purposes (the default):

$ python -m ftexplore

This is equivalent to

$ python -m ftexplore --loglevel info --hardware demo

In this mode, there is just emulated hardware. When you control the motors, depending on the direction of the motors the inputs are set.

• Show GUI and use the locally available default hardware (Adafruit Motor HAT and eight RaspberryPi GPIOs as inputs)

$ python -m ftexplore --hardware default

Use this mode if you're working locally on a RaspberryPi with an Adafruit Motor HAT shield.0

• Distributed operation with local GUI and remote hardware

Listening side with the hardware (adapt port as needed)

$ python -m ftexplore --hardware default --listen 2201

Client side with the GUI (adapt IP address and port as needed)

$ python -m ftexplore --hardware 192.168.1.1:2201

• Show help page for details on command line arguments

$ python -m ftexplore --help

Documentation

Writing Usercode

See the separate documentation for writing usercode in the doc directory:

Documentation on writing user code

Source Code Organization

• src/ftexplore/eventprocessor

This folder contains code for event processing and event distribution to the applications submodules. The application works by broadcasting events between the different application modules.

• src/ftexplore/gui

This folder contains the code for the graphical user interface. That interface is based on Tk.

• src/ftexplore/hardware

This folder contains modules to communicate with different types of hardware. A special hardware is "remote" hardware that resides on another machine and is accessed via network. Adapt the demo hardware to quickly implement support for your special hardware.

• src/ftexplore/listener

This folder contains the module that provides access to the local hardware via the network. One or more clients can be connected.

• src/ftexplore/usercode

This folder contains the code controlling the execution of user-provided code.

---

License

• GPL3 license
• Copyright 2019-2025 Dirk Henrici
