gaphor 2.6.5

Gaphor is the simple modeling tool written in Python.

Gaphor

Gaphor is a UML and SysML modeling application written in Python. It is designed to be easy to use, while still being powerful. Gaphor implements a fully-compliant UML 2 data model, so it is much more than a picture drawing tool. You can use Gaphor to quickly visualize different aspects of a system as well as create complete, highly complex models.

📑 Table of Contents

• Background
• Install
• Usage
• Contributing
• License

📜 Background

Gaphor is a UML and SysML modeling application written in Python. We designed it to be easy to use, while still being powerful. Gaphor implements a fully-compliant UML 2 data model, so it is much more than a picture drawing tool. You can use Gaphor to quickly visualize different aspects of a system as well as create complete, highly complex models.

Gaphor is designed around the following principles:

• Simplicity: The application should be easy to use. Only some basic knowledge of UML or SysML is required.
• Consistency: UML is a graphical modeling language, so all modeling is done in a diagram.
• Workability: The application should not bother the user every time they do something non-UML-ish.

Gaphor is a GUI application that is built on GTK and Cairo. PyGObject and PyCairo provide Python bindings for those libraries. Gaphas provides the foundational diagramming functionality.

💾 Install

You can find the latest version on the gaphor.org website. Gaphor ships installers for macOS and Windows. Those can be found there. The Python package is also available on PyPI.

All releases are available on GitHub.

If you want to start developing on Gaphor, have a look at the Installation section of our Tech docs.

🔦 Usage

Creating models

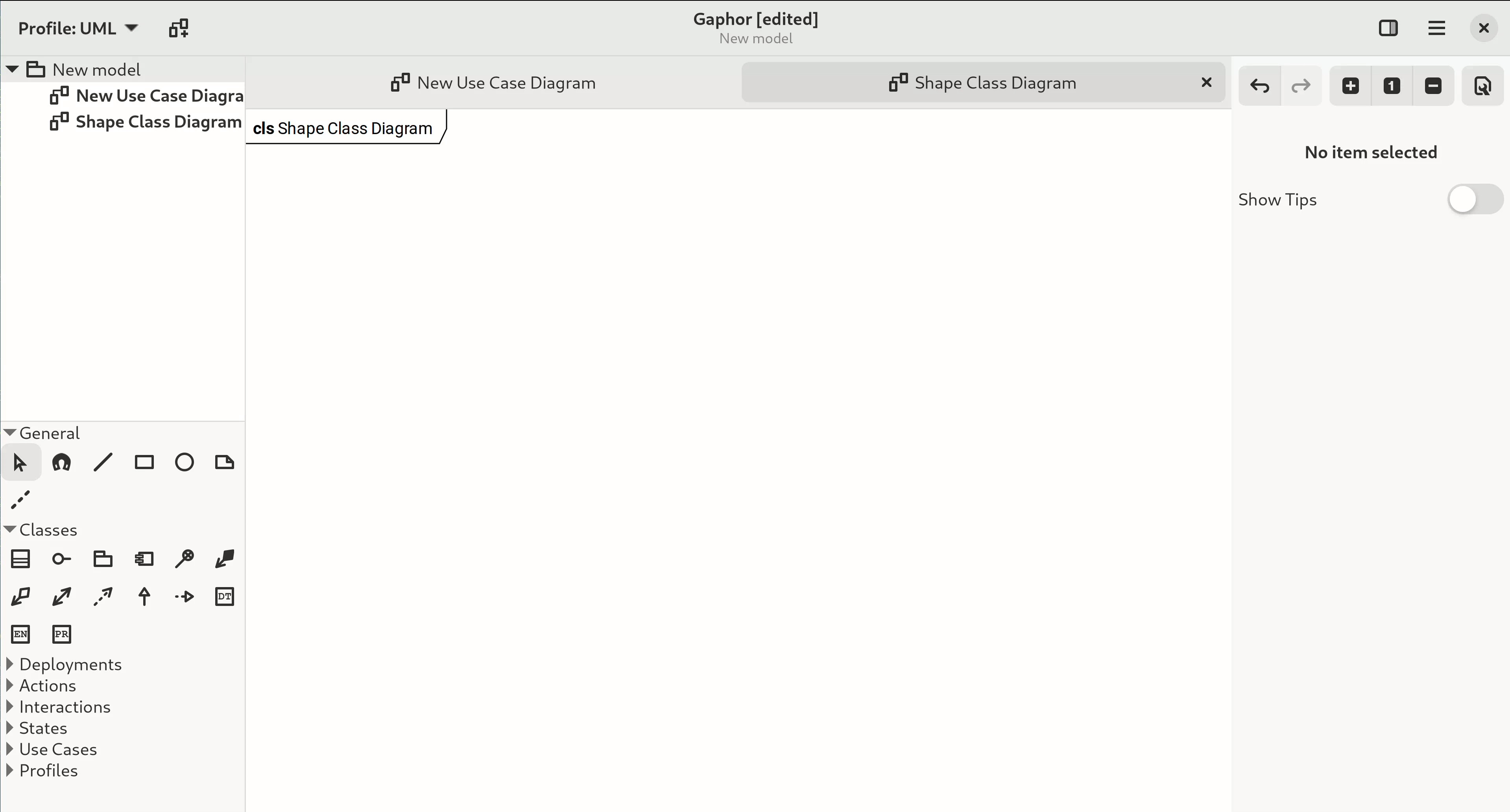

Once Gaphor is started a new empty model is automatically created. The main diagram is already open in the Diagram section.

Select an element you want to place, for example a Class, by clicking on the icon in the Toolbox and click on the diagram. This will place a new Class item instance on the diagram and add a new Class to the model (it shows up in the Navigation). The selected tool will reset itself to the Pointer tool if the option ''Diagram -> Reset tool'' is selected.

Some elements are not directly visible. The section in the toolbox is collapsed and needs to be clicked first to reveal its contents.

Gaphor only has one diagram type, and it does not enforce which elements should be placed on a diagram.

Create a New Diagram

1. Use the Navigation to select an element that can contain a diagram (a Package or Profile)
2. Select Diagram, and New diagram. A new diagram is created.

Copy and Paste

Items in a diagram can be copied and pasted in the same diagram or other diagrams. Pasting places an existing item in the diagram, but the item itself is not duplicated. In other words, if you paste a Class object in a diagram, the Class will be added to the diagram, but there will be no new Class in the Navigation.

Drag and Drop

Adding an existing element to a diagram is done by dragging the element from the Navigation section onto a diagram. Diagrams and attribute/operations of a Class show up in the Navigation but can not be added to a diagram.

Elements can also be dragged within the Navigation in order to rearrange them in to different packages.

♥ Contributing

Thanks goes to these wonderful people (emoji key):

Adam Bjurstrom 🐛	Adam Boduch 💻 ⚠️ 🐛	Alexander Wilms 🐛	Alexis Howells 📖	Arjan Molenaar 💻 🐛 📖 👀 💬 🐛 🔌 ⚠️	Blippost 🤔	Brock Tibert 🐛
Christian Hoff 💻	Dan Yeaw 💻 ⚠️ 📖 📦 🚇 🐛 💬	Daniel Nylander 🌍	DimShadoWWW 🐛	Encolpe DEGOUTE 🌍	Enno Gröper 💻	Enno Zickler 🐛
Fran Diéguez 🌍	Gleb Smirnov 🐛	Gytree 🐛	Ikko Ashimine 💻	Jan 🐛	JensPfeifle 📖	Jonathan 🤔 🐛
JonnathanRiquelmo 🌍	Jordi Mallach 🌍	Jorge DLG 🐛	Kapil Thangavelu 🐛	Mark Kennedy 🤔 💻 🐛	Matthew Maclaine 🐛	Mek101 🐛
Michael Patrick Tkacik 🐛	Mikhail Bessonov 🐛	Nedko Arnaudov 🐛	Rafael Muñoz Cárdenas 🐛	Rui Maciel 🤔	Seong-ho Cho 🌍	Steve Kossouho 🐛 💻
Steven Liu 🐛	Tiemen Schuijbroek 🐛 💻	Tobias Bernard 🎨 🤔	TomBous 🐛	Tomasz Drożdż 🤔	Tony 🚧	Xander982 🖋 🐛
Yauhen Kirylau 📖 📦 🤔 🐛	Zsolt Sandor 🤔 🐛 💻 📖	albanobattistella 🌍	freddii 🤔 📖	freezed-or-frozen 🐛	fu7mu4 🌍	gavr123456789 🤔
kellenmoura 🐛	melisdogan 📖	milotype 🌍 📖	mskorkowski 🐛	ovari 🤔 🌍 🐛	samirodj 🐛	seryafarma 📖
sib@c 🐛 🤔	tronta 🐛	wrobell 💻 ⚠️ 🐛 🎨	Óscar Fernández Díaz 🌍 💻	Евгений Лежнин 🌍

This project follows the all-contributors specification. Contributions of any kind are welcome!

1. Check for open issues or open a fresh issue to start a discussion around a feature idea or a bug. There is a first-timers-only tag for issues that should be ideal for people who are not very familiar with the codebase yet.
2. Fork the repository on GitHub to start making your changes to the master branch (or branch off of it).
3. Write a test which shows that the bug was fixed or that the feature works as expected.
4. Send a pull request and bug the maintainers until it gets merged and published. :smile:

See the contributing file!

Translations

Translation of Gaphor is mostly done using Weblate.

For the Linux Flatpak, the desktop entry comment string can be translated at our Flatpak repository.

Thank you so much for your effort in helping us keep it available in many languages!

© License

Copyright © Arjan Molenaar and Dan Yeaw

Licensed under the Apache License v2.

Summary: You can do what you like with Gaphor, as long as you include the required notices. This permissive license contains a patent license from the contributors of the code.
