garmi-gui 1.1.1

The GARMI gui.

garmi-gui

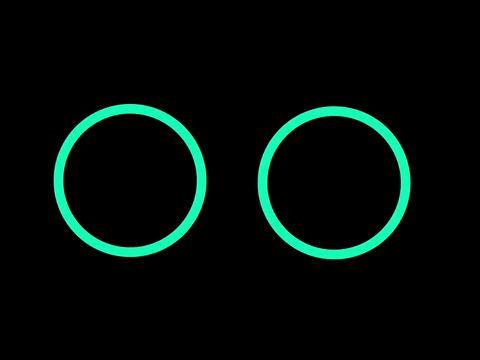

GUI for the GARMI robot's face screen with remote control to show images, play videos and sounds, and render text.

Install

To install run

pip install garmi-gui

or if you're working with the code in a local clone of the repository

pip install -v -e .[dev]

Checkout the contribution guide for more details.

Run

The Python package installs executables for convenience. You can start the GUI by simply running garmi-gui. This will start the GUI in fullscreen mode. For development purposes it is convenient to run the GUI in windowed mode, you can do so by executing garmi-gui --windowed.

Remote Control

The GUI is controlled remotely using xmlrpc. There is a convenience terminal script to quickly execute GUI functions. You can run the tool by executing garmi-gui-control --hostname <gui-hostname> where <gui-hostname> is the hostname of the computer running the GUI.

To control the GUI from Python simply connect with an xmlrpc client and call the remote functions like this:

from xmlrpc import client

hostname = "localhost"
port = 8000

server_url = f"http://{hostname}:{port}"
proxy = client.ServerProxy(server_url)

proxy.show_image("happy.png")
proxy.play_sound("success.wav")

You may specify an absolute path to a file on the computer running the GUI, relative paths are evaluated relative to the resources directory. Checkout the documentation or the control script for a complete list of possible commands.

Requirements

To install this package you need pip >= 19.3 and SDL >= 2.0.8. You can upgrade pip by running pip install --upgrade pip. SDL can be installed on Ubuntu systems by executing sudo apt-get install libsdl-dev in a terminal.
