gcvit 1.1.6

Tensorflow 2.0 Implementation of GCViT: Global Context Vision Transformer. https://github.com/awsaf49/gcvit-tf

GCViT: Global Context Vision Transformer

Tensorflow 2.0 Implementation of GCViT

This library implements GCViT using Tensorflow 2.0 specifically in tf.keras.Model manner to get PyTorch flavor.

Update

• 15 Jan 2023 : GCViTLarge model added with ckpt.
• 3 Sept 2022 : Annotated kaggle-notebook based on this project won Kaggle ML Research Spotlight: August 2022.
• 19 Aug 2022 : This project got acknowledged by Official repo here

Paper Implementation & Explanation **

I have explained the GCViT paper in a Kaggle notebook GCViT: Global Context Vision Transformer, which also includes a detailed implementation of the model from scratch. The notebook provides a comprehensive explanation of each part of the model, with intuition.

Do check it out, especially if you are interested in learning more about GCViT or implementing it yourself. Note that this notebook has won the Kaggle ML Research Award 2022.

Model

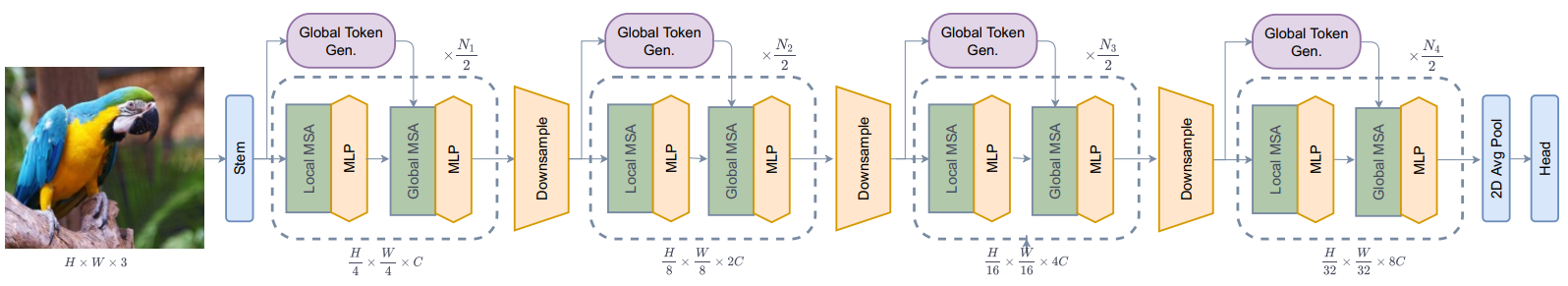

• Architecture:

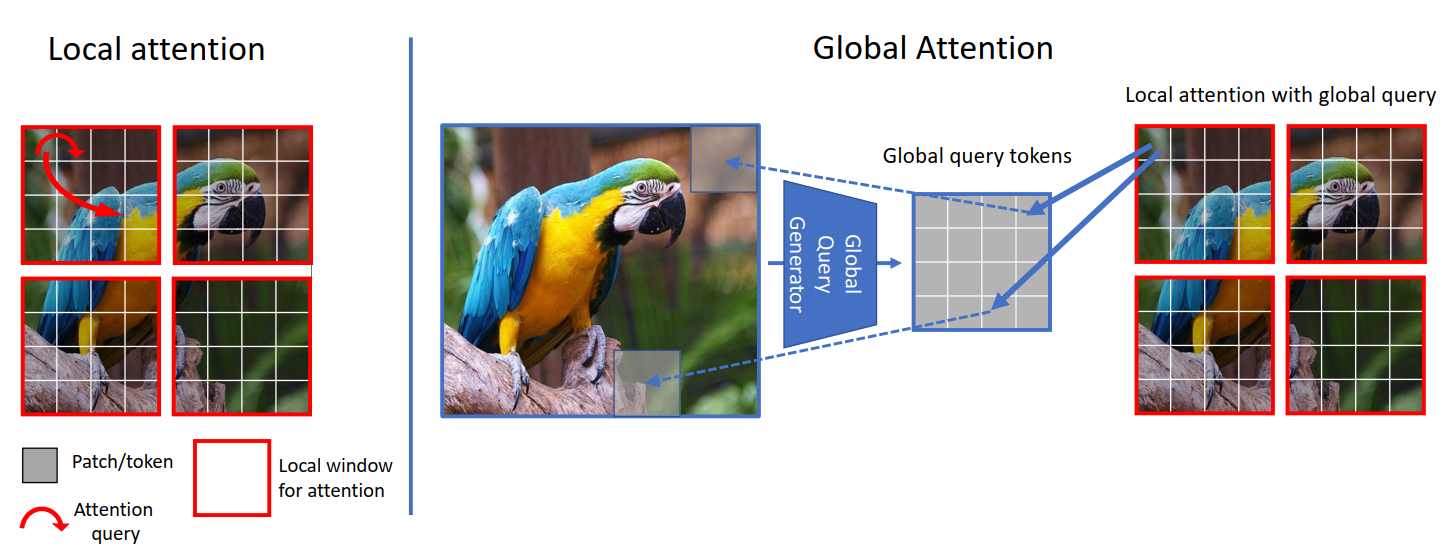

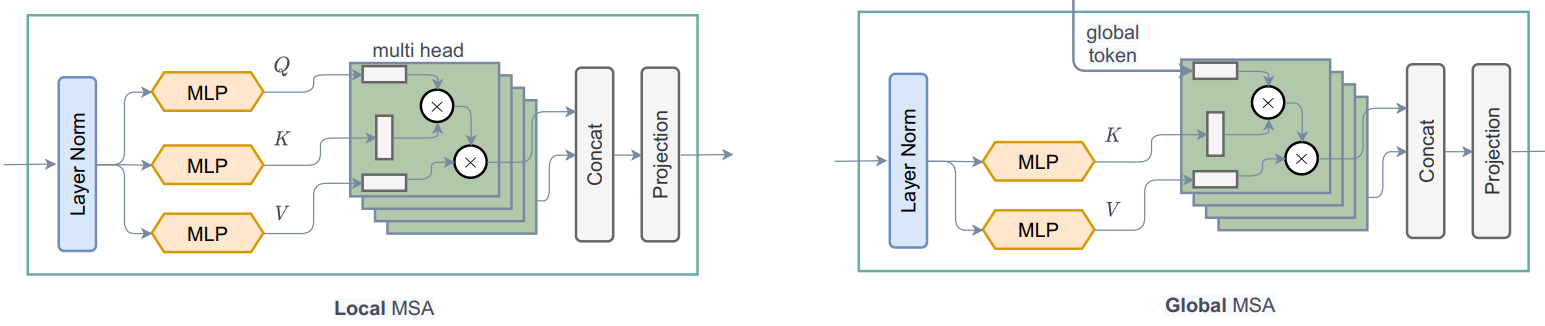

• Local Vs Global Attention:

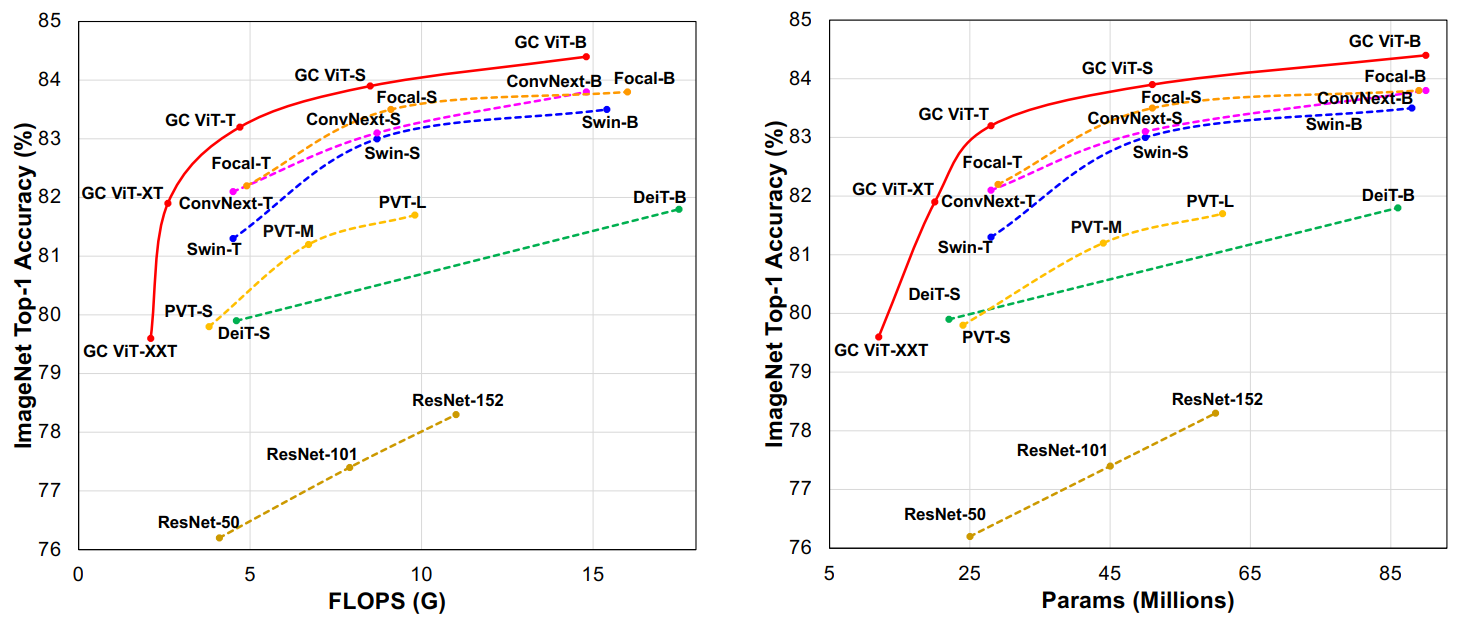

Result

Official codebase had some issue which has been fixed recently (12 August 2022). Here's the result of ported weights on ImageNetV2-Test data,

Model	Acc@1	Acc@5	#Params
GCViT-XXTiny	0.663	0.873	12M
GCViT-XTiny	0.685	0.885	20M
GCViT-Tiny	0.708	0.899	28M
GCViT-Small	0.720	0.901	51M
GCViT-Base	0.731	0.907	90M
GCViT-Large	0.734	0.913	202M

Installation

pip install -U gcvit
# or
# pip install -U git+https://github.com/awsaf49/gcvit-tf

Usage

Load model using following codes,

from gcvit import GCViTTiny
model = GCViTTiny(pretrain=True)

Any input size other than 224x224,

from gcvit import GCViTTiny
model = GCViTTiny(input_shape=(512,512,3), pretrain=True, resize_query=True)

Simple code to check model's prediction,

from skimage.data import chelsea
img = tf.keras.applications.imagenet_utils.preprocess_input(chelsea(), mode='torch') # Chelsea the cat
img = tf.image.resize(img, (224, 224))[None,] # resize & create batch
pred = model(img).numpy()
print(tf.keras.applications.imagenet_utils.decode_predictions(pred)[0])

Prediction:

[('n02124075', 'Egyptian_cat', 0.9194835),
('n02123045', 'tabby', 0.009686623),
('n02123159', 'tiger_cat', 0.0061576385),
('n02127052', 'lynx', 0.0011503297),
('n02883205', 'bow_tie', 0.00042479983)]

For feature extraction:

model = GCViTTiny(pretrain=True)  # when pretrain=True, num_classes must be 1000
model.reset_classifier(num_classes=0, head_act=None)
feature = model(img)
print(feature.shape)

Feature:

(None, 512)

For feature map:

model = GCViTTiny(pretrain=True)  # when pretrain=True, num_classes must be 1000
feature = model.forward_features(img)
print(feature.shape)

Feature map:

(None, 7, 7, 512)

Kaggle Models

These pre-trained models can also be loaded using Kaggle Models. Setting from_kaggle=True will enforce model to load weights from Kaggle Models without downloading, thus can be used without internet in Kaggle.

from gcvit import GCViTTiny
model = GCViTTiny(pretrain=True, from_kaggle=True)

Live-Demo

• For live demo on Image Classification & Grad-CAM, with ImageNet weights, click powered by 🤗 Space and Gradio. here's an example,

Example

For working training example checkout these notebooks on Google Colab & Kaggle .

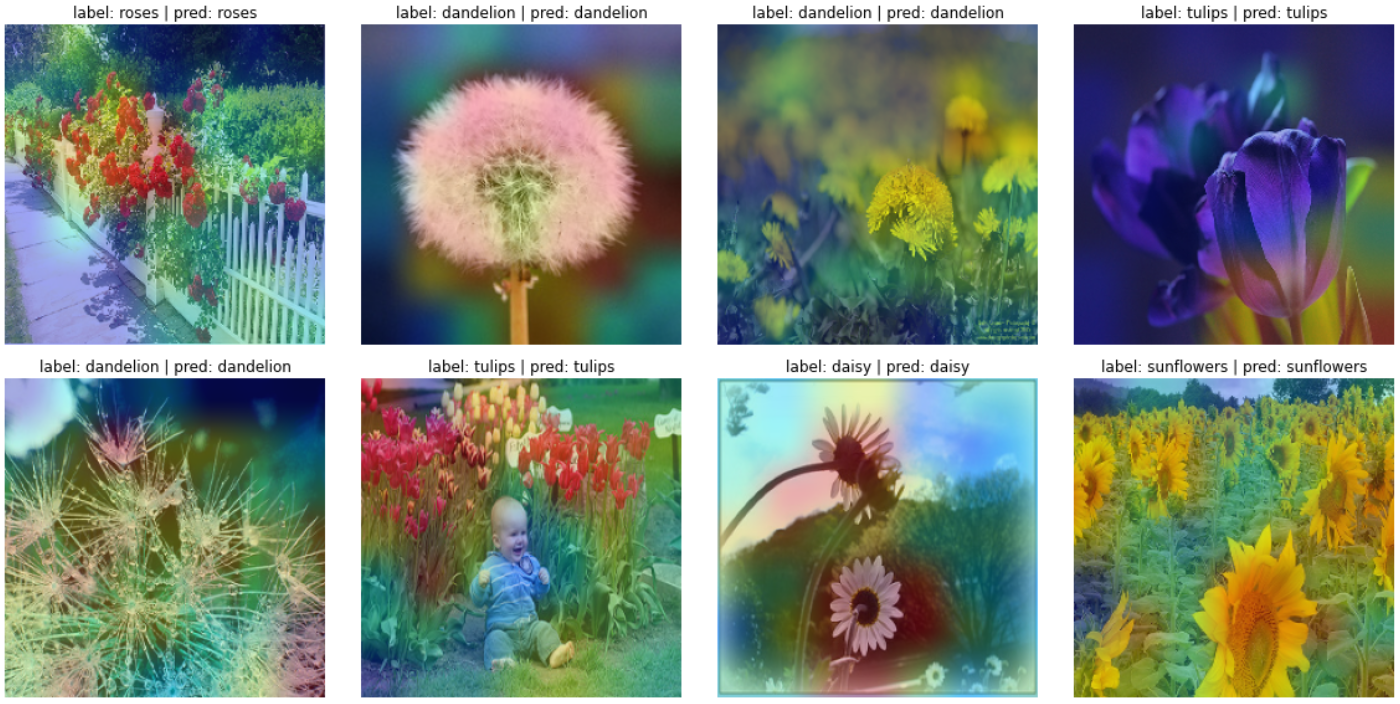

Here is grad-cam result after training on Flower Classification Dataset,

To Do

• Convert it to multi-backend Keras 3.0
• Segmentation Pipeline
• Support for Kaggle Models
• Remove tensorflow_addons
• New updated weights have been added.
• Working training example in Colab & Kaggle.
• GradCAM showcase.
• Gradio Demo.
• Build model with tf.keras.Model.
• Port weights from official repo.
• Support for TPU.

Acknowledgement

• GCVit (Official)
• Swin-Transformer-TF
• tfgcvit
• keras_cv_attention_models

Citation

@article{hatamizadeh2022global,
  title={Global Context Vision Transformers},
  author={Hatamizadeh, Ali and Yin, Hongxu and Kautz, Jan and Molchanov, Pavlo},
  journal={arXiv preprint arXiv:2206.09959},
  year={2022}
}
