browser-based gdb frontend using Flask and JavaScript to visually debug C, C++, Go, or Rust

Project description

gdbgui
https://travis-ci.org/cs01/gdbgui.svg?branch=master https://img.shields.io/badge/pyPI-0.7.6.0-blue.svg https://img.shields.io/badge/python-2.7,3.4,3.5,3.6,pypy-blue.svg

A modern, browser-based frontend to gdb (gnu debugger). Add breakpoints, view stack traces, and more in C, C++, Go, and Rust! Simply run gdbgui from the terminal and a new tab will open in your browser. Screenshots are below.

Install

Linux

sudo pip install gdbgui --upgrade

macOS

sudo pip install gdbgui --upgrade --user

Follow these instructions to codesign gdb if you get an error such as please check gdb is codesigned - see taskgated(8)

Windows

Tested with cygwin. If you have run this natively, contact me and let me know so I can update this section.

pip install gdbgui --upgrade

virtualenv users do not need the sudo prefix.

Alternatively, you can clone and run directly

git clone https://github.com/cs01/gdbgui
cd gdbgui
pip install -r requirements.txt
gdbgui/backend.py

Run

gdbgui [-h] [-p PORT] [--host HOST] [-r] [-g GDB] [--lldb] [-v]
          [--hide_gdbgui_upgrades] [--debug] [-n]
          [cmd [cmd ...]]

A new tab in your browser will open with gdbgui in it.

Features

  • Debug a different program in each tab (new gdb instance is spawned for each tab)

  • Set/remove breakpoints

  • View stack, threads

  • Switch frame on stack, switch between threads

  • Intuitively explore local variables when paused

  • Evaluate arbitrary expressions and plot their values over time

  • Inspect memory in hex/character form

  • View all registers

  • Dropdown of all files used to compile binary, with autocomplete functionality

  • Source code explorer with ability to jump to line

  • Show assembly next to source code, highlighting current instruction. Can also step through instructions.

  • Notifications when new updates are available

Why gdbgui?

  • Actively developed to be compatible with current gdb releases

  • Does only one thing: debugs programs. No integrated build system, no project settings, nothing to make things more complicated than they need to be.

  • Design influenced by the amazing Chrome debugger

  • Full gdb command line utility built-in

  • Written in widely used languages (Python and JavaScript)

  • Open source and free

Examples

Example code and makefiles for C, C++, go, and rust, that build and launch gdb.

See the examples folder.

Arguments

Positional arguments:

command: (Optional) The executable and arguments to run in gdb. This is a way to script the intial loading of the inferior program you wish to debug. For example gdbgui "./mybinary -myarg -flag1 -flag2" (note the quotes around the executable and arguments). Executables and arguments can also be input through the browser interface after launching (no quotes required there).

Flags (all are optional):
-h, --help

show this help message and exit

-p PORT, --port PORT

The port on which gdbgui will be hosted

--host HOST

The host ip address on which gdbgui serve.

-r, --remote

Shortcut to sets host to 0.0.0.0 and suppress browser from opening. This allows remote access to gdbgui and is useful when running on a remote machine that you want to view/debug from your local browser, or let someone else debug your application remotely.

-g GDB, --gdb GDB

Path to gdb executable or lldb-mi executable. Defaults is ‘gdb’. lldb support is experimental and not fully functional at this time.

-v, --version

Print gdbgui version

--debug

The debug flag of gdbgui. Pass this flag when debugging gdbgui itself to automatically reload the server when changes are detected.

-n, --no_browser

By default, the browser will open with gdb gui. Pass this flag so the browser does not open.

Compatibility

Python versions: 2.7, 3.4, 3.5, 3.6, 3.6-dev, 3.7-dev, pypy

Operating systems: Ubuntu 14.04+, OSX

Browsers: Chrome

Gdb: 7.7.1 - 8

Rust users: gdb v7.12.x cannot display register values due to a gdb bug

Settings

gdbgui settings can be accessed by clicking the gear icon in the top right of the frontend. Most of these settings persist between sessions for the url and port.

Keyboard Shortcuts

The following keyboard shortcuts are available when the focus is not in an input field. They have the same effect as when the button is pressed.

  • Run: r

  • Continue: c

  • Next: n or right arrow

  • Step: s or down arrow

  • Up: u or up arrow

  • Next Instruction: m

  • Step Instruction: ,

Contributing

Help the gdbgui project grow by spreading the word.

https://raw.githubusercontent.com/cs01/gdbgui/master/gdbgui/static/images/twitter.png

Creating and voting on issues in github will help me prioritize what to work on.

Documentation, spelling fixes, bug fixes, features, etc. are of course welcome too. To get started with development, set up a new virtual environment, then run

git clone https://github.com/cs01/gdbgui
cd gdbgui
pip install -r requirements.txt
pip install -r dev_requirements.txt
gdbgui/backend.py --debug

If you are modifying gdbgui.js, make sure you have the developer console open so the browser doesn’t cache the file and miss your changes. When --debug is passed, there is a new component at the bottom of the right sidebar that displays the raw gdb mi output to help you debug.

Testing

make test runs unit tests and verifies README.rst is properly formatted. gdbgui/tests/test_app.py. Add new tests there as necessary.

License

GNU GPLv3

pyPI and this github page are the only official sources of gdbgui.

How Does it Work?

It uses Python to manage gdb as a subprocess. Specifically, the pygdbmi library, which returns key/value pairs (dictionaries) that can be used to create a frontend. To make a usable frontend, first a server must made to interface with gdb. In this case, the Flask server is used, which does three things: creates a managed gdb subprocess with pygdbmi, spawns a separate thread to constantly check for output from the gdb subprocess, and creates endpoints for the browser including http requests and websocket connections.

As output is parsed in the reader thread, it is immediately sent to the frontend through the websocket. As the browser receives these websocket messages, it maintains the state of gdb (whether it’s running, paused, or exited, where breakpoints are, what the stack is, etc.) and updates the DOM as appropriate. The browser also sends commands to gdb through a websocket to Flask server, which then passes the command to gdb. Gdb writes new output, which is picked up by the reader thread.

gdbgui was designed to be easily hackable and extendable. There is no build system necessary to run or develop this app.

The main components of gdbgui are

  1. backend.py: The backend consists of a single Python file, which makes use of pygdbmi to interact with a gdb subprocess, and Flask to set up url routing, websockets, and http responses.

  2. gdbgui.pug: HTML file that defines the frontend

  3. gdbgui.js: The majority of the application is contained in this file. It dynamically updates the page, and maintains gdb state. It sends AJAX requests and uses websockets to interact with gdb through the server, then gets the response and updates the DOM as necessary.

  4. gdbgui.css: css stylesheet

Screenshots

Enter the binary and args just as you’d call them on the command line. Binary is restored when gdbgui is opened at a later time.

https://github.com/cs01/gdbgui/raw/master/screenshots/load_binary_and_args.png

Intuitive control of your program. From left to right: Run, Continue, Next, Step, Return, Next Instruction, Step Instruction, send interrupt signal (SIGINT) to inferior process.

https://github.com/cs01/gdbgui/raw/master/screenshots/controls.png

Stack/Threads

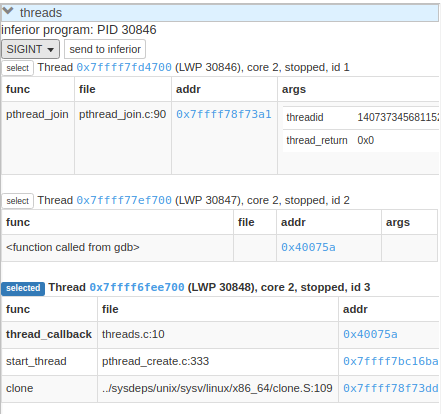

View all threads, the full stack on the active thread, the current frame on inactive threads. Switch between frames on the stack, or threads by pointing and clicking.

https://github.com/cs01/gdbgui/raw/master/screenshots/stack_and_threads.png

Source Code

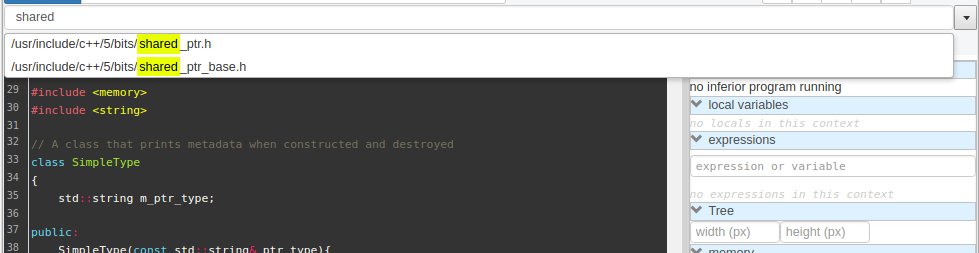

View source, assembly, add breakpoints. All symbols used to compile the target are listed in a dropdown above the source code viewer, and have autocompletion capabilities.

https://github.com/cs01/gdbgui/raw/master/screenshots/source.png

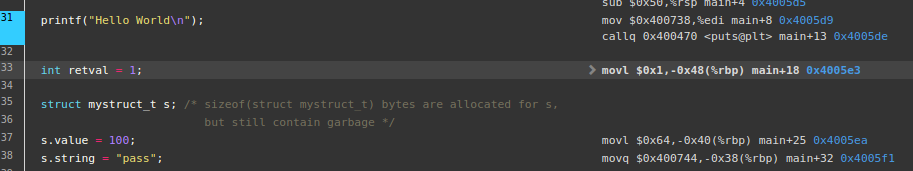

With assembly. Note the bold line is the current instruction that gdb is stopped on.

https://github.com/cs01/gdbgui/raw/master/screenshots/source_with_assembly.png

Variables and Expressions

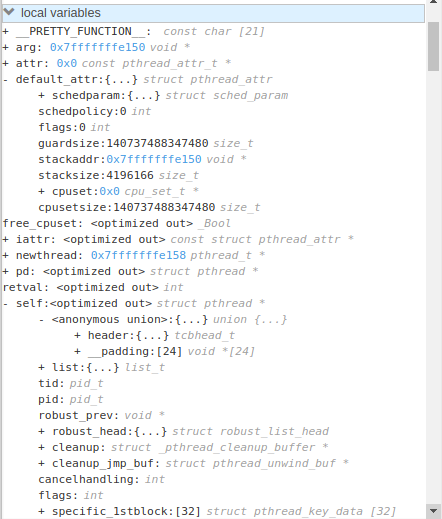

All local variables are automatically displayed, and are clickable to explore their fields.

https://github.com/cs01/gdbgui/raw/master/screenshots/locals.png

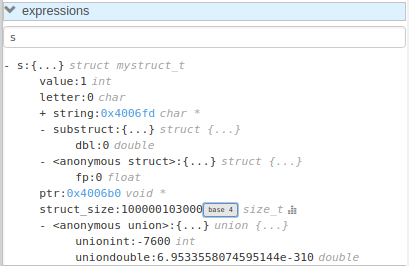

Arbitrary expressions can be evaluated as well.

https://github.com/cs01/gdbgui/raw/master/screenshots/expressions.png

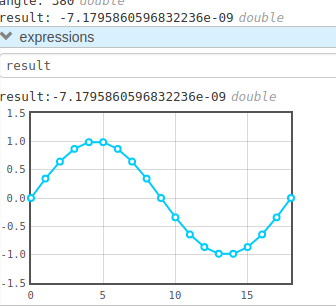

Expressions record their previous values, and can be displayed in an x/y plot.

https://github.com/cs01/gdbgui/raw/master/screenshots/plots.png

Memory Viewer

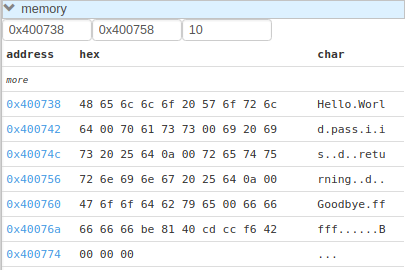

All hex addresses are automatically converted to clickable links to explore memory. Length of memory is configurable. In this case 16 bytes are displayed per row.

https://github.com/cs01/gdbgui/raw/master/screenshots/memory.png

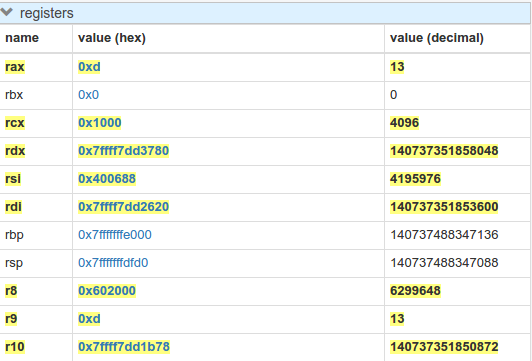

Registers

View all registers. If a register was updated it is highlighted in yellow.

https://github.com/cs01/gdbgui/raw/master/screenshots/registers.png

gdb console

Read gdb output, and write to the gdb subprocess as desired. Don’t let any gdb commandline skills you’ve developed go to waste.

https://github.com/cs01/gdbgui/raw/master/screenshots/console.png

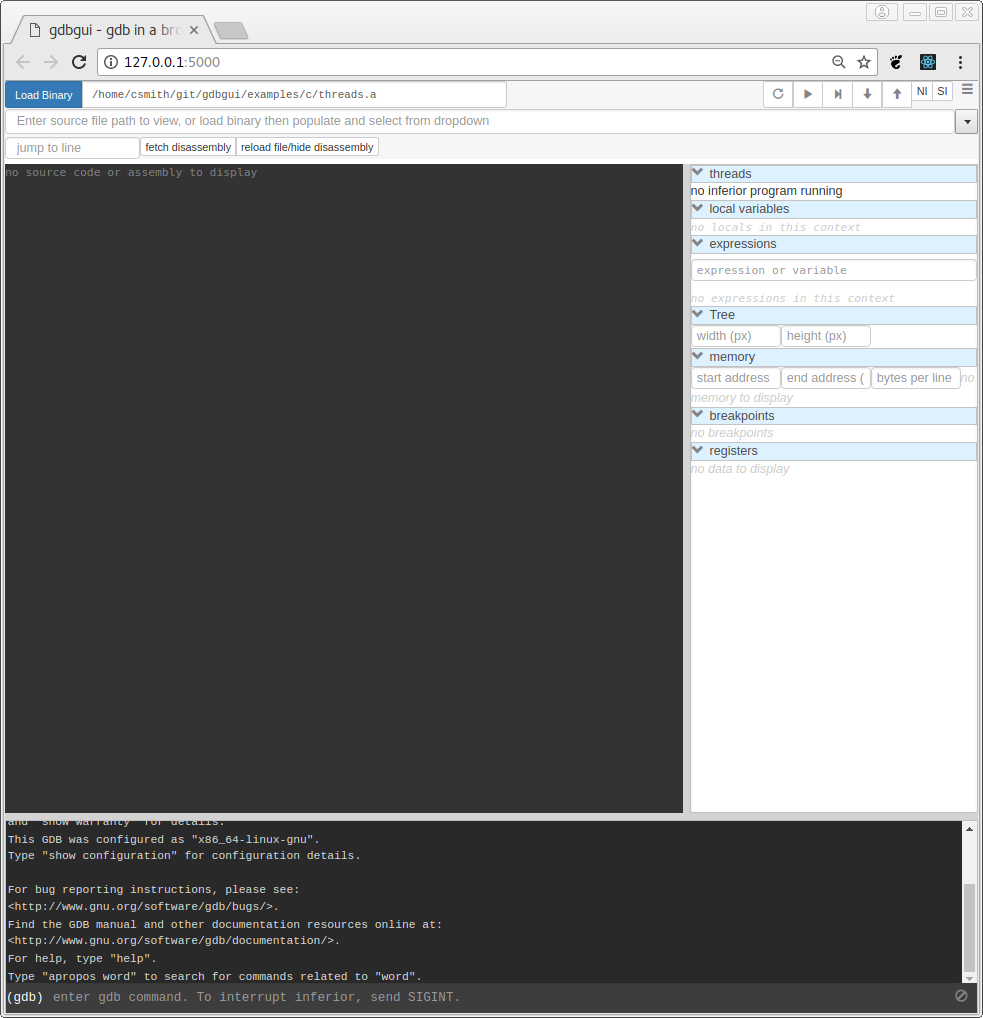

gdbgui at launch:

https://github.com/cs01/gdbgui/raw/master/screenshots/ready.png
