geosynth 1.0.1

No project description provided

GeoSynth: A Photorealistic Synthetic Indoor Dataset for Scene Understanding

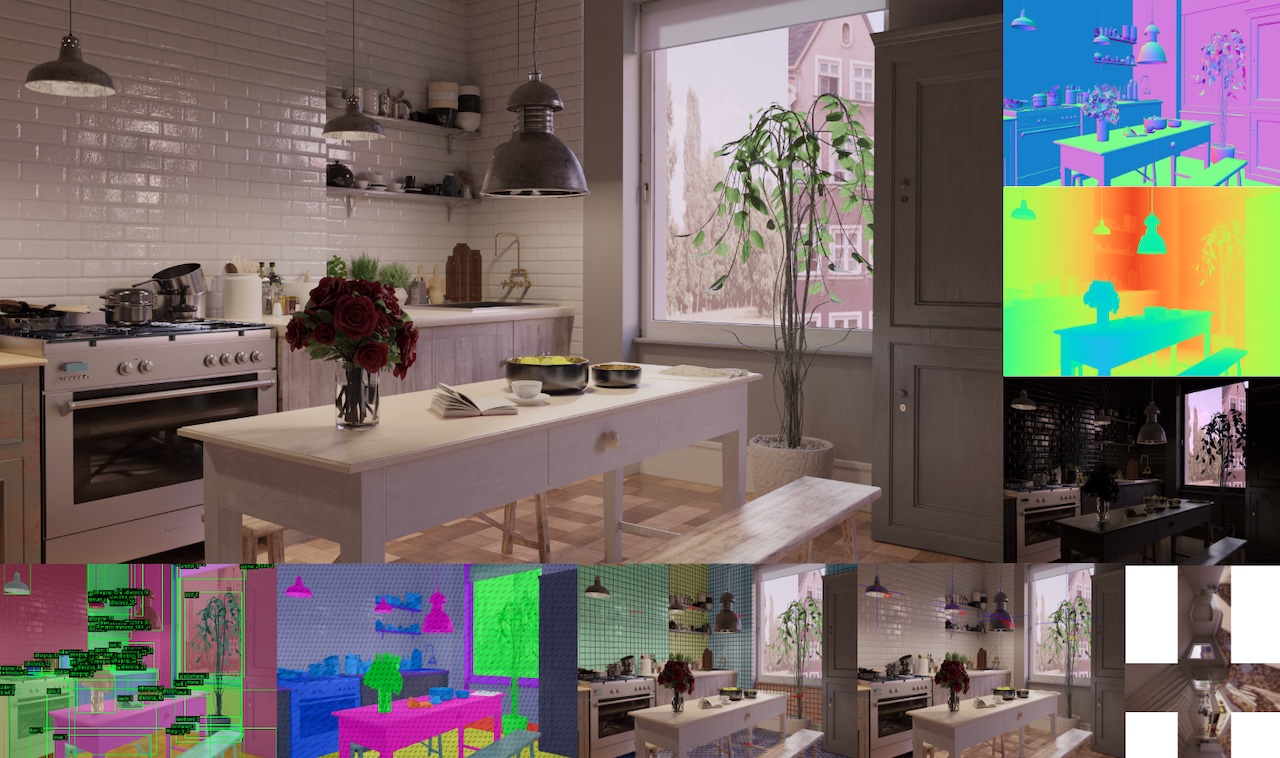

Deep learning has revolutionized many scene perception tasks over the past decade. Some of these improvements can be attributed to the development of large labeled datasets. The creation of such datasets can be an expensive, time-consuming, and is an imperfect process. To address these issues, we introduce GeoSynth, a diverse photorealistic synthetic dataset for indoor scene perception tasks. Each GeoSynth exemplar contains rich labels, including segmentation, geometry, camera parameters, surface material, lighting, and more. We demonstrate that supplementing real training data with GeoSynth can significantly improve network performance on perception tasks, like semantic segmentation.

Watch our presentation from IEEE VR 2023.

GeoSynth is used internally at Geomagical Labs to help power the IKEA Kreativ home design experience.

Installation

GeoSynth requires Python >=3.8 and can be installed via:

pip install geosynth

This installs:

1. The geosynth python library, providing a pythonic interface for reading and processing GeoSynth data.
2. The geosynth command-line tool, which offers a convenient way of downloading the geosynth dataset.

Some optional visualization tools will require matplotlib.

Dataset Download

Attention! Currently only the demo variant is available, the full dataset and additional datatypes will be released in the near future.

To download just a few scenes of the dataset, download the demo variant. The demo variant is the default --variant option:

geosynth download non-hdr --variant=demo

If you also wish to include HDR data, specify all, instead. The HDR data more than doubles the size of the download, so only download it if you need it. It is recommended to only specify the data types you need.

By default, the contents will be downloaded to ~/data/geosynth/. To specify an alternative download location, specify the --dst argument.

See all download options by running geosynth download --help:

$ geosynth download --help

Usage: geosynth download [OPTIONS] DTYPES...

 Download the GeoSynth data.

╭─ Arguments ──────────────────────────────────────────────────────────────────────────╮
│ *    dtypes      DTYPES...  Assets to download. Either specify "non-hdr", "all", or  │
│                             a subset of: [cube_environment_map, depth, extrinsics,   │
│                             gravity, hdr_cube_environment_map, hdr_reflectance,      │
│                             hdr_residual, hdr_rgb, hdr_shading,                      │
│                             hdr_sphere_environment_map, instance_segmentation,       │
│                             intrinsics, layout_lines_full, layout_lines_occluded,    │
│                             layout_lines_visible, lighting, normals, reflectance,    │
│                             residual, rgb, semantic_segmentation, shading,           │
│                             sphere_environment_map]).                                │
│                             [required]                                               │
╰──────────────────────────────────────────────────────────────────────────────────────╯
╭─ Options ────────────────────────────────────────────────────────────────────────────╮
│ --dst                        PATH         GeoSynth download directory.               │
│                                           [default: ~/data/geosynth]                 │
│ --variant                    [demo|full]  Variant of dataset to download.            │
│                                           [default: demo]                            │
│ --force      --no-force                   Force a re-download, despite locally       │
│                                           cached files.                              │
│                                           [default: no-force]                        │
│ --cleanup    --no-cleanup                 Delete zip files after unzipping.          │
│                                           [default: cleanup]                         │
│ --help                                    Show this message and exit.                │
╰──────────────────────────────────────────────────────────────────────────────────────╯

Usage

Once the dataset has been downloaded, data can be accessed in python:

from geosynth import GeoSynth

geosynth = GeoSynth("PATH_TO_DATA")  # or leave empty for default "~/data/geosynth/".

print(f"GeoSynth has {len(geosynth)} scenes.")

scene = geosynth[100]  # Data can be accessed via indexing like a list.

# or iterated over in a for loop:
for scene in dataset:
    # Each Scene object contains attributres for each datatype.
    # Contents can be read from disk via the ``read`` method.
    rgb = scene.rgb.read()  # (H, W, 3) np.ndarray
    depth = scene.depth.read()  # (H, W) np.ndarray
    intrinsics = scene.intrinsics.read()  # (3, 3) camera intrinsics
    instances = scene.instance_segmentation.read()  # dictionary of instance masks.

    # many datatypes have a ``visualize`` method
    depth_viz = scene.depth.visualize(depth)  # Returns a (H,W,3) turbo-colorized image.
    instances_viz = scene.instance_segmentation.visualize(instances, rgb=rgb)

License

The GeoSynth code is released under the Apache-2.0 License.

The GeoSynth data provided at storage.googleapis.com/geomagical-geosynth-public is available under the Attribution-NonCommercial-ShareAlike 4.0 International (CC BY-NC-SA 4.0) License.
