gest 0.3.0

Hand gestures as an input device

gest

Hand gestures as an input device

Why

For health related reasons, I had to stop using a mouse and a keyboard. Talon allowed me to type with my voice and move the cursor with my eyes. This project was started to complement this setup with hand gestures.

Development status

The project is in an early stage of development. I use it on daily basis, so it should be good enough for some.

What is implemented:

• pinching gesture recognition, in one hand orientation
• heatmap output, separate for left and right hand, indicating pinched point position
• demo for testing recognition models
• example script for simulating mouse clicks and scrolling
• scripts for producing and reviewing training data

Bias

The gesture recognition model was trained on images of my hands, taken with my hardware in my working environment, so it is probably heavily biased. I hope people who want to use it, but recognition quality prevents them from it, would capture some images of their hands using included tooling and donate it to the project, so that over time it works well for everyone.

Installation

Use Python 3.6, 3.7 or 3.8 and in a virtual environment run

pip install gest

If you clone this repository, you can get the exact versions of required libraries that I am using with Poetry

poetry install

Walkthrough

Demo

First check how the included model works for you. Run

python -m gest.demo

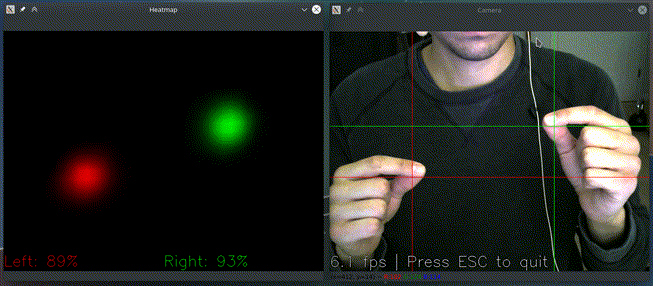

and see if it recognizes your gestures as here:

If you have multiple cameras, you can pick one like

python -m gest.demo --camera 2

Camera numbers are not necessarily consecutive. Two cameras may be accessible as 0 and 2. This option is supported by other commands as well.

Example script

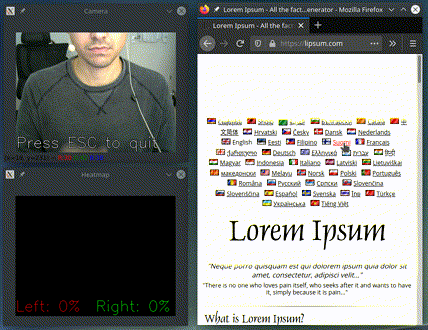

In the presentation on top I am running

python -m gest.examples.two_handed_scroll_and_click

It only acts if it detects both hands pinching and based on their relative position:

• double clicks if you cross your hands
• scrolls up or down if your hands pinch at different heights
• left clicks if your hands (almost) touch
• right clicks if your hands are on the same height, but not close horizontally (this action is delayed by a fraction of a second to prevent accidental use)

Controlling CPU load

For everyday use, you don't want to dedicate too much resources to gesture recognition. You can control it by setting OMP_NUM_THREADS, as in

OMP_NUM_THREADS=2 python -m gest.examples.two_handed_scroll_and_click

Try different values to find balance between responsiveness and CPU load.

Custom scripts

The demo and example scripts serve two additional purposes: they can be used as templates for custom scripts and they define the public API for the purpose of semantic versioning.

Training data annotation

Capturing

python -m gest.annotation.capture --countdown 5 data_directory

will help you create annotated images. Once you start automatic annotation (press a to start/stop) it will ask you to pinch a given point with your left or right hand, or to not pinch ("background").

You will have 5 seconds before the image is captured (the --countdown).

You will also see the last annotated image for quick review. It can be deleted with d.

Reviewing

python -m gest.annotation.review --time 1 data_directory closed_pinch_left

will let you review all images annotated as left hand pinch in data_directory, showing you each for 1 second if you start/stop automatic advancing with a. Otherwise you can go to the next/previous image with n/p. Delete incorrectly annotated images with d.

You should also review closed_pinch_right and background.

Annotation guidelines

It makes sense to annotate realistic training data that the model performs poorly on, like if

• it mistakenly detects a pinch when you pick up the phone,
• it doesn't detect pinching when you wear a skin colored shirt.

If it performs poorly overall, it's good to capture the images in many short sessions, with different lighting, clothes, background, camera angle.

The point isn't though to look for tricky cases or stretch the definition of a pinching gesture to include a different hand orientation (eg. with pinching fingers pointing towards the camera).

Donating annotated data

Contact me [e-mail]
