Handprint

The Handwritten Page Recognition Test program applies HTR services to images of handwritten text and produces an annotated image (and optionally more) showing the text recognized.

Latest release License Python GitHub stars DOI PyPI

❡ Log of recent changes

Version 1.4.0: This release does not change the user interface or functionality, but this is more than a patch release because it changes the minimum required versions of many Python packages and uses newer Google API libraries. A few bugs have been fixed as well. The file CHANGES contains a more complete change log, and includes information about previous releases.

§ Table of Contents

☞ Introduction

Handprint (Handwritten Page Recognition Test) is a small project to examine the performance of alternative services for offline handwritten text recognition (HTR). It was developed for use with documents from the Caltech Archives, but it is completely independent and can be applied to any images of text documents. Services supported include Google's Google Cloud Vision API, Microsoft's Azure Computer Vision API, Amazon's Textract and Rekognition, and more. Among other features, Handprint can generate versions of the input images with recognized text overlaid over them, to visualize the results. The image at right shows an example.

Handprint can work with individual images, directories of images, and URLs pointing to images on remote servers. In addition to producing annotated images as output, it can output the raw results from an HTR service as JSON and text files. Handprint can use multiple processor threads for parallel execution.

✎ Installation and configuration

The instructions below assume you have a Python interpreter installed on your computer; if that's not the case, please first install Python and familiarize yourself with running Python programs on your system.

Handprint includes several adapters for working with cloud-based HTR services from Amazon, Google, and Microsoft. Installing Handprint requires a both installing a copy of Handprint on your computer and supplying your copy with credentials for accessing the cloud services you want to use.

⓵   Install Handprint on your computer

On Linux, macOS, and Windows operating systems, you should be able to install Handprint with pip. If you don't have the pip package or are uncertain if you do, first run the following command in a terminal command line interpreter:

sudo python3 -m ensurepip

Then, to install Handprint from the Python package repository, run the following command:

python3 -m pip install handprint --user --upgrade

As an alternative to getting it from PyPI, you can instruct pip to install Handprint directly from the GitHub repository:

python3 -m pip install git+https://github.com/caltechlibrary/handprint.git --user --upgrade

⓶   Add cloud service credentials

A one-time configuration step is needed for each cloud-based HTR service after you install Handprint on a computer. This step supplies Handprint with credentials to access the services. In each case, the same command format is used:

handprint -a SERVICENAME CREDENTIALSFILE.json

SERVICENAME must be one of the service names printed by running handprint -l, and CREDENTIALSFILE.json must have one of the formats discussed below. When you run this command, Handprint will copy CREDENTIALSFILE.json to a private location, and thereafter uses the credentials to access SERVICENAME. (The private location is different on different systems; for example, on macOS it is ~/Library/Application Support/Handprint/.) Examples are given below.

Microsoft

Microsoft's approach to credentials in Azure involves the use of subscription keys. The format of the credentials file for Handprint needs to contain two fields:

{
 "subscription_key": "YOURKEYHERE",
 "endpoint": "https://ENDPOINT"
}

The value "YOURKEYHERE" will be a string such as "18de248475134eb49ae4a4e94b93461c", and it will be associated with an endpoint URI such as "https://westus.api.cognitive.microsoft.com". To obtain a key and the corresponding endpoint URI, visit https://portal.azure.com and sign in using your account login. (Note: you will need to turn off browser security plugins such as Ad Block and uMatrix if you have them, or else the site will not work.) Once you are authenticated to the Azure portal, you can create credentials for using Azure's machine-learning services. Some notes all about this can be found in the Handprint project Wiki pages on GitHub.

Once you have obtained both a key and an endpoint URI, use a text editor to create a JSON file in the simple format shown above, save that file somewhere on your computer (for the sake of this example, assume it is myazurecredentials.json), and use the command discussed above to make Handprint copy the credentials file:

handprint -a microsoft myazurecredentials.json

Google

Credentials for using a Google service account need to be stored in a JSON file that contains many fields. The overall format looks like this:

{
  "type": "service_account",
  "project_id": "theid",
  "private_key_id": "thekey",
  "private_key": "-----BEGIN PRIVATE KEY-----anotherkey-----END PRIVATE KEY-----\n",
  "client_email": "emailaddress",
  "client_id": "id",
  "auth_uri": "https://accounts.google.com/o/oauth2/auth",
  "token_uri": "https://oauth2.googleapis.com/token",
  "auth_provider_x509_cert_url": "https://www.googleapis.com/oauth2/v1/certs",
  "client_x509_cert_url": "someurl"
}

Getting one of these is summarized in the Google Cloud docs for Creating a service account, but more explicit instructions can be found in the Handprint project Wiki pages on GitHub. Once you have downloaded a Google credentials file from Google, save the file somewhere on your computer (for the sake of this example, assume it is mygooglecredentials.json), and use the command discussed above to make Handprint copy the credentials file:

handprint -a google mygooglecredentials.json

Amazon

Amazon credentials for AWS take the form of two alphanumeric strings: a key id string and a secret access key string. In addition, the service needs to be invoked with a region identifier. For the purposes of Handprint, these should be stored in a JSON file with the following format:

{
    "aws_access_key_id": "YOUR_KEY_ID_HERE",
    "aws_secret_access_key": "YOUR_ACCESS_KEY_HERE",
    "region_name": "YOUR_REGION_NAME_HERE"
}

Getting this information is, thankfully, a relatively simple process for Amazon's services. Instructions can be found in the Handprint project Wiki pages on GitHub. Once you have obtained the two alphanumeric keys and a region identifier string, use a text editor to create a JSON file in the simple format shown above, save that file somewhere on your computer (for the sake of this example, assume it is myamazoncredentials.json), and use two commands to make Handprint copy the credentials file for the two different Amazon services currently supported by Handprint:

handprint -a amazon-textract myamazoncredentials.json
handprint -a amazon-rekognition myamazoncredentials.json

▶︎ Usage

Handprint comes with a single command-line interface program called handprint. Here is a screen cast to give a sense for what it's like to run Handprint. Click on the following image:

Screencast of simple Handprint demo

The handprint command-line program should end up installed in a location where software is normally installed on your computer, if the installation steps described in the previous section proceed successfully. Running Handprint from a terminal shell then should be as simple as running any other shell command on your system:

handprint -h

If that fails for some reason, you should be able to run Handprint from anywhere using the normal approach for running Python modules:

python3 -m handprint -h

The -h option (/h on Windows) will make handprint display some help information and exit immediately. To make Handprint do more, you can supply other arguments that instruct Handprint to process image files (or alternatively, URLs pointing to image files at a network location) and run text recognition algorithms on them, as explained below.

Supported HTR/OCR services

Handprint can contact more than one cloud service for HTR. You can use the -l option (/l on Windows) to make it display a list of the services currently implemented:

# handprint -l
Known services: amazon-rekognition, amazon-textract, google, microsoft

By default, Handprint will run every known service in turn, creating annotated images to represent the results of each individual service. To invoke only specific services, use the -s option (/s on Windows) followed by a service name or a list of names separated by commas (e.g., google,microsoft). For example, the following command will save the results of invoking only Microsoft's text recognition service on a page from Clara Barton's unpublished draft book "The Life of My Childhood", available in Handprint's source directory:

handprint -s microsoft tests/images/public-domain/clara-barton-life-of-my-childhood-p90.jpg

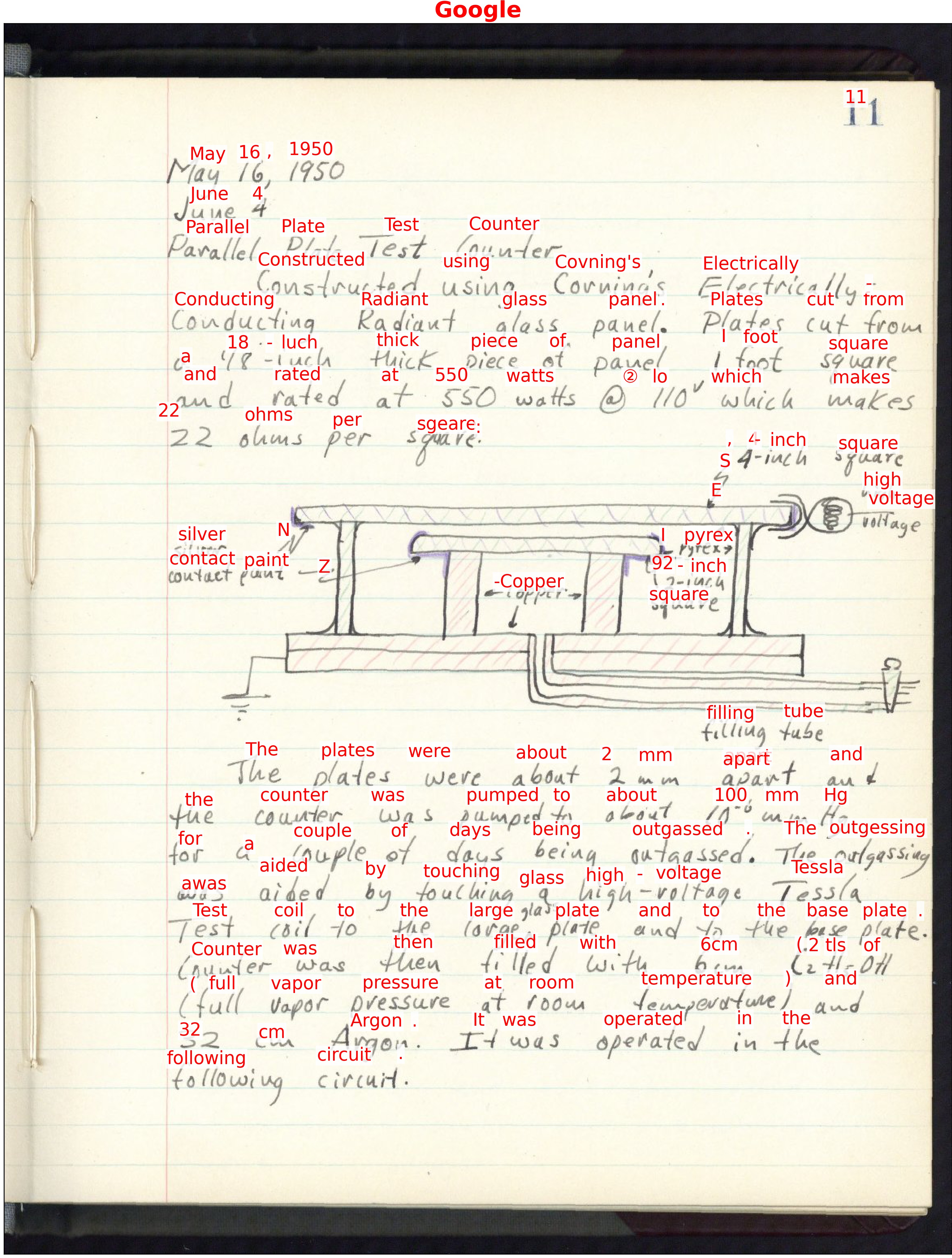

Here is what that result looks like: Example of running Microsoft's service on a page from Clara Barton's unpublished draft book, The Life of My Childhood.

Input files and URLs

After credentials are installed, running Handprint without the -a option will invoke one or more services on files, directories of files, or URLs pointing to files. More specifically, inputs can be supplied in any of the following ways:

  • One or more directory paths or one or more image file paths on the local disk, which will be interpreted as images (either individually or in directories) to be processed
  • One or more URLs, which will be interpreted as network locations of image files to be processed
  • If given the -f option (/f on Windows), a file containing either image paths or image URLs to be processed

Handprint considers each input path individually, and determines when an input is a URL based on whether the given path begins with letters followed by the characters :/ followed by the rest of the path (e.g., http://some/other/characters). If any of the input images are URLs, Handprint will first download the images found at the URLs to a directory indicated by the option -o (/o on Windows). If a destination directory is not provided via -o, the current working directory where Handprint is running is used instead.

No matter whether files or URLs, each input should be a single image of a document page in which text should be recognized. Handprint reads a number of common formats: JP2, JPEG, PDF, PNG, GIF, BMP, and TIFF. However, for simplicity and maximum compatibility with all cloud services, Handprint always converts all input files to PNG if they are not already in that format, before sending them to a service. Handprint also resizes images if necessary, to the smallest size accepted by any of the services invoked if an image exceeds that size. (For example, if service A accepts files up to 10 MB in size and service B accepts files up to 5 MB, all input images will be resized to 5 MB before sending them to A and B, even if A could accept a higher-resolution image.) In addition, a limitation of Handprint's current PDF support is that only the first image in a PDF file is read – if a PDF file contains more than one image, the remaining images are ignored.

Note that providing URLs on the command line can be problematic due to how terminal shells interpret certain characters, and so when supplying URLs, it's usually better to store the URLs in a file in combination with the -f option (/f on Windows).

Annotated output images

By default, Handprint will create a single output file for each input file. This file will be have the suffix .handprint-all.png and contain an annotated version of the results for each service invoked, tiled in a N×N grid fashion to produce one (big) output image. Here is a sample output image to illustrate:

Example annotated results output image

The 2×2 image above was produced by running the following command from the Handprint source directory:

handprint tests/images/public-domain/H96566k.jpg

The individual results, as well as individual annotated images corresponding to the results from each service, will not be retained unless the -e extended results option (/e on Windows) is invoked (described in more detail below). The production of the overview grid image can be skipped by using the -G option (/G on Windows).

Comparison to ground truth text

Handprint supports comparing the output of HTR services to expected output (i.e., ground truth) using the option -c (or /c on Windows). This facility requires that the user provides text files that contain the expected text for each input image. The ground-truth text files must have the following characteristics:

  • The file containing the expected results should be named .gt.txt, with a base name identical to the image file. For example, an image file named somefile.jpg should have a corresponding text file somefile.gt.txt. (This is a convention used by some other tools such as ocropy.)
  • The ground-truth text file should be located in the same directory as the input image file.
  • The text should be line oriented, with each line representing a line of text in the image.
  • The text should be plain text only. No Unicode or binary encodings. (This limitation comes from the HTR services, which – as of this writing – return results in plain text format.)

Handprint will write the comparison results to a tab-delimited file named after the input image and service but with the extension .tsv. For example, for an input image somefile.jpg and results received from Google, the comparison results will be written to somefile.handprint-google.tsv. The use of a tab-delimited format rather than comma-delimited format avoids the need to quote commas and other characters in the text. The output file will have one row for each line of text in the input, plus an additional row at the end for total number of errors found. Each row will have the following columns:

  1. number of errors on that line of text (computed as Levenshtein distance),
  2. the character error rate (CER) for the line (see below)
  3. the expected text on that line
  4. the text received from the service for that line

The character error rate (CER) is computed as

100 × (i + s + d)/n

where i is the number of inserted characters, s the number of substituted characters, and d the number of deleted characters needed to transform the the text received into the expected text, and n is the number of characters in the expected text line. This approach to normalizing the CER value is conventional but note that it can lead to values greater than 100%.

By default, scoring is done by Handprint on an exact basis; character case is not changed, punctuation is not removed, and stop words are not removed. However, multiple contiguous spaces are converted to one space, and leading spaces are removed from text lines.

If given the option -r (/r on Windows), Handprint will relax the comparison algorithm further, as follows: it will convert all text to lower case, and it will ignore certain sentence punctuation characters, namely ,, ., :, and ;. The rationale for these particular choices comes from experience with actual texts and HTR services. For example, a difference sometimes seen between HTR services is how they handle seemingly large spaces between a word and a subsequent comma or period: sometimes the HTR service will add a space before the comma or period, but inspection of the input document will reveal sloppiness in the author's handwriting and neither the addition nor the omission of a space is provably right or wrong. To avoid biasing the results one way or another, it is better to omit the punctuation. On the other hand, this may not always be desirable, and thus needs to be a user-controlled option.

Handprint attempts to cope with possibly-missing text in the HTR results by matching up likely corresponding lines in the expected and received results. It does this by comparing each line of ground-truth text to each line of the HTR results using longest common subsequence similarity as implemented by the LCSSEQ function in the textdistance package. If the lines do not pass a threshold score, Handprint looks at subsequent lines of the HTR results and tries to reestablish correspondence to ground truth. If nothing else in the HTR results appear close enough to the expected ground-truth line, the line is assumed to be missing from the HTR results and scored appropriately.

The following is an example of a tab-separated file produced using -c. This example shows a case where two lines were missing entirely from the HTR results; for those lines, the number of errors equals the length of the ground-truth text lines and the CER is 100%.

Extended results

If the option -e (/e on Windows) is used, Handprint saves not only the overview image containing all the results, but also, individual annotated images for each service's results, the raw data (converted to a JSON file by Handprint), and the text extracted by the service. These additional outputs will be written in files named after the original files with the addition of a string that indicates the service used. For example, a file named somefile.jpg will produce

somefile.handprint-amazon-textract.json
somefile.handprint-amazon-textract.txt
somefile.handprint-google.json
somefile.handprint-google.txt
...

A complication arises with using URLs in combination with the -e option: how should Handprint name the files that it writes? Some CMS systems store content using opaque schemes that provide no clear names in the URLs, making it impossible for a software tool such as Handprint to guess what file name would make sense to use for local storage. Worse, some systems create extremely long URLs, making it impractical to use the URL itself as the file name. For example, the following is a real URL pointing to an image in Caltech Archives:

https://hale.archives.caltech.edu/adore-djatoka//resolver?rft_id=https%3A%2F%2Fhale.archives.caltech.edu%2Fislandora%2Fobject%2Fhale%253A85240%2Fdatastream%2FJP2%2Fview%3Ftoken%3D7997253eb6195d89b2615e8fa60708a97204a4cdefe527a5ab593395ac7d4327&url_ver=Z39.88-2004&svc_id=info%3Alanl-repo%2Fsvc%2FgetRegion&svc_val_fmt=info%3Aofi%2Ffmt%3Akev%3Amtx%3Ajpeg2000&svc.format=image%2Fjpeg&svc.level=4&svc.rotate=0

To deal with this situation, Handprint manufactures its own file names when a URL is encountered. The scheme is simple: by default, Handprint will use a base name of document-N, where N is an integer. The integers start from 1 for every run of Handprint, and the integers count the URLs found either on the command line or in the file indicated by the -f option. The image found at a given URL is stored in a file named document-N.E where E is the format extension (e.g., document-1.jpg, document-1.png, etc.). The URL itself is stored in another file named document-1.url. Thus, the files produced by Handprint will look like this when the -e option is used (assuming, for this example, that the files at the source URLs are in JPEG format):

document-1.url
document-1.handprint-google.json
document-1.handprint-google.txt
document-1.handprint-microsoft.json
document-1.handprint-microsoft.txt
...
document-2.url
document-2.handprint-google.json
document-2.handprint-google.txt
document-2.handprint-microsoft.json
document-2.handprint-microsoft.txt
...
document-3.url
document-3.handprint-google.json
document-3.handprint-google.txt
document-3.handprint-microsoft.json
document-3.handprint-microsoft.txt
...

The base name document can be changed using the -b option (/b on Windows). For example, running Handprint with the option -b einstein will cause the outputs to be named einstein-1.jpg, einstein-1.url, etc.

Finally, if an image is too large for any of the services invoked, then Handprint will resize it prior to sending the image to any of the services (as noted above). It will write the reduced image to a file named FILENAME.handprint.EXT, where FILENAME is the original file name and EXT is the file extension. This file is normally deleted, unless you use the -e option (/e on Windows) mentioned above, in which case you will find this additional file in the same location as the others:


Other options

Handprint produces color-coded diagnostic output as it runs, by default. However, some terminals or terminal configurations may make it hard to read the text with colors, so Handprint offers the -C option (/C on Windows) to turn off colored output.

Handprint will send files to the different services in parallel, using a number of process threads equal to 1/2 of the number of cores on the computer it is running on. (E.g., if your computer has 4 cores, it will by default use at most 2 threads.) The -t option (/t on Windows) can be used to change this number.

If given the -@ argument (/@ on Windows), this program will output a detailed trace of what it is doing. The debug trace will be sent to the given destination, which can be - to indicate console output, or a file path to send the output to a file. On non-Windows platforms, Handprint will also install a signal handler that responds to signal SIGUSR1; if the signal is sent to the running process, it will drop Handprint into the pdb debugger. Note: It's best to use -t 1 when attempting to use a debugger because otherwise subthreads will continue running even if the main thread is interrupted.

If given the -V option (/V on Windows), this program will print the version and other information, and exit without doing anything else.

Command line options summary

The following table summarizes all the command line options available. (Note: on Windows computers, / must be used as the prefix character instead of the - dash character):

Short     Long form Meaning Default
-aA --add-credsA Add credentials for service A and exit
-bB --base-nameB Write outputs to files named B-n Use base names of image files
-c --compare Compare to ground truth; also see -r
-C --no-color Don't color-code the output Use colors in the terminal output
-e --extended Produce extended results Produce only results overview image
-fF --from-fileF Read file names or URLs from file F Use names or URLs on command line
-G --no-grid Don't produce results summary image Produce an N×N grid image
-h --help Display help text and exit
-l --list Display known services and exit
-oO --outputO Write outputs to directory O Directories where images are found
-q --quiet Don't print messages while working Be chatty while working
-r --relaxed Use looser criteria for --compare
-sS --serviceS Use recognition service S "all"
-tT --threadsT Use T number of threads Use (#cores)/2 threads
-V --version Display program version info and exit
-@OUT --debugOUT Debugging mode; write trace to OUT Normal mode

⚑   If URLs are given, then the outputs will be written by default to names of the form document-n, where n is an integer. Examples: document-1.jpg, document-1.handprint-google.txt, etc. This is because images located in network content management systems may not have any clear names in their URLs.
⬥   To write to the console, use the character - as the value of OUT; otherwise, OUT must be the name of a file where the output should be written.

Return values

This program exits with a return code of 0 if no problems are encountered. It returns a nonzero value otherwise. The following table lists the possible return values:

Code Meaning
0 success – program completed normally
1 the user interrupted the program's execution
2 encountered a bad or missing value for an option
3 no network detected – cannot proceed
4 file error – encountered a problem with a file
5 server error – encountered a problem with a server
6 an exception or fatal error occurred

Additional notes

The debug logging functionality is implemented using Sidetrack and all calls to the debug code are conditionalized on the Python symbol __debug__. It is carefully written so that you can cause the calls to be optimized out completely if your run Python with optimization turned on (e.g., using the -O command-line option).

☹︎ Known issues and limitations

Here are some known limitations in the current version of Handprint:

  • The Amazon Rekognition API will return at most 50 words in an image.
  • The Microsoft Azure API will only detect a maximum of 300 lines of text per page.
  • Some services have different file size restrictions depending on the format of the file, but Handprint always uses the same limit for all files for a given service. This is a code simplification.
  • When the input is a PDF file, only the first image in the PDF file is used; the rest (if any) are ignored.

⁇ Getting help

If you find an issue, please submit it in the GitHub issue tracker for this repository.

♬ Contributing

I would be happy to receive your help and participation with enhancing Handprint! Please visit the guidelines for contributing for some tips on getting started.

⧴ License

Copyright (C) 2018–2020, Caltech. This software is freely distributed under a BSD/MIT type license. Please see the LICENSE file for more information.

☺︎ Authors and history

Mike Hucka designed and implemented Handprint beginning in mid-2018.

♡ Acknowledgments

The vector artwork of a hand used as a logo for Handprint was created by Kevin from the Noun Project. It is licensed under the Creative Commons CC-BY 3.0 license.

Handprint benefitted from feedback from several people, notably from Tommy Keswick, Mariella Soprano, Peter Collopy and Stephen Davison.

Handprint makes use of numerous open-source packages, without which it would have been effectively impossible to develop Handprint with the resources we had. I want to acknowledge this debt. In alphabetical order, the packages are:

Finally, I am grateful for computing & institutional resources made available by the California Institute of Technology.
