histocartography 0.2.1

Installable histocartography package.

Documentation | Paper

Welcome to the histocartography repository! histocartography is a python-based library designed to facilitate the development of graph-based computational pathology pipelines. The library includes plug-and-play modules to perform,

• standard histology image pre-processing (e.g., stain normalization, nuclei detection, tissue detection)
• entity-graph representation building (e.g. cell graph, tissue graph, hierarchical graph)
• modeling Graph Neural Networks (e.g. GIN, PNA)
• feature attribution based graph interpretability techniques (e.g. GraphGradCAM, GraphGradCAM++, GNNExplainer)
• visualization tools

All the functionalities are grouped under a user-friendly API.

If you encounter any issue or have questions regarding the library, feel free to open a GitHub issue. We'll do our best to address it.

Installation

PyPI installer (recommended)

pip install histocartography

Development setup

• Clone the repo:

git clone https://github.com/histocartography/histocartography.git && cd histocartography

• Create a conda environment:

conda env create -f environment.yml

• Activate it:

conda activate histocartography

• Add histocartography to your python path:

export PYTHONPATH="<PATH>/histocartography:$PYTHONPATH"

Tests

To ensure proper installation, run unit tests as:

python -m unittest discover -s test -p "test_*" -v

Running tests on cpu can take up to 20mn.

Using histocartography

The histocartography library provides a set of helpers grouped in different modules, namely preprocessing, ml, visualization and interpretability.

For instance, in histocartography.preprocessing, building a cell-graph from an H&E image is as simple as:

>> from histocartography.preprocessing import NucleiExtractor, DeepFeatureExtractor, KNNGraphBuilder
>>
>> nuclei_detector = NucleiExtractor()
>> feature_extractor = DeepFeatureExtractor(architecture='resnet34', patch_size=72)
>> knn_graph_builder = KNNGraphBuilder(k=5, thresh=50, add_loc_feats=True)
>>
>> image = np.array(Image.open('docs/_static/283_dcis_4.png'))
>> nuclei_map, _ = nuclei_detector.process(image)
>> features = feature_extractor.process(image, nuclei_map)
>> cell_graph = knn_graph_builder.process(nuclei_map, features)

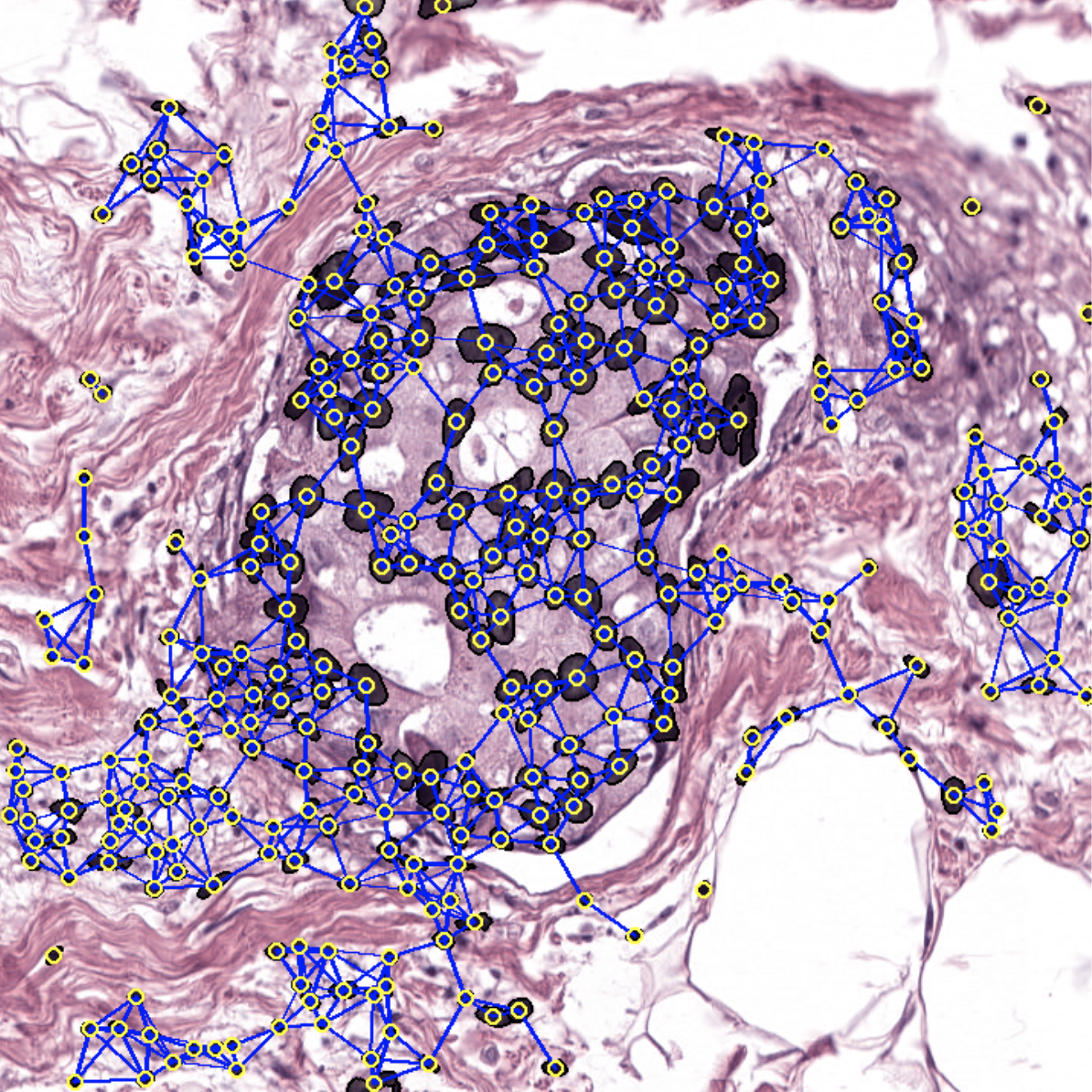

The output can be then visualized with:

>> from histocartography.visualization import OverlayGraphVisualization, InstanceImageVisualization

>> visualizer = OverlayGraphVisualization(
...     instance_visualizer=InstanceImageVisualization(
...         instance_style="filled+outline"
...     )
... )
>> viz_cg = visualizer.process(
...     canvas=image,
...     graph=cell_graph,
...     instance_map=nuclei_map
... )
>> viz_cg.show()

A list of examples to discover the capabilities of the histocartography library is provided in examples. The examples will show you how to perform:

• stain normalization with Vahadane or Macenko algorithm
• cell graph generation to transform an H&E image into a graph-based representation where nodes encode nuclei and edges nuclei-nuclei interactions. It includes: nuclei detection based on HoverNet pretrained on PanNuke dataset, deep feature extraction and kNN graph building.
• tissue graph generation to transform an H&E image into a graph-based representation where nodes encode tissue regions and edges tissue-to-tissue interactions. It includes: tissue detection based on superpixels, deep feature extraction and RAG graph building.
• feature cube extraction to extract deep representations of individual patches depicting the image
• cell graph explainer to generate an explanation to highlight salient nodes. It includes inference on a pretrained CG-GNN model followed by GraphGradCAM explainer.

A tutorial with detailed descriptions and visualizations of some of the main functionalities is provided here as a notebook.

External Ressources

Learn more about GNNs

• We have prepared a gentle introduction to Graph Neural Networks. In this tutorial, you can find slides, notebooks and a set of reference papers.
• For those of you interested in exploring Graph Neural Networks in depth, please refer to this content or this one.

Papers already using this library

• Hierarchical Graph Representations for Digital Pathology, Pati et al., preprint, 2021. [pdf] [code]
• Quantifying Explainers of Graph Neural Networks in Computational Pathology, Jaume et al., CVPR, 2021. [pdf] [code]
• Learning Whole-Slide Segmentation from Inexact and Incomplete Labels using Tissue Graphs, Anklin et al., preprint, 2021. [pdf] [code]

If you use this library, please consider citing:

@inproceedings{jaume2021,
    title = {HistoCartography: A Toolkit for Graph Analytics in Digital Pathology},
    author = {Guillaume Jaume, Pushpak Pati, Valentin Anklin, Antonio Foncubierta, Maria Gabrani},
    booktitle = {https://arxiv.org/pdf/2107.10073},
    year = {2021}
}

@inproceedings{pati2021,
    title = {Hierarchical Graph Representations for Digital Pathology},
    author = {Pushpak Pati, Guillaume Jaume, Antonio Foncubierta, Florinda Feroce, Anna Maria Anniciello, Giosuè Scognamiglio, Nadia Brancati, Maryse Fiche, Estelle Dubruc, Daniel Riccio, Maurizio Di Bonito, Giuseppe De Pietro, Gerardo Botti, Jean-Philippe Thiran, Maria Frucci, Orcun Goksel, Maria Gabrani},
    booktitle = {Medical Image Analysis (MEDIA)},
    year = {2021}
}
