hybkit 0.3.6

Toolkit for analysis of chimeric (hybrid) RNA sequence data.

Welcome to hybkit, a toolkit for analysis of hyb-format chimeric (hybrid) RNA sequence data defined with the Hyb software package by Travis et al. (Methods 2014). This genomic data-type is generated from RNA proximity-ligation and ribonomics techniques such as Crosslinking, Ligation, and Sequencing of Hybrids (CLASH; Helwak et al. (Cell 2013)) and quick CLASH (qCLASH; Gay et al. (J. Virol. 2018)).

This software is available via Github, at http://www.github.com/RenneLab/hybkit .

Full project documentation is available at hybkit’s ReadTheDocs.

Project components:

1. hybkit toolkit of command-line utilities for manipulating, analyzing, and plotting hyb-format data.

2. The hybkit python API, an extendable documented codebase for creation of custom analyses of hyb-format data.

3. Integrated analysis of predicted secondary structure (fold) information for the API and command-line utilities.

4. Example analyses for publicly available qCLASH hybrid sequence data implemented in each of the command-line scripts and hybkit Python API.

Hybkit Toolkit:

The hybkit toolkit includes several command-line utilities for manipulation of hyb-format data:

Utility	Description
hyb_check	Parse hyb (and fold) files and check for errors
hyb_eval	Evaluate hyb (and fold) records to identify / assign segment types and miRNAs using custom criteria
hyb_filter	Filter hyb (and fold) records to a specific custom subset
hyb_analyze	Perform an energy, type, miRNA, target, or fold analysis on hyb (and fold) files and plot results

These scripts are used on the command line with hyb (and associated “vienna” or “CT”) files. For example, to filter a hyb and corresponding vienna file to contain only hybrids with a sequence identifier containing the string “kshv”:

Example:

$ hyb_filter -i my_hyb_file.hyb -f my_hyb_file.vienna --filter any_seg_contains kshv

Further detail on the usage of each script is provided in the hybkit Toolkit section of hybkit’s ReadTheDocs.

Hybkit API:

Hybkit provides a Python3 module with a documented API for interacting with records in hyb files and associated vienna or CT files. This capability was inspired by the BioPython Project. The primary utility is provided by a class for hyb records (HybRecord), a class for fold records (FoldRecord), and file-iterator classes (HybFile, ViennaFile, CTFile, HybFoldIter). Record attributes can be analyzed, set, and evaluated using included class methods.

For example, a workflow to print the identifiers of only sequences within a “.hyb” file that contain a miRNA can be performed as such:

#!/usr/bin/env python3
import hybkit
in_file = '/path/to/my_hyb_file.hyb'

# Open a hyb file as a HybFile Object:
with hybkit.HybFile.open(in_file, 'r') as hyb_file:

    # Return each line in a hyb file as a HybRecord object
    for hyb_record in hyb_file:

        # Analyze each record to assign segment types
        hyb_record.eval_types()

        # If the record contains a long noncoding RNA type, print the record identifier.
        if hyb_record.has_prop('any_seg_type_contains', 'lncRNA')
            print(hyb_record.id)

Further documentation on the hybkit API can be found in the hybkit API section of hybkit’s ReadTheDocs.

Example Analyses:

Hybkit provides several example analyses for hyb data using the utilities provided in the toolkit. These include:

Analysis	Description
Type/miRNA Analysis	Quantify sequence types and miRNA types in a hyb file
Target Analysis	Analyze targets of a set of miRNAs from a single experimental replicate
Grouped Target Analysis	Analyze and plot targets of a set of miRNAs from pooled experimental replicates
Fold Analysis	Analyze and plot predicted miRNA folding patterns in miRNA-containing hybrids

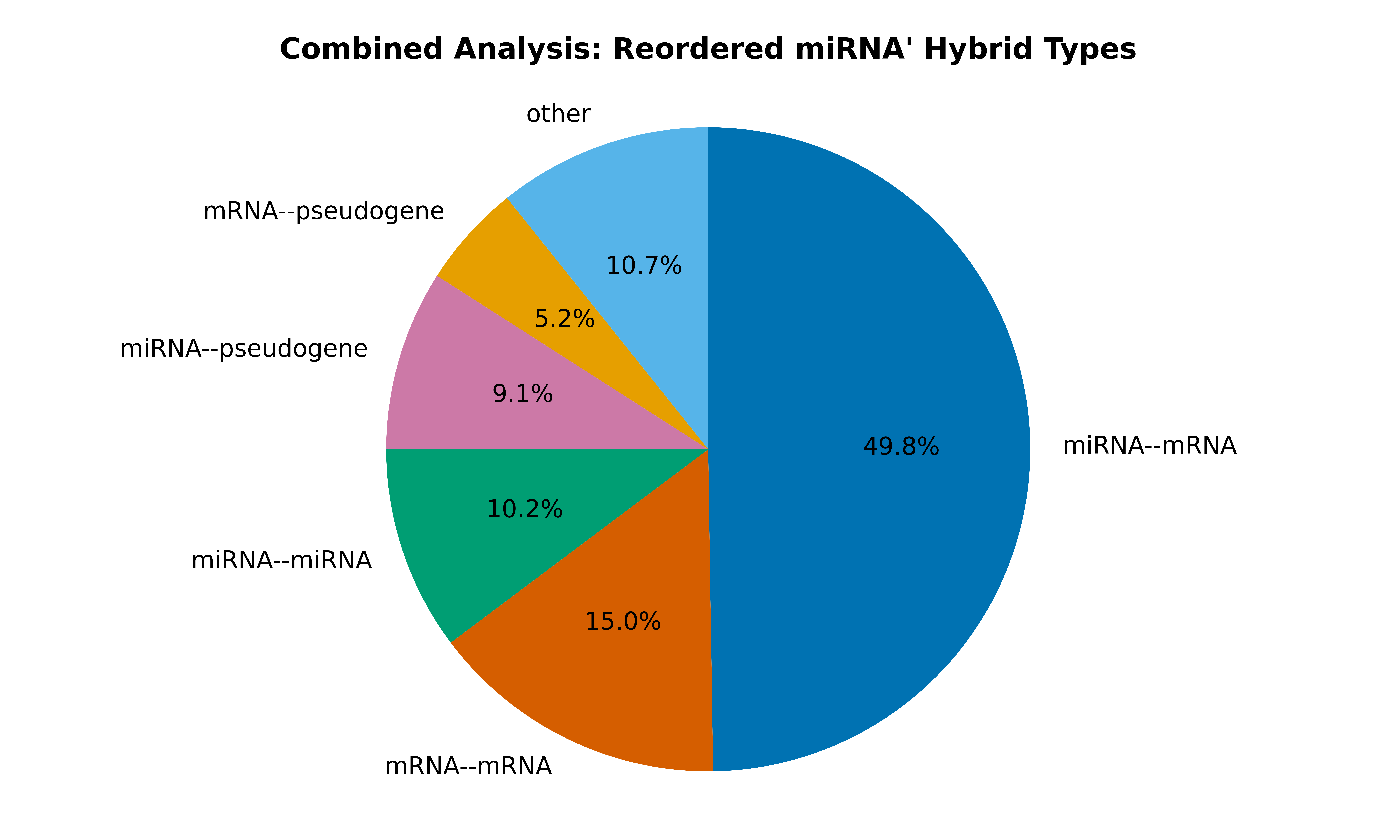

These analyses provide analysis results in both tabular and graph form. As an illustration, the example summary analysis includes the return of the contained hybrid sequence types as both a csv table and as a pie chart:

CSV Output

Further detail on each provided analysis can be found in the Example Analyses section of hybkit’s ReadTheDocs.

Installation:

Dependencies:

• Python3.8+

• matplotlib >= 3.7.1 (Hunter JD. (Computing in Science & Engineering 2007))

• BioPython >= 1.79 (Cock et al. (Bioinformatics 2009))

• typing_extensions <https://pypi.org/project/typing-extensions/> >= 4.8.0

Via PyPI / Python PIP:

The recommended installation method is via hybkit’s PyPI Package Index using python3 pip, which will automatically handle version control and dependency installation:

$ python3 -m pip install hybkit

Via Conda:

For users of conda, the hybkit package and dependencies are hosted on the the Bioconda channel, and can be installed using conda:

$ conda install -c bioconda hybkit

Via Docker/Singularity:

The hybkit package is also available as a Docker image and Singularity container, hosted via the BioContainers project on quay.io. To pull the image via docker:

$ docker pull quay.io/biocontainers/hybkit:0.3.3--pyhdfd78af_0

To pull the image via singularity:

$ singularity pull docker://quay.io/biocontainers/hybkit:0.3.3--pyhdfd78af_0

Manually Download and Install:

Use git to clone the project’s Github repository:

$ git clone git://github.com/RenneLab/hybkit

OR download the zipped package:

$ curl -OL https://github.com/RenneLab/hybkit/archive/master.zip
$ unzip master.zip

Then install using python setuptools:

$ python setup.py install

Further documentation on hybkit usage can be found in hybkit’s ReadTheDocs.

Setup Testing:

Hybkit provides a suite of unit tests to maintain stability of the API and script functionalities. To run the API test suite, install pytest and run the tests from the root directory of the hybkit package:

$ pip install pytest
$ pytest

Command-line scripts can be tested by running the auto_test.sh script in the auto_tests directory:

$ ./auto_tests/auto_test.sh

Copyright:

hybkit is a free, sharable, open-source project.

All source code and executable scripts contained within this package are considered part of the “hybkit” project and are distributed without any warranty or implied warranty under the GNU General Public License v3.0 or any later version, described in the “LICENSE” file.
