icolyzer 1.7.0

Auxiliary set of tools to work with measurement data produced by the ICOtronic system

ICOlyzer

Auxiliary set of tools to analyze data from the ICOtronic system:

• ICOplotter: Visualize data and calculate signal to noise ratio
• ICOanalyzer: Measures packet loss
• ICOconverter: Convert HDF5 measurement files into other formats

Requirements

• Python

Setup Instructions

Install

You can install the latest version of the tools from PyPI using the command:

pip install icolyzer

To install the latest development version use:

pip install --upgrade git+https://github.com/mytoolit/ICOlyzer

Remove

pip uninstall -y icolyzer

ICOplotter

• Measures signal to noise ratio (SNR) value of a measurement
• Opens a plotter window visualizing the recorded signal
• Plots the power spectral density graph for the recorded signal
• Prints the IFT value of the signal
• Adds optional red lines for time periods containing missing data values

Usage

The ICOplotter script looks for a log.hdf5 file in the current working directory by default. After using the command:

icoplotter

the script will load this file and open the graph of the recording:

The calculated SNR will be written to the standard output.

SNR:
  X: -106.50 dB @ 9.40 kHz

With closing the plotter the script will finish and the command line will be ready for a new command. For running the script with another input-file use one of the parameters described below.

Positional Parameters

Filepath

To change the HDF filepath from log.hdf5 in the current working directory, please specify the filepath as positional argument.

Example:

icoplotter HDF5/log-x.hdf5

Optional Parameters

-h, --help

Prints the help menu of the command

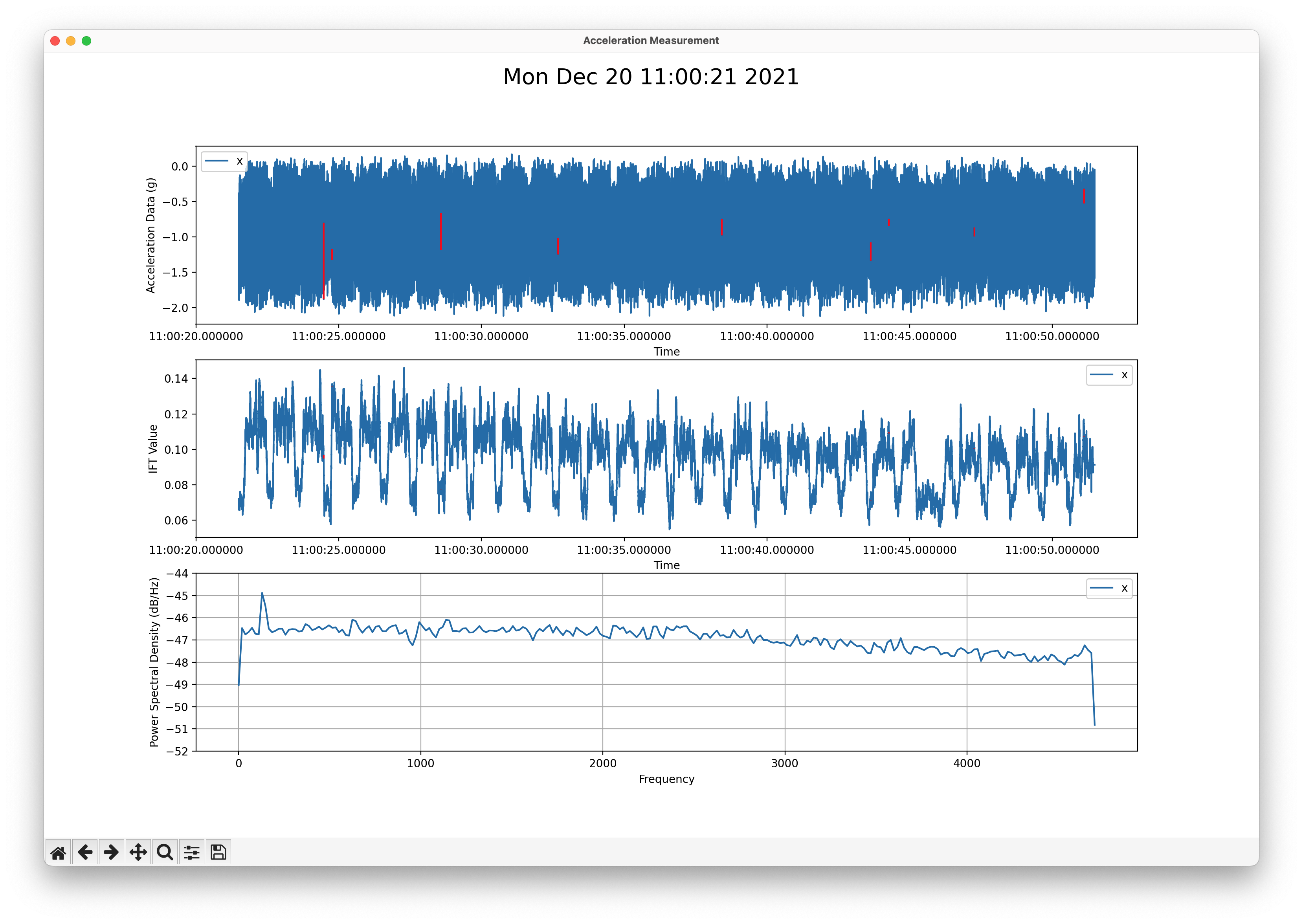

-l, --loss

Highlight periods containing lost data using red lines:

-p, --print

Store the plotter output as PDF file instead of displaying it on the screen. The output is stored in the same location as the the input file with the extension .pdf.

-s, --scatter

Use a scatter plot (instead of a line plot) to visualize the measurement data

ICOanalyzer

• Measures packet-loss of the recorded signal
• Print number of sample points/channel
• Measures how many datapoints are outside of a given minimum and maximum value
• Prints warnings about long durations (more than 1 second) between consecutive timestamps

Usage

The ICOanalyzer script looks for the file log.hdf5 in the current working directory (usually this will be the root of this repository) by default. After you use the command:

icoanalyzer

the script will run and analyze log.hdf5. The script will then list the packet loss and values outside of the given range (default is -1g and 1g):

Input: log.hdf5
Packet Loss: 0.61%
Data Points:
  X-Axis: 282021 Samples - 127772 Samples were over 1g or below -1g (45.31%)
Measurement Date: 2021-12-20T11:00:21.489537
Runtime: 29.996 seconds

If you want to change the file the script analyzes or the minimum and maximum values you have to provide some extra parameters. Using multiple parameters is also possible.

Parameters

-h, --help

This argument calls the help menu of the script instead of running the script.

Filepath

With the input positional parameter:

icoanalyzer examples/log-xz.hdf5

you can change the file the script analyzes:

Input: examples/log-xz.hdf5
Packet Loss: 24.67%
Data Points:
  X-Axis: 106992 Samples - 106992 Samples were over 1g or below -1g (100.0%)
  Z-Axis: 106992 Samples - 106992 Samples were over 1g or below -1g (100.0%)
Measurement Date: 2022-01-03T07:52:29.573573
Runtime: 29.993 seconds

The tool also supports multiple input files. For example, if you want to analyze all .hdf5 files in the current directory, then you can use the following command:

icoanalyzer *.hdf5

-d, --details

With -d:

icoanalyzer -d

you can activate a more detailed information about the packet loss:

Input: log.hdf5
 64 Packets lost after  2.979 seconds - No values for 0.3 milliseconds
 64 Packets lost after  3.274 seconds - No values for 0.3 milliseconds
 64 Packets lost after  7.089 seconds - No values for 0.3 milliseconds
 64 Packets lost after 11.192 seconds - No values for 0.3 milliseconds
 64 Packets lost after 16.931 seconds - No values for 0.3 milliseconds
 64 Packets lost after 22.149 seconds - No values for 0.3 milliseconds
 64 Packets lost after 22.782 seconds - No values for 0.2 milliseconds
 64 Packets lost after 25.781 seconds - No values for 0.3 milliseconds
 64 Packets lost after 29.623 seconds - No values for 0.2 milliseconds
Packet Loss: 0.61%
Data Points:
  X-Axis: 282021 Samples - 127772 Samples were over 1g or below -1g (45.31%)
Measurement Date: 2021-12-20T11:00:21.489537
Runtime: 29.996 seconds

Not only will it show the percentage of data loss for the file, it will now also show how many packets were lost in each packet loss event.

-m, --min

With "-m VALUE" you can change the minimal value for datapoints to be checked. All values below this parameter will be counted as out of the borders.

-v, --max

With "-v VALUE":

icoanalyzer -m -0.42 -v 2.55

you can change the maximum value for datapoints to be checked. All values above this parameter will be counted as out of the borders.

Input: log-x.hdf5
Packet Loss: 0.61%
Data Points:
  X-Axis: 282021 Samples - 269420 Samples were over 2.55g or below -0.42g (95.53%)
Measurement Date: 2021-12-20T11:00:21.489537
Runtime: 29.996 seconds

ICOconverter

• Converts HDF5 measurement files (.hdf5) into .csv (Comma-Separated Values) or .xlsx (Excel) files

Usage

The ICOconverter script looks for the file log.hdf5 in the current working directory by default. After you use the command:

icoconverter

the script will run and analyze log.hdf5. The script will then convert the .hdf5 file and create log.csv and save it into the same directory. Attention: When there is already an file with the name of the converted .csv it will be overwritten.

> icoconverter
Starting the conversion process
Converting “log.hdf5” to “log.csv”
Finished the conversion process

If you want to change the file the script converts or the format it should convert to you have to provide some extra parameters. Using multiple parameters is also possible.

Parameters

-h, --help

This argument calls the help menu of the script instead of running the script.

Filepath

With the inputs positional parameter you can change the file the script converts.

icoconverter ~/Downloads/log.hdf5
Starting the conversion process
Converting “/Users/rene/Downloads/log.hdf5” to “/Users/rene/Downloads/log.csv”
Finished the conversion process

This path can be given as a relative or an absolute path. If the given path is a folder the script will convert ALL .hdf5 files inside the given folder.

icoconverter ~/Downloads/TEST-LOGS-HDF5
Starting the conversion process
Converting “/Users/rene/Downloads/TEST-LOGS-HDF5/log-z.hdf5” to “/Users/rene/Downloads/TEST-LOGS-HDF5/log-z.csv”
Converting “/Users/rene/Downloads/TEST-LOGS-HDF5/log-xy.hdf5” to “/Users/rene/Downloads/TEST-LOGS-HDF5/log-xy.csv”
Converting “/Users/rene/Downloads/TEST-LOGS-HDF5/log-xyz.hdf5” to “/Users/rene/Downloads/TEST-LOGS-HDF5/log-xyz.csv”
Converting “/Users/rene/Downloads/TEST-LOGS-HDF5/log-xz.hdf5” to “/Users/rene/Downloads/TEST-LOGS-HDF5/log-xz.csv”
Converting “/Users/rene/Downloads/TEST-LOGS-HDF5/log-x.hdf5” to “/Users/rene/Downloads/TEST-LOGS-HDF5/log-x.csv”
Converting “/Users/rene/Downloads/TEST-LOGS-HDF5/log-yz.hdf5” to “/Users/rene/Downloads/TEST-LOGS-HDF5/log-yz.csv”
Converting “/Users/rene/Downloads/TEST-LOGS-HDF5/log-y.hdf5” to “/Users/rene/Downloads/TEST-LOGS-HDF5/log-y.csv”
Finished the conversion process

-e, --excel

With "-e" you can change the format the script converts to to excel sheets. Instead of .csv it now creates .xlsx files.

icoconverter ~/Downloads/*.hdf5 -e
Starting the conversion process
Starting the conversion of: /Users/rene/Downloads/log.hdf5
Starting the conversion of: /Users/rene/Downloads/Measurement_2022-03-31_10-20-16.hdf5
Finished the conversion process
