ikpy 4.0.0

An inverse kinematics library aiming performance and modularity

IKPy

Demo

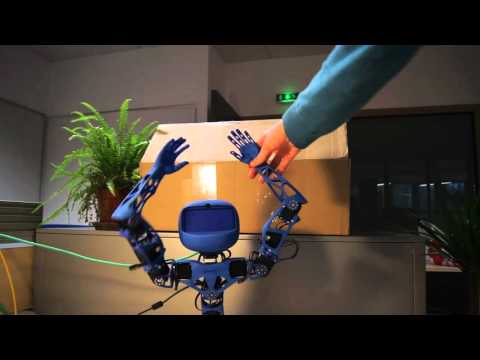

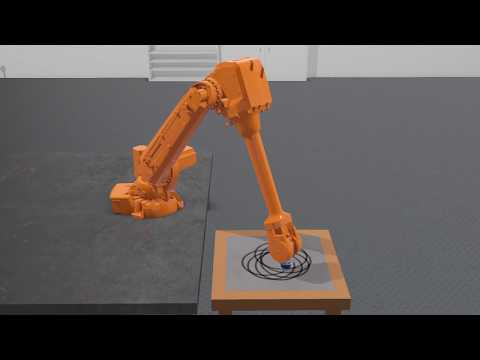

Live demos of what IKPy can do (click on the image below to see the video):

Also, a presentation of IKPy: Presentation.

Features

With IKPy, you can:

• Compute the Inverse Kinematics of every existing robot.
• Compute the Inverse Kinematics in position, orientation, or both
• Define your kinematic chain using arbitrary representations: DH (Denavit–Hartenberg), URDF, custom...
• Automatically import a kinematic chain from a URDF file or a MuJoCo MJCF file.
• Support for arbitrary joint types: revolute, prismatic and more to come in the future
• Use pre-configured robots, such as baxter or the poppy-torso
• IKPy is precise (up to 7 digits): the only limitation being your underlying model's precision, and fast: from 7 ms to 50 ms (depending on your precision) for a complete IK computation.
• Plot your kinematic chain: no need to use a real robot (or a simulator) to test your algorithms!
• Define your own Inverse Kinematics methods.
• Utils to parse and analyze URDF files:

Moreover, IKPy is a pure-Python library: the install is a matter of seconds, and no compiling is required.

JAX Backend (Experimental)

IKPy now includes an optional JAX backend for accelerated inverse kinematics using automatic differentiation.

Benefits

Scenario	Speedup vs NumPy
Single target (complex chains)	1.5-4x faster
Trajectory tracking (warm start)	2-3x faster
Cold start	More robust (fewer local minima)

The JAX backend uses an analytical Jacobian computed via autodiff, which provides:

• Faster convergence on difficult targets
• Better robustness against local minima
• Significant speedup on robots with 5+ joints

Installation

pip install 'ikpy[jax]'

Usage

from ikpy.chain import Chain

# Load your robot
chain = Chain.from_urdf_file("my_robot.urdf")

# Use JAX backend for IK
result = chain.inverse_kinematics(
    target_position=[0.5, 0.2, 0.3],
    backend="jax"  # Use JAX instead of NumPy
)

# Trajectory tracking with warm start (recommended)
current_joints = None
for target in trajectory:
    result = chain.inverse_kinematics(
        target_position=target,
        initial_position=current_joints,
        backend="jax"
    )
    current_joints = result  # Use solution as next initial guess

Configuration

The JAX backend uses scipy.optimize.least_squares with an analytical Jacobian. You can configure it:

chain.inverse_kinematics(
    target_position=target,
    backend="jax",
    # Scipy options
    scipy_method='trf',      # 'trf', 'dogbox', or 'lm'
    scipy_x_scale='jac',     # Auto-scaling (default, recommended)
    use_analytical_jacobian=True,  # Set False for finite differences
)

When to use JAX vs NumPy

Use Case	Recommended Backend
Simple chains (≤4 joints), easy targets	NumPy
Complex chains (≥5 joints)	JAX
Trajectory tracking	JAX
Real-time control	JAX (after warmup)
One-off calculations	NumPy (no compilation overhead)

Note: The first JAX call includes JIT compilation overhead (~1-5s). Subsequent calls are fast.

MuJoCo (MJCF) Support

In addition to URDF, IKPy can import kinematic chains directly from MuJoCo MJCF XML files:

from ikpy.chain import Chain

chain = Chain.from_mjcf_file("ur5e.xml", base_elements=["base"])

The parser supports MuJoCo compiler settings, default classes (including childclass inheritance), and provides helpers to inspect models (ikpy.mjcf.get_body_names, ikpy.mjcf.get_joint_names).

Installation

You have three options:

1. From PyPI (recommended) - simply run:

   pip install ikpy


   If you intend to plot your robot, you can install the plotting dependencies (mainly matplotlib):

   pip install 'ikpy[plot]'


   If you want to use the JAX backend, install the JAX dependencies:

   pip install 'ikpy[jax]'


2. From source - first download and extract the archive, then run:

   pip install ./


   NB: You must have the proper rights to execute this command

Quickstart

Follow this IPython notebook.

Guides and Tutorials

Go to the wiki. It should introduce you to the basic concepts of IKPy.

API Documentation

An extensive documentation of the API can be found here.

Dependencies and compatibility

Starting with IKPy v4, Python 3.10 or above is required. Starting with IKPy v3.1, only Python 3 is supported. For versions before v3.1, the library can work with both versions of Python (2.7 and 3.x).

In terms of dependencies, it requires numpy and scipy.

sympy is highly recommended, for fast hybrid computations, that's why it is installed by default.

matplotlib is optional: it is used to plot your models (in 3D).

Contributing

IKPy is designed to be easily customisable: you can add your own IK methods or robot representations (such as DH-Parameters) using a dedicated developer API.

Contributions are welcome: if you have an awesome patented (but also open-source!) IK method, don't hesitate to propose adding it to the library!

Links

• If performance is your main concern, aversive++ has an inverse kinematics module written in C++, which works the same way IKPy does.

Citation

If you use IKPy as part of a publication, please use the Bibtex below as a citation:

@software{Manceron_IKPy,
author = {Manceron, Pierre},
doi = {10.5281/zenodo.6551105},
license = {Apache-2.0},
title = {{IKPy}},
url = {https://github.com/Phylliade/ikpy}
}
