Irwin

Plotting data in the terminal.

Project homepage: https://github.com/eerimoq/irwin

Installation

$ pip install irwin

Examples

Command line

The plot subcommand

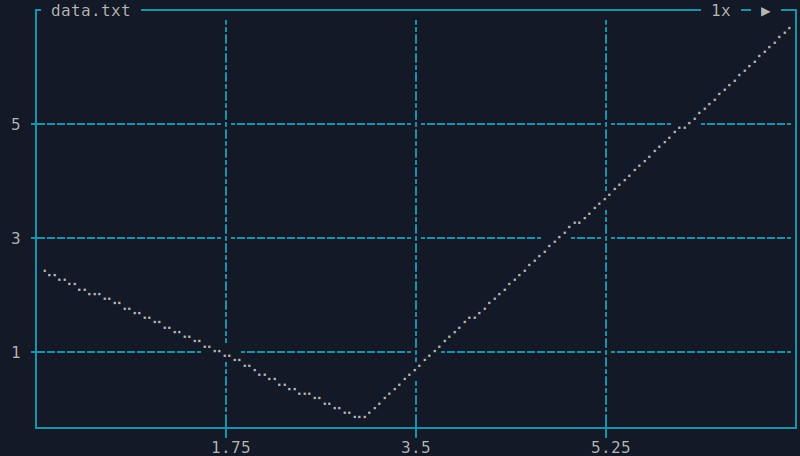

Read all data from given file and plot it. Data points are separated by any whitespace character.

$ echo "0,2 1,1 2,0 3,-1 4,1 5,3 6,5 7,7" > data.txt
$ irwin plot data.txt
https://github.com/eerimoq/irwin/raw/master/docs/plot.gif

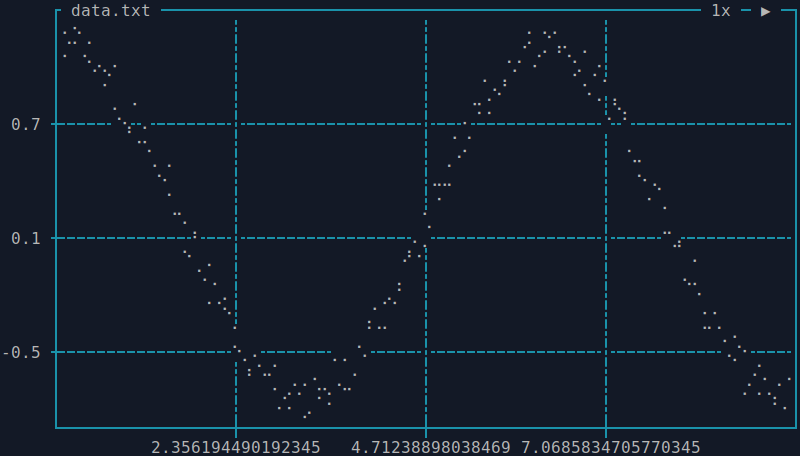

Give -t scatter to create a scatter plot.

$ python3 -c "import math, random, numpy ; \
      x = numpy.linspace(0, 3 * math.pi, 200) ; \
      y = [v + random.random() / 4 for v in numpy.cos(x)] ; \
      print(' '.join([f'{x},{y}' for x, y in zip(x, y)]))" > data.txt
$ irwin plot -t scatter data.txt
https://github.com/eerimoq/irwin/raw/master/docs/scatter.gif

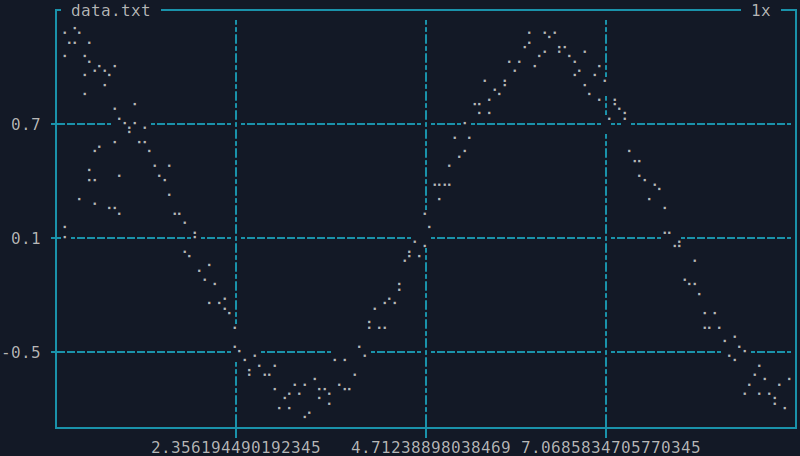

Add more samples by running python3 -c "import random ; print(f'{random.random()},{random.random()}') periodically.

$ irwin plot -t scatter \
      -c "python3 -c \"import random ; print(f'{random.random()},{random.random()}')\"" \
      data.txt
https://github.com/eerimoq/irwin/raw/master/docs/scatter-command.gif
The watch subcommand

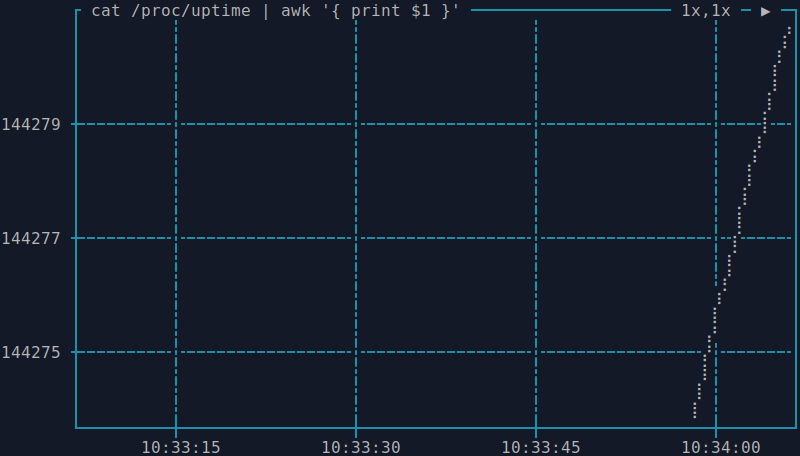

Run cat /proc/uptime | awk '{ print \$1 }' periodically any plot its output.

$ irwin watch "cat /proc/uptime | awk '{ print \$1 }'"
https://github.com/eerimoq/irwin/raw/master/docs/uptime.gif

This is how to plot the CPU load on a machine with 4 CPUs.

$ irwin watch -a delta -y 0 -Y 100 -s -0.25 -o 100 \
      "head -1 /proc/stat | awk '{ print \$5 }'"
https://github.com/eerimoq/irwin/raw/master/docs/cpu.gif

Scripting

Using a canvas

Draw on the canvas and render it. Print the rendered canvas.

import irwin

canvas = irwin.Canvas(width=40,
                      height=20,
                      x_min=0,
                      x_max=10,
                      y_min=0,
                      y_max=10)

# Draw the canvas edges.
canvas.draw_line(0, 0, 0, 10)
canvas.draw_line(0, 10, 10, 10)
canvas.draw_line(10, 10, 10, 0)
canvas.draw_line(10, 0, 0, 0)

# Draw a cross.
canvas.draw_line(0, 0, 10, 10)
canvas.draw_line(0, 10, 10, 0)

# Draw four points.
canvas.draw_point(5, 2.5)
canvas.draw_point(5, 7.5)
canvas.draw_point(2.5, 5)
canvas.draw_point(7.5, 5)

print(canvas.render())

The output:

⡟⢍⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⠉⡩⢻
⡇⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⢸
⡇⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠈⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠀⠈⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠑⢄⠀⠀⠀⠀⠀⠀⠀⠈⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠈⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⠀⠀⢸
⡇⠀⠀⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⠀⠀⢸
⡇⠀⡠⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠑⢄⠀⢸
⣧⣊⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣀⣑⣼
Line plot

Not yet implemented.

import math
import numpy
import irwin

x = numpy.linspace(0, 2 * math.pi)
y = numpy.sin(x)

print(irwin.plot(x, y))
Scatter plot

Not yet implemented.

import math
import random
import numpy
import irwin

x = numpy.linspace(0, 2 * math.pi)
y = [v + random.random() / 4 for v in numpy.cos(x)]

print(irwin.scatter(x, y))
