k230-flash 1.2.0

K230 flash tool for command-line usage and GUI

K230 Flash Tool (Python)

English | 简体中文

This is a cross-platform Kendryte K230 chip firmware flashing tool written in Python. It provides command-line tools (CLI), graphical user interface (GUI), and programmable Python API for flashing firmware to K230 devices via USB.

This project aims to provide K230 chip users with a feature-rich, high-performance, cross-platform, and easily extensible firmware flashing tool.

---

✨ Features

• Device Discovery: List all currently connected K230 USB devices and their paths.
• Multiple Media Types: Support flashing to different storage media like EMMC, SDCARD, SPI_NAND, SPI_NOR, and automatically select corresponding loaders.
• Flexible Flashing Methods:
  • Support flashing complete .kdimg firmware packages.
  • Support .kdimg address command-line override.
  • Support flashing multiple independent .img files to specified memory addresses.
  • Support automatic extraction and flashing of compressed image files (gz, tgz, zip).
• Progress and Speed Display: Provide real-time progress bars displayed during flashing.
• Cross-platform: Based on Python and pyusb, runs on Windows, Linux, macOS.
• Multiple Usage Methods:
  • Command-line Tool: Provides simple and easy-to-use command-line interface, suitable for terminal users and automation scripts.
  • Python Library: Can be imported as a third-party library into your own Python applications to implement customized flashing logic.
  • GUI Tool: Integrated K230_flash_GUI tool with source code for user reference and customization.

---

🔌 Driver Setup

Before using k230-flash, please ensure that the K230 device is in flashing mode and the operating system has properly installed USB drivers.

How to put K230 device into flashing mode?

First, hold down the boot button on the K230 device, then insert the USB cable to connect the K230 device to the computer. For Windows, you will see K230 USB Boot Device displayed under Universal Serial Bus devices in Device Manager, which indicates that K230 is in flashing mode and ready for subsequent operations.

Windows

When using for the first time, you may need to install WinUSB driver for the K230 device. It's recommended to use the Zadig tool:

1. Download and run Zadig (no installation required).
2. Check Options → List All Devices in the menu.
3. Select K230 USB Boot Device from the dropdown list (or shown as Unknown Device, Vendor ID: 29f1, Product ID: 0230).
4. Select WinUSB driver on the right side.
5. Click Install Driver and wait for completion.

After completion, Windows will be able to recognize the device, and the k230-flash tool can be used normally.

Linux (Ubuntu / Debian)

Linux has built-in usbfs/libusb drivers by default, usually no additional installation is required. But you need to configure udev rules for non-root users, otherwise you may need to use sudo to execute commands.

1. Create rule file /etc/udev/rules.d/99-k230.rules:

SUBSYSTEM=="usb", ATTRS{idVendor}=="29f1", ATTRS{idProduct}=="0230", MODE="0666"

2. Apply rules:

sudo udevadm control --reload-rules
sudo udevadm trigger

3. Unplug and reinsert the K230 device.

After completion, regular users can run k230-flash directly without sudo.

---

macOS

macOS comes with libusb drivers built-in, usually no additional operations are required. If permission issues occur, try using sudo to run, or ensure the latest libusb is installed via brew:

brew install libusb

---

🚀 Quick Start

1. Install Tool

Install from PyPI:

pip install k230-flash

2. List Devices

Ensure the K230 device is connected to the computer via USB, then run the following command to check if the device is properly recognized:

k230-flash --list-devices

If the device is connected, you will see output similar to the following:

[
    {
        "bus": 1,
        "address": 5,
        "port_path": "1-5.1",
        "vid": 10737,
        "pid": 560
    }
]

---

📖 Usage

The tool mainly supports two flashing modes.

Mode 1: Flash Complete .kdimg File Package

This is the simplest mode. Just pass the .kdimg file as a parameter.

k230-flash -m SDCARD /path/to/your/firmware.kdimg

Mode 2: Flash Independent .img Files

You can specify a series of [address, file path] pairs to flash different .img files to different memory locations.

# Format: k230-flash [address1] [file1] [address2] [file2] ...
k230-flash -m SDCARD 0x000000 uboot.img 0x400000 rtt.img

Advanced Options

• Specify Device: If multiple devices are connected, use -d or --device-path to specify the device path to operate on.

  k230-flash -d "1-5" firmware.kdimg


• Specify Storage Media: Use -m or --media-type to specify the target media, and the tool will select the correct loader accordingly. Default is EMMC.

  k230-flash --media-type SPI_NOR firmware.kdimg


• Custom Loader: Use -lf and -la to specify your own loader file and load address.

  k230-flash --loader-file my_loader.bin --loader-address 0x80360000 firmware.kdimg


• Auto Reboot: Use --auto-reboot to automatically restart the device after flashing is complete.

---

📦 Using as a Library

You can easily integrate the functionality of this tool into your own Python scripts.

import sys
from loguru import logger
from k230_flash import flash_kdimg, flash_addr_file_pairs, list_devices

# Configure logging to see detailed output
logger.remove()
logger.add(sys.stderr, level="INFO")

def main():
    try:
        # List devices
        print("Connected devices:")
        print(list_devices())

        # Flash .kdimg file
        logger.info("Flashing kdimg file...")
        flash_kdimg(
            kdimg_file="/path/to/your/firmware.kdimg",
            media_type="EMMC",
            auto_reboot=True
        )
        logger.info("kdimg flash completed.")

        # Flash independent .img files
        logger.info("Flashing individual image files...")
        image_pairs = [
            (0x000000, "/path/to/uboot.img"),
            (0x400000, "/path/to/rtt.img")
        ]
        flash_addr_file_pairs(
            addr_filename_pairs=image_pairs,
            media_type="SDCARD"
        )
        logger.info("Image files flash completed.")

    except Exception as e:
        logger.error(f"An error occurred: {e}")

if __name__ == "__main__":
    main()

---

📦 GUI Tool

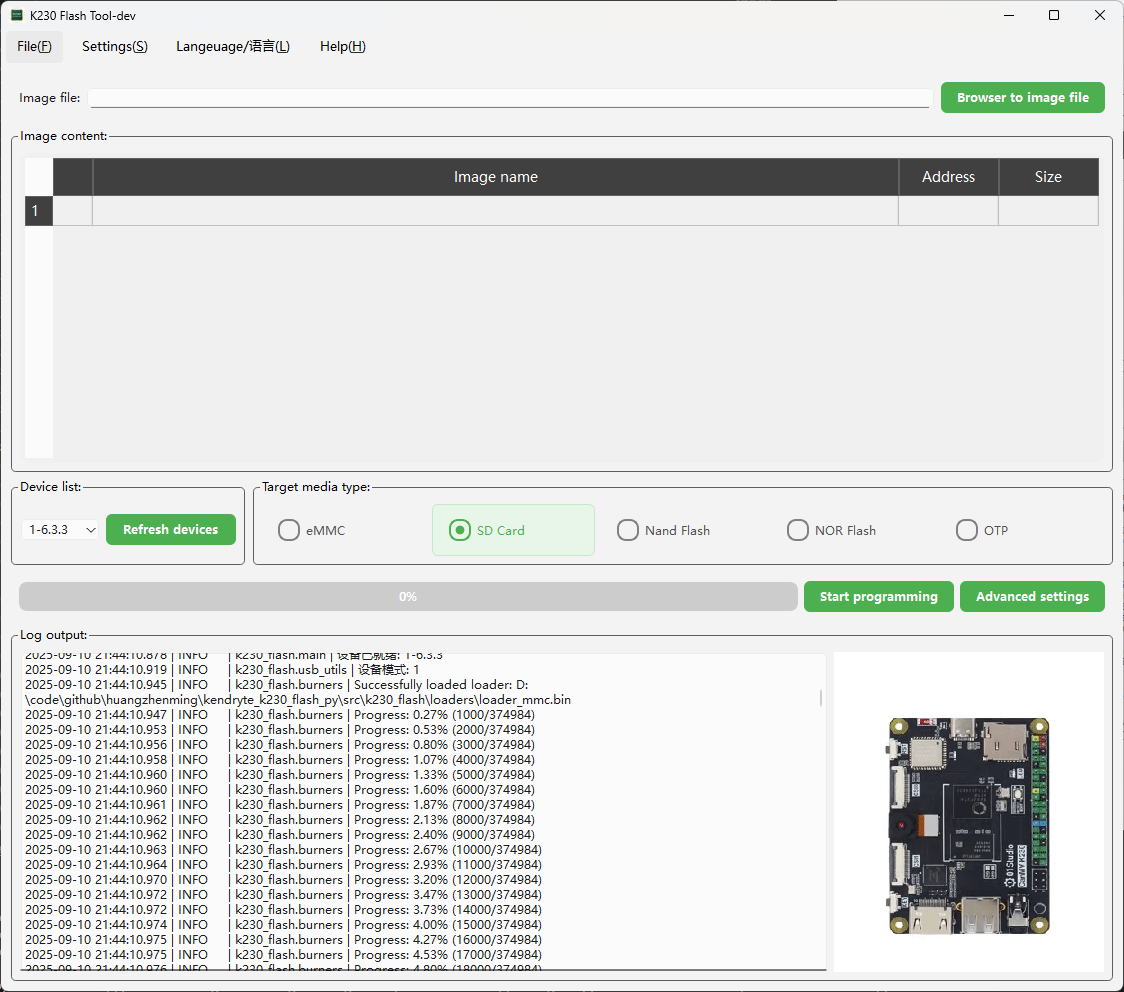

In addition to the command-line tool and Python library, this project also provides a feature-complete graphical user interface tool K230 Flash GUI, allowing users to perform firmware flashing operations through an intuitive interface.

📥 Download and Installation

You can download the latest version of pre-compiled executable files from the GitHub Releases page. After downloading, run directly without installing Python environment.

For detailed usage instructions of the GUI tool, please refer to K230 Flash GUI User Manual.

---

🔧 Development

Contributions to this project are welcome!

Project Structure

.
├── src/                          # Source code root directory
│   ├── k230_flash/              # Core flashing library
│   └── gui/                     # Graphical interface tool

Contributing

1. Fork this repository.
2. Create a new feature branch (git checkout -b feature/AmazingFeature).
3. Commit your changes (git commit -m 'Add some AmazingFeature').
4. Push the branch to your Fork (git push origin feature/AmazingFeature).
5. Create a Pull Request.

It's recommended to use black or ruff format to format your code.

---

📄 License

This project is licensed under the MIT License. See the LICENSE file for details.
