kqueen 1.0

Kubernetes cluster orchestrator

Overview

More information about KQueen Architecture and use cases is described in RATIONALE file.

Requirements

• Python v3.6 and higher.

• Pip v3 and higher.

• Docker stable release (v17.03 and higher is preferable).

• Docker-compose stable release (v1.16.0 and higher is preferable).

Demo environment

• Make sure you can reach Jenkins server defined in JENKINS_API_URL variable in file kqueen/config/prod.py.

• Run these commands to run Kqueen API and UI in containers.

  docker-compose -f docker-compose.yml -f docker-compose.demo.yml up

  or with mounted etcd data directory:

  docker-compose -f docker-compose.etcd-volume.yml -f docker-compose.demo.yml up

• You can login using user admin and password default. Default username and password can be changed in docker-compose.demo.yml file before first start of API.

• Navigate to UI

  • http://127.0.0.1:5080/

  • http://127.0.0.1:5000/api/docs/

Development

• Install dependencies

  # Debian/Ubuntu
  sudo apt-get install libsasl2-dev python-dev libldap2-dev libssl-dev

  # RedHat/CentOS:
  sudo yum install python-devel openldap-devel

• Prepare python virtual environment

  python -m ensurepip --default-pip
  pip install --user pipenv
  pipenv --python 3.6
  pipenv install --dev

  pipenv shell

• Start docker container with etcd storage

  docker-compose up -d

• Initialize kqueen db: add admin user with default password

  ./bootstrap_admin.py DemoOrg demoorg admin default

• You can start KQueen API service directly

  kqueen &
  chrome --new-tab http://127.0.0.1:5000/api/docs/

• Prepare kubernetes config file

Kubernetes configuration file that describes existing cluster can be used in Kqueen. Rename it with kubernetes_remote and place to the root of the project. For test purposes this file can be empty, but should be added manually.

How-to’s

• Clean etcd storage after previous runs

  etcdctl rm --recursive /kqueen

• Add admin user, organization, mock clusters and provisioners to etcd storage at once, execute the following

  ./devenv.py

• To add a single admin user with default password within associated DemoOrg organization in provided demoorg namespace, execute the following

  ./bootstrap_admin.py DemoOrg demoorg admin default

• Test access token. curl, jq should be installed in your system

  TOKEN=$(curl -s -H "Content-Type: application/json" --data '{"username":"admin","password":"default"}' -X POST localhost:5000/api/v1/auth | jq -r '.access_token')
  echo $TOKEN
  curl -H "Authorization: Bearer $TOKEN" localhost:5000/api/v1/clusters

• Set up flask shell for manual testing and debugging

  export FLASK_APP=kqueen.server
  export prometheus_multiproc_dir=$(mktemp -d)
  flask shell

• Update Docker image with code changes

There are two ways to test development changes. First is automatic: create a separate branch and push PR, then TravisCI build image and push it on Docker Hub automatically. Second one is just rebuild kqueen api-image locally:

docker build -t kqueen/api:your_tag .

Configuration

We load configuration from file config/dev.py by default and this can be configured by KQUEEN_CONFIG_FILE environment variable. Any environment variable matching name KQUEEN_* will be loaded and saved to configuration.

Documentation

Full documentation can be found at kqueen.readthedocs.io.

API reference is defined at api.yml and Swagger UI is available at <kqueen_api_url>/api/docs

DEMOs

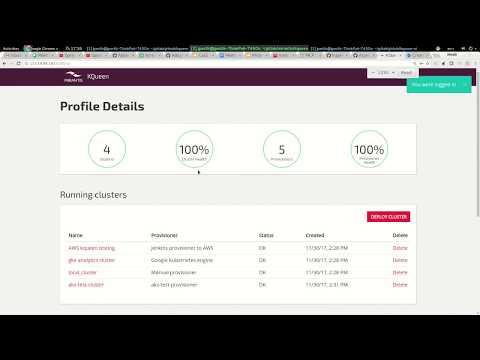

Generic KQueen Overview

AKS (Azure) in KQueen

Network policy management in KQueen

The following video provides an overview on how to manage the Calico network policy for a Kubernetes cluster provisioned with Google Kubernetes Engine using KQueen.
