landfall 0.4.1

Easy to use functions to plot geospatial data on maps using staticmaps.

Landfall: Easy to use functions for plotting geographic data on static maps

What is it?

Landfall is a modern, well-tested Python package with easy-to-use functions for plotting geographic data on static maps. Built with type safety, comprehensive testing, and cross-platform compatibility in mind.

✨ Features

• 🗺️ Easy geospatial plotting - Plot points, polygons, lines, and circles on static maps
• 🎨 Smart color generation - Automatic distinct color generation for data visualization
• 📍 GeoJSON support - Plot industry-standard GeoJSON data directly
• 🐼 GeoPandas integration - Optional integration with GeoDataFrames and Shapely geometries
• 🔧 Type-safe - Full type annotations with mypy support
• 🧪 Well-tested - 182+ tests with comprehensive coverage across Python 3.8-3.13
• 🚀 Modern packaging - Built with modern pyproject.toml standards
• 🔄 Cross-platform - Works on Windows, macOS, and Linux
• 📦 Minimal dependencies - Only essential packages required

🆕 What's New in v0.4.0

Major feature expansion with 4 new plotting capabilities:

• 🛣️ Line/Polyline Plotting - Plot routes, paths, and linear features with plot_line() and plot_lines()
• ⭕ Circle/Buffer Plotting - Create coverage areas and buffer zones with plot_circle() and plot_circles()
• 📄 GeoJSON Support - Plot industry-standard GeoJSON data directly with plot_geojson() and plot_geojson_file()
• 🐼 GeoPandas Integration - Optional GeoDataFrame support with plot_geodataframe(), plot_geometry(), and plot_geometries()

Plus enhanced Context class with new methods:

• add_line(), add_lines() - Add lines to existing maps
• add_circle(), add_circles() - Add circles to existing maps

Installation for GeoPandas support:

pip install landfall[geo]

Requirements

• Python 3.8-3.13 (comprehensive version support)
• Pillow >=10.0.0 (image processing)
• py-staticmaps (map rendering)
• distinctipy (color generation)

Installation

From PyPI

pip install landfall

Development Installation

pip install -e .[dev]

With GeoPandas Support

pip install landfall[geo]

This installs the package in editable mode with development dependencies including:

• pytest - Testing framework
• pytest-cov - Coverage reporting
• mypy - Type checking
• flake8 - Linting
• tox - Multi-environment testing

GeoPandas extras include:

• geopandas>=0.14.0 - GeoDataFrame support
• shapely>=2.0.0 - Geometry operations

Quick Start

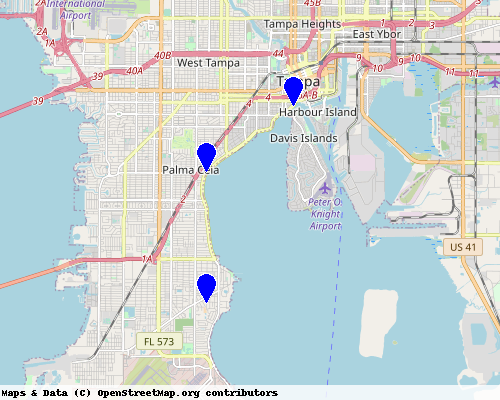

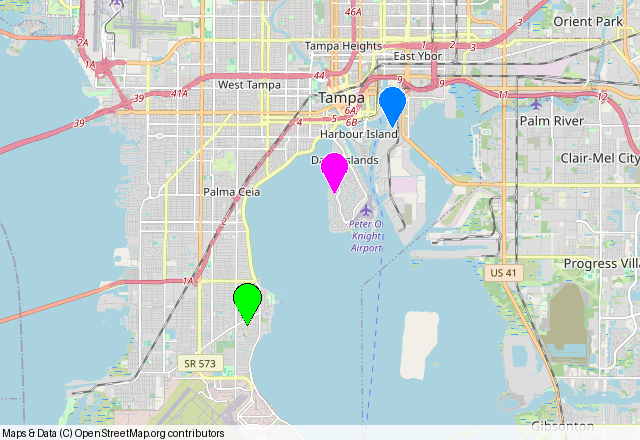

Basic Point Plotting

import landfall

# Plot points on a map
lats = [27.88, 27.92, 27.94]
lons = [-82.49, -82.49, -82.46]

landfall.plot_points(lats, lons)

Advanced Plotting with Colors

import landfall

# Plot points with distinct colors
lats = [27.88, 27.92, 27.94, 27.96]
lons = [-82.49, -82.49, -82.46, -82.44]

# Use distinct colors for each point
landfall.plot_points(lats, lons, colors="distinct")

# Or use custom colors
landfall.plot_points(lats, lons, colors=["red", "blue", "green", "yellow"])

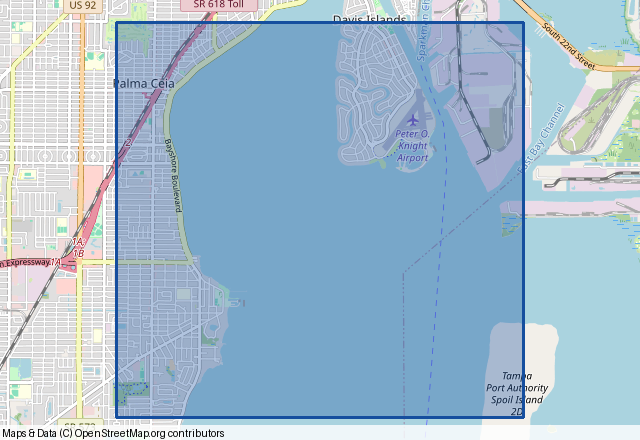

Polygon Plotting

import landfall

# Define polygon coordinates
polygon = [
    (27.88, -82.49),
    (27.92, -82.49),
    (27.94, -82.46),
    (27.88, -82.46)
]

# Plot polygon with fill
landfall.plot_polygon(polygon, fill_color="blue", color="red")

Using the Enhanced Context

import landfall

# Create a context for complex maps
context = landfall.Context()

# Add multiple elements
context.add_points([27.88, 27.92], [-82.49, -82.46], colors="distinct")
context.add_polygon(polygon, fill_color="blue", color="red", width=2)

# Render the map
image = context.render_pillow(800, 600)

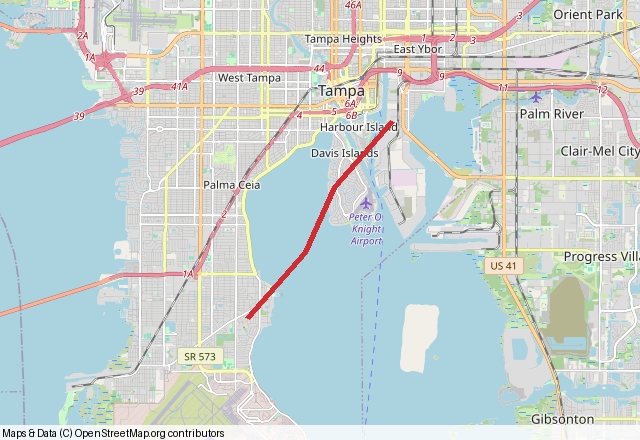

Line Plotting

import landfall

# Plot lines/routes on a map
lines = [
    [(27.88, -82.49), (27.92, -82.46), (27.94, -82.44)],  # Route 1
    [(27.90, -82.50), (27.95, -82.45), (27.98, -82.42)]   # Route 2
]

# Plot multiple lines with distinct colors
landfall.plot_lines(lines, colors="distinct", width=3)

# Plot single line
line = [(27.88, -82.49), (27.92, -82.46), (27.94, -82.44)]
landfall.plot_line(line, color="red", width=2)

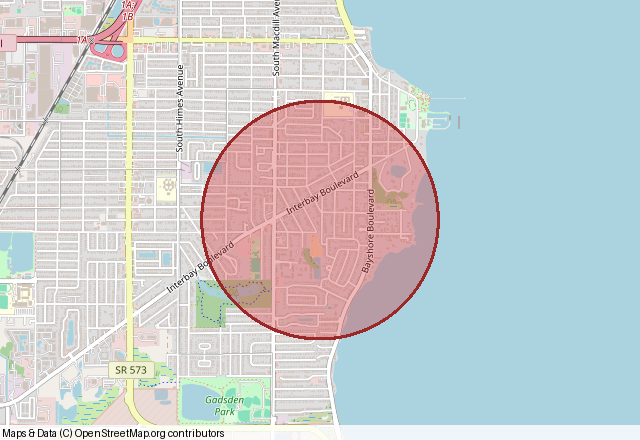

Circle/Buffer Plotting

import landfall

# Plot circles for coverage areas
lats = [27.88, 27.92, 27.94]
lons = [-82.49, -82.46, -82.44]
radii = [1000, 2000, 1500]  # meters

# Plot circles with fill colors
landfall.plot_circles(lats, lons, radii,
                     fill_colors="distinct",
                     radius_unit="meters")

# Plot single circle
landfall.plot_circle(27.88, -82.49, 1000,
                    fill_color="blue",
                    color="red",
                    radius_unit="meters")

GeoJSON Support

import landfall

# Plot GeoJSON data directly
geojson_data = {
    "type": "FeatureCollection",
    "features": [
        {
            "type": "Feature",
            "geometry": {
                "type": "Point",
                "coordinates": [-82.49, 27.88]
            },
            "properties": {
                "name": "Location 1",
                "marker-color": "red"
            }
        }
    ]
}

# Plot GeoJSON from dict
landfall.plot_geojson(geojson_data)

# Plot GeoJSON from file
landfall.plot_geojson_file("data.geojson")

GeoPandas Integration (Optional)

import landfall
import geopandas as gpd
from shapely.geometry import Point

# Create GeoDataFrame
data = {'name': ['A', 'B', 'C'], 'value': [10, 20, 30]}
geometry = [Point(-82.49, 27.88), Point(-82.46, 27.92), Point(-82.44, 27.96)]
gdf = gpd.GeoDataFrame(data, geometry=geometry)

# Plot GeoDataFrame directly
landfall.plot_geodataframe(gdf, color_column="value")

# Plot individual Shapely geometries
point = Point(-82.49, 27.88)
landfall.plot_geometry(point)

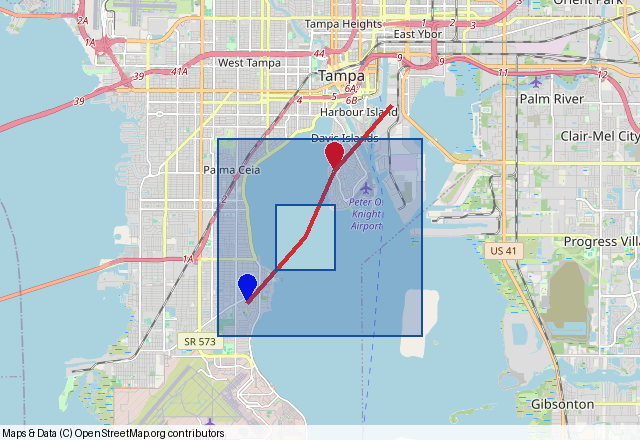

Using the Enhanced Context

import landfall

# Create a context for complex maps
context = landfall.Context()

# Add multiple elements
context.add_points([27.88, 27.92], [-82.49, -82.46], colors="distinct")
context.add_polygon(polygon, fill_color="blue", color="red", width=2)
context.add_lines(lines, colors="random", width=2)
context.add_circles([27.88], [-82.49], [1000], fill_color="yellow")

# Render the map
image = context.render_pillow(800, 600)

API Reference

Core Functions

• plot_points(lats, lons, **kwargs) - Plot points on a map
• plot_polygon(polygon, **kwargs) - Plot a single polygon
• plot_polygons(polygons, **kwargs) - Plot multiple polygons
• plot_line(line, **kwargs) - Plot a single line/polyline
• plot_lines(lines, **kwargs) - Plot multiple lines/polylines
• plot_circle(lat, lon, radius, **kwargs) - Plot a single circle
• plot_circles(lats, lons, radii, **kwargs) - Plot multiple circles
• plot_geojson(geojson_data, **kwargs) - Plot GeoJSON data
• plot_geojson_file(filepath, **kwargs) - Plot GeoJSON from file
• random_color(rng=None) - Generate a random color
• Context() - Enhanced context for complex maps

GeoPandas Functions (Optional)

• plot_geodataframe(gdf, **kwargs) - Plot GeoDataFrame
• plot_geometry(geometry, **kwargs) - Plot Shapely geometry
• plot_geometries(geometries, **kwargs) - Plot multiple geometries

Color Options

• "random" - Generate random colors
• "distinct" - Generate visually distinct colors
• "wheel" - Generate colors from HSV color wheel
• Custom color list: ["red", "blue", "green"]
• RGB tuples: [(255, 0, 0), (0, 255, 0)]

Development

Setup Development Environment

git clone https://github.com/eddiethedean/landfall.git
cd landfall
pip install -e .[dev]

Running Tests

# Run all tests
pytest

# Run with coverage
pytest --cov=landfall

# Run specific test categories
pytest tests/test_colors.py      # Color-related tests
pytest tests/test_plotting.py    # Plotting tests
pytest tests/test_comprehensive.py  # Comprehensive tests

# Run tests excluding slow tests
pytest -m "not slow"

# Run tests across all Python versions
tox

Code Quality

# Linting
flake8 src tests

# Type checking
mypy src

# Formatting
ruff format src tests

# All quality checks
tox -e flake8,mypy

Multi-Version Testing

# Test across all supported Python versions (3.8-3.13)
tox

# Test specific Python versions
tox -e py38,py311,py313

Dependencies

• py-staticmaps - Static map image generation
• distinctipy - Visually distinct color generation
• Pillow - Python Imaging Library

Changelog

v0.3.6 (Latest)

• ✅ Full modernization - Migrated to modern pyproject.toml packaging
• ✅ Enhanced testing - 105+ tests with 80% coverage across Python 3.8-3.13
• ✅ Type safety - Complete type annotations with mypy support
• ✅ Bug fixes - Fixed critical color scaling bug in distinctipy integration
• ✅ Cross-platform - Verified compatibility across Windows, macOS, and Linux
• ✅ Modern CI/CD - Updated GitHub Actions with pip caching and separate linting
• ✅ Compatibility patches - Automatic fixes for Pillow compatibility issues

Previous Versions

• v0.3.5 - Initial modernization and bug fixes
• v0.3.4 and earlier - Legacy versions

Contributing

We welcome contributions! Please see our development guidelines:

1. Fork the repository
2. Create a feature branch: git checkout -b feature-name
3. Make your changes with tests
4. Run quality checks: tox -e flake8,mypy
5. Run tests: tox
6. Submit a pull request

License

This project is licensed under the MIT License - see the LICENSE file for details.

Support

• 📖 Documentation: GitHub README
• 🐛 Issues: GitHub Issues
• 💬 Discussions: GitHub Discussions

---

Made with ❤️ for the geospatial Python community
