lcheapo

Viewing and modifying LCHEAPO OBS data

Overview

Command-line programs

Type {command} -h to get a list of parameters and options

Non-modifying programs

View the files and/or their data

Program description
lcdump dump raw information from LCHEAPO files
lcinfo return basic information about an LCHEAPO file
lcplot plot an LCHEAPO file
lctest plot LCHEAPO tests
lc_examples create a directory with examples of lcplot and lctest

Modifying programs

Change the files and/or their data. Use the SDPCHAIN protocols for FAIR- compliant data:

  • Create/append to a process-steps.json file
  • Read from input directory (-i) and output to (-o)
Program description
lccut extract section of an LCHEAPO file
lcfix fix common bugs in an LCHEAPO file
lcheader create an LCHEAPO header + directory
sdpcat concatenate data files
sdpstep run a command line tool and save info to process-steps file
lc2ms_weak converts LCHEAPO file to basic miniSEED files
lc2SDS_weak converts LCHEAPO file to SeisComp Data Structure, with basic drift correction

lctest control files

lctest uses YAML-format control files to indicate what kind of plots to output. There are 4 main sections in each file:

  • input: input data parameters

    • start_time: start time to read (0 means from the beginning of each file)

    • end_time: end time to read (0 means to the end of each file)

    • datafiles: a list of the LCHEAPO files to read

      • name: the filename

      • obs_type: the obs type (used for spectral instrument responses, possible values are given in the help for lcplot

      • station: station name to use for this file in the plots

  • output: output plot file parameters

    • show: show the plots? If False, just save them to files
    • filebase: each output file will start with this
  • plots: the plots to make

    • time_series: a list of standard waveform plots

      • description: text to put in plot title

      • select: parameters to use to select a subset of all the waveforms (see obspy.core.stream.Stream.select())

    • start_time and end_time: allow you to plot a subwindow of the read data. Set = null to plot all read data

    • particle_motion: list of particle motion plot types

    • spectra: list of spectra plots

      • description: as in time_series
      • select: as in time_series
      • start_time and end_time: as in time_series
    • stack: plot waveforms from different times on the same channel together. This useful for single stations where you did the same thing (tap, lift, etc) several times, to be sure that the input and response were consistent.

      • description: as in time_series

      • orientation_codes: list of orientation codes to plot (one plot will be made for each orientation code (the last letter of the channel name))

      • times: list of times to plot at (each one "yyyy-mm-ddTHH:MM:SS")

      • offset_before.s: start_time will be this many seconds before each time

      • offset_after.s: end_time will be this many seconds after each time

    • particle_motion: list of particle motion plots to make. Used to confirm the polarity/orientation of the channels. Each plot will contain time series subplots for each channel and a particle motion plot combining the two. Generally, the time span of the time-series plot should envelope that of the particle motion plot. A bit silly that it uses times, like stacks does, since it doesn't plot all of the times together. I think I did it because we generally look at particle motions for the same taps that we do stacks on.

      • description: as in time_series

      • orientation_code_x: orientation code to plot on the x axis

      • orientation_code_y: orientation code to plot on the y axis

      • times: list of times to plot at (each one "yyyy-mm-ddTHH:MM:SS")

      • offset_before.s: start_time for particle motion plot will be this many seconds before each time

      • offset_after.s: end_time will for particle motion plot be this many seconds after each time

      • offset_before_ts.s: as above, but for the time series plot

      • offset_after_ts.s: ditto

  • plot_globals: Default values for each type of plot. Use the same names and values as for plots

Example plots

Examples

1: Analysing one station

---
input:
    start_time: "2022-02-22T10:00:01"
    end_time: "2022-02-25T15:25:25"
    datafiles:
        -   name: "TestAcq-BB02-ProgV1-3.raw.lch"
            obs_type: 'BBOBS1'
            station: 'TEST'
    description: "Tests on BBOBS"
output:
    show: True
    filebase: 'BB02-V1_3-tests'
plot_globals:
    spectra:
        window_length.s: 1024
plots:
    time_series:

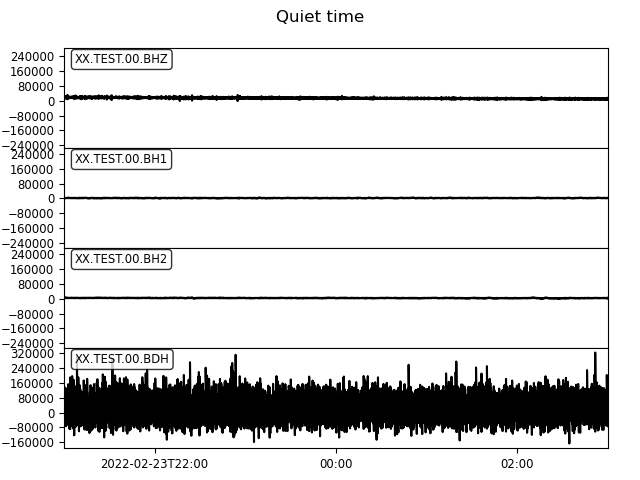

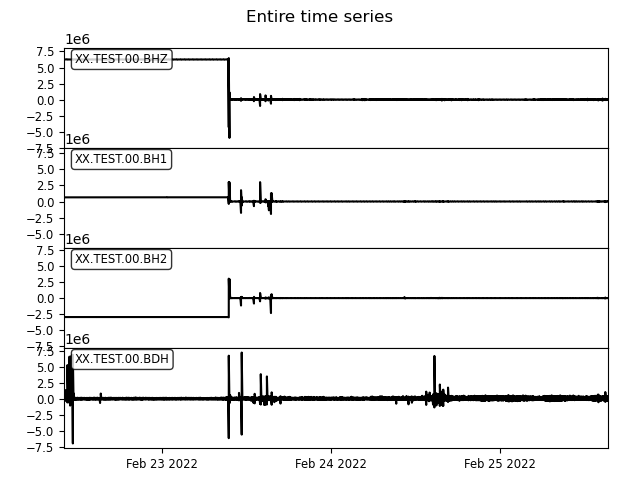

        -   description: "Entire time series"
            select: {station: "*"}
            start_time: "2022-02-22T10:00:01"
            end_time: "2022-02-25T15:25:25"
        -   description: "Quiet time"
            select: {station: "*"}
            start_time: "2022-02-23T21:00:00"
            end_time: "2022-02-24T03:00:00"
        -   description: "Stack time"
            select: {station: "*"}
            start_time: "2022-02-25T13:54:00"
            end_time: "2022-02-25T14:03:00"

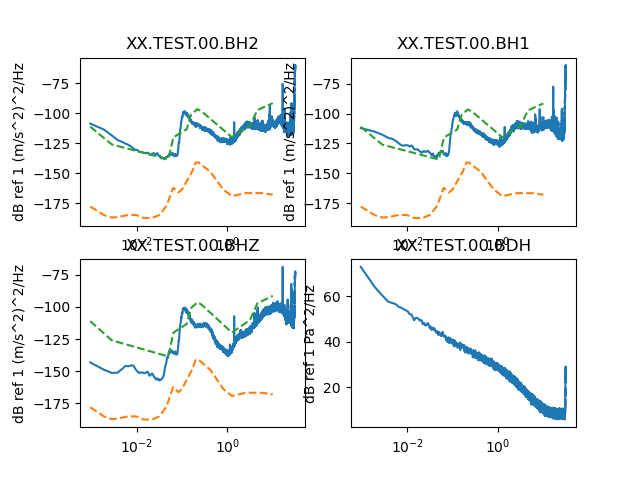

    spectra:
        -   description: "Quiet time"
            select: {station: "*"}
            start_time: "2022-02-23T21:00:00"
            end_time: "2022-02-24T03:00:00"
    stack:

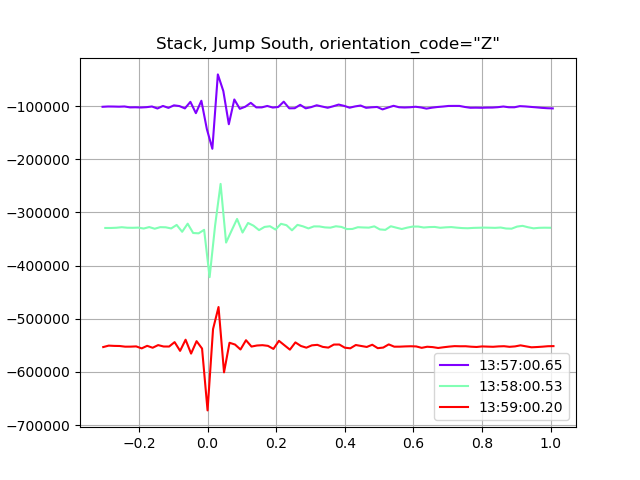

        -   description: "Stack, Jump South"
            orientation_codes: ["Z"]
            offset_before.s: 0.3
            offset_after.s: 1
            times:
            -    "2022-02-25T13:57:00.66"
            -    "2022-02-25T13:58:00.53"
            -    "2022-02-25T13:59:00.2"
        -   description: "Stack, Jump Est"
            orientation_codes: ["Z"]
            offset_before.s: 0.3
            offset_after.s: 1
            times:
            -    "2022-02-25T14:00:00.4"
            -    "2022-02-25T14:01:00.15"
            -    "2022-02-25T14:02:00.18"
    particle_motion:

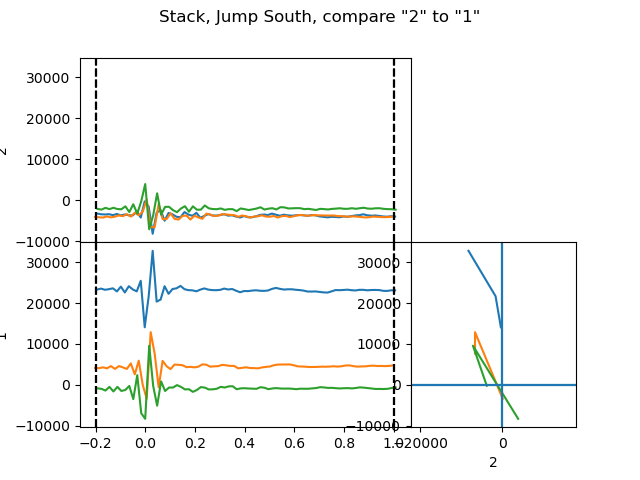

        -   description: "Stack, Jump South"
            orientation_code_x: "2"
            orientation_code_y: "1"
            offset_before.s: 0.00
            offset_after.s: 0.03
            offset_before_ts.s: 0.2
            offset_after_ts.s: 1
            times:
            -    "2022-02-25T13:57:00.66"
            -    "2022-02-25T13:58:00.53"
            -    "2022-02-25T13:59:00.2"
        -   description: "Stack, Jump Est"
            orientation_code_x: "2"
            orientation_code_y: "1"
            offset_before.s: 0.1
            offset_after.s: 0.2
            offset_before_ts.s: 0.3
            offset_after_ts.s: 1
            times:
            -    "2022-02-25T14:00:00.4"
            -    "2022-02-25T14:01:00.15"
            -    "2022-02-25T14:02:00.18"
Output plots
time_series

spectra

stack

particle_motion

2: Comparing several stations

---
input:
    start_time: null
    end_time: null
    datafiles:
        -
            name: "20191107T14_SPOBS09_F02.raw.lch"
            obs_type: "SPOBS2"
            station: "09F2"
        -
            name: "20191107T14_SPOBS09_F02.raw.lch"
            obs_type: "SPOBS2"
            station: "09c1"
        -
            name: "20191107T14_SPOBS09_F02.raw.lch"
            obs_type: "SPOBS2"
            station: "09c2"
    description: "Simulation of multi-instrument test"
output:
    show: True
    filebase: "MAYOBS6"
plot_globals:
    stack:
        offset_before.s: 0.5
        offset_after.s:  1.5
        plot_span: False
    particle_motion:
        offset_before.s: 0.00
        offset_after.s: 0.03
        offset_before_ts.s: 0.1
        offset_after_ts.s: 0.2
    spectra:
        window_length.s: 100
plots:
    time_series:
        -
            description: "Entire time series"
            select: {station: "*"}
            start_time: null
            end_time: null
        -
            description: "Quiet period"
            select: {channel: "*3"}
            start_time: null
            end_time: "2019-11-07T13:57"
        -
            description: "Rubber hammer taps"
            select: {station: "*"}
            start_time: "2019-11-07T14:08"
            end_time: "2019-11-07T14:11:10"
    spectra:
        -
            description: "Entire time series"
            select: {component: "3"}
            start_time: null
            end_time: null
        -
            description: "Quiet period"
            select: {channel: "*3"}
            start_time: null
            end_time: "2019-11-07T13:57"
