ledfx-dev 0.9.0

A network based light effect controller

LedFx website: https://ledfx.app/

What is LedFx?

What LedFx offers is the ability to take audio input, and instantanously processes the audio into realtime lightshow to multiple LED strips/matrix. No need to spend hours on end to program one song to program your LEDs, as LedFx will do this all for you!

LedFx real-time LED strip music visualization effect controller using is a network based devices (ESP8266/ESP32/Raspberry Pi 4) with support for advanced real-time audio effects! LedFx can control multiple devices and works great with cheap ESP8266/ESP32 nodes allowing for cost effective syncronised effects across your entire house!

Demos

We are actively adding and perfecting the effects, but here is a quick demo of LedFx running three different effects synced across three different ESP8266 devices:

📑 Quick start guide and documentation📖

Windows users can use the installer from the LedFx website: https://ledfx.app/download/

Mac and Linux are also supported, though currently do not have installers. For detailed installation instructions, see the installation documentation.

😍 Show me how to make one!

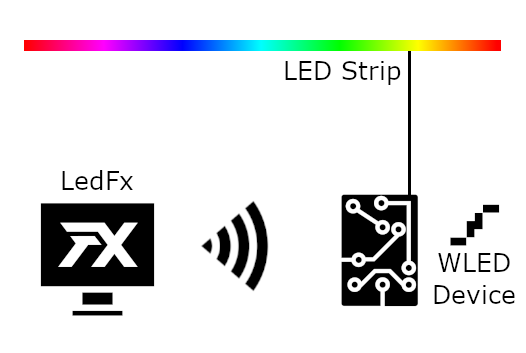

The below image describes a basic setup - LedFx running on PC, communicating with a WLED Device controlling an LED strip.

Component	Example
Computer running LedFx	Windows 10, LedFx.exe
Networked device controlling LED Strip	ESP8266 NODEMCU v3 running WLED
Addressable LED strip	DC5V WS2812B 5 meters 60LED/m IP67
Power supply for LED Strip and ESP	5V 10 amps LED Power Supply
Something to connect the wires together!	Soldering iron/solder

1. Build your networked LED Strip.

   • For most, this is the difficult step. Dont worry! There’s guides here and online, and plenty of people able to help on WLED and LedFx Discord.

   • Follow the WLED guide to connect the LED strip and ESP together: https://github.com/Aircoookie/WLED/wiki.

   • Flash WLED to the ESP device: https://github.com/Aircoookie/WLED/wiki/Install-WLED-binary

   • Ensure all WLED devices are powered on, and connected to your Wi-Fi 5Ghz.

   • Test you can access the WLED web interface from your PC. If so, then you’re good to go!

2. Install LedFx.

   • After you have WLED installed on your ESP device, download: LedFx.exe and install LedFx.

   • For Mac and Linux, see the installation documentation.

3. Direct computer audio output to LedFx.

   • Follow guide, How to: Enable Stereo Mix in Windows 10.

   • Alternatively use Voicemeeter. Voicemeeter tutorial.

   • Mac users can use Loopback

   • Play some music in the background.

4. Start LedFx.

   • Your WLED devices should appear in LedFx, automagically configured and ready to go! 🎆🔥

   • If not, on the left hand side, click on Device Management -> Find WLED devices button, or Add Device to add them manually.

   • If they’re still not showing up, make sure they’re powered on and properly connected to your Wifi.

5. Start using effects!

   • Click on the device, select an effect eg scroll(Reactive), and press Set effect button.

   • Your lights should now be reacting realtime to your music! Enjoy the show 🌈

🧑‍💻 Join the LedFx Community

Join the Discord server to discuss everything about LedFx!

Contributing

Pull requests are welcome. Once tested, contact LedFx developer community on Discord to discuss the next step.

Credits: Contributors-&-About

License

MIT
