lenstest 0.9.0

Routines for analysis of non-interfometric wavefront testing.

by Scott Prahl

---

lenstest is a collection of routines for non-interferometric testing of lenses and mirrors. Developed by Scott Prahl, this package contains code for the Foucault Knife Edge Test and the Ronchi Ruling Test. With lenstest, users can test the quality of their lenses and mirrors without the need for interferometric equipment.

Detailed documentation is available at <https://lenstest.readthedocs.io>.

Installation

• Install with pip:

  pip install lenstest

• or with conda:

  conda install -c conda-forge lenstest

or use immediately by clicking the Google Colaboratory button below

Foucault Example

import numpy as np
import matplotlib.pyplot as plt
import lenstest

D = 200
RoC = 400
z_offset = 10
x_offset = -0.5
conic = 0
phi = np.radians(0)

foucault.plot_lens_layout(D, RoC, x_offset, z_offset)
plt.show()

foucault.plot_knife_and_screen(D, RoC, x_offset, z_offset, phi=phi)
plt.show()

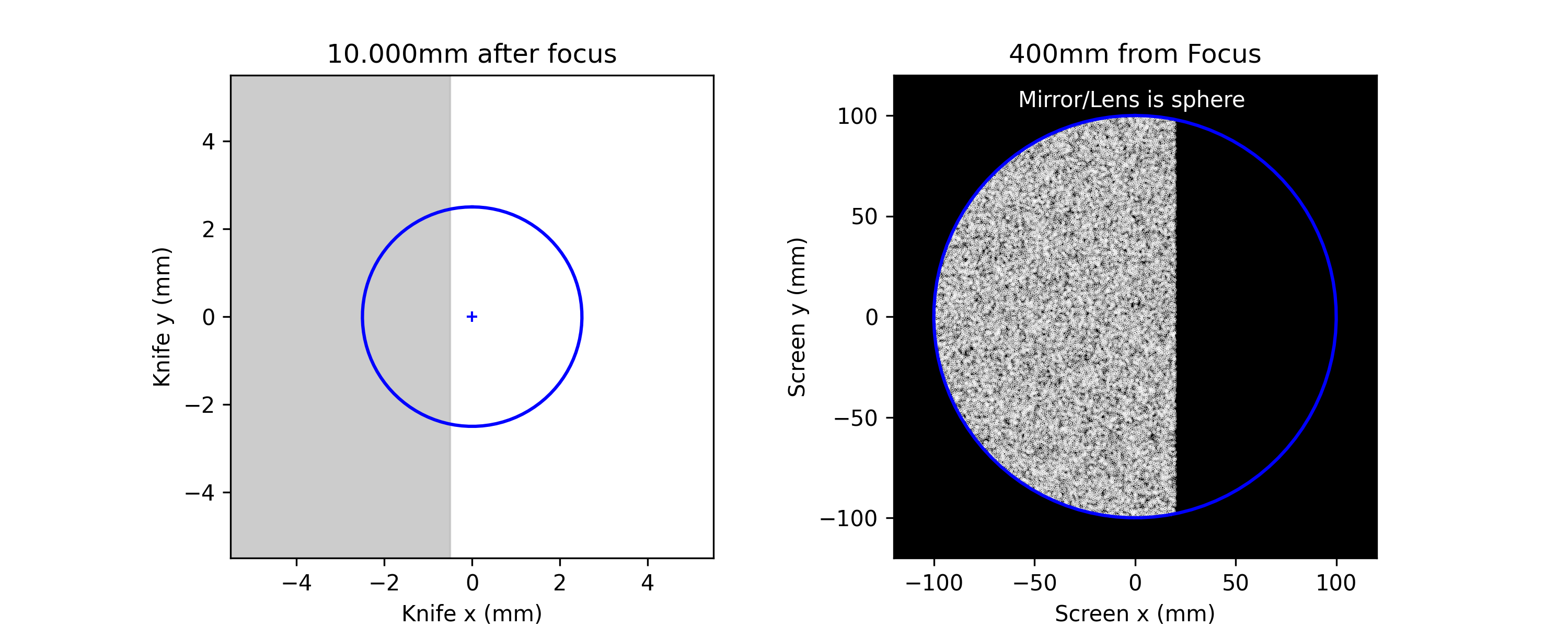

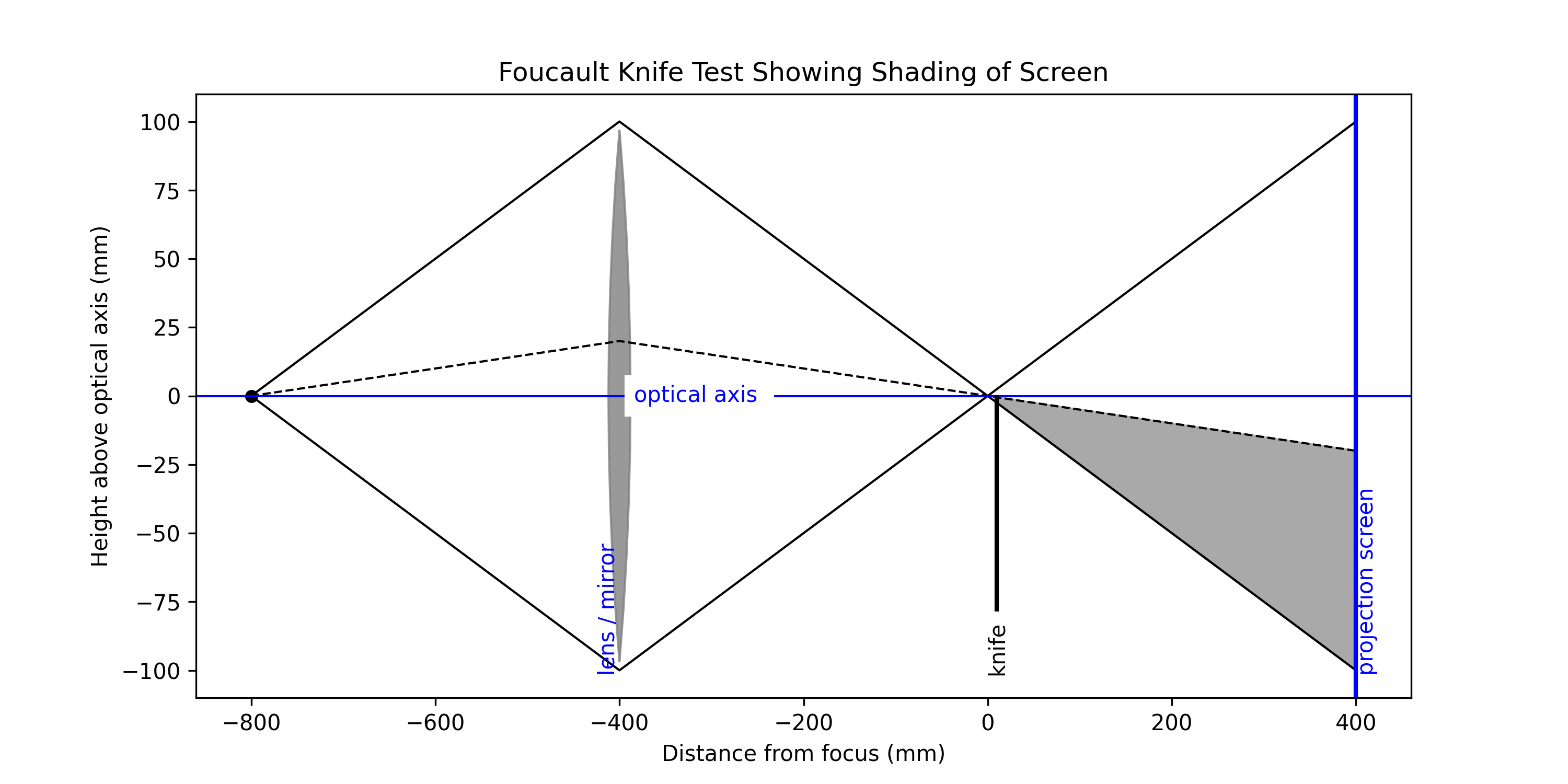

Produces

Ronchi Example

10 meter parabolic mirror comparison.

import numpy as np
import matplotlib.pyplot as plt
import lenstest

D = 10000  # 10 meter mirror
F = 5
conic = -1
lp_per_mm = 0.133  # grating frequency lp/mm

RoC =  F * D * 2

print("    Mirror Diameter = %.0f mm" % D)
print("                 F# = %.1f" % F)
print("Radius of Curvature = %.0f mm" % RoC)
print("       Focal Length = %.0f mm" % (RoC/2))
print("   Ronchi Frequency = %.3f lp/mm" % lp_per_mm)

plt.subplots(2,3,figsize=(13,8))

for i, z_offset in enumerate([-63,35,133,231,329,429]):
    plt.subplot(2,3,i+1)
    x,y = lenstest.ronchi.gram(D, RoC, lp_per_mm, z_offset, conic=conic)
    plt.plot(x,y,'o', markersize=0.1, color='blue')
    lenstest.lenstest.draw_circle(D/2)
    plt.title("%.0fmm from focus"%z_offset)
    plt.gca().set_aspect("equal")
    if i in [1,2,4,5]:
        plt.yticks([])
    if i in [0,1,2]:
        plt.xticks([])
plt.show()

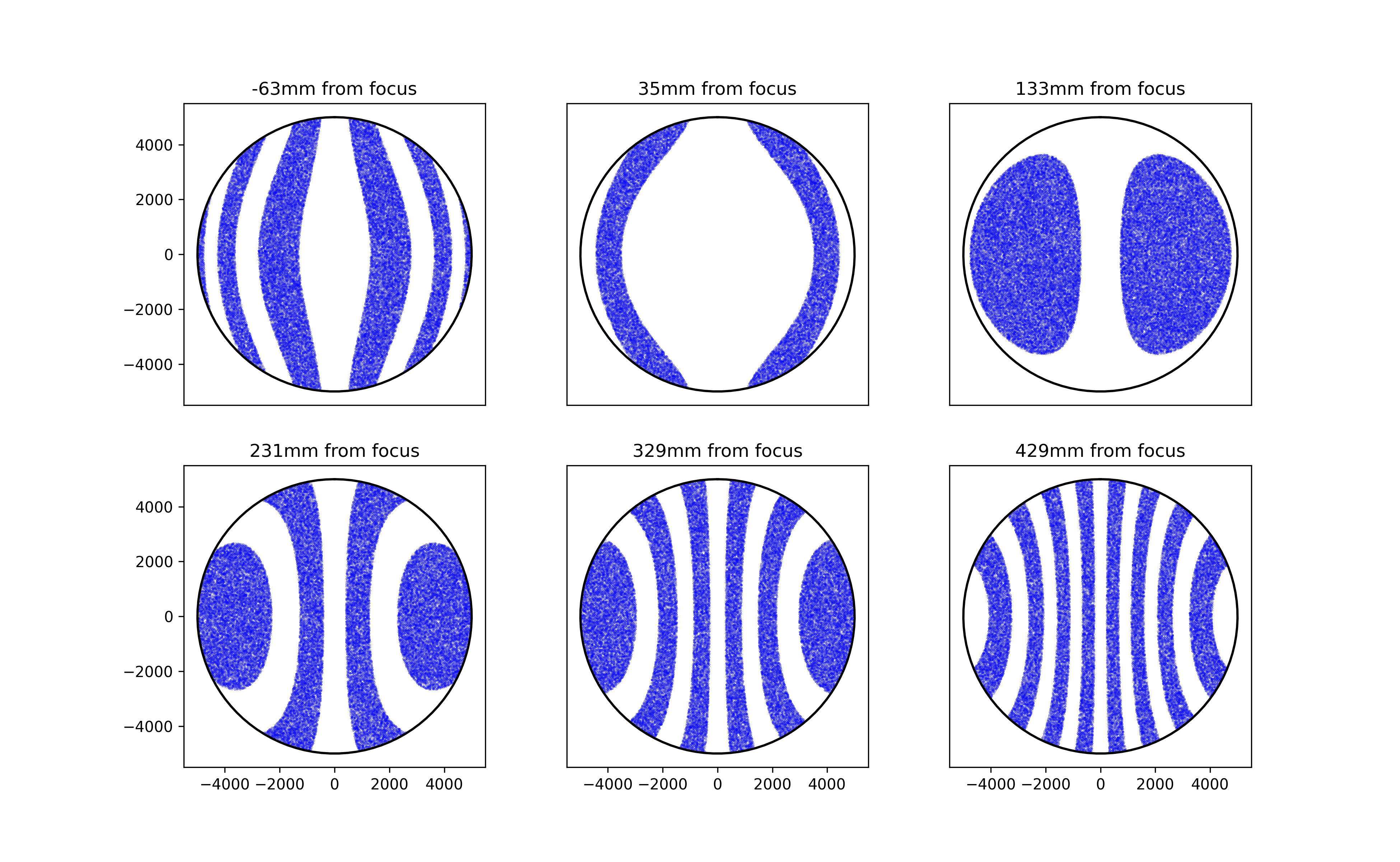

Produces

License
