little-brother-taskbar 0.1.23

Taskbar app displaying the remaining play time of users monitored by LittleBrother

Taskbar Tray Application for LittleBrother

Overview

LittleBrotherTaskbar is a simple application which can be installed into the tray of the window manager to display the remaining play time of the current user.

Contact

The taskbar does not have a homepage of its own. It is sharing LittleBrother's homepage. Visit the project at Facebook or write comments to little-brother(at)web.de.

Screenshots

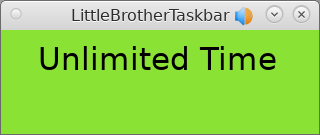

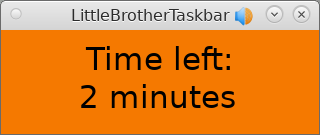

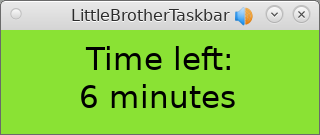

The following screenshots show the display of LittleBrotherTaskbar when optional play time is not active.

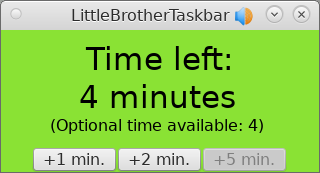

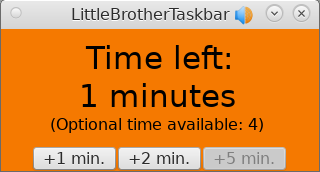

These are the corresponding screenhots when optional play time is active.

Change History

See here

GitHub Status

Continuous Integration Status Overview

Status	Master	Release
CircleCI
Test Coverage
Snyk Vulnerability		not available
Snyk Package Health	not available
Codacy Code Quality		not available
Code Climate		not available

Note: The vulnerability status is derived from the Python PIP packages found in requirements.txt.

Features

LittleBrotherTaskbar has the following features:

• Shows the status (remaining play time) of a user monitored by LittleBrother on Linux and Windows systems.

• Plays spoken notifications about the status:

  • Session length upon login
  • Reason why login is denied
  • Warnings about impending logout
  • Reason why user will be logged out

• As of version 0.1.18 (see feature issue):

  • Shows the remaining "optional time" that a user can use to extend her time
  • Provides buttons to extend the session time (that is to request a time extension)

Prerequisites

LittleBrotherTaskbar requires an active installation of LittleBrother. The taskbar client will contact the master process of LittleBrother. Also, some Linux packages have to be installed to enable the compilation of the Python PIP package wxPython. See the installation instructions below.

In case you want to use the MP3 speech generation for notification messages you have to install the PIP package python-google-speak.

Tested Distributions

Distribution	Version	Comments	Most Recent Test
Debian	testing		15.AUG.2021
Ubuntu	19.3		08.AUG.2020

Quick Install

This guide will take you through the steps required to install, configure, and run the LittleBrotherTaskbar application on your system.

YouTube Video

There are more videos related to LittleBrother and LittleBrotherTaskbar available at the LittleBrother homepage.

Install the Software

LittleBrotherTaskbar is available as a Python3 PIP package. Make sure you have the Debian packages

• libgtk-3-dev
• libpulse-dev

installed on your system. Also, the required library wxPython cannot be compiled successfully with some versions of the setuptools. Version 40.8.0 seems to work fine. Issue

pip3 install setuptools==40.8.0

to install exactly this version. Then type

pip3 install little-brother-taskbar

to install the latest version of the taskbar. If you want to install a specific version use

pip3 install little-brother-taskbar==[VERSION]

instead with [VERSION] replaced by the specific version.

Note: Compiling the wxPython library takes a LONG time. Depending on the speed of your system, compilation times of up to 15 minutes are not unusual. So, please, be patient!

Speech Generation and Output

In order to use the speech generation for notification messages, issue the command

pip3 install python-google-speak

and use the --speech-engine command line option (see below). Also, install the Debian package mpg123:

apt-get install mpg123

Configure the Software

In its simplest setting the tool just needs to be started with the URL of the LittleBrother master API, e.g.

run_little_brother_taskbar --server-url=http://[HOSTNAME]:[PORT]

with [HOSTNAME] being the host where the LittleBrother master process is running and [PORT] being its port.

Extended Command Line Configuration

The tool recognizes the following extra options:

• --username [NAME]: Set the username to [NAME]. If the option is not given the tool will try to derive the login name from the environment variable USER. If no user can be found, the tool will fail.

• --locale [LOCALE]: Set the locale to [LOCALE], e.g. en_US. Note that this locale is only used until the taskbar receives the first status from the LittleBrother master since status contains the locale configured for the user.

• --config [FILENAME]: Read the configuration file [FILENAME]. If this option is not given the tool will try to read the file ~/.config/LittleBrotherTaskbar.conf. See this file for an example.

• --loglevel [LEVEL]: Set the log level to DEBUG, INFO, WARNING, or ERROR.

• --speech-engine [ENGINE]: Activate and select the speech engine to speak messages for the monitored user. Possible values for [ENGINE] are: google (preferred; which requires PIP package python-google-speak) or external (which requires the Debian package festival and possibly some more configuration)

Installing LittleBrotherTaskbar as a StartUp Application

Once you have succeeded starting the tool on the command line (see above) it makes sense to install the tool as a startup application in your desktop environment. Most environments allow you to configure the applications which are automatically started upon logging into the desktop. Below you will find screenshots to guide you through the installation on a 19.3 Ubuntu system using the Mate Desktop.

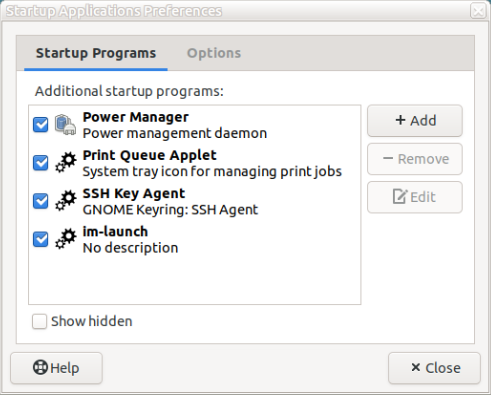

• From the main menu choose the entry Control Center. In the upcoming window click on Startup Applications.

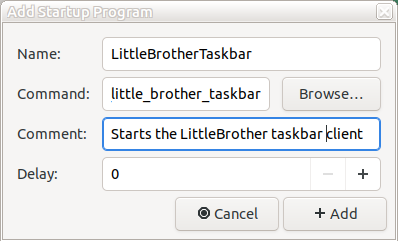

• Click on Add and enter your statement into the Command field. Chose a name and optionally set a comment.



• Click on Add+ and and on Close.

• Logout out of the desktop and login in again to test. If successful you should see the LittleTaskBar icon in the tray.



Installing LittleBrotherTaskbar on a Windows System

On a Windows system some additional configuration needs to be done most of which relates to the audio playback. Since the tool mpg123 is not available and the default Windows Media player is a little difficult to handle from the command line it is recommended to install the media player vlc.

Configuration of the video player

If the file %userprofile/.config/LittleBrotherTaskbar.conf does not exist yet, create it with a text editor and add the following lines:

[AudioHandler]
audio_player=mpg123
mpg123_binary=C:\Program Files\VLC Plus Player\vlc.exe
play_command_pattern={binary} --intf dummy {filename}

We are abusing the mpg123 driver to configure the vlc binary. The path in mpg123_binary may have to be adapted to your specific installation of vlc. The option --intf dummy will force vlc to start without a GUI frontend.

Choosing the Python version

As of June 2022, the module wxPython is only available as a pre-compiled package for Python 3.9 and older. On a Python 3.10 system you will have to compile the module yourself which can be a real nuisance on any system and is definitely so on Windows. So, if you do not have any other need for a Python 3.10 interpreter it is strongly recommended to use Python 3.9.

Troubleshooting

So, you went through all of the above but LittleBrotherTaskbar does not seem to work? Maybe this troubleshooting page can help you.

Configuration

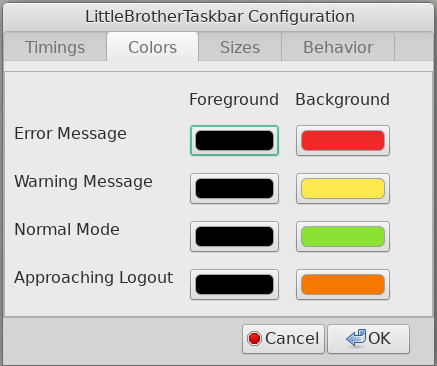

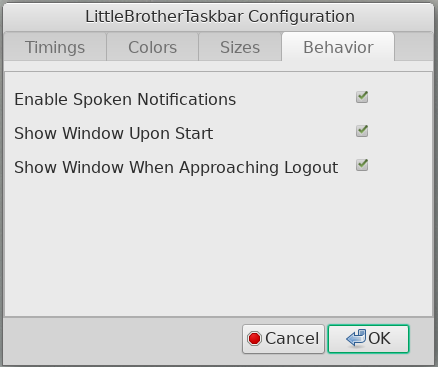

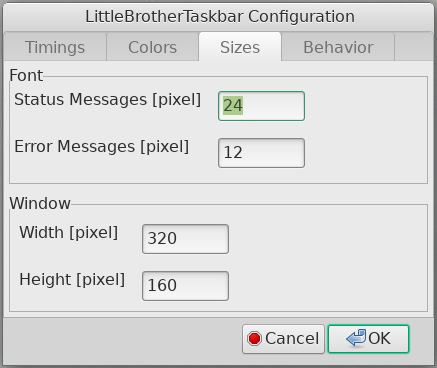

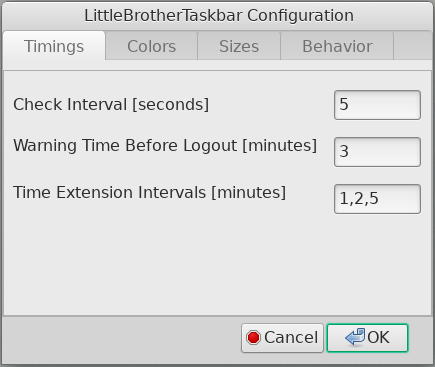

Most settings of the application can be configured using the configuration dialog which reached using the right mouse click on the tray icon:

The configuration will be saved to (and subsequently loaded from) the file ~/.config/LittleBrotherTaskbar.conf.

Caveats

Issue Lists

The application LittleBrotherTaskbar is far from perfect. Issues are listed on GitHub (see here). Feel free to open new issues if you have any trouble with installing and/or running the application.

Missing Tray Icon on Modern Desktops (e.g. Gnome)

The application little_brother_taskbar uses the wxPython package to interact with the XWindows system including the system tray functionality. Unfortunately, the specification for the latter varies across the windows managers and their versions. In modern versions of Gnome, for example, the tray icons provided by wxPython are no longer supported. However, there is a Gnome extension called TopIcons Plus which can be installed using a Debian package which shows all "old-fashioned" tray icons in the modern Gnome toolbar at the top of the screen.

Follow these steps:

• As root open a shell and install the extension:

  apt-get install gnome-shell-extension-top-icons-plus


• Log out of the X session.

• Log into a new X session as the monitored user using the Gnome Desktop.

• Verify that there is at least the Little-Brother icon visible in the top center toolbar.

This extension may actually make other icons of installed applications visible which are using the old tray API. Be prepared for a surprise.

Internationalization

The application uses the PIP package Flask-Babel to provide internationalization for the web frontend, Currently, the following languages are supported/prepared (in the order they were made available):

Flag	Language	Locale	Status	Translation provided by
	English	en	Up-to-date	Marcus Rickert
	German	de	Up-to-date	Marcus Rickert
	Italian	it	Up-to-date	Albano Battistella
	Dutch	nl	0.1.10	Simone & Lex
	Finnish	fi	0.1.10	Iisakki Kosonen
	Turkish	tr	0.1.10	Selay Dogan
	Russian	ru	0.1.10	J. Moldawski
	Japanese	ja	0.1.10	Arik M.
	Bangla	bn	0.1.10	Rownak Jyoti Zaman
	French	fr	0.1.11	Albano Battistella
	Thai	th	0.1.10	Busaba Kramer
	Spanish	es	0.1.10	Ruth Wucherpfennig-Krömer
	Lithuanian	lt	In preparation	N.N.
	Croatian	hr	In preparation	N.N.

Note that the spoken messages are provided by the LittleBrother master process. Check here for the availability of desired foreign language.

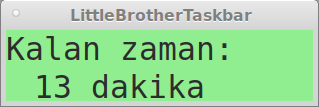

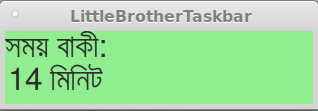

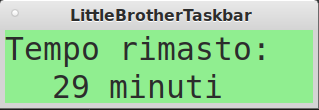

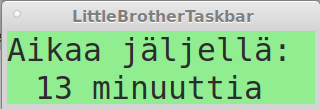

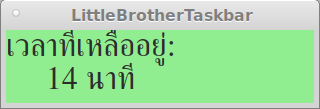

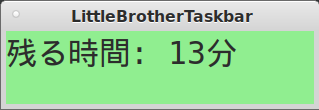

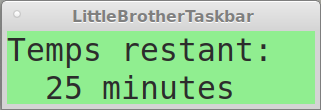

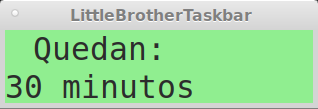

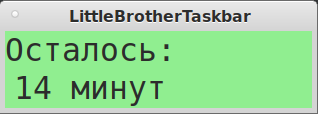

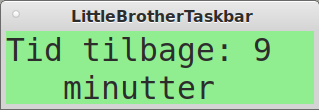

Sample Screenshots

Sample Speech Audio Files

• Sample 1 in Dutch
• Sample 2 in Dutch
• Sample 1 in Italian
• Sample 2 in Italian
• Sample 1 in Finnish
• Sample 2 in Finnish
• Sample 1 in Turkish
• Sample 2 in Turkish
• Sample 1 in Russian
• Sample 2 in Russian
• Sample 1 in Japanese
• Sample 2 in Japanese
• Sample 1 in Bangla
• Sample 2 in Bangla
• Sample 1 in French
• Sample 2 in French
• Sample 1 in Thai
• Sample 2 in Thai
• Sample 1 in Danish
• Sample 2 in Danish
• Sample 1 in Spanish
• Sample 2 in Spanish

Your help with translations is greatly appreciated. Please, contact the author if you are interested in providing a translation. You do not necessarily have to clone this repository or be familiar with Python to do so.

Credits

• Thanks to all the people maintaining the wonderful script language Python and the libraries on PyPi.

• The country flags were taken from www.countryflags.com.

• See the section about on internalization for credits regarding the translations.

• The site www.mehr-schulferien.de maintains the vacation metadata for Germany.

• The configuration dialog was generated using wxGlade.

• People contributing by providing pull requests:

  • Albano Battistella for providing Italian and French translations
