A Python API for Intelligent Data Discovery

Project description

A Python API for Intelligent Visual Discovery

Build Status PyPI version Documentation Status Slack Mailing List Binder CodeCov Twitter Follow

Lux is a Python library that facilitate fast and easy data exploration by automating the visualization and data analysis process. By simply printing out a dataframe in a Jupyter notebook, Lux recommends a set of visualizations highlighting interesting trends and patterns in the dataset. Visualizations are displayed via an interactive widget that enables users to quickly browse through large collections of visualizations and make sense of their data.

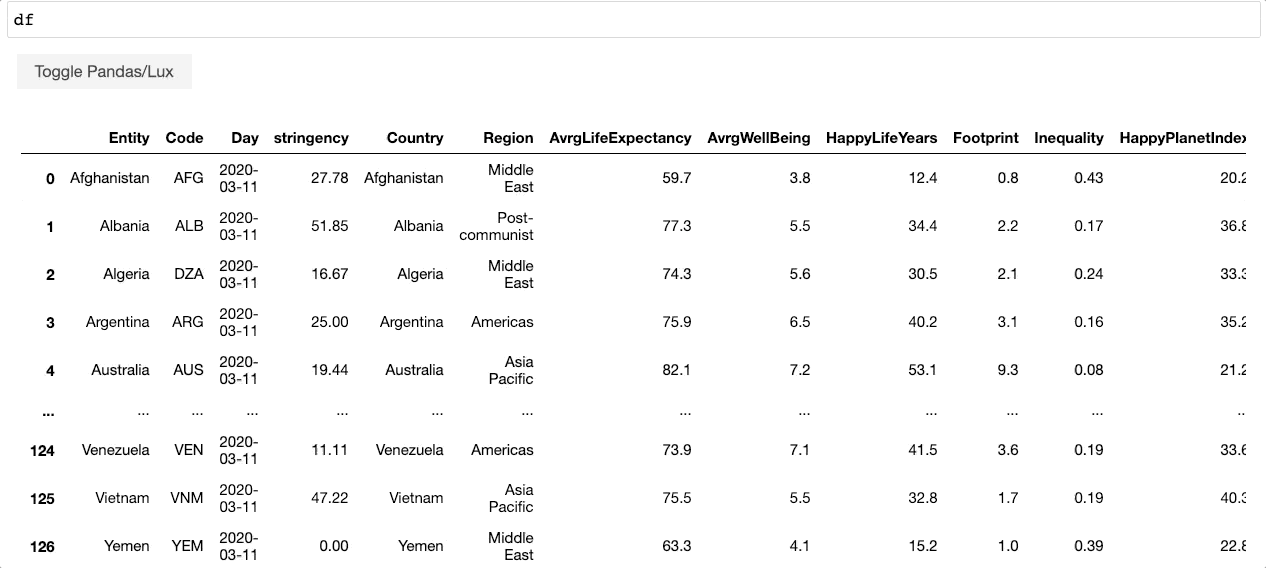

Highlighted Visual Dataframe Workflow with Lux

Here is a 1-min video introducing Lux, and slides from a more extended talk.

Check out our notebook gallery with examples of how Lux can be used with different datasets and analyses.
Or try out Lux on your own in a live Jupyter Notebook!

Getting Started

To start using Lux, simply add an extra import statement along with your Pandas import.

import lux
import pandas as pd

Lux can be used without modifying any existing Pandas code. Here, we use Pandas's read_csv command to load in a dataset of colleges and their properties.

df = pd.read_csv("https://raw.githubusercontent.com/lux-org/lux-datasets/master/data/college.csv")
df

When the dataframe is printed out, Lux automatically recommends a set of visualizations highlighting interesting trends and patterns in the dataset. Basic recommendations in Lux

Voila! Here's a set of visualizations that you can now use to explore your dataset further!

Next-step recommendations based on user intent:

In addition to dataframe visualizations at every step in the exploration, you can specify to Lux the attributes and values you're interested in. Based on this intent, Lux guides users towards potential next-steps in their exploration.

For example, we might be interested in the attributes AverageCost and SATAverage.

df.intent = ["AverageCost","SATAverage"]
df

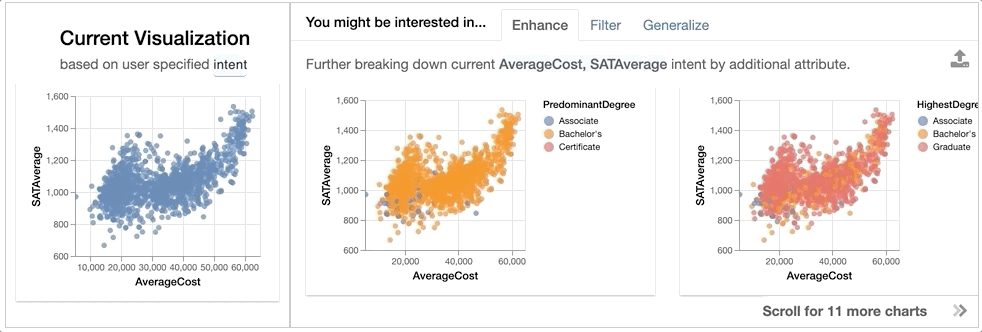

Next-step Recommendations Based on User Context

The left-hand side of the widget shows the current visualization, i.e., the current visualization generated based on what the user is interested in. On the right, Lux generates three sets of recommendations, organized as separate tabs on the widget:

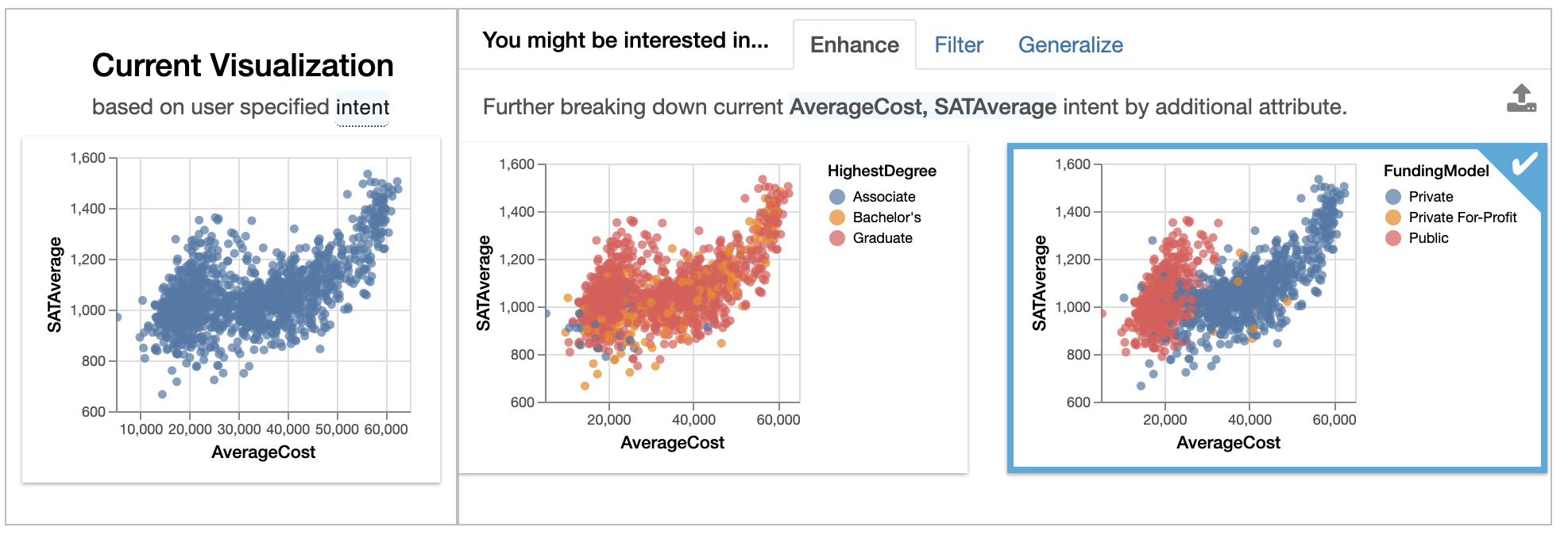

  • Enhance adds an additional attribute to the current selection, essentially highlighting how additional variables affect the relationship of AverageCost and SATAverage. We see that if we breakdown the relationship by FundingModel, there is a clear separation between public colleges (shown in red) and private colleges (in blue), with public colleges being cheaper to attend and with SAT average of lower than 1400. Enhance Recommendations

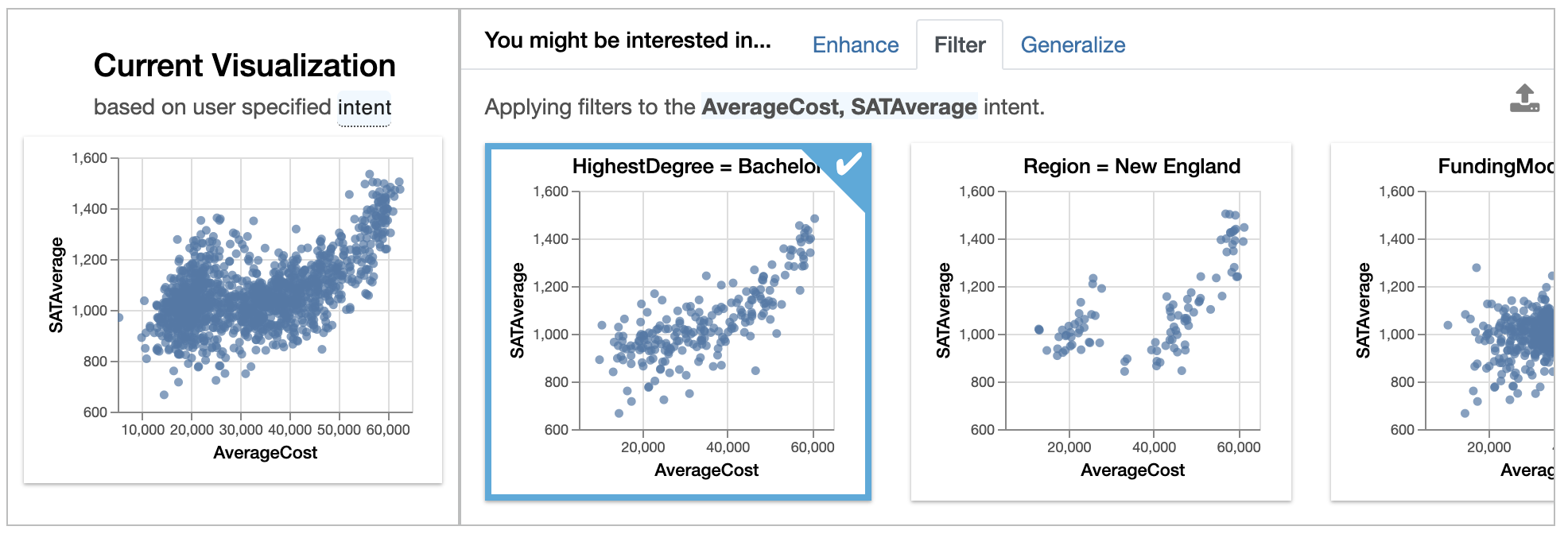

  • Filter adds a filter to the current selection, while keeping attributes (on the X and Y axes) fixed. These visualizations show how the relationship of AverageCost and SATAverage changes for different subsets of data. For instance, we see that colleges that offer Bachelor's degree as its highest degree show a roughly linear trend between the two variables. Filter Recommendations

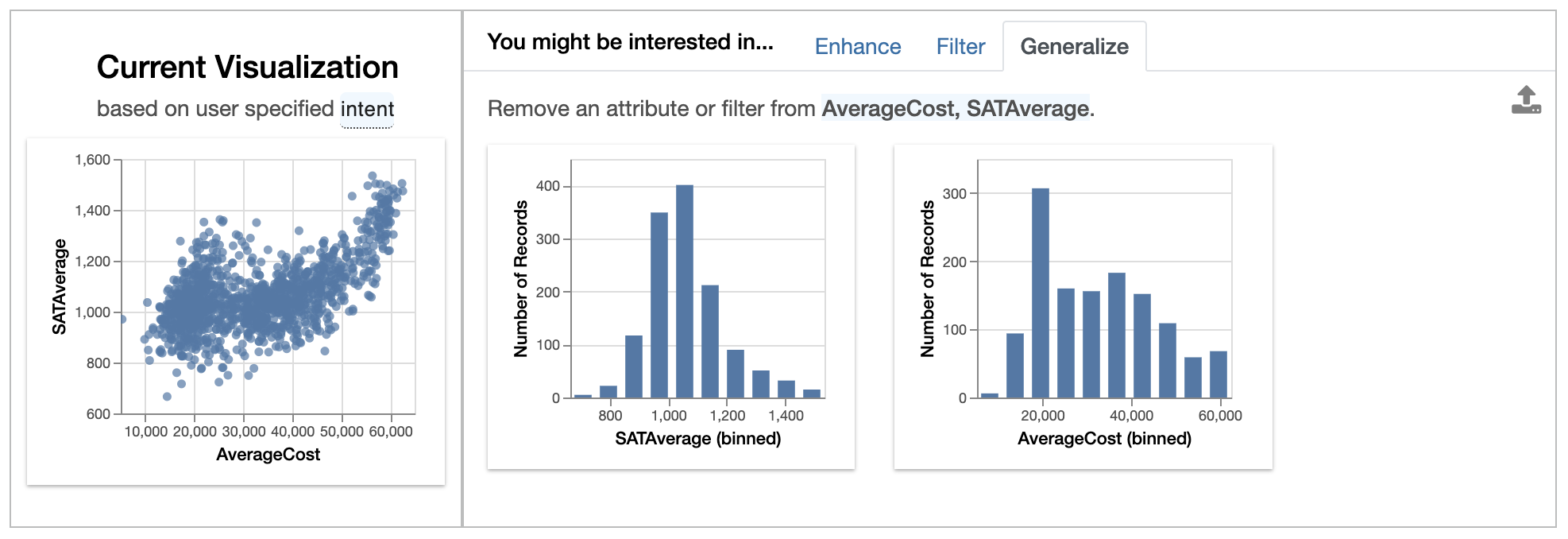

  • Generalize removes an attribute to display a more general trend, showing the distributions of AverageCost and SATAverage on its own. From the AverageCost histogram, we see that many colleges with average cost of around $20000 per year, corresponding to the bulge we see in the scatterplot view. Generalize Recommendations

See this page for more information on additional ways for specifying the intent.

Easy programmatic access and export of visualizations:

Now that we have found some interesting visualizations through Lux, we might be interested in digging into these visualizations a bit more or sharing it with others. We can save the visualizations generated in Lux as a static, shareable HTML or programmatically access these visualizations further in Jupyter. Selected Vis objects can be translated into Altair, Matplotlib, or Vega-Lite code, so that they can be further edited.

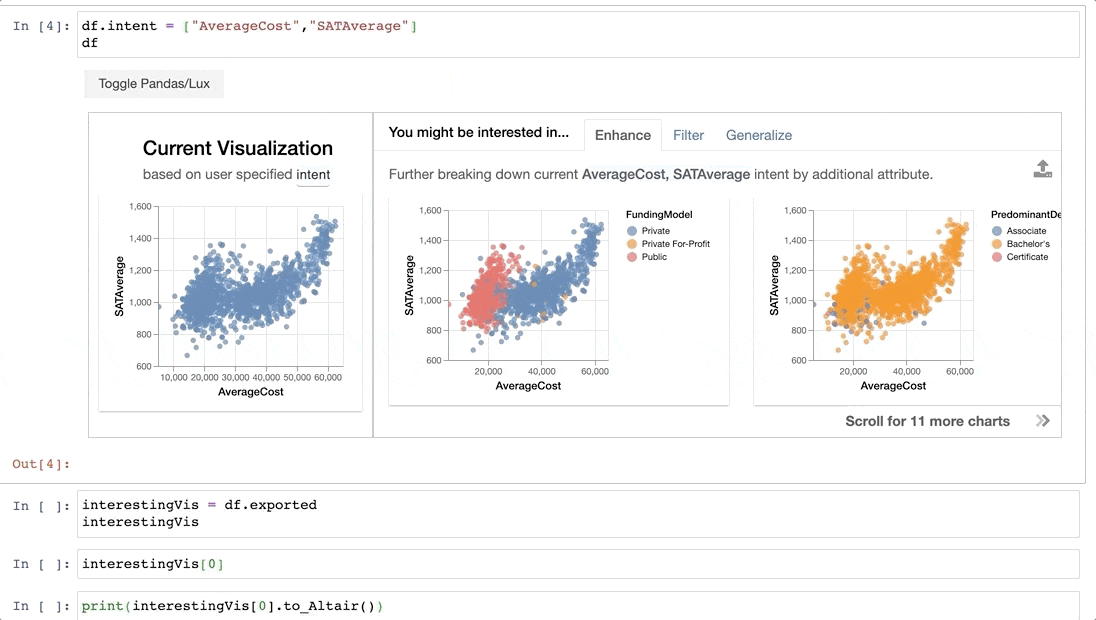

Easily exportable visualization object

Learn more about how to save and export visualizations here.

Quick, on-demand visualizations with the help of automatic encoding:

We've seen how Viss are automatically generated as part of the recommendations. Users can also create their own Vis via the same syntax as specifying the intent. Lux is built on the philosophy that users should always be able to visualize anything they want, without having to think about how the visualization should look like. Lux automatically determines the mark and channel mappings based on a set of best practices. The visualizations are rendered via Altair into Vega-Lite specifications.

from lux.vis.Vis import Vis
Vis(["Region=New England","MedianEarnings"],df)

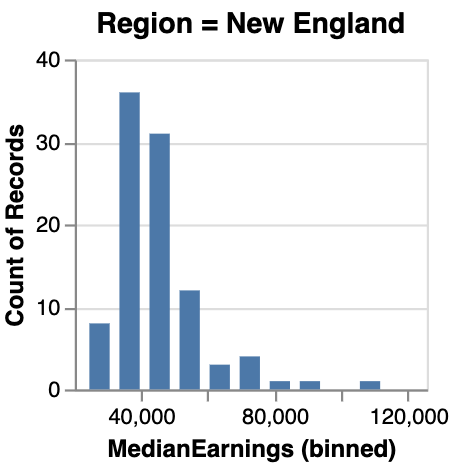

Specified Visualization

Powerful language for working with collections of visualizations:

Lux provides a powerful abstraction for working with collections of visualizations based on a partially specified queries. Users can provide a list or a wildcard to iterate over combinations of filter or attribute values and quickly browse through large numbers of visualizations. The partial specification is inspired by existing work on visualization query languages, including ZQL and CompassQL.

For example, we are interested in how the AverageCost distribution differs across different Regions.

from lux.vis.VisList import VisList
VisList(["Region=?","AverageCost"],df)

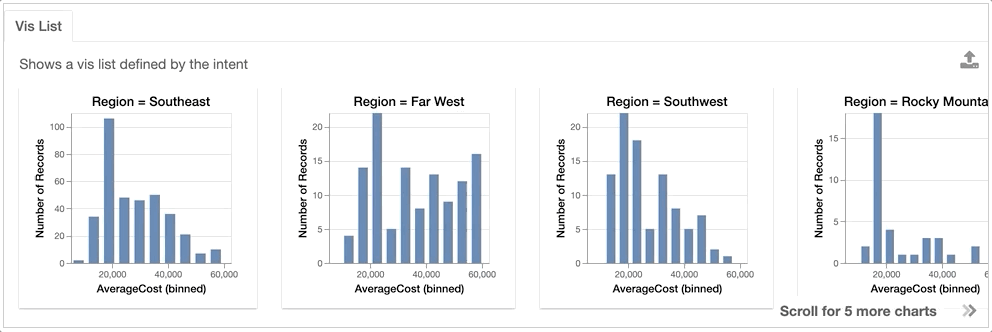

Example Vis List

To find out more about other features in Lux, see the complete documentation on ReadTheDocs.

Installation & Setup

To get started, please follow both the installation and setup instructions in your command line. lux-api can be installed through PyPI or conda-forge.

pip install lux-api

If you use conda, you can install lux-api via:

conda install -c conda-forge lux-api

Both the PyPI and conda installation include includes the Lux Jupyter widget frontend, lux-widget.

Setup in Jupyter Notebook, VSCode, JupyterHub

To use Lux with any Jupyter notebook-based frontends (e.g., Jupyter notebook, JupyterHub, or VSCode), activate the notebook extension:

jupyter nbextension install --py luxwidget
jupyter nbextension enable --py luxwidget

If the installation happens correctly, you should see two - Validating: OK after executing the two lines above. Note that you may have to restart the Jupyter Notebook server to ensure that the widget is displaying correctly.

Setup in Jupyter Lab

Lux is compatible with both Jupyter Lab version 2 and 3. To use Lux in Jupyter Lab, activate the lab extension:

jupyter labextension install @jupyter-widgets/jupyterlab-manager
jupyter labextension install luxwidget

Note that JupyterLab and VSCode is supported only for lux-widget version >=0.1.2, if you have an earlier version, please upgrade to the latest version of lux-widget. Lux has only been tested with the Chrome browser.

If you encounter issues with the installation, please refer to this page to troubleshoot the installation. Follow these instructions to set up Lux for development purposes.

Support and Resources

Lux is undergoing active development. If you are interested in using Lux, we would love to hear from you. Any feedback, suggestions, and contributions for improving Lux are welcome.

Other additional resources:
