maia-toolkit 1.0

Python interface to MAIA. It can be used as interface to any Kubernetes-based platform.

MAIA Toolkit

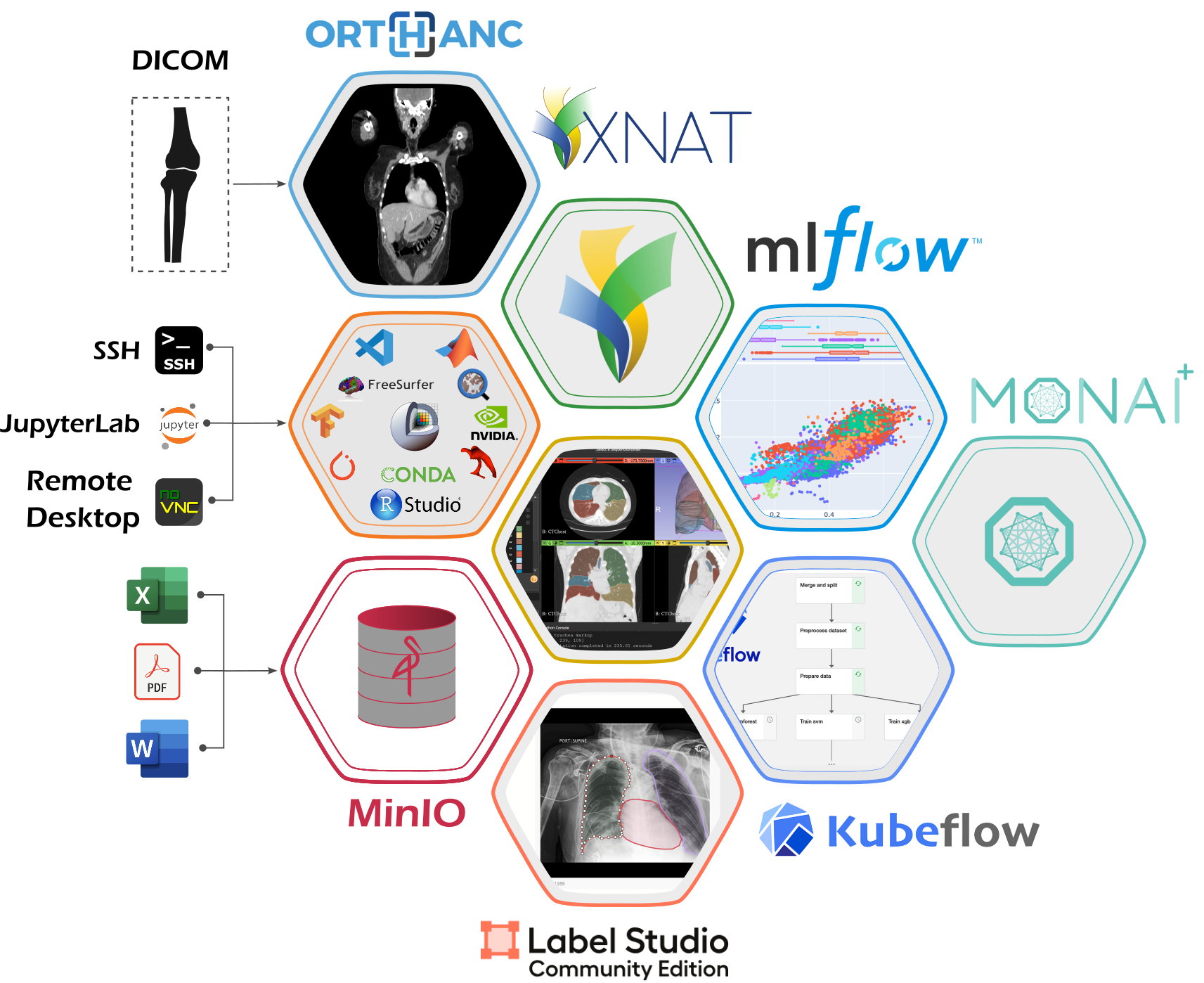

MAIA Toolkit is a python package to interact with a Kubernetes cluster, to create custom environments and deploy applications in MAIA (including pods, services and ingresses).

Installation

The requirements for the package are Helm and kubectl. To install the package, clone the repository and run:

pip install maia-toolkit

To install Helm follow the instructions in the Helm documentation. To install kubectl follow the instructions in the Kubernetes documentation.

Deploying a MAIA Namespace

To deploy a MAIA namespace in a Kubernetes cluster, the script MAIA_deploy_MAIA_namespace can be used. The script requires a configuration file with the following parameters:

group_subdomain: <>         # The group subdomain to be used in the URLs
group_ID: <>                # The group ID in Keycloak, following the format MAIA:<group_ID>
users: # List of user emails to be added to the group
  -
  -
resources_limits: # List of resources limits to be used in the namespace
  memory:
    - "4G"                 # Memory usage lower limit
    - "8G"                 # Memory usage upper limit
  cpu:
    - 4.0                 # CPU usage lower limit
    - 4.0                 # CPU usage upper limit
gpu_request: "1"          # Number of GPUs to be requested per user ( omit the field if no GPU is needed)

And, additionally, a cluster-specific configuration file with the following parameters:

docker_server: ""                   # Docker server URL
docker_username: ""                 # Docker username
docker_password: ""                 # Docker password
storage_class: ""                 # k8s Storage class to be used
shared_storage_class: ""          # k8s Storage class to be used for shared storage
traefik_resolver: ""              # Traefik resolver to be used for k8s Ingress (only for Traefik)
hub_storage_class": ""             # k8s Storage class to be used for JupyterHub storage
url_type: "subdomain"               # URL type to be used for the MAIA Applications (subdomain or path)
domain: ""                          # k8s cluster domain
nginx_proxy_image: ""               # NGINX proxy image to be used
imagePullSecrets: ""                # Image pull secrets to be used
admins: # List of admin emails
  - ""
  - ""
ssh_port_type: ""                   # SSH port type to be used. It can be either "NodePort" or "LoadBalancer"
ssh_hostname: ""                    # SSH hostname to be used
port_range: # Port range to be used for SSH ports, according to the cluster configuration for NodePort or LoadBalancer
  - MIN_PORT
  - MAX_PORT
keycloack: # Keycloak configuration for Authentication
  client_id: ""                     # Keycloak client ID
  issuer_url: ""                    # Keycloak issuer URL
  client_secret: ""                 # Keycloak client secret
  authorize_url: ""                 # Keycloak authorize URL
  token_url: ""                    # Keycloak token URL
  userdata_url: ""                  # Keycloak user data URL

In order to deploy the MAIA namespace, the minio and kustomize CLI should be installed locally, to be able to interact with the cluster.

To install the minio CLI, run:

curl https://dl.min.io/client/mc/release/linux-amd64/mc --create-dirs -o /usr/local/bin/mc
chmod +x /usr/local/bin/mc

To install the kustomize CLI, run:

cd /usr/local/bin && curl -s "https://raw.githubusercontent.com/kubernetes-sigs/kustomize/master/hack/install_kustomize.sh"  | bash

To deploy the MAIA namespace, run:

export KUBECONFIG=<PATH/TO/KUBECONFIG>

MAIA_deploy_MAIA_namespace --namespace-config-file <PATH/TO/CONFIG/FILE> --cluster-config-file <PATH/TO/CLUSTER/CONFIG/FILE> --config-folder <PATH/TO/CONFIG/FOLDER>

Offline Deployment

If you only want to create a deployment script, to review and run it later, you can use the --create-script flag:

MAIA_deploy_MAIA_namespace --namespace-config-file <PATH/TO/CONFIG/FILE> --cluster-config-file <PATH/TO/CLUSTER/CONFIG/FILE> --config-folder <PATH/TO/CONFIG/FOLDER> --create-script

Minimal Installation

A minimal installation can be done, only deploying the JupyterHub interface and the required SSH services. To install the MAIA namespace with the minimal configuration, you can use the --minimal flag:

MAIA_deploy_MAIA_namespace --namespace-config-file <PATH/TO/CONFIG/FILE> --cluster-config-file <PATH/TO/CLUSTER/CONFIG/FILE> --config-folder <PATH/TO/CONFIG/FOLDER> --minimal

Deploy an Application in MAIA Namespace

The script to deploy custom applications uses Helm charts to deploy the applications, and it is available as a Helm chart: MAIA.

With the MAIA chart it is possible to deploy any Docker Image as a Pod, expose the required ports as services, mount persistent volumes on the specified locations and optionally create Ingress resources to expose the application to the external traffic using the HTTPS protocol.

To add the chart to Helm, run:

helm repo add maiakubegate https://kthcloud.github.io/MAIA/
helm repo update

Custom Helm values

A number of custom parameters can be specified for the Helm chart, including the Docker image to deploy, the port to expose, etc.

The custom configuration is set in a JSON configuration file, following the conventions described below.

General Configuration

Namespace [Required]

Specify the Cluster Namespace where to deploy the resources

{
  "namespace": "NAMESPACE_NAME"
}

Chart Name [Required]

Specify the Helm Chart Release name

{
  "chart_name": "Helm_Chart_name"
}

Docker image [Required]

To specify the Docker image to deploy

{
  "docker_image": "DOCKER_IMAGE"
}

Clusters [Required]

List of Kubernetes clusters in the federation where to deploy the resources

{
  "clusters": [
    "CLUSTER_1",
    "CLUSTER_2"
  ]
}

Requested Resources

To request resources (RAM,CPU and optionally GPU).

{
  "memory_request": "REQUESTED_RAM_SIZE",
  "cpu_request": "REQUESTED_CPUs"
}

Optionally, to request GPU usage:

{
  "gpu_request": "NUMBER_OF_GPUs"
}

Allocation Time [Required]

Since each environment is deployed as a Job with a fixed allocation time, the user can specify the requested allocation time (default in days) in the following field:

{
  "allocationTime": "2"
}

Services

To specify which ports (and corresponding services) can be reached from outside the pod.

{
  "ports": {
    "SERVICE_NAME_1": [
      "PORT_NUMBER"
    ],
    "SERVICE_NAME_2": [
      "PORT_NUMBER"
    ]
  }
}

The default Service Type is ClusterIP. To expose a service as a type NodePort:

{
  "service_type": "NodePort",
  "ports": {
    "SERVICE_NAME_1": [
      "PORT_NUMBER",
      "NODE_PORT_NUMBER"
    ],
    "SERVICE_NAME_2": [
      "PORT_NUMBER",
      "NODE_PORT_NUMBER"
    ]
  }
}

Persistent Volumes

2 different types of persistent volumes are available: hostPath (local folder) and nfs (shared nfs folder). For each of these types, it is possible to request a Persistent Volume via a Persistent Volume Claim.

The "readOnly" options can be added to specify the mounted folder as read-only.

Request PVC:

{
  "persistent_volume": [
    {
      "mountPath": "/mount/path_1",
      "size": "VOLUME_SIZE",
      "access_mode": "ACCESS_TYPE",
      "pvc_type": "STORAGE_CLASS"
    },
    {
      "mountPath": "/mount/path_2",
      "size": "VOLUME_SIZE",
      "access_mode": "ACCESS_TYPE",
      "pvc_type": "STORAGE_CLASS"
    }
  ]
}

"STORAGE_CLASS" can be any of the storage classes available on the cluster:

kubectl get sc

Existing Persistent Volumes

Previously created pv can be mounted into multiple pods (ONLY if the access mode was previously set to **ReadWriteMany ** )

{
  "existing_persistent_volume": [
    {
      "name": "EXISTING_PVC_NAME",
      "mountPath": "/mount/path"
    }
  ]
}

Mounted files

Single files can be mounted inside the Pod. First, a ConfigMap including the file is created, and then it is mounted into the Pod.

{
  "mount_files": {
    "file_name": [
      "/local/file/path",
      "/file/mount/path"
    ]
  }
}

Node Selection

To optionally select which node in the cluster to use for deploying the application.

{
  "node_selector": "NODE_NAME"
}

GPU Selection

To optionally select which available GPUs in the cluster to request. product attribute can be specified. Example: product: "RTX-2070-Super"

{
  "gpu_selector": {
    "product": "GPU_TYPE"
  }
}

Ingress

Used to create an Ingress resources to access the application at the specified port by using an HTTPS address. Two types of Ingress are currently supported: NGINX and TRAEFIK.

IMPORTANT! The specified DNS needs to be active and connected to the cluster DNS (".maia.cloud.cbh.kth.se")

IMPORTANT! When working with the TRAEFIK Ingress, the traefik_middleware and traefik_resolver should be should be explicitly specified, since only oauth-based authenticated users can be authorized through the ingress. Contact the MAIA admin to retrieve this information.

IMPORTANT! When working with the NGINX Ingress, the oauth_url and nginx_issuer should be explicitly specified, since only oauth-based authenticated users can be authorized through the ingress. Contact the MAIA admin to retrieve this information.

{
  "ingress": {
    "host": "SUBDOMAIN.maia.cloud.cbh.kth.se",
    "port": "SERVICE_PORT",
    "path": "/<PATH>",
    "oauth_url": "SUBDOMAIN.maia.cloud.cbh.kth.se",
    "nginx_issuer": "<NGINX_ISSUER_NAME>"
  }

}

{
  "ingress": {
    "host": "SUBDOMAIN.maia.cloud.cbh.kth.se",
    "port": "SERVICE_PORT",
    "path": "/<PATH>",
    "traefik_middleware": "<MIDDLEWARE_NAME>",
    "traefik_resolver": "<TRAEFIK_RESOLVER_NAME>"
  }

}

Environment variables

To add environment variables, used during the creation and deployment of the pod (i.e., environment variables to specify for the Docker Image).

{
  "env_variables": {
    "KEY_1": "VAL_1",
    "KEY_2": "VAL_2"
  }
}

Deployment

By default, the deployment is done as a Job. To deploy as a Deployment, the following field should be added:

{
  "deployment": "true"
}

Commmand

To specify a custom command to run inside the container:

{
  "command": [
    "command",
    "arg1",
    "arg2"
  ]
}

Image Pull Secret

If the Docker image is stored in a private repository, the user can specify the secret to use to pull the image.

{
  "image_pull_secret": "SECRET NAME"
}

User info

When deploying MAIA-based applications, it is possible to create single/multiple user account in the environment. For each of the users, username, password, and, optionally, an ssh public key are required. This information is stored inside Secrets:

USER_1_SECRET:
    user: USER_1
    password: pw
    ssh_publickey [Optional]: "ssh-rsa ..."

To provide the user information to the Pod:

{
  "user_secret": [
    "user-1-secret",
    "user-2-secret"
  ],
  "user_secret_params": [
    "user",
    "password",
    "ssh_publickey"
  ]
}

Configuration File Example

{
  "namespace": "demo",
  "chart_name": "jupyterlab-1-v1",
  "docker_image": "jupyter/scipy-notebook",
  "tag": "latest",
  "memory_request": "4Gi",
  "allocationTime": "2",
  "cpu_request": "5000m",
  "ports": {
    "jupyter": [
      8888
    ]
  },
  "persistent_volume": [
    {
      "mountPath": "/home/jovyan",
      "size": "100Gi",
      "access_mode": "ReadWriteOnce",
      "pvc_type": "microk8s-hostpath"
    }
  ]
}

Tools

Install the MAIA package running:

pip install maia-tookit

Requirements:

kubectl  # Kubernetes CLI
helm     # Kubernetes Package Manager

Deploy Charts

To deploy a Hive Chart, first create a config file according to the specific requirements (as described [above](#Custom Helm values)).

After creating the config file, run:

MAIA_deploy_helm_chart --config-file <PATH/TO/CONFIG/FILE>
