Package for modelling clickstream data using Markov chains

Project description

markovclick

CircleCI License: GPL v3 Documentation Status

Python implementation of the R package clickstream which models website clickstreams as Markov chains.


markovclick allows you to model clickstream data from websites as Markov chains, which can then be used to predict the next likely click on a website for a user, given their history and current state.

Requirements

  • Python 3.X
  • numpy
  • matplotlib
  • seaborn (Recommended)
  • pandas

Installation

python setup.py install

or

pip install markovclick

Tests

Tests can be run using the pytest command from the root directory.

Documentation

Documentation can be viewed at https://markovclick.readthedocs.io/. To build the documentation, run make html inside the /docs directory.

Usage

Quick start

To start using the package without any data, markovclick can produce dummy data for you to experiment with:

from markovclick import dummy
clickstream = dummy.gen_random_clickstream(n_of_streams=100, n_of_pages=12)

Terminology

In the context of this package, streams refer to a series of clicks belonging to a given user. The time difference between clicks is defined by the user when assembling these streams, but is typically taken to be 30 minutes in the industry.

The pages refer to the individual clicks of the user, and thus the pages they visit. Rather than storing the entire URL of the page the user visits, it is better to encode pages using a simple code such as PXX where X can be any number. This strategy can be used to group similar pages under the same code, as modelling them as separate pages is sometimes not useful leading to an excessively large probability matrix.

Building Markov chains

To build a Markov chain from the dummy data:

from markovclick.models import MarkovClickstream
m = MarkovClickstream(clickstream)

The instance m of the MarkovClickstream class provides access the class's attributes such as the probability matrix (m.prob_matrix) used to model the Markov chain, and the list of unique pages (m.pages) featuring in the clickstream.

PageRank score

The PageRank score for each page in the clickstream can also be calculated as follows:

digraph, pagerank = m.calculate_pagerank(max_nodes=2)
Argument Type Description
max_nodes int (Optional, defaults to 2). The number of pages to include as nodes linking to each node when generating the graph. Selected in order of most probable transition from Markov chain
pr_kwargs dict (Optional, defaults to {}). Dictionary to pass arguments to networkx.linkanalysis.pagerank() function. See details here.

The digraph object holds the networkx DiGraph class which was used to calculate the PageRank score, and the pagerank object is a dictionary of PageRank scores for each page in the network.

Visualisation

Visualising as a heatmap

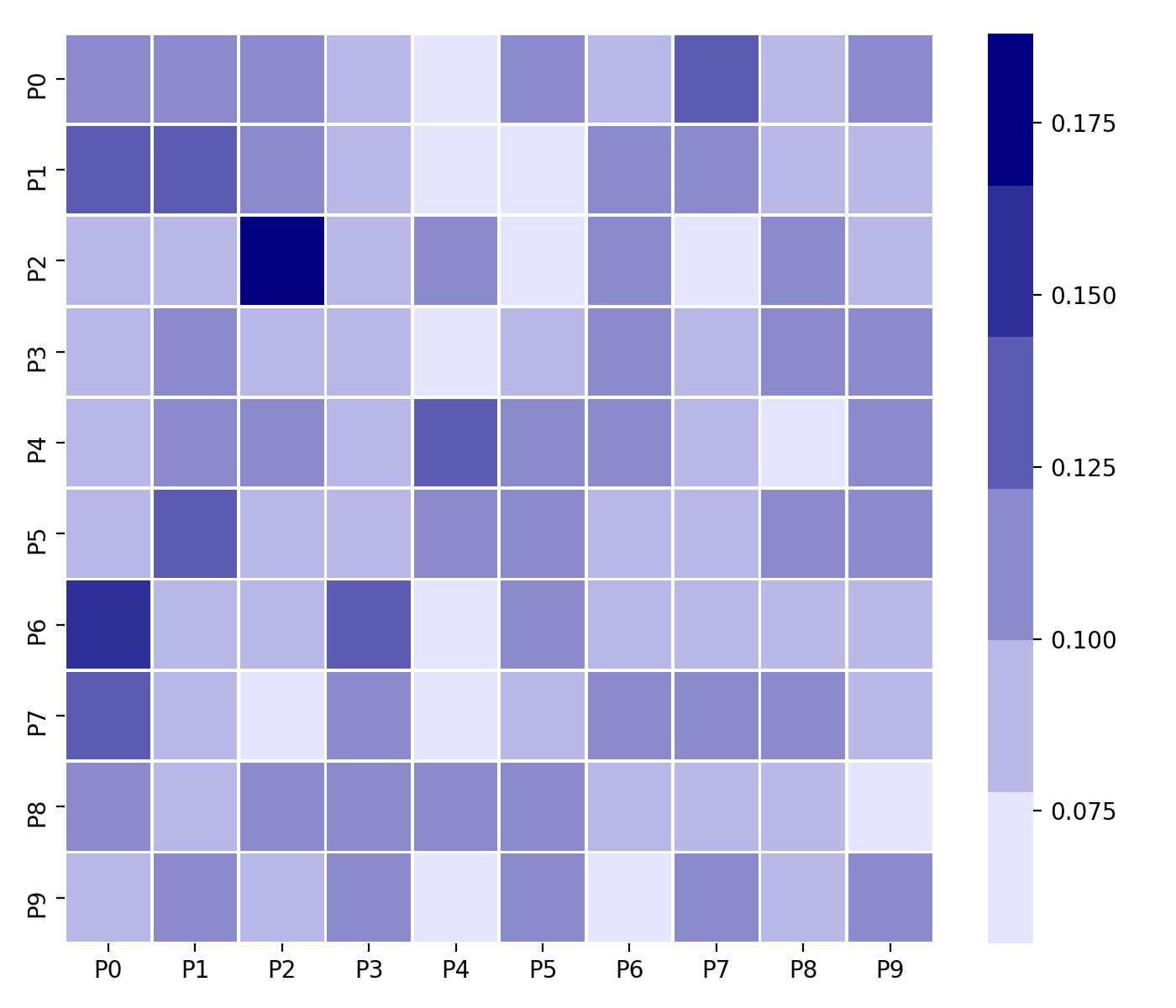

The probability matrix can be visualised as a heatmap as follows:

sns.heatmap(m.prob_matrix, xticklabels=m.pages, yticklabels=m.pages)

Visualising the Markov chain

A Markov chain can be thought of as a graph of nodes and edges, with the edges representing the transitions from each state. markovclick provides a wrapper function around the graphviz package to visualise the Markov chain in this manner.

from markovclick.viz import visualise_markov_chain
graph = visualise_markov_chain(m)

The function visualise_markov_chain() returns a Digraph object, which can be viewed directly inside a Jupyter notebook by simply calling the reference to the object returned. It can also be outputted to a PDF file by calling the render() function on the object.

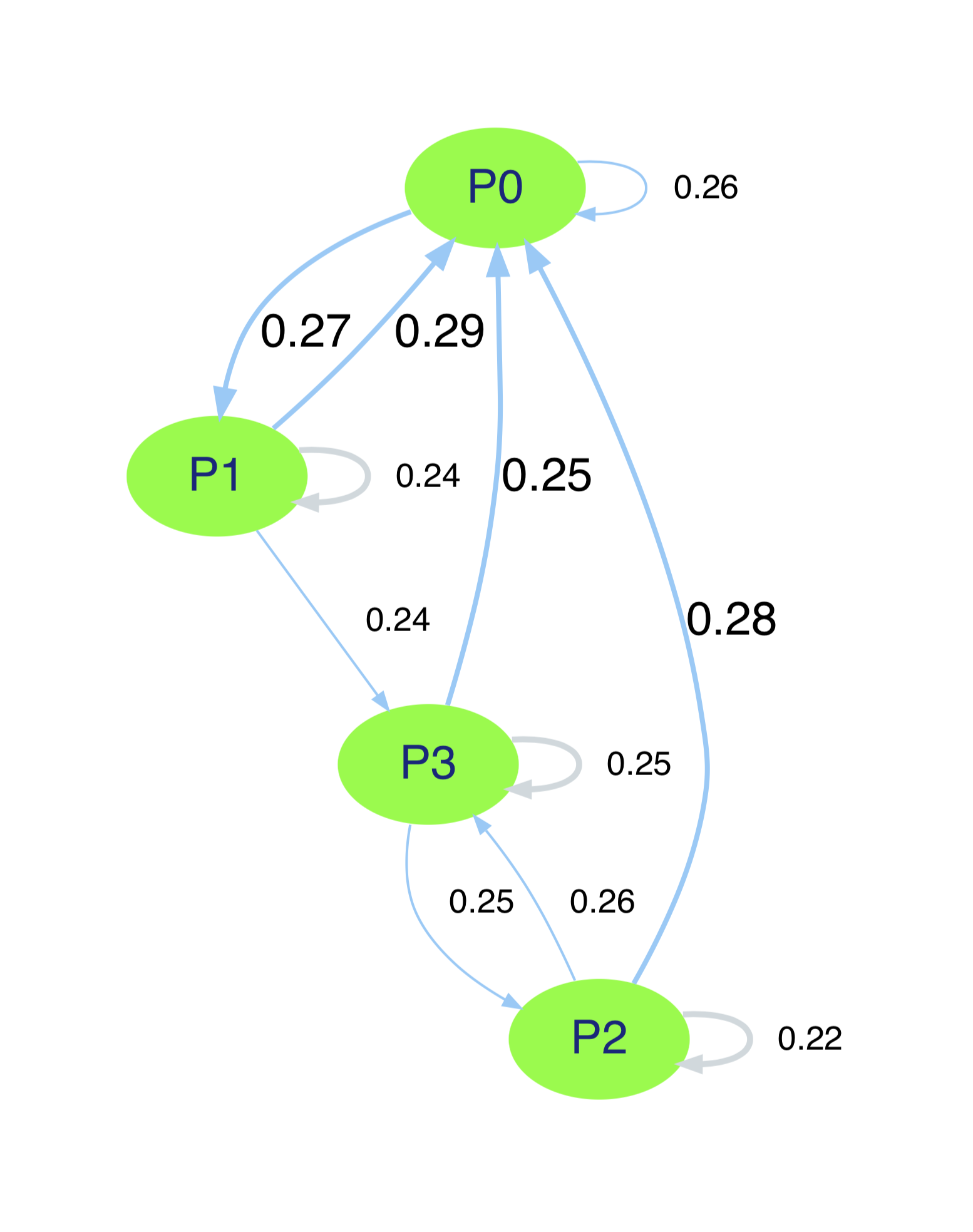

In the graph produced, the nodes representing the individual pages are shown in green, and up to 3 edges from each node are rendered. The first edge is in a thick blue arrow, depicting the most likely transition from this page / state to the next page / state. The second edge depicted by a thinner blue arrow, depicts the second most likely transition from this state. Finally, a third edge is shown that depicts the transition from this page / state back to itself (light grey). This edge is only shown if the the two most likely transitions are not already to itself. For all transitions, the probability is shown next to the edge (arrow).

Clickstream processing with markovclick.preprocessing

markovclick provides functions to process clickstream data such as server logs, which contain unique identifiers such as cookie IDs associated with each click. This allows clicks to be aggregated into groups, whereby clicks from the same browser (identified by the unique identifier) are grouped such that the difference between individual clicks does not exceed the maximum session timeout (typically taken to be 30 minutes).

Sessionise clickstream data

Sessionise

To sessionise clickstream data, the following code can be used that require a pandas DataFrame object.

from markovclic.preprocessing import Sessionise
sessioniser = Sessionise(df, unique_id_col='cookie_id',
			 datetime_col='timestamp', session_timeout=30)
Arguments
Argument Type Description
df DataFrame pandas DataFrame object containing clickstream data. Must contain atleast a timestamp column, unique identifier column such as cookie ID.
unique_id_col String Column name of unique identifier, e.g. cookie_id
datetime_col String Column name of timestamp column.
session_timeout Integer Maximum time in minutes after which a session is broken.
Sessionise.assign_sessions()

With a Sessionise object instantiated, the assign_sessions() function can then be called. This function supports multi-processing, enabling you the split job into multiple processes to take advantage of a multi-core CPU.

sessioniser.assign_sessions(n_jobs=2)
Arguments
Argument Type Description
n_jobs Integer Number of processes to spawn to enable parallel processing. If set to 1, no splitting occurs.

The assign_sessions() function returns the DataFrame, with an additional column added storing the unique identifier for the session. Rows of the DataFrame can then be grouped using this column.
