mdiff 0.1.5

Sequence matcher with displacement detection.

mdiff

mdiff is a package, tool and application for comparing and generating diff info for input data. It has an ability to detect sequence elements displacements (i.e. line in text have been moved up or down).

The features are:

• New SequenceMatcher class generating opcodes with sequence elements displacement detection (new opcodes tags: move and moved).
• API for comparing and generating diff for text inputs.
• CLI for using package as a tool for comparing files.
• Simple Standalone GUI application for comparing text contents.

Links

• PyPI
• GitHub

Requirements

• Python 3.8+

Installation

For plain python package (no additional dependencies):

pip install mdiff

For additional CLI tool and GUI functionalities (uses external packages such as colorama, or Typer):

pip install mdiff[cli]

Examples

Generating opcodes for input sequences:

from mdiff import HeckelSequenceMatcher

a = ['line1', 'line2', 'line3', 'line4', 'line5']
b = ['line1', 'line3', 'line2', 'line4', 'line6']
sm = HeckelSequenceMatcher(a, b)
opcodes = sm.get_opcodes()
for opcode in opcodes:
    print(opcode)

OpCode('equal', 0, 1, 0, 1)
OpCode('move', 1, 2, 2, 2)
OpCode('equal', 2, 3, 1, 2)
OpCode('moved', 1, 1, 2, 3)
OpCode('equal', 3, 4, 3, 4)
OpCode('replace', 4, 5, 4, 5)

Extracting changes from input sequences using opcodes:

...
for tag, i1, i2, j1, j2 in opcodes:
    print('{:7}   a[{}:{}] --> b[{}:{}] {!r:>8} --> {!r}'.format(tag, i1, i2, j1, j2, a[i1:i2], b[j1:j2]))

equal     a[0:1] --> b[0:1]  ['line1'] --> ['line1']
move      a[1:2] --> b[2:2]  ['line2'] --> []
equal     a[2:3] --> b[1:2]  ['line3'] --> ['line3']
moved     a[1:1] --> b[2:3]         [] --> ['line2']
equal     a[3:4] --> b[3:4]  ['line4'] --> ['line4']
replace   a[4:5] --> b[4:5]  ['line5'] --> ['line6']

Generating and printing diff for input strings:

from mdiff import diff_lines_with_similarities, CompositeOpCode

a = 'line1\nline2\nline3\nline4\nline5'
b = 'line1\nline3\nline2\nline4\nline6'
a_lines, b_lines, opcodes = diff_lines_with_similarities(a, b, cutoff=0.75)

for opcode in opcodes:
    tag, i1, i2, j1, j2 = opcode
    print('{:7}   a_lines[{}:{}] --> b_lines[{}:{}] {!r:>10} --> {!r}'.
          format(tag, i1, i2, j1, j2, a_lines[i1:i2], b_lines[j1:j2]))
    if isinstance(opcode, CompositeOpCode) and opcode.children_opcodes:
        for ltag, li1, li2, lj1, lj2 in opcode.children_opcodes:
            print('\t{:7}   a_lines[{}][{}:{}] --> b_lines[{}][{}:{}] {!r:>10} --> {!r}'
                  .format(ltag, i1, li1, li2, j1, lj1, lj2, a_lines[i1][li1:li2], b_lines[j1][lj1:lj2]))

equal     a_lines[0:1] --> b_lines[0:1]  ['line1'] --> ['line1']
move      a_lines[1:2] --> b_lines[2:2]  ['line2'] --> []
equal     a_lines[2:3] --> b_lines[1:2]  ['line3'] --> ['line3']
moved     a_lines[1:1] --> b_lines[2:3]         [] --> ['line2']
equal     a_lines[3:4] --> b_lines[3:4]  ['line4'] --> ['line4']
replace   a_lines[4:5] --> b_lines[4:5]  ['line5'] --> ['line6']
	equal     a_lines[4][0:4] --> b_lines[4][0:4]     'line' --> 'line'
	replace   a_lines[4][4:5] --> b_lines[4][4:5]        '5' --> '6'

Indented tags shows in-line differences, in this case line5 and line6 strings have the only difference at last character.

API

General idea is to provide new SequenceMatcher object that's compatible with built-in difflib.SequenceMatcher class, so they can be used interchangeably to generate opcodes.

HeckelSequenceMatcher

HeckelSequenceMatcher is a class for comparing pairs of sequences of any type, as long as sequences are comparable and hashable. Unlike builtin difflib.SequenceMatcher, it detects and marks elements displacement between sequences. This class provides get_opcodes() method which returns Sequence of opcodes with differences between sequences, similar as difflib.SequenceMatcher.get_opcodes() does, but with additional move and moved tags for displaced elements.

HeckelSequenceMatcher implements Paul Heckel's algorithm described in "A Technique for Isolating Differences Between Files" paper, which can be found here.

---

HeckelSequenceMatcher(a: Sequence[Any] = '', b: Sequence[Any] = '', replace_mode=True)

Initialize sequence matcher object, parameters:

• a - source(old) sequence.
• b - target(new) sequence.
• replace_mode - if True: it merges consecutive pairs of insert and delete blocks into replace operation. Remains insert and delete opcodes otherwise.

---

get_opcodes() -> List[OpCode]

Returns list of OpCode objects describing how to turn sequence a into b. OpCode consists of attributes: tag, i1, i2, j1, j2. OpCode can be unpacked as tuple.

Usually the first tuple has i1 == j1 == 0, and remaining tuples have i1 equal to the i2 from the preceding tuple, and, likewise, j1 equal to the previous j2. However, this rule is broken when move and moved tags appears in OpCodes list, due to sequence elements displacement detection.

The tags are strings, with these meanings:

• replace - a[i1:i2] should be replaced by b[j1:j2]
• delete - a[i1:i2] should be deleted. Note that j1==j2 in this case.
• insert - b[j1:j2] should be inserted at a[i1:i1]. Note that i1==i2 in this case.
• equal - a[i1:i2] == b[j1:j2]
• move - a[i1:i2] should be moved to b[j1:j2] position. Note that j1==j2 in this case.
• moved - is opposite tag for move. It's not an operation necessary for turning sequence a into b. It indicates that b[j1:j2] is moved from i1 position (or b[j1:j2] should be moved back to a[i1:i2]). Note that i1==j2 in this case. It can be used for sequence elements movement visualisation.

---

DisplacementSequenceMatcher

DisplacementSequenceMatcher is a variation of HeckelSequenceMatcher class. The algorithm keeps tracking of every sequence element occurrence, which might give better result when both sequences have common unique elements. It tries to detect all sequences elements displacements, where HeckelSequenceMatcher might sometimes treat displaced elements as delete/insert. This SequenceMatcher class might be useful when finding all sequences displacements is crucial , however for ordinary text sequences it might produce human-unreadable diff.

This object has the same methods as HeckelSequenceMatcher

---

Generating text diff

diff_lines_with_similarities(...)

This function takes two input text sequences, turns them into lists of lines, generates opcodes for those lines and tries to find single characters differences in similar lines.

Parameters:

• a: str - source text.
• b: str - target text.
• cutoff: float = 0.75 - value in range [0:1], where 0.0 means that lines are completely different and 1.0 means that lines are exactly the same. Line similarity cutoff is used to determine if sub opcodes for similar lines should be generated. If cutoff == 1, then in-line diff won't be generated.
• line_sm: SequenceMatcherBase = None - SequenceMatcher object used to find differences between input texts lines. HeckelSequenceMatcher() will be used if not specified.
• inline_sm: SequenceMatcherBase = None - SequenceMatcher object used to find differences between similar lines (i.e. using difflib.SequenceMatcher when in-line diff displacement detection is not desirable). difflib.SequenceMatcher() will be used if not specified.
• keepends = False - Whether to keep newline characters when splitting input sequences.
• case_sensitive = True - Whether to perform string case-sensitive comparison when generating diff.

Returns a tuple (a_lines: List[str], b_lines: List[str], opcodes: List[CompositeOpCode]) where:

• a_lines - is list of lines from a input text sequence.
• b_lines - is list of lines from b input text sequence.
• opcodes - is list of CompositeOpCode which behave the same way as OpCode (has tag i1 i2 j1 j2 fields and can be unpacked), but has additional children_opcodes which stores list of nested opcodes with SequenceMatcher result for similar lines. List is empty if lines were not similar enough. (note that similar lines opcodes are generated only for replace tags, so children_opcodes list will be empty for every other tag).

---

CLI Tool

mdiff also provides CLI tool (available only if installed using pip install mdiff[cli]). For more information type mdiff --help

Usage: mdiff [OPTIONS] SOURCE_FILE TARGET_FILE

  Reads 2 files from provided paths, compares their content and prints diff.
  If compared lines in text files are similar enough (exceed cutoff) then
  extracts in-line diff.

  There are few possible strategies to choose to use independently in line-
  level and in-line-level diff:

      standard: uses built in python SequenceMatcher object to generate diff,
      elements movement detection not supported.

      heckel: detects elements movement in a human-readable form, might not
      catch all of moves and differences.

      displacement: detects all differences and movements, might not be very
      useful when both input files contains     many common lines (for example
      many empty newlines).

Arguments:
  SOURCE_FILE  Source file path to compare.  [required]
  TARGET_FILE  Target file path to compare.  [required]

Options:
  --line-sm [standard|heckel|displacement]
                                  Choose sequence matching method to detect
                                  differences between lines.  [default:
                                  heckel]
  --inline-sm [standard|heckel|displacement]
                                  Choose sequence matching method to detect
                                  in-line differences between similar lines.
                                  [default: heckel]
  --cutoff FLOAT RANGE            Line similarity ratio cutoff. If value
                                  exceeded then finds in-line differences in
                                  similar lines.  [default: 0.75; 0.0<=x<=1.0]
  --gui / --no-gui                Open GUI window with diff result.  [default:
                                  no-gui]
  --case-sensitive / --no-case-sensitive
                                  Whether diff is going to be case sensitive.
                                  [default: case-sensitive]
  --char-mode [utf8|ascii]        Terminal character set used when printing
                                  diff result.  [default: utf8]
  --color-mode [fore|back]        Terminal color mode used when printing diff
                                  result.  [default: fore]
  --install-completion [bash|zsh|fish|powershell|pwsh]
                                  Install completion for the specified shell.
  --show-completion [bash|zsh|fish|powershell|pwsh]
                                  Show completion for the specified shell, to
                                  copy it or customize the installation.
  --help                          Show this message and exit.

Example

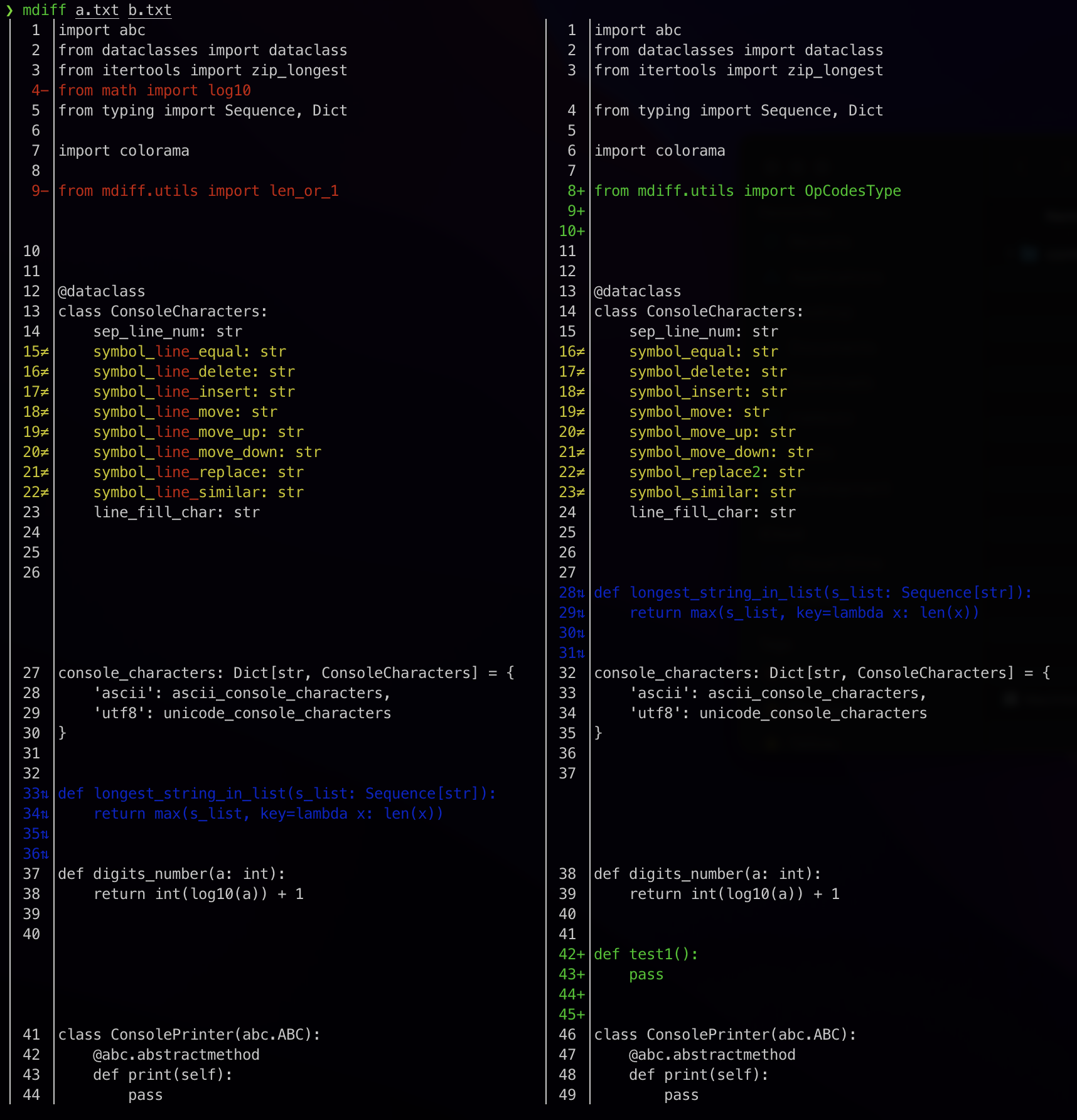

Sample output for mdiff a.txt b.txt command:

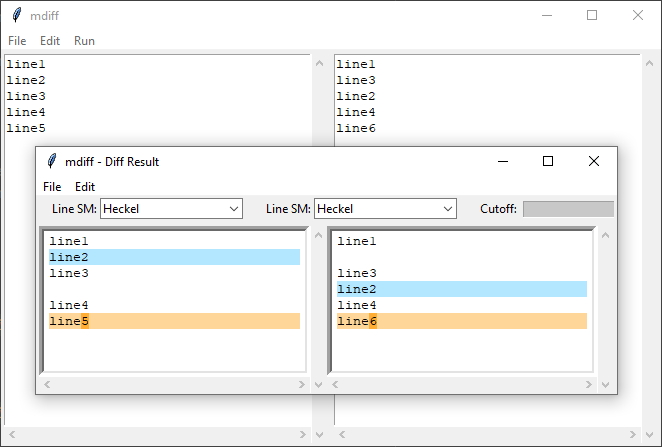

Showing result in GUI mdiff a.txt b.txt --gui:

Standalone GUI application

Standalone app provides simple text editor, which allows generating diff based on user input.

Use mdiff-gui command to launch GUI application in interpreter mode, or use precompiled version from here.

Building Standalone GUI application

GUI application can be built directly from source by typing below commands:

> pip install -r requirements.txt
> ./pyinstaler_start.sh
