miceforest 6.0.3

Multiple Imputation by Chained Equations with LightGBM

miceforest: Fast, Memory Efficient Imputation with LightGBM

Fast, memory efficient Multiple Imputation by Chained Equations (MICE) with lightgbm. The R version of this package may be found here.

miceforest was designed to be:

• Fast
  • Uses lightgbm as a backend
  • Has efficient mean matching solutions.
  • Can utilize GPU training
• Flexible
  • Can impute pandas dataframes
  • Handles categorical data automatically
  • Fits into a sklearn pipeline
  • User can customize every aspect of the imputation process
• Production Ready
  • Can impute new, unseen datasets quickly
  • Kernels are efficiently compressed during saving and loading
  • Data can be imputed in place to save memory
  • Can build models on non-missing data

This document contains a thorough walkthrough of the package, benchmarks, and an introduction to multiple imputation. More information on MICE can be found in Stef van Buuren’s excellent online book, which you can find here.

Table of Contents:

• Classes
• Basic Usage
  • Example
  • Customizing LightGBM Parameters
  • Available Mean Match Schemes
  • Imputing New Data with Existing Models
  • Saving and Loading Kernels
  • Implementing sklearn Pipelines
• Advanced Features
  • Building Models on Nonmissing Data
  • Tuning Parameters
  • On Reproducibility
  • How to Make the Process Faster
  • Imputing Data In Place
• Diagnostic Plotting
  • Feature Importance
  • Imputed Distributions
• Using the Imputed Data
• The MICE Algorithm
  • Introduction
  • Common Use Cases
  • Predictive Mean Matching
  • Effects of Mean Matching

Installation

This package can be installed using either pip or conda, through conda-forge:

# Using pip
$ pip install miceforest --no-cache-dir

# Using conda
$ conda install -c conda-forge miceforest

You can also download the latest development version from this repository. If you want to install from github with conda, you must first run conda install pip git.

$ pip install git+https://github.com/AnotherSamWilson/miceforest.git

Classes

miceforest has 2 main classes which the user will interact with:

• ImputationKernel
  • This class contains the raw data off of which the mice algorithm is performed. During this process, models will be trained, and the imputed (predicted) values will be stored. These values can be used to fill in the missing values of the raw data. The raw data can be copied, or referenced directly. Models can be saved, and used to impute new datasets.
• ImputedData
  • The result of ImputationKernel.impute_new_data(new_data). This contains the raw data in new_data as well as the imputed values.

Basic Usage

We will be looking at a few simple examples of imputation. We need to load the packages, and define the data:

import miceforest as mf
from sklearn.datasets import load_iris
import pandas as pd
import numpy as np

# Load data and introduce missing values
iris = pd.concat(load_iris(as_frame=True,return_X_y=True),axis=1)
iris.rename({"target": "species"}, inplace=True, axis=1)
iris['species'] = iris['species'].astype('category')
iris_amp = mf.ampute_data(iris,perc=0.25,random_state=1991)

If you only want to create a single imputed dataset, you can use ImputationKernel with some default settings:

# Create kernel.
kds = mf.ImputationKernel(
  iris_amp,
  random_state=1991
)

# Run the MICE algorithm for 2 iterations
kds.mice(2)

# Return the completed dataset.
iris_complete = kds.complete_data()

There are also an array of plotting functions available, these are discussed below in the section Diagnostic Plotting.

We usually don’t want to impute just a single dataset. In statistics, multiple imputation is a process by which the uncertainty/other effects caused by missing values can be examined by creating multiple different imputed datasets. ImputationKernel can contain an arbitrary number of different datasets, all of which have gone through mutually exclusive imputation processes:

# Create kernel.
kernel = mf.ImputationKernel(
  iris_amp,
  num_datasets=4,
  random_state=1
)

# Run the MICE algorithm for 2 iterations on each of the datasets
kernel.mice(2)

# Printing the kernel will show you some high level information.
print(kernel)

              Class: ImputationKernel
            Datasets: 4
          Iterations: 2
        Data Samples: 150
        Data Columns: 5
   Imputed Variables: 5
   Modeled Variables: 5
All Iterations Saved: True

After we have run mice, we can obtain our completed dataset directly from the kernel:

completed_dataset = kernel.complete_data(dataset=2)
print(completed_dataset.isnull().sum(0))

sepal length (cm)    0
sepal width (cm)     0
petal length (cm)    0
petal width (cm)     0
species              0
dtype: int64

Customizing LightGBM Parameters

Parameters can be passed directly to lightgbm in several different ways. Parameters you wish to apply globally to every model can simply be passed as kwargs to mice:

# Run the MICE algorithm for 1 more iteration on the kernel with new parameters
kernel.mice(iterations=1, n_estimators=50)

You can also pass pass variable-specific arguments to variable_parameters in mice. For instance, let’s say you noticed the imputation of the [species] column was taking a little longer, because it is multiclass. You could decrease the n_estimators specifically for that column with:

# Run the MICE algorithm for 2 more iterations on the kernel
kernel.mice(
  iterations=1,
  variable_parameters={'species': {'n_estimators': 25}},
  n_estimators=50
)

# Let's get the actual models for these variables:
species_model = kernel.get_model(dataset=0,variable="species")
sepalwidth_model = kernel.get_model(dataset=0,variable="sepal width (cm)")

print(
f"""Species used {str(species_model.params["num_iterations"])} iterations
Sepal Width used {str(sepalwidth_model.params["num_iterations"])} iterations
"""
)

Species used 25 iterations
Sepal Width used 50 iterations

In this scenario, any parameters specified in variable_parameters takes presidence over the kwargs.

Since we can pass any parameters we want to LightGBM, we can completely customize how our models are built. That includes how the data should be modeled. If your data contains count data, or any other data which can be parameterized by lightgbm, you can simply specify that variable to be modeled with the corresponding objective function.

For example, let’s pretend sepal width (cm) is a count field which can be parameterized by a Poisson distribution. Let’s also change our boosting method to gradient boosted trees:

# Create kernel.
cust_kernel = mf.ImputationKernel(
  iris_amp,
  num_datasets=1,
  random_state=1
)

cust_kernel.mice(
  iterations=1,
  variable_parameters={'sepal width (cm)': {'objective': 'poisson'}},
  boosting = 'gbdt',
  min_sum_hessian_in_leaf=0.01
)

Other nice parameters like monotone_constraints can also be passed. Setting the parameter device: 'gpu' will utilize GPU learning, if LightGBM is set up to do this on your machine.

Adjusting The Mean Matching Scheme

Note: It is probably a good idea to read this section first, to get some context on how mean matching works.

There are 4 imputation strategies employed by miceforest:

• Fast Mean Matching: Available only on binary and categorical variables. Chooses a class randomly based on the predicted probabilities output by lightgbm.
• Normal Mean Matching: Employs mean matching as described in the section below.
• Shap Mean Matching: Runs a nearest neighbor search on the shap values of the bachelor predictions in the shap values of the candidate predictions. Finds the mean_match_candidates nearest neighbors, and chooses one randomly as the imputation value.
• Value Imputation: Uses the value output by lightgbm as the imputation value. Skips mean matching entirely. To use, set mean_match_candidates = 0.

Here is the code required to use each method:

# Create kernel.
cust_kernel = mf.ImputationKernel(
  iris_amp,
  num_datasets=1,
  random_state=1,
  mean_match_strategy={
      'sepal length (cm)': 'normal',
      'sepal width (cm)': 'shap',
      'species': 'fast',
  },
  mean_match_candidates={
      'petal length (cm)': 0,
      }
)

cust_kernel.mice(
  iterations=1,
)

Imputing New Data with Existing Models

Multiple Imputation can take a long time. If you wish to impute a dataset using the MICE algorithm, but don’t have time to train new models, it is possible to impute new datasets using a ImputationKernel object. The impute_new_data() function uses the models collected by ImputationKernel to perform multiple imputation without updating the models at each iteration:

# Our 'new data' is just the first 15 rows of iris_amp
from datetime import datetime

# Define our new data as the first 15 rows
new_data = iris_amp.iloc[range(15)].reset_index(drop=True)

start_t = datetime.now()
new_data_imputed = cust_kernel.impute_new_data(new_data=new_data)
print(f"New Data imputed in {(datetime.now() - start_t).total_seconds()} seconds")

New Data imputed in 0.040396 seconds

Saving and Loading Kernels

Saving miceforest kernels is efficient. During the pickling process, the following steps are taken:

1. Convert working data to parquet bytes.
2. Serialize the kernel.
3. Save to a file.

You can save and load the kernel like any other object using pickle or dill:

from tempfile import mkstemp
import dill
new_file, filename = mkstemp()

with open(filename, "wb") as f:
    dill.dump(kernel, f)

with open(filename, "rb") as f:
    kernel_from_pickle = dill.load(f)

Implementing sklearn Pipelines

miceforest kernels can be fit into sklearn pipelines to impute training and scoring datasets:

import numpy as np
from sklearn.preprocessing import StandardScaler
from sklearn.datasets import make_classification
from sklearn.model_selection import train_test_split
from sklearn.pipeline import Pipeline
import miceforest as mf

kernel = mf.ImputationKernel(iris_amp, num_datasets=1, random_state=1)

pipe = Pipeline([
    ('impute', kernel),
    ('scaler', StandardScaler()),
])

# The pipeline can be used as any other estimator
# and avoids leaking the test set into the train set
X_train_t = pipe.fit_transform(
    X=iris_amp,
    y=None,
    impute__iterations=2
)
X_test_t = pipe.transform(new_data)

# Show that neither now have missing values.
assert not np.any(np.isnan(X_train_t))
assert not np.any(np.isnan(X_test_t))

Advanced Features

Building Models on Nonmissing Data

The MICE process itself is used to impute missing data in a dataset. However, sometimes a variable can be fully recognized in the training data, but needs to be imputed later on in a different dataset. It is possible to train models to impute variables even if they have no missing values by specifying them in the variable_schema parameter. In this case, variable_schema is treated as the list of variables to train models on.

# Set petal length (cm) in our amputed data
# to original values with no missing data.
iris_amp['sepal width (cm)'] = iris['sepal width (cm)'].copy()
iris_amp.isnull().sum()

sepal length (cm)    37
sepal width (cm)      0
petal length (cm)    37
petal width (cm)     37
species              37
dtype: int64

kernel = mf.ImputationKernel(
    data=iris_amp,
    variable_schema=iris_amp.columns.to_list(),
    num_datasets=1,
    random_state=1,
)
kernel.mice(1)

# Remember, the dataset we are imputing does have
# missing values in the sepal width (cm) column
new_data.isnull().sum()

sepal length (cm)    4
sepal width (cm)     3
petal length (cm)    1
petal width (cm)     3
species              3
dtype: int64

new_data_imp = kernel.impute_new_data(new_data)
new_data_imp = new_data_imp.complete_data()

# All columns have been imputed.
new_data_imp.isnull().sum()

sepal length (cm)    0
sepal width (cm)     0
petal length (cm)    0
petal width (cm)     0
species              0
dtype: int64

Tuning Parameters

miceforest allows you to tune the parameters on a kernel dataset. These parameters can then be used to build the models in future iterations of mice. In its most simple invocation, you can just call the function with the desired optimization steps:

optimal_params = kernel.tune_parameters(
    dataset=0,
    use_gbdt=True,
    num_iterations=500,
    random_state=1,
)
kernel.mice(1, variable_parameters=optimal_params)
pd.DataFrame(optimal_params)

	sepal length (cm)	petal length (cm)	petal width (cm)	species
boosting	gbdt	gbdt	gbdt	gbdt
data_sample_strategy	bagging	bagging	bagging	bagging
num_iterations	142	248	262	172
max_depth	4	4	5	5
num_leaves	12	17	2	19
min_data_in_leaf	2	2	15	5
min_sum_hessian_in_leaf	0.1	0.1	0.1	0.1
min_gain_to_split	0.0	0.0	0.0	0.0
bagging_fraction	0.580973	0.501521	0.586709	0.795465
feature_fraction_bynode	0.922566	0.299912	0.503182	0.237637
bagging_freq	1	1	1	1
verbosity	-1	-1	-1	-1
learning_rate	0.02	0.02	0.02	0.02
objective	regression	regression	regression	multiclass
num_class	NaN	NaN	NaN	3

This will perform 10 fold cross validation on random samples of parameters. By default, all variables models are tuned.

The parameter tuning is pretty flexible. If you wish to set some model parameters static, or to change the bounds that are searched in, you can simply pass this information to either the variable_parameters parameter, **kwbounds, or both:

optimal_params = kernel.tune_parameters(
  dataset=0,
  variables = ['sepal width (cm)','species','petal width (cm)'],
  variable_parameters = {
    'sepal width (cm)': {'bagging_fraction': 0.5},
    'species': {'bagging_freq': (5,10)}
  },
  use_gbdt=True,
  optimization_steps=5,
  extra_trees = [True, False]
)

kernel.mice(1, variable_parameters=optimal_params)

In this example, we did a few things - we specified that only sepal width (cm), species, and petal width (cm) should be tuned. We also specified some specific parameters in variable_parameters. Notice that bagging_fraction was passed as a scalar, 0.5. This means that, for the variable sepal width (cm), the parameter bagging_fraction will be set as that number and not be tuned. We did the opposite for bagging_freq. We specified bounds that the process should search in. We also passed the argument extra_trees as a list. Since it was passed to **kwbounds, this parameter will apply to all variables that are being tuned. Passing values as a list tells the process that it should randomly sample values from the list, instead of treating them as set of counts to search within.

Additionally, we set use_gbdt=True. This switches the process to use gradient boosted trees, instead of random forests. Typically, gradient boosted trees will perform better. The optimal num_iterations is also determined by early stopping in cross validation.

The tuning process follows these rules for different parameter values it finds:

• Scalar: That value is used, and not tuned.
• Tuple: Should be length 2. Treated as the lower and upper bound to search in.
• List: Treated as a distinct list of values to try randomly.

On Reproducibility

miceforest allows for different “levels” of reproducibility, global and record-level.

Global Reproducibility

Global reproducibility ensures that the same values will be imputed if the same code is run multiple times. To ensure global reproducibility, all the user needs to do is set a random_state when the kernel is initialized.

Record-Level Reproducibility

Sometimes we want to obtain reproducible imputations at the record level, without having to pass the same dataset. This is possible by passing a list of record-specific seeds to the random_seed_array parameter. This is useful if imputing new data multiple times, and you would like imputations for each row to match each time it is imputed.

# Define seeds for the data, and impute iris
import numpy as np
random_seed_array = np.random.randint(0, 9999, size=iris_amp.shape[0], dtype='uint32')
iris_imputed = kernel.impute_new_data(
    iris_amp,
    random_state=4,
    random_seed_array=random_seed_array
)

# Select a random sample
new_inds = np.random.choice(150, size=15)
new_data = iris_amp.loc[new_inds].reset_index(drop=True)
new_seeds = random_seed_array[new_inds]
new_imputed = kernel.impute_new_data(
    new_data,
    random_state=4,
    random_seed_array=new_seeds
)

# We imputed the same values for the 15 values each time,
# because each record was associated with the same seed.
assert new_imputed.complete_data(0).equals(
    iris_imputed.complete_data(0).loc[new_inds].reset_index(drop=True)
)

How to Make the Process Faster

Multiple Imputation is one of the most robust ways to handle missing data - but it can take a long time. There are several strategies you can use to decrease the time a process takes to run:

• Decrease data_subset. By default all non-missing datapoints for each variable are used to train the model and perform mean matching. This can cause the model training nearest-neighbors search to take a long time for large data. A subset of these points can be searched instead by using data_subset.
• If categorical columns are taking a long time, you can set mean_match_strategy="fast". You can also set different parameters specifically for categorical columns, like smaller bagging_fraction or num_iterations, or try grouping the categories before they are imputed. Model training time for categorical variables is linear with the number of distinct categories.
• Decrease mean_match_candidates. The maximum number of neighbors that are considered with the default parameters is 10. However, for large datasets, this can still be an expensive operation. Consider explicitly setting mean_match_candidates lower. Setting mean_match_candidates=0 will skip mean matching entirely, and just use the lightgbm predictions as the imputation values.
• Use different lightgbm parameters. lightgbm is usually not the problem, however if a certain variable has a large number of classes, then the max number of trees actually grown is (# classes) * (n_estimators). You can specifically decrease the bagging fraction or n_estimators for large multi-class variables, or grow less trees in general.

Imputing Data In Place

It is possible to run the entire process without copying the dataset. If copy_data=False, then the data is referenced directly:

kernel_inplace = mf.ImputationKernel(
  iris_amp,
  num_datasets=1,
  copy_data=False,
  random_state=1,
)
kernel_inplace.mice(2)

Note, that this probably won’t (but could) change the original dataset in undesirable ways. Throughout the mice procedure, imputed values are stored directly in the original data. At the end, the missing values are put back as np.NaN.

We can also complete our original data in place. This is useful if the dataset is large, and copies can’t be made in memory:

kernel_inplace.complete_data(dataset=0, inplace=True)
print(iris_amp.isnull().sum(0))

sepal length (cm)    0
sepal width (cm)     0
petal length (cm)    0
petal width (cm)     0
species              0
dtype: int64

Diagnostic Plotting

As of now, there are 2 diagnostic plot available. More coming soon!

Feature Importance

kernel.plot_feature_importance(dataset=0)

Plot Imputed Distributions

kernel.plot_imputed_distributions()

Using the Imputed Data

To return the imputed data simply use the complete_data method:

dataset_1 = kernel.complete_data(0)

This will return a single specified dataset. Multiple datasets are typically created so that some measure of confidence around each prediction can be created.

Since we know what the original data looked like, we can cheat and see how well the imputations compare to the original data:

acclist = []
iterations = kernel.iteration_count()+1
for iteration in range(iterations):
    species_na_count = kernel.na_counts['species']
    compdat = kernel.complete_data(dataset=0,iteration=iteration)

    # Record the accuract of the imputations of species.
    acclist.append(
      round(1-sum(compdat['species'] != iris['species'])/species_na_count,2)
    )

# acclist shows the accuracy of the imputations over the iterations.
acclist = pd.Series(acclist).rename("Species Imputation Accuracy")
acclist.index = range(iterations)
acclist.index.name = "Iteration"
acclist

Iteration
0    0.35
1    0.81
2    0.81
3    0.78
Name: Species Imputation Accuracy, dtype: float64

In this instance, we went from a low accuracy (what is expected with random sampling) to a much higher accuracy.

The MICE Algorithm

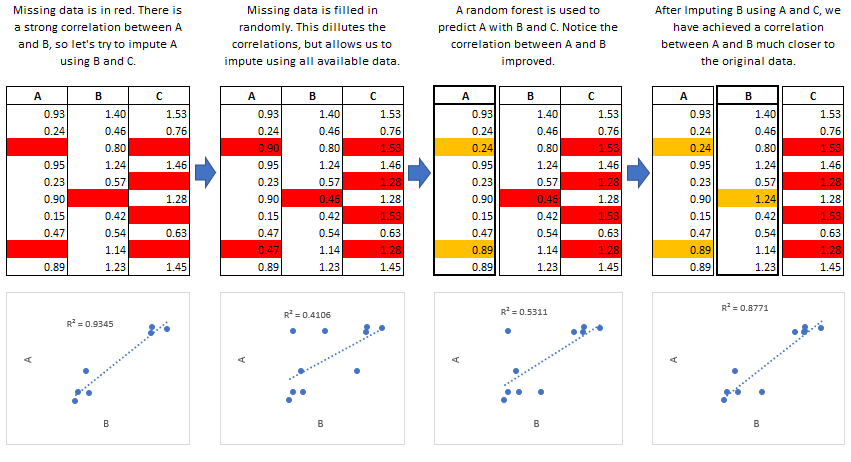

Multiple Imputation by Chained Equations ‘fills in’ (imputes) missing data in a dataset through an iterative series of predictive models. In each iteration, each specified variable in the dataset is imputed using the other variables in the dataset. These iterations should be run until it appears that convergence has been met.

This process is continued until all specified variables have been imputed. Additional iterations can be run if it appears that the average imputed values have not converged, although no more than 5 iterations are usually necessary.

Common Use Cases

Data Leakage:

MICE is particularly useful if missing values are associated with the target variable in a way that introduces leakage. For instance, let’s say you wanted to model customer retention at the time of sign up. A certain variable is collected at sign up or 1 month after sign up. The absence of that variable is a data leak, since it tells you that the customer did not retain for 1 month.

Funnel Analysis:

Information is often collected at different stages of a ‘funnel’. MICE can be used to make educated guesses about the characteristics of entities at different points in a funnel.

Confidence Intervals:

MICE can be used to impute missing values, however it is important to keep in mind that these imputed values are a prediction. Creating multiple datasets with different imputed values allows you to do two types of inference:

• Imputed Value Distribution: A profile can be built for each imputed value, allowing you to make statements about the likely distribution of that value.
• Model Prediction Distribution: With multiple datasets, you can build multiple models and create a distribution of predictions for each sample. Those samples with imputed values which were not able to be imputed with much confidence would have a larger variance in their predictions.

Predictive Mean Matching

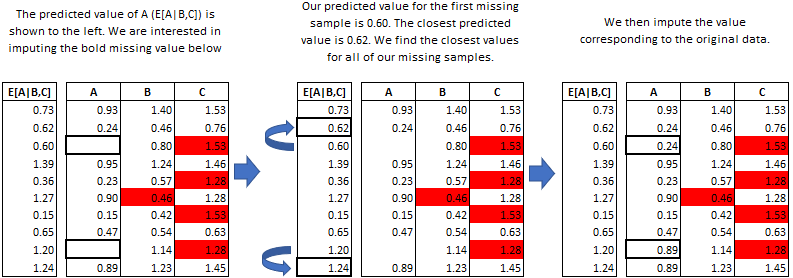

miceforest can make use of a procedure called predictive mean matching (PMM) to select which values are imputed. PMM involves selecting a datapoint from the original, nonmissing data (candidates) which has a predicted value close to the predicted value of the missing sample (bachelors). The closest N (mean_match_candidates parameter) values are selected, from which a value is chosen at random. This can be specified on a column-by-column basis. Going into more detail from our example above, we see how this works in practice:

This method is very useful if you have a variable which needs imputing which has any of the following characteristics:

• Multimodal
• Integer
• Skewed

Effects of Mean Matching

As an example, let’s construct a dataset with some of the above characteristics:

randst = np.random.RandomState(1991)
# random uniform variable
nrws = 1000
uniform_vec = randst.uniform(size=nrws)

def make_bimodal(mean1,mean2,size):
    bimodal_1 = randst.normal(size=nrws, loc=mean1)
    bimodal_2 = randst.normal(size=nrws, loc=mean2)
    bimdvec = []
    for i in range(size):
        bimdvec.append(randst.choice([bimodal_1[i], bimodal_2[i]]))
    return np.array(bimdvec)

# Make 2 Bimodal Variables
close_bimodal_vec = make_bimodal(2,-2,nrws)
far_bimodal_vec = make_bimodal(3,-3,nrws)


# Highly skewed variable correlated with Uniform_Variable
skewed_vec = np.exp(uniform_vec*randst.uniform(size=nrws)*3) + randst.uniform(size=nrws)*3

# Integer variable correlated with Close_Bimodal_Variable and Uniform_Variable
integer_vec = np.round(uniform_vec + close_bimodal_vec/3 + randst.uniform(size=nrws)*2)

# Make a DataFrame
dat = pd.DataFrame(
    {
    'uniform_var':uniform_vec,
    'close_bimodal_var':close_bimodal_vec,
    'far_bimodal_var':far_bimodal_vec,
    'skewed_var':skewed_vec,
    'integer_var':integer_vec
    }
)

# Ampute the data.
ampdat = mf.ampute_data(dat,perc=0.25,random_state=randst)

import plotnine as p9
import itertools

def plot_matrix(df, columns):
    pdf = []
    for a1, b1 in itertools.combinations(columns, 2):
        for (a,b) in ((a1, b1), (b1, a1)):
            sub = df[[a, b]].rename(columns={a: "x", b: "y"}).assign(a=a, b=b)
            pdf.append(sub)

    g = (
        p9.ggplot(pd.concat(pdf))
            + p9.geom_point(p9.aes('x','y'))
            + p9.facet_grid('b~a', scales='free')
            + p9.theme(figure_size=(7, 7))
            + p9.xlab("") + p9.ylab("")
    )
    return g

plot_matrix(dat, dat.columns)

We can see how our variables are distributed and correlated in the graph above. Now let’s run our imputation process twice, once using mean matching, and once using the model prediction.

kernel_mean_match = mf.ImputationKernel(
    data=ampdat,
    num_datasets=3,
    mean_match_candidates=5,
    random_state=1
)
kernel_mean_match.mice(2)
kernel_no_mean_match = mf.ImputationKernel(
    data=ampdat,
    num_datasets=3,
    mean_match_candidates=0,
    random_state=1
)
kernel_no_mean_match.mice(2)

kernel_mean_match.plot_imputed_distributions()

kernel_no_mean_match.plot_imputed_distributions()

You can see the effects that mean matching has, depending on the distribution of the data. Simply returning the value from the model prediction, while it may provide a better ‘fit’, will not provide imputations with a similair distribution to the original. This may be beneficial, depending on your goal.
