mkdoxy 1.0.1

MkDoxy → MkDocs + Doxygen. Easy documentation generator with code snippets.

MkDoxy

MkDoxy → MkDocs + Doxygen. Easy documentation generator with code snippets.

MkDoxy is based on matusnovak/doxybook

This python tool is extension for MkDocs. Extension will take your programme source code and runs Doxygen. Then converts exported XML into markdown and create new folder with full generated documentation. Next usage is by snippets inside documentation markdown.

Online Demo and Demo Source

Requirements

Tools

• python 3.6 or newer → sudo apt install python3
• Pip → sudo apt install python3-pip
• Git → sudo apt install git
• Doxygen → sudo apt install doxygen

Pip

• Jinja2 → pip install jinja2
• Mkdocs → pip install mkdocs
• ruamel.yaml → pip install ruamel.yaml

Optional:

• mkdocs-material → pip install mkdocs-material

Installation

Install using Python Pip: https://pypi.org/project/mkdoxy/

pip install mkdoxy

Or Install manually:

git clone https://github.com/JakubAndrysek/mkdoxy.git
cd mkdoxy
python setup.py install

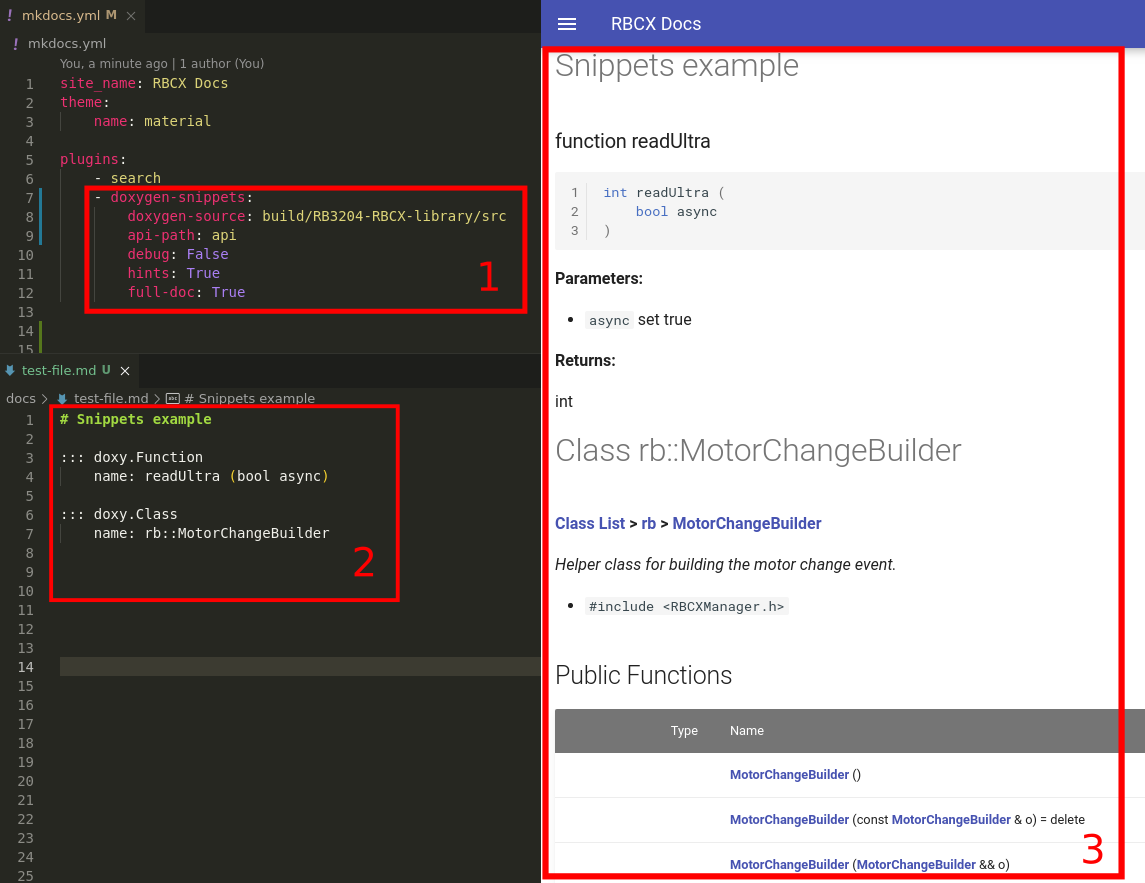

Example usage

1. Generate class with name rb::MotorChangeBuilder

::: doxy.Class
  name: rb::MotorChangeBuilder

2. Generate method brake (MotorId id, uint16_t brakingPower) from class with name rb::MotorChangeBuilderA

::: doxy.Class.Method
  name: rb::MotorChangeBuilder
  method: brake (MotorId id, uint16_t brakingPower)

3. Generate function with name readUltra (bool async)

::: doxy.Function
  name: readUltra (bool async)

4. Generate code snippet from file RBCXLeds.cpp

::: doxy.Code
  file: RBCXLeds.cpp
  start: 21
  end: 35

Mkdocs.yml

plugins:
  - mkdoxy:
      projects:
        apiProject1:
          src-dirs: path/to/src/project1
          full-doc: True
          doxy-cfg:
            FILE_PATTERNS: "*.cpp *.h*"
            EXAMPLE_PATH: examples
            RECURSIVE: True
        apiProject2:
          src-dirs: sw/python-wrapper/
          full-doc: True
          doxy-cfg:
            FILE_PATTERNS: "*.py"
            EXAMPLE_PATH: ""
            RECURSIVE: True
            OPTIMIZE_OUTPUT_JAVA: True
            JAVADOC_AUTOBRIEF: True
            EXTRACT_ALL: True
...
nav:
  - 'Home': 'index.md'
  - API:
      - Project 1:
          - 'Links': 'apiProject1/links.md'
          - 'Classes':
              - 'Class List': 'apiProject1/annotated.md'
              - 'Class Index': 'apiProject1/classes.md'
              - 'Class Hierarchy': 'apiProject1/hierarchy.md'
              - 'Class Members': 'apiProject1/class_members.md'
              - 'Class Member Functions': 'apiProject1/class_member_functions.md'
              - 'Class Member Variables': 'apiProject1/class_member_variables.md'
              - 'Class Member Typedefs': 'apiProject1/class_member_typedefs.md'
              - 'Class Member Enumerations': 'apiProject1/class_member_enums.md'
          - 'Namespaces':
              - 'Namespace List': 'apiProject1/namespaces.md'
              - 'Namespace Members': 'apiProject1/namespace_members.md'
              - 'Namespace Member Functions': 'apiProject1/namespace_member_functions.md'
              - 'Namespace Member Variables': 'apiProject1/namespace_member_variables.md'
              - 'Namespace Member Typedefs': 'apiProject1/namespace_member_typedefs.md'
              - 'Namespace Member Enumerations': 'apiProject1/namespace_member_enums.md'
          - 'Functions': 'apiProject1/functions.md'
          - 'Variables': 'apiProject1/variables.md'
          - 'Macros': 'apiProject1/macros.md'
          - 'Files': 'apiProject1/files.md'
      - Project 2:
...
