MRQy is a quality assurance and checking tool for quantitative assessment of magnetic resonance imaging (MRI) data.

Project description

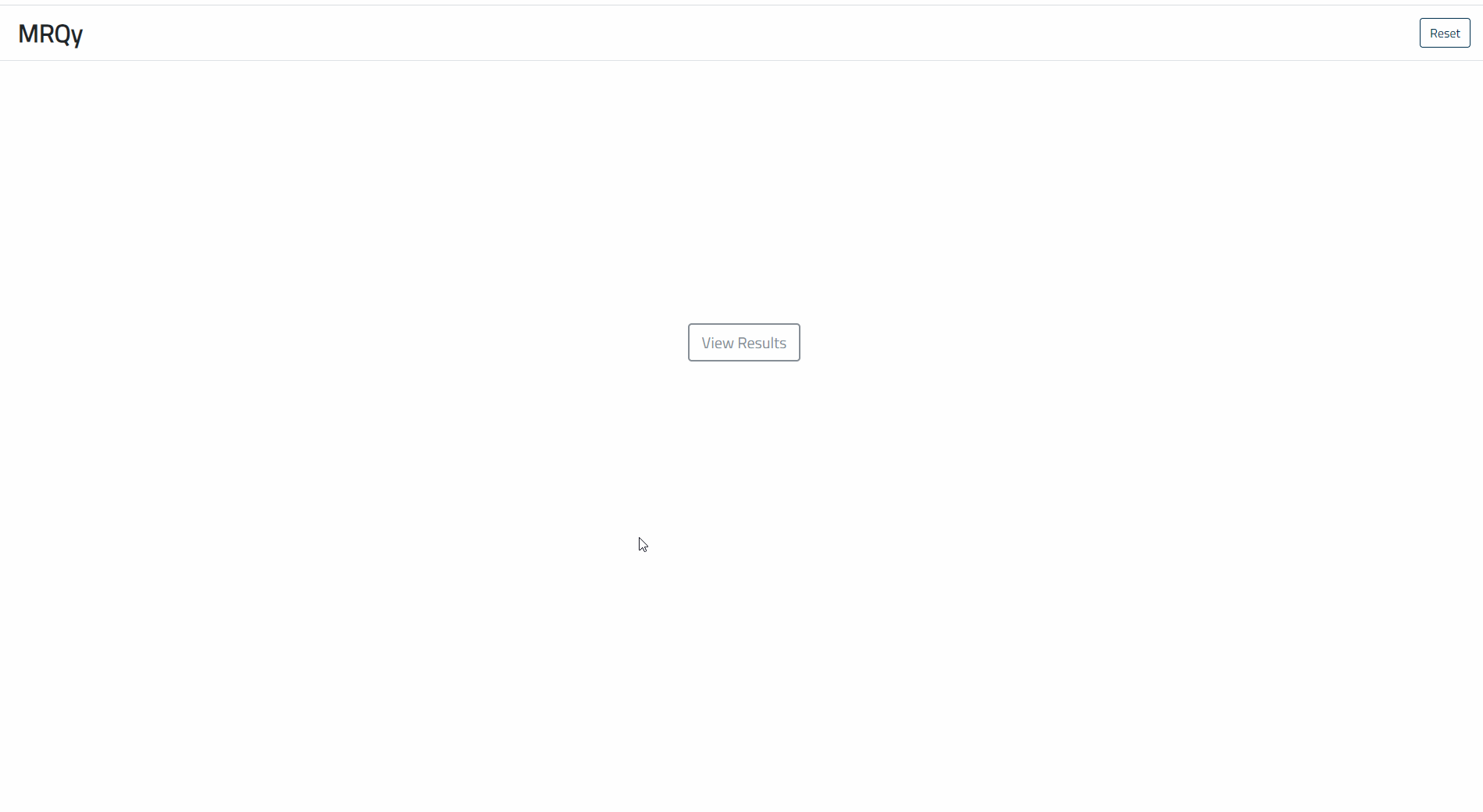

Front-end View

gbm_mrqy

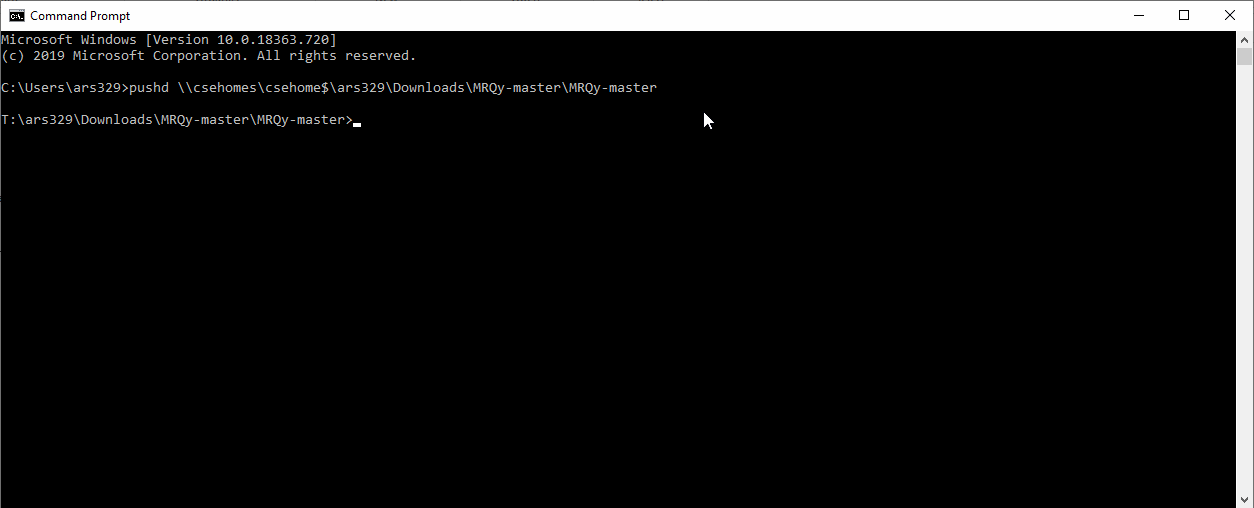

Backend View

gbm_mrqy

Description

This tool takes MRI datasets in the file formats (_.dcm_, _.nii_, _.nii.gz_ or _.mha_) as the input. Two Python scripts (QC.py and QCF.py) are used to generate several tags and noise/information measurements for quality assessment. These scripts save the calculated measures in a _.tsv_ file as well as generate _.png_ thumbnails for all images in a subject volume. These are then fed to _.js_ scripts to create the user interface (index.html) output. A schematic illustrating the framework of the tool is as follows.

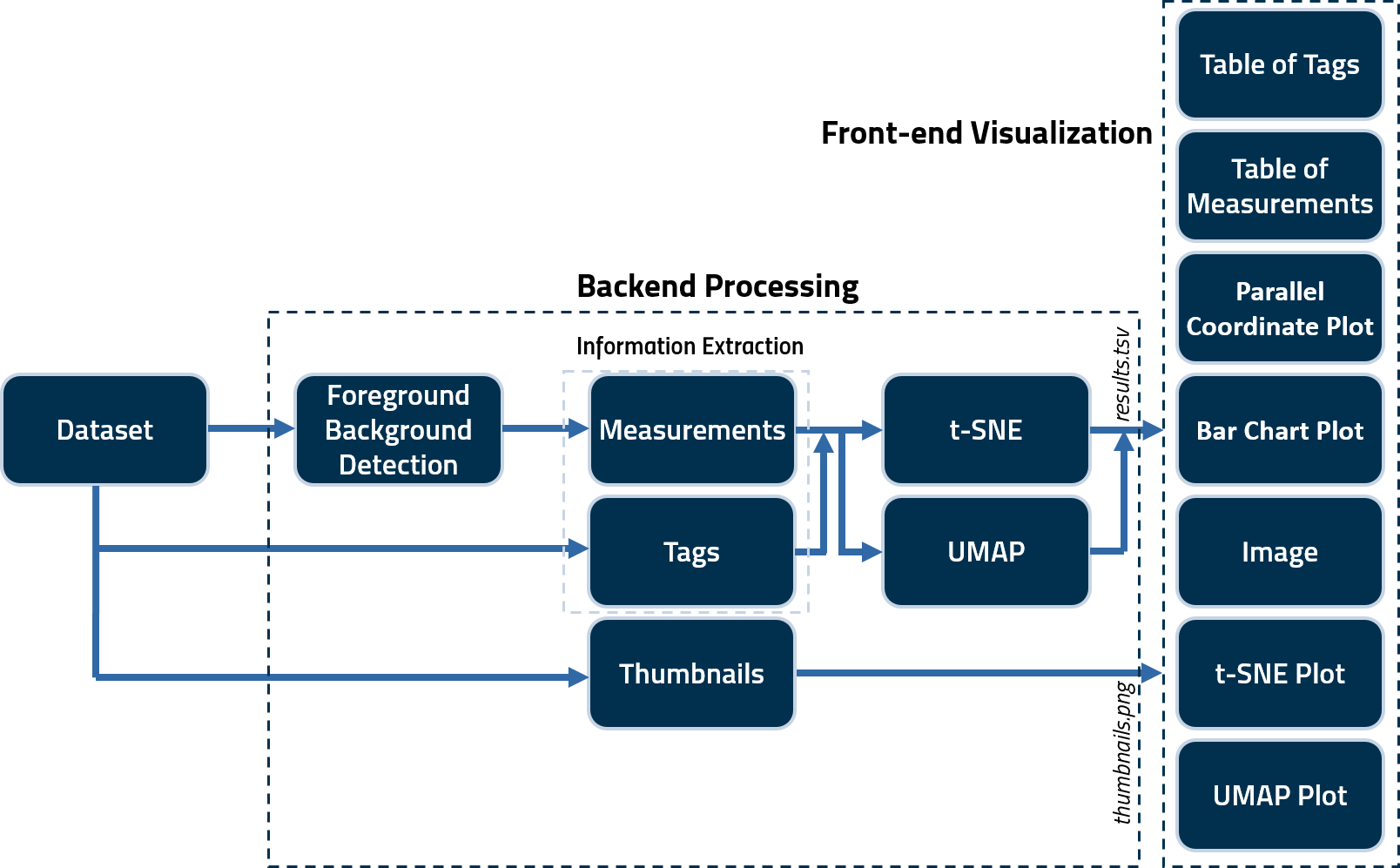

Framework schematic

Prerequisites

The current version of the tool has been tested on the Python 3.6+ You must have pipenv installed on your environment to run MRQy locally. It will pull all the dependencies listed in the diagram.

Dependencies diagram

You can also likely install the python requirements using something like:

pip3 install -r requirements.txt

Running

For local development, test that the code is functional

MRQy % pipenv shell
(mrqy) MRQy% pipenv install .
(mrqy) MRQy% python -m mrqy.QC --help

The output should be

usage: QC.py [-h] output_folder_name [inputdir [inputdir ...]]

positional arguments:
  output_folder_name  the subfolder name on the
                      '...\UserInterface\Data\output_folder_name' directory.
  inputdir            input foldername consists of *.mha (*.nii or *.dcm)
                      files. For example: 'E:\Data\Rectal\input_data_folder'

optional arguments:
  -h, --help          show this help message and exit

Standard usage is to run QC.py output_folder_name “input directory” i.e.

python QC.py output_folder_name "E:\Data\Rectal\RectalCancer_Multisite\input_data_folder"

There is no need to make a subfolder in the Data directory, just specify its name in the command as in the above code. Every action will be printed in the output console. The thumbnail images in the format of _.png_ will be saved in “…UserInterfaceDataoutput_folder_name” with its original filename as the subfolder name. Afterward, double click “index.html” (on e.g. “D:DownloadsMRQy-masterUserInterface”) to open front-end user interface, and select the respective results.tsv file from the correct location e.g. “D:DownloadsMRQy-masterUserInterfaceDataoutput_folder_name” directory.

Contribution guidelines

Testing

MRQy % pipenv shell
(mrqy) MRQy% pipenv install .
(mrqy) MRQY% pipenv run -m pytest tests/

Building on Travis

The recommended path is to follow the Forking Workflow. Create a Travis CI build for your github fork to validate your fork before pushing a merge request to master.

Basic Information

Measurements

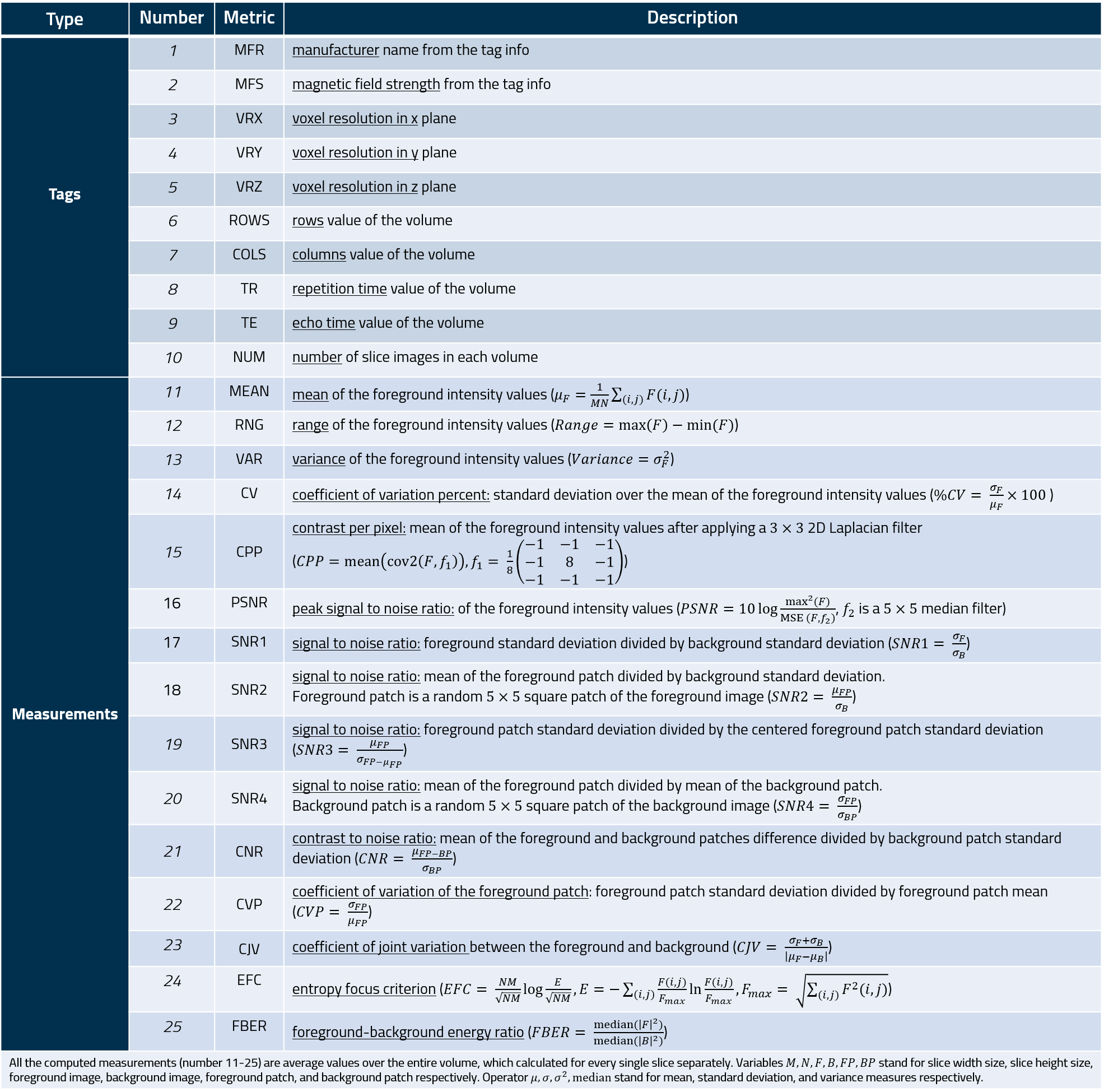

The measures of the MRQy tool are listed in the following table.

Measurements table

User Interface

The following figures show the user interface of the tool (index.html).

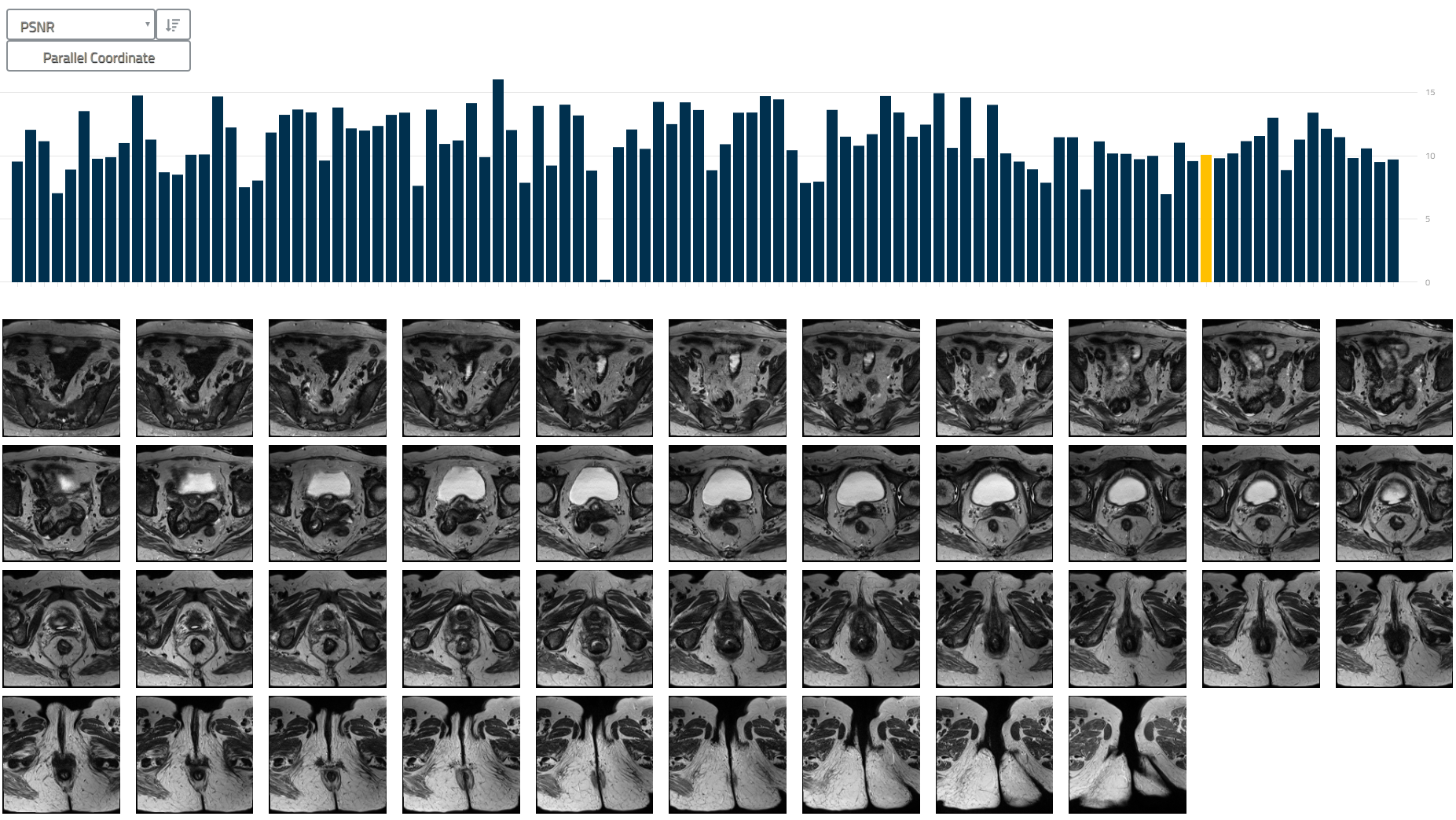

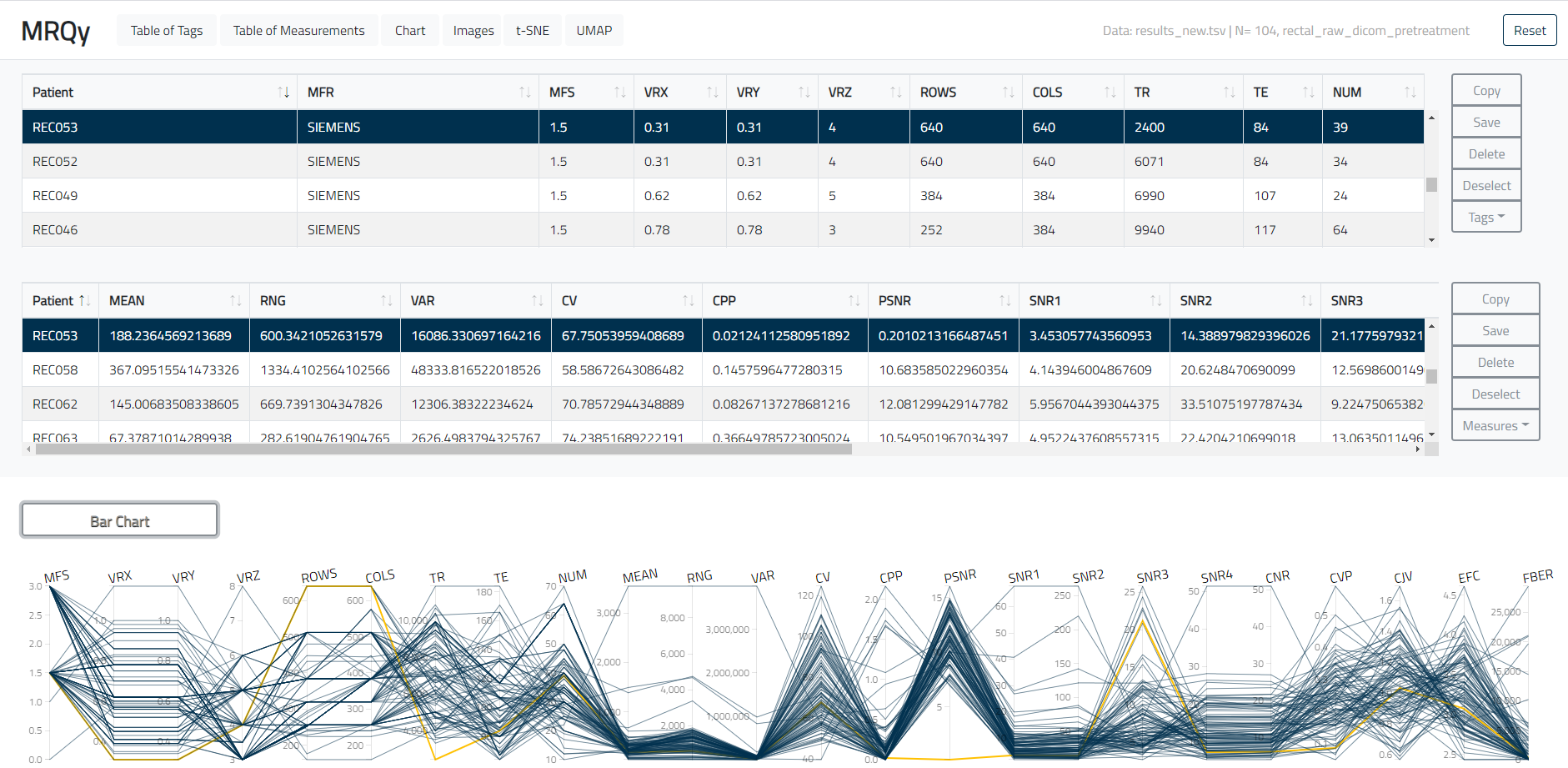

UI example 1 UI example 2 UI example 3

Feedback and usage

Please report and issues, bugfixes, ideas for enhancements via the “Issues” tab.

Detailed usage instructions and an example of using MRQy to analyze TCIA datasets are in the Wiki.

You can cite this in any associated publication as: Sadri, AR, Janowczyk, A, Zou, R, Verma, R, Beig, N, Antunes, J, Madabhushi, A, Tiwari, P, Viswanath, SE, “Technical Note: MRQy — An open-source tool for quality control of MR imaging data”, Med. Phys., 2020, 47: 6029-6038. https://doi.org/10.1002/mp.14593

ArXiv: https://arxiv.org/abs/2004.04871

If you do use the tool in your own work, please drop us a line to let us know.
