nanopie 0.1.0

A lightweight framework for building Python microservices and API services.

nanopie

Overview

nanopie is a lightweight Python framework for writing microservices and API backends. The framework provides pluggable solutions for a number of tasks, such as input validation, serialization/deserialization, authentication, logging, and tracing, commonly encountered in microservice and API backend development.

Note: nanopie in still in Development. At this moment, nanopie supports only HTTP (RESTful) microservices/API backends.

Features

• Bring your own transport

  Python has a large number of web framework + server solutions, such flask + gunicorn, quart + uvicorn, and Tornado; many of these options are mature, time-tested, and widely-adopted, and it is not nanopie's design goal to create another system for processing requests. Instead, nanopie leaves the request processing part up to a transport of your choice. This allows developers to use nanopie with any web framework and server they are most familiar with; it is also possible to switch transports at will as you see fit without having to drastically change the code.

• Data modeling and validation

  nanopie provides a data modeling mechansim, based on metaclasses in Python (PEP 3115), that helps developers model the inputs and outputs to the endpoints of their microservices and API backends, making it easy to access data idiomatically. nanopie models also features automatic data validation, saving the trouble of writing additional checking logic in the code.

  from nanopie import Model, IntField, StringField

  class User(Model):
      name = StringField(max_length=20, min_length=1, pattern="[a-zA-Z]*")
      age = IntField(maximum=100, minimum=0)

  user = User(name="Albert Wesker", age=49)
  print(user.name)
  print(user.age)

  # This will raise an exception
  user = User(name="Link in BotW", age=117)


  In addition, nanopie models work seamlessly with the built-in serialization/deserialization solution; once configured, nanopie can automatically parse incoming requests into data model objects, and return data model objects as responses in interchangable formats.

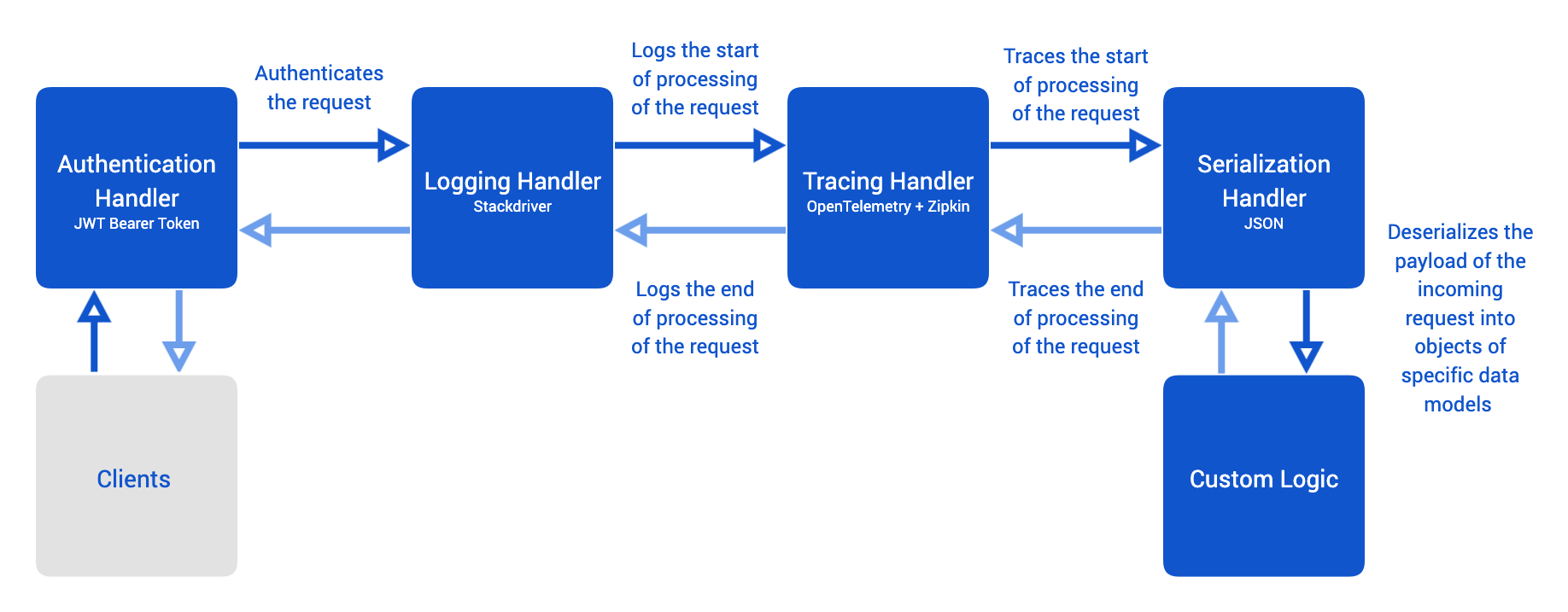

• Pluggable authentication, serialization, logging, and tracing solutions

  nanopie provides a number of solutions for common tasks in microservices and API backend development, known as handlers. You can add handlers to the endpoints of your microservices and API backends so that they can perform the tasks when requests arrive at the endpoint: HTTPBasicAuthenticationHandler, for example, authenticates requests based on the Basic HTTP Authentication Scheme (RFC 7617), and OpenTelemetryTracingHandler, for another example, traces the execution of your endpoint and writes the trace to STDOUT/STDERR every time a request is being processed.

  Handlers can be chained together to execute a sequence of actions. A typically pattern is to chain an authentication handler, a logging handler, a tracing handler, a serialization handler together for an endpoint, so that when a request arrives at the endpoint, it is authenticated, logged, and traced by respective handlers, with its payload deserialized into an object of nanopie data model automatically.



Installation

To install nanopie, run the following command:

pip install nanopie

Getting started

The following example showcases how to use nanopie to write a simple microservice with RESTful HTTP API for user management with one endpoint, get_user, which returns a user with a specific user ID.

Setup

Install nanopie and flask, a popular Python web micro-framework in your project. A Flask app will serve as the transport of your nanopie microservice in this example:

pip install nanopie flask

Defining the data model

The microservice you will build in this example, as introduced at the beginning of this section, has only one endpoint, which returns the information of a specific user to clients. To model the user information, create a user.py script in your project with the following nanopie data model:

from nanopie import (
    Model,
    IntField,
    StringField
)

class User(Model):
    name = StringField(max_length=20, min_length=1, pattern="[a-zA-Z]*")
    age = IntField(maximum=100, minimum=0)

The User model includes two fields, name, and age, which takes a String value and a Integer value respectively.

Note that both fields have hints and constraints specified:

• The name field must be an alphabetic string with a maximum of 20 characters and a minimum of 1 character.
• The age field must be an integer no smaller than 1 and no greater than 100.

nanopie can use these hints and constraints to validate data.

Writing the microservice

Create a Python script, main.py, as follows in your project. The script first creates a Flask app, then creates a FlaskService object that nanopie provides for using a Flask app as the transport of your microservice. The FlaskService object includes a number of methods (decorators) for specifying HTTP microservice or API backend endpoints; in the case of this project, you will create a GET endpoint which returns a User object as defined by the User model detailed in the previous section.

from flask import Flask
from nanopie import (
    FlaskService
)

# Import the User model created in the last step
from user import User

# Create a Flask app
app = Flask(__name__)
# Create a nanopie microservice with the Flask app as transport
svc = FlaskService(app=app)

# Create a HTTP RESTful API endpoint with the `GET` HTTP method
@svc.get(name="get_user", rule="/users/<int:uid>")
def get_user(uid):
    # Always return the same user regardless of the ID provided
    return User(name="Albert Wesker", age=49)

if __name__ == "__main__":
    app.run(debug=True, port=8080)

Run the script:

python main.py

Open the browser of your system and visit 127.0.0.1:8080/users/1. It should return the following JSON string:

{"name": "Albert Wesker", "age": 49}

Adding authentication capabilities

At this moment your microservice accepts any request from the network. To protect data from unauthorized sources, you should authenticate requests in the microservice. nanopie provides a number of pluggable authentication solutions, known as authentication handlers, that perform the authentication of requests automatically; for this project, you will enable HTTP OAuth2 Bearer Token with JWT (RFC 6750, RFC 7519) based authentication in the service using the authentication handler HTTPOAuth2BearerJWTAuthenticationHandler.

To enable authentication, edit main.py and create a HTTPOAuth2BearerJWTAuthenticationHandler:

from flask import Flask
from nanopie import (
    FlaskService,
    HTTPOAuth2BearerJWTModes,
    HTTPOAuth2BearerJWTAuthenticationHandler
)

# Import the User model created in the last step
from user import User

# Create a Flask app
app = Flask(__name__)

# Create an authentication handler
authentication_handler = HTTPOAuth2BearerJWTAuthenticationHandler(
    # The secret used for generating JWT tokens
    key_or_secret='my-secret',
    # The algorithm used for generating JWT tokens
    algorithm='HS256',
    # Specify that the token comes in the URI query string of the HTTP request
    mode=HTTPOAuth2BearerJWTModes.URI_QUERY
)

# Create a nanopie microservice with the authentication handler just created
svc = FlaskService(app=app,
                   authn_handler=authentication_handler)

...

Run the script again:

python main.py

Open the browser of your system and visit 127.0.0.1:8080/users/1. Without a valid token, your service should return a 401 Unauthorized error.

You can generate a valid token using the algorithm and secret specified in the code snippet. There are many Python packages available for this purpose; you can also use jwt.io to get a token for testing purposes interactively. Alternatively, use the token below:

eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ.EpM5XBzTJZ4J8AfoJEcJrjth8pfH28LWdjLo90sYb9g

And point your browser to 127.0.0.1/users/1?access_token=YOUR-ACCESS-TOKEN (replace YOUR-ACCESS-TOKEN with a token of your own). Your request is now authenticated and you should see the user data returned to you.

Adding logging and tracing capabilities

It is common for developers to use logging and tracing to observe their microservices and API backends in action. Similar to authentication handlers, nanopie provides a number of pluggable logging and tracing solutions as well, integrating with the standard Python logging module and OpenTelemetry respectively.

To enable logging and tracing, edit main.py for another time and create a LoggingHandler and OpenTelemetryTracingHandler:

from flask import Flask
from nanopie import (
    FlaskService,
    HTTPOAuth2BearerJWTModes,
    HTTPOAuth2BearerJWTAuthenticationHandler,
    LoggingHandler,
    OpenTelemetryTracingHandler
)

# Import the User model created in the last step
from user import User

# Create a Flask app
app = Flask(__name__)

# Create an authentication handler
...

# Create a logging handler and a tracing handler.
logging_handler = LoggingHandler()
tracing_handler = OpenTelemetryTracingHandler()

# Create a nanopie microservice with an authentication handler,
# a logging handler, and a tracing handler.
svc = FlaskService(app=app,
                   authn_handler=authentication_handler,
                   logging_handler=logging_handler,
                   tracing_handler=tracing_handler)

Run the script for another time:

python main.py

Open the browser of your system and visit 127.0.0.1/users/1?access_token=YOUR-ACCESS-TOKEN. Check the output in the terminal running the Python script, you should see outputs similar to the snippets below:

# The log entry nanopie writes when the execution of an endpoint begins.
{"host": "YOUR-HOST", "logger": "nanopie.logging.base", "level": "INFO", "module": "base", "func": "__call__", "message": "Entering span unspecified_span."}

# The trace of the execution of the endpoint.
{"name": "unspecified", "context": {"trace_id": "7732924096377129845968717310647764965", "span_id": "7510401874971537686", "trace_state": "{}", "is_remote": "False"}, "kind": "SpanKind.SERVER", "parent": null, "start_time": "2020-08-11T20:23:01.350515Z", "end_time": "2020-08-11T20:23:01.351445Z", "attributes": "{}"}

# The long entry nanopie writes when the execution of an endpoint completes.
{"host": "YOUR-HOST", "logger": "nanopie.logging.base", "level": "INFO", "module": "base", "func": "__call__", "message": "Exiting span unspecified_span."}

What's next

Learn more about nanopie in its documentation.
