napari-pyclesperanto-assistant 0.9.1

OpenCL based GPU-accelerated image processing in napari

napari-pyclesperanto-assistant

The py-clEsperanto-assistant is a yet experimental napari plugin for building GPU-accelerated image processing workflows. It is part of the clEsperanto project. It uses pyclesperanto and with that pyopencl as backend for processing images. This plugin was generated with Cookiecutter using with napari's cookiecutter-napari-plugin template.

Installation

Installation using conda

conda install -c conda-forge pyopencl
pip install napari[all] napari-pyclesperanto-assistant

Afterwards, start napari from the command line:

napari --with clEsperanto

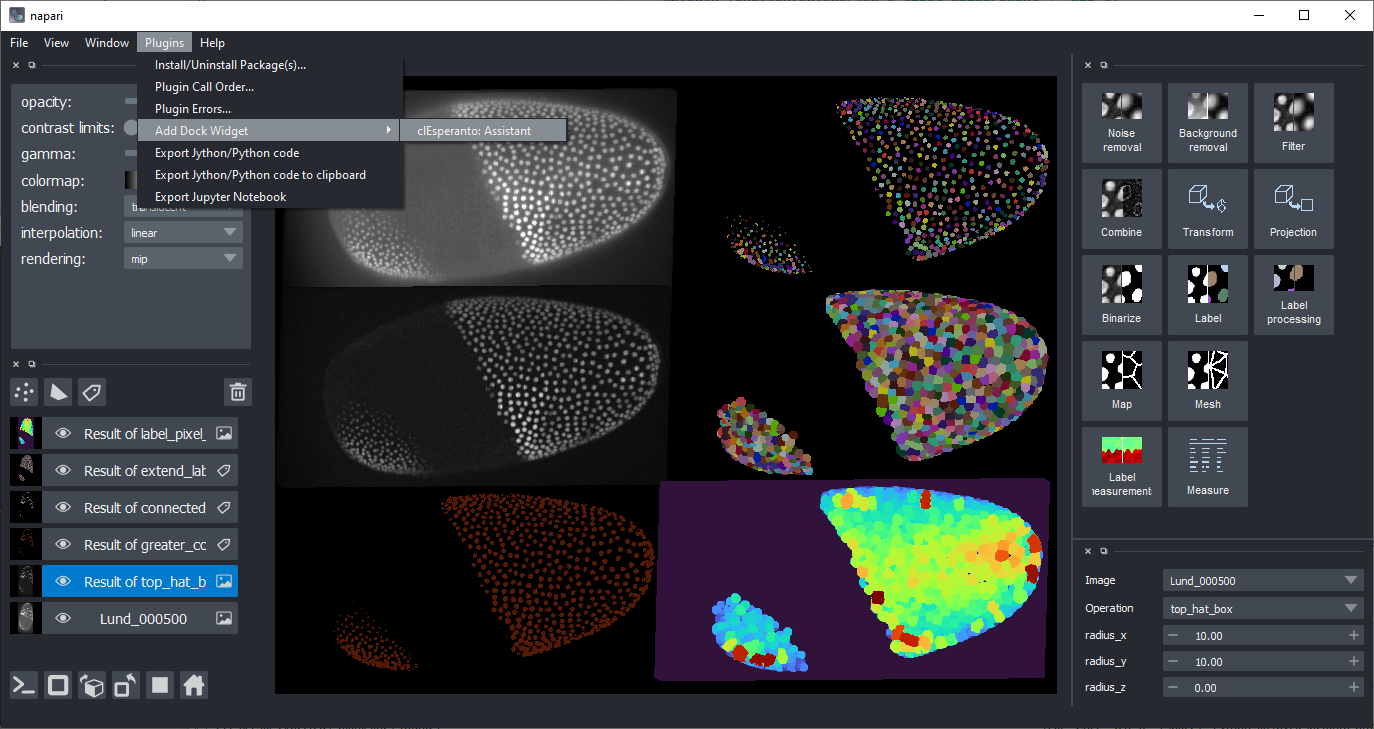

(You can also find the assistant in the Plugins menu.)

Installation using the napari installer

Download and install napari.

Windows users please download pyopencl...cl12-cp38-cp38-win_amd64.whl. Use the command line to navigate to the folder where you downloaded it (for example the Downloads folder using cd Downloads). From there, run the following line after replacing <username> with your username:

C:\Users\<username>\AppData\Local\Programs\napari\python\python.exe -m pip install pyopencl-2020.2.2+cl12-cp38-cp38-win_amd64.whl

Start napari and navigate to its menu Plugins > Install/Uninstall Package(s).... Select napari-pyclesperanto-assistant from the list and install it by clicking the blue button on the right:

Restart napari. Afterwards, you should find the Assistant in the plugins menu:

Installation on windows

On windows some additional steps are necessary. Download a pre-compiled wheel of pyopencl e.g. from here. It is recommended to install pyopencl-...+cl12-cp38-cp38-win_amd64 - the cl12 and cp38 are important when choosing the right download. They stand for OpenCL 1.2 and Python 3.8.

Enter the correct pyopencl filename and execute this from the command line:

pip install pyopencl-2020.3.1+cl12-cp38-cp38-win_amd64.whl

In case napari doesn't start up with an error mentioning numpy (see also), execute this from the command line:

pip install numpy==1.19.3

Usage

This short tutorial demonstrates how to generate code using the pyclersperanto-assistant.

<iframe src="docs/images/pyclesperanto_assistant_screencast.mp4" width="600" height="300"></iframe> [Download workflow as video](docs/images/pyclesperanto_assistant_screencast.mp4)

Start up the assistant

Open a command line and start up the assistant and pass the image file you want to process. The shown example image can be found online

python -m napari_pyclesperanto_assistant C:\structure\code\napari_pyclesperanto_assistant\napari_pyclesperanto_assistant\data\CalibZAPWfixed_000154_max-16.tif

Alternatively, you can attach the assistant to your napari from within your python code like this:

import napari

# start napari
viewer = napari.Viewer()
viewer.window.add_plugin_dock_widget('clEsperanto')
napari.run()

napari will open with the assistant activated:

Set up a workflow

Choose categories of operations in the top right panel, for example start with denoising using a Gaussian Blur with sigma 1 in x and y:

Choose more processing steps. Note: You can change the input image/layer for each operation, the operation and its parameters in the bottom right panel. For example, continue with these steps

• Filter (Background Removal): Top hat, radius 5 in x and y
• Binarization: Threshold Otsu
• Label: Voronoi labeling
• Map: Touching neighbor count map
• Binarization: Detect label edges, with the result from the second last step as input.

Hide some layers showing intermediate results. Switch the bleinding of the final result layer to "additive" to see through it on the original image.

Code generation

In the plugins menu, you find two entries which allow you to export your workflow as Python/Jython code.

Export your workflow as Jupyter notebook. Start the notebook from the command line using

jupyter notebook my_notebook.ipynb

Alternatively, export the workflow as Jython/Python script. This script can be executed from the command line like this

python my_script.py

It can also be executed in Fiji, in case the CLIJx-assistant is installed.

Note: Depeending on which layers were visible while exporting the code, different code is exported. Only visible layers are shown. Change layer visibility and export the script again. If Fiji asks you if it should reload the script file, click on "Reload".

For developers

Getting the recent code from github and locally installing it

git clone https://github.com/clesperanto/napari_pyclesperanto_assistant.git

pip install -e ./napari_pyclesperanto_assistant

Optional: Also install pyclesperantos recent source code from github:

git clone https://github.com/clEsperanto/pyclesperanto_prototype.git

pip install -e ./pyclesperanto_prototype

Starting up napari with the pyclesperanto assistant installed:

ipython --gui=qt napari_pyclesperanto_assistant\napari_pyclesperanto_assistant

Feedback welcome!

clEsperanto is developed in the open because we believe in the open source community. See our community guidelines. Feel free to drop feedback as github issue or via image.sc
