nazoru-input 0.1.2

Package for Gboard Physical Handwriting Version

Gboard Physical Handwriting Version is a device which translates your scribble on your keyboard into a character. You can make your own Gboard Physical Handwriting Version by printing your own printed circuit board (PCB). Also, you can train your own model to recognize a customized set of characters. This repository provides circuit diagram, the board layout and software to recognize your stroke over the keyboard as a character.

Software Usage

Install and Try

Please make sure your local environemnt has packages as follows.

For Ubuntu/Debian:

$ sudo apt install libffi-dev libcairo2 # For Ubuntu/Debian

For macOS:

$ brew install cairo  # For macOS

After that, you can try nazoru-input after installing it from pip.

$ pip install nazoru-input
$ nazoru-input

Using nazoru-input, You can make your own machine into an input device which accepts scribbles on the connected keyboard and send characters via bluetooth. At the beginning, this script scans connected keyboards and starts listening to inputs from one of the keyboards. Then it translates a sequence of keydowns into a predicted character considering pressed timings, and send the character to the target device paired by bluetooth.

If you want to try it for development, you can download the source from github and use -e option.

$ sudo apt install libffi-dev libcairo2 # For Ubuntu/Debian
$ git clone https://github.com/google/mozc-devices.git
$ cd mozc-devices/mozc-nazoru
$ pip install -e .
$ nazoru-input

Training Model

$ curl -LO https://github.com/google/mozc-devices/raw/master/mozc-nazoru/data/strokes.zip
$ nazoru-training ./strokes.zip

We have a script to generate a trained model which recognizes input characters from scribbles. This script renders input stroke data into images to extract useful features for prediction considering position of the key and timing of keyboard events. Rendered images are fed into the neural network model and the optimizer tunes the model to fit the data. Once the training is done, the script outputs the trained graph, which you can use for your own device. In the case where you install nazoru-training from pip, you can find strokes.zip at here: https://github.com/google/mozc-devices/blob/master/mozc-nazoru/data/strokes.zip

You can change some configurations by passing command line flags (e.g. path to the input/output files, hyper-parameters). Run nazoru-training --help for details.

Hardware Setup

Printed Circuit Board

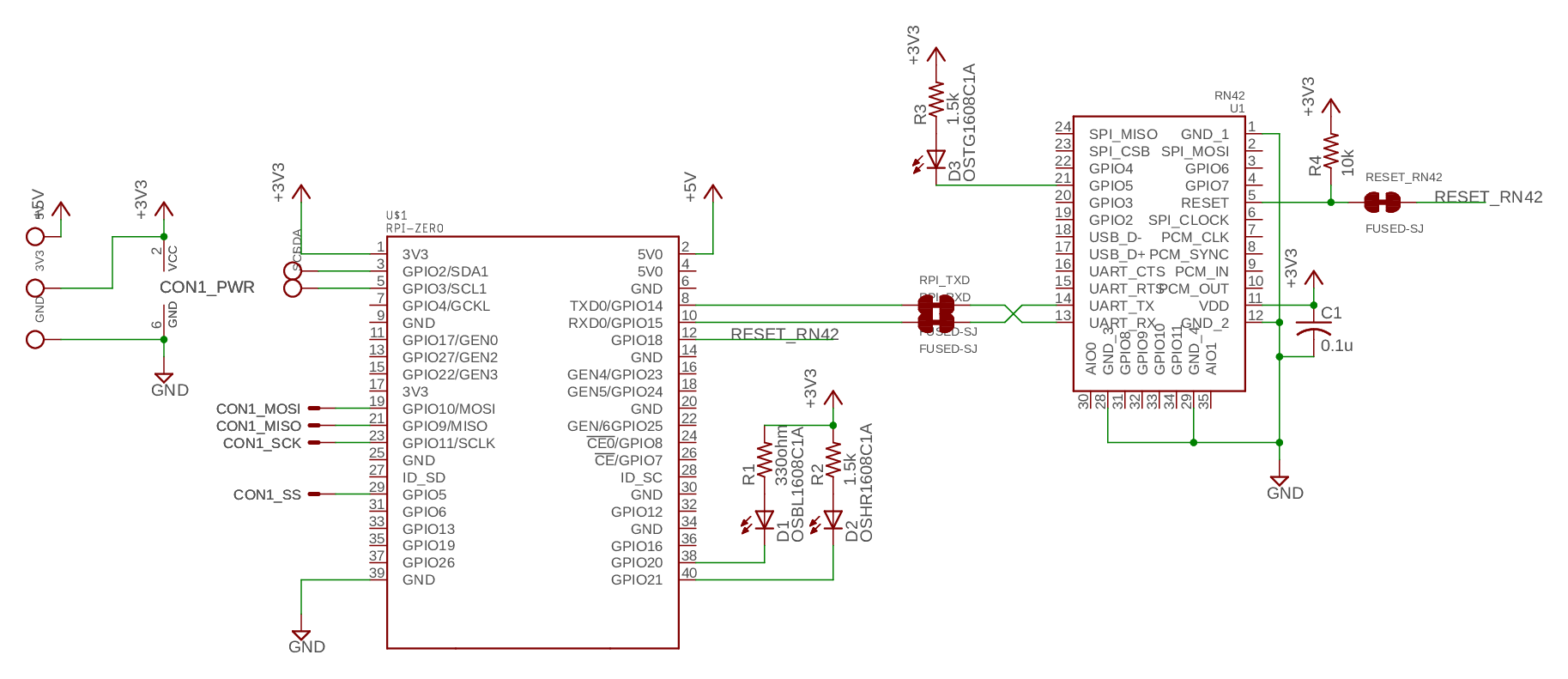

Gboard Physical Handwriting Version uses Raspberry Pi Zero for the keyboard input recognition and RN42 module for Bluetooth connection to your laptop. You can check the wiring at board/schematic.png. Also, the original CAD data in EAGLE format is available (board/nazoru-stack.sch and board/nazoru-stack.brd). The board has non-connected pads and connectors for SPI and I2C. The connector itself should be compatible with other Raspberry Pi, but we tested it only on Raspberry Pi Zero W.

Raspberry Pi Setup

Step 0 - Prepare your Raspberry Pi

Please prepare your Raspberry Pi, SD card initialized by RASPBIAN image, and RN42 module. Connect your Raspberry Pi with RN42 as the schematic shows. Please make sure you can have access to the internet and also it has enough disk space to install packages on the following steps.

Step 1 - Setup UART to RN42

If you try it on Raspberry Pi Zero W or Raspberry Pi 3, you need to have additional settings for the serial communication because they equipped a wireless module connected by the UART. See details at an official document. In short, you need to add enable_uart=1 to /boot/config.txt on your Raspberry Pi.

Step 2 - Initial setup for RN42

You need to write your initial setup to RN42. At first, install screen and open /dev/serial0 for configuration.

$ sudo apt install screen
$ sudo screen /dev/serial0 115200

After that, please type the following commands. Note that you need to type ENTER after input commands. For example, please type $$$ and ENTER to execute $$$ command.

1. $$$ : Get into the command mode. The green LED will blink faster.

2. + : You can see what you type.

3. SD,0540 : Set the device class to keyboard.

4. S~,6 : Set the profile to HID.

5. SH,0200 : Set the HID flag to keyboard.

6. SN,nazoru-input : Set the device name as nazoru-input. You can name it as you want.

7. R,1 : Reboot RN42.

You can quit the screen by C-a k.

Step 3 - Download and install nazoru-input

We provide a service file at data/nazoru.service to launch nazoru-input when booting. You can install it by uncomment data_files entry in setup.py. Also, before installing this package, We’d strongly recommend you to install some package from apt repository as follows, so that you can install pre-built packages.

$ sudo apt install git python-pip python-numpy python-cairocffi \
  python-h5py python-imaging python-scipy libblas-dev liblapack-dev \
  python-dev libatlas-base-dev gfortran python-setuptools \
  python-html5lib
$ sudo pip install http://ci.tensorflow.org/view/Nightly/job/nightly-pi-zero/219/artifact/output-artifacts/tensorflow-1.6.0-cp27-none-any.whl
$ git clone https://github.com/google/mozc-devices
$ cd mozc-devices/mozc-nazoru
$ vi setup.py  # Remove '#' for data_files to install nazoru.service.
$ sudo pip install . # If you want to develop nazoru-input, please use 'sudo pip install -e .' instead.

Step 4 - Enjoy!

$ sudo nazoru-input # If you miss sudo, nazoru-input may use a DummyBluetooth object.

Training Data Format

We are providing the raw training data at data/strokes.zip. Once you uncompress the zip file, you will get a .ndjson file which contains all entries (we call them strokes) we have used for training.

Each stroke entry contains the following field:

Key	Type	Description
id	integer	A unique identifier across all strokes.
writer	string	A unique identifier of writer.
kana	string	Label of the character drawn.
events	list	List of keyboard events.

Each event is a 3-tuple of (key, event type, time). key describes the key on which the event happened. event type describes what type of event happened. It should be “down” (keydown) or “up” (keyup). time describes the consumed time until the event is fired in millisecond.

For example, the entry below denotes a stoke of “ほ (\u307b)” accompanied with a sequence of keyboard events starting from the keydown event on “t” and ending at the keyup event on “l” which was fired 1.005 seconds later after it started recording.

{
  "id": 5788999721418752,
  "writer": "ffb0dac6b8be3faa81da320e29a2ba72",
  "kana": "\u307b",
  "events": [
    ["t", "down", 0],
    ["g", "down", 40],
    ...
    ["l", "down", 966],
    ["l", "up", 1005]
  ]
}

You can also prepare your own dataset in .ndjson format and rebuild the model on it. The list of kanas to recognize is in src/nazoru/lib.py. You can update that if you want to modify the set of characters.

Network Structure

Data Preprocessing

Each stroke entry is rendered to a square image before any training runs. The script (nazoru-training) renders strokes in various ways to extract useful features. Our default settings extract 10 features from each stroke entry: 8 directional features and 2 temporal features on 16x16 square canvas; this means that the input shape is 16x16x10 by default.

Convolutional Network

Rendered inputs are fed into a convolutional neural network designed for this task. Body structure looks like:

• Convolutional layer (kernel size: 3x3, filter size: 32, stride: 2, activation: Relu)

• Separatable convolutional layer (kernel size: 3x3, filter size: 64, stride: 1, activation: Relu)

• Separatable convolutional layer (kernel size: 3x3, filter size: 128, stride: 2, activation: Relu)

• Separatable convolutional layer (kernel size: 3x3, filter size: 128, stride: 1, activation: Relu)

For more details about the separatable convolutional layers, please refer to MobileNet architecture.

Authors

Machine Learning: Shuhei Iitsuka <[e-mail]>

Hardwares, system setups: Makoto Shimazu <[e-mail]>
