nextplot 0.1.3

Tools for plotting routes, clusters and more from JSON

nextplot

Tools for plotting routes and clusters from JSON

Installation

pip install nextplot

Usage

If the installation succeeded, you should be able to invoke the following:

nextplot --help

Furthermore, use the route and cluster commands for the respective plotting type. Find an overview of the arguments for the specific mode by invoking nextplot route --help and nextplot cluster --help.

Above shows some information about how to use the script. Below presents some further information for running the script using route plotting as an example.

There are basically two options of running the script. Either feed the JSON to STDIN of the script like so:

cat examples/data/kyoto-route.json | nextplot route \
  --jpath_route "vehicles[*].route" \
  --jpath_x "position.lon" \
  --jpath_y "position.lat"

Or supply a path to the .json file like so:

nextplot route \
  --input_route examples/data/kyoto-route.json \
  --jpath_route "vehicles[*].route" \
  --jpath_x "position.lon" \
  --jpath_y "position.lat"

Both approaches will create a .png plot image and if possible (valid lon/lat coordinates given) an interactive .html plot file. The filenames will be plot.[png,html] for the first option, based on the input filename for the second option and customized ones if --output_image and/or --output_map are specified.

The input file is expected to have some JSON array of positions which can be addressed using the notation described here: https://goessner.net/articles/JsonPath/. The path to the positions can be modified via the --jpath_route parameter. For example, if your input file stores the locations like shown below, the path "vehicles[*].route" will extract them. As you can see, the path first goes through the vehicles. Next, [*] denotes that a list of vehicles is expected, which in turn results in a list of routes. Finally, .route points to the exact location of the route object per vehicle. The --jpath_x and --jpath_y parameters are used to extract the longitude and latitude values from the stop objects at position.lon and position.lat.

{
    "vehicles": [
        // ...
        {
            "id": "v1",
            "route": [
                {
                    "id": "v1-start",
                    "position": { "lon": 135.73723, "lat": 35.04381 }
                },
                {
                    "id": "Kinkaku-ji",
                    "position": { "lon": 135.728898, "lat": 35.039705 }
                },
                {
                    "id": "Nijō Castle",
                    "position": { "lon": 135.748134, "lat": 35.014239 }
                },
                {
                    "id": "Arashiyama Bamboo Forest",
                    "position": { "lon": 135.672009, "lat": 35.017209 }
                }
            ]
        }
        // ...
    ]
}

Further examples

A more detailed introduction and a plot gallery can be found here.

Preview

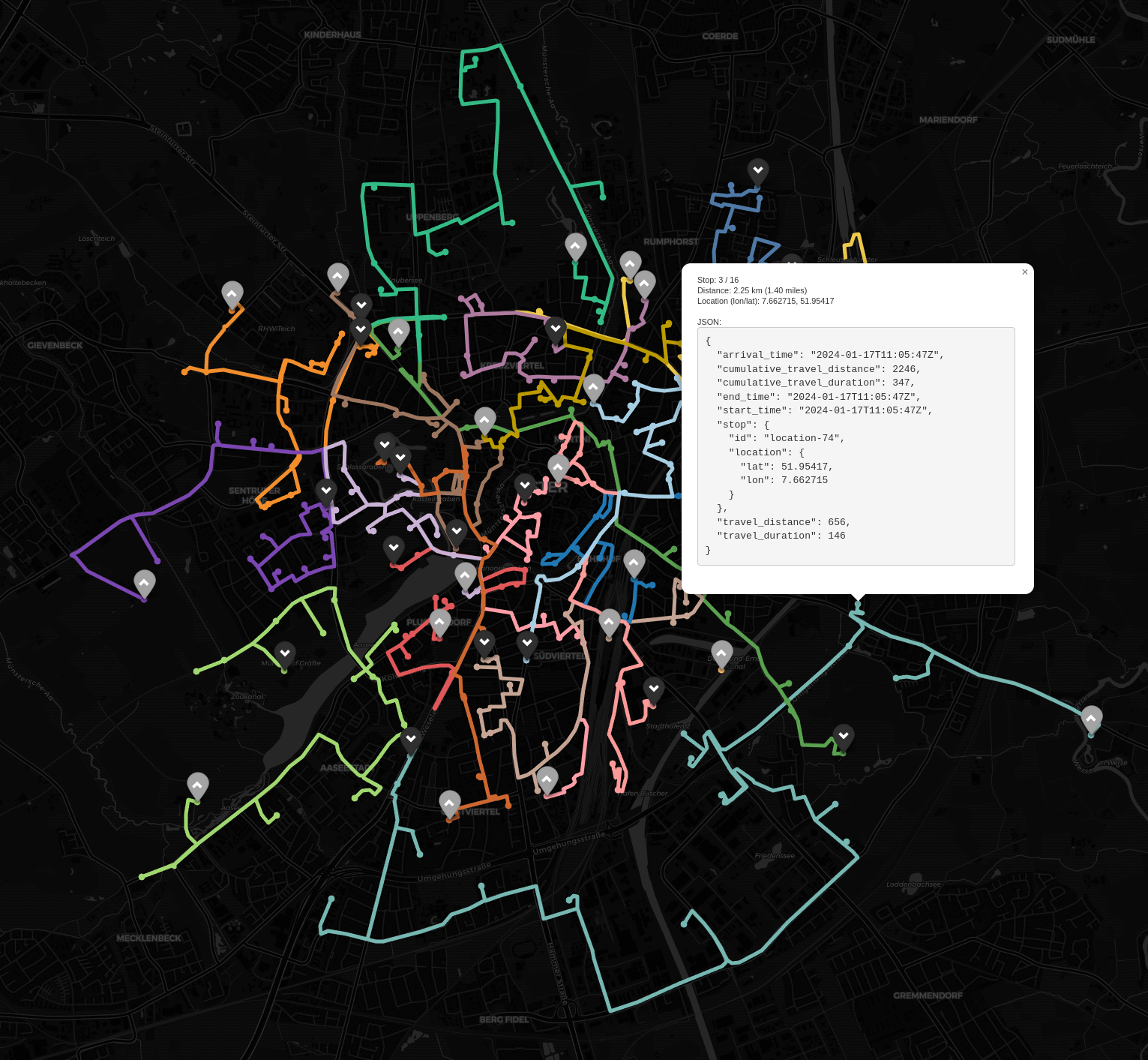

Preview route plot (screenshot of .html-file, cartodbdark_matter selected):

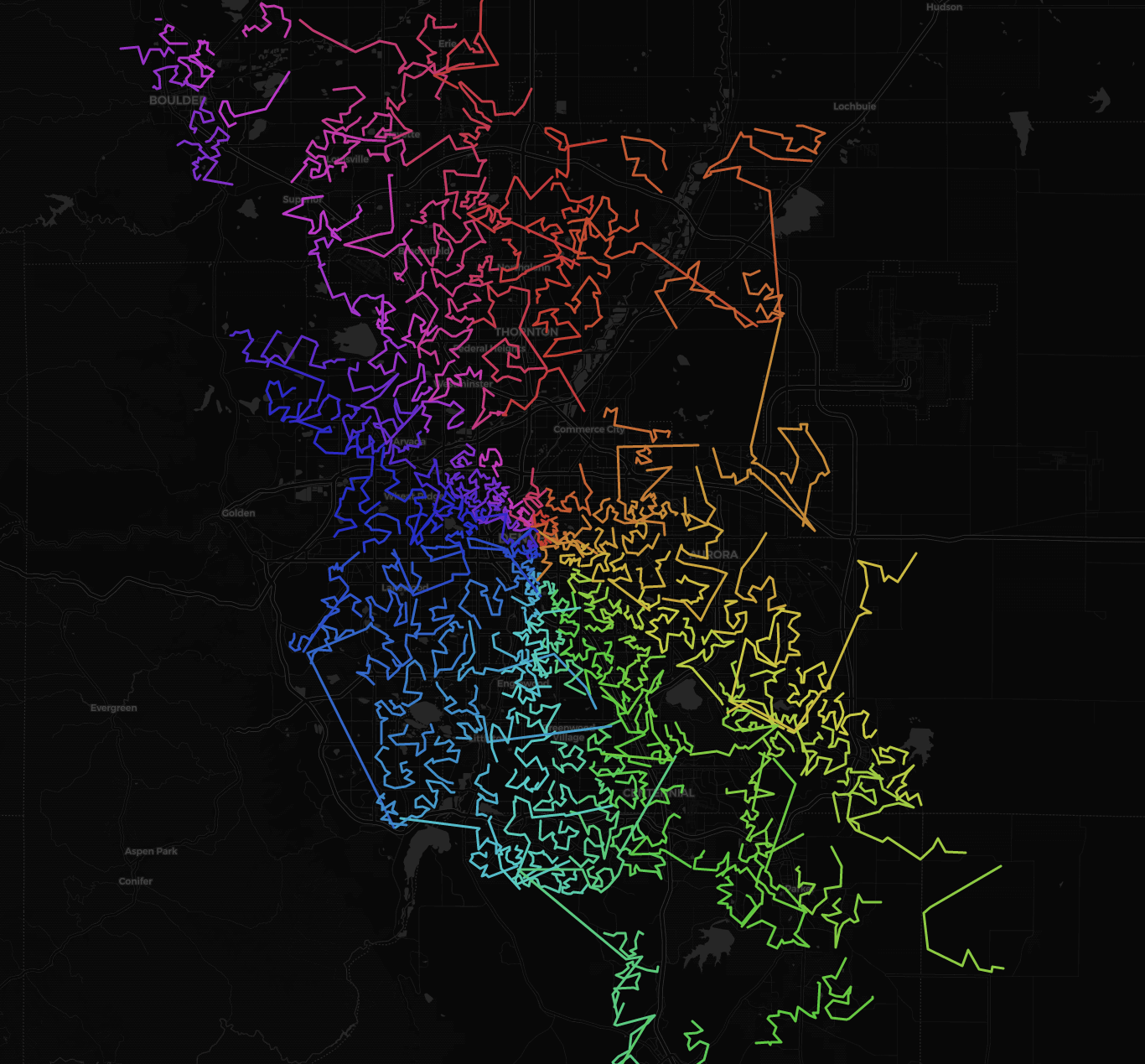

Another preview route plot (screenshot of .html-file, cartodbdark_matter selected):

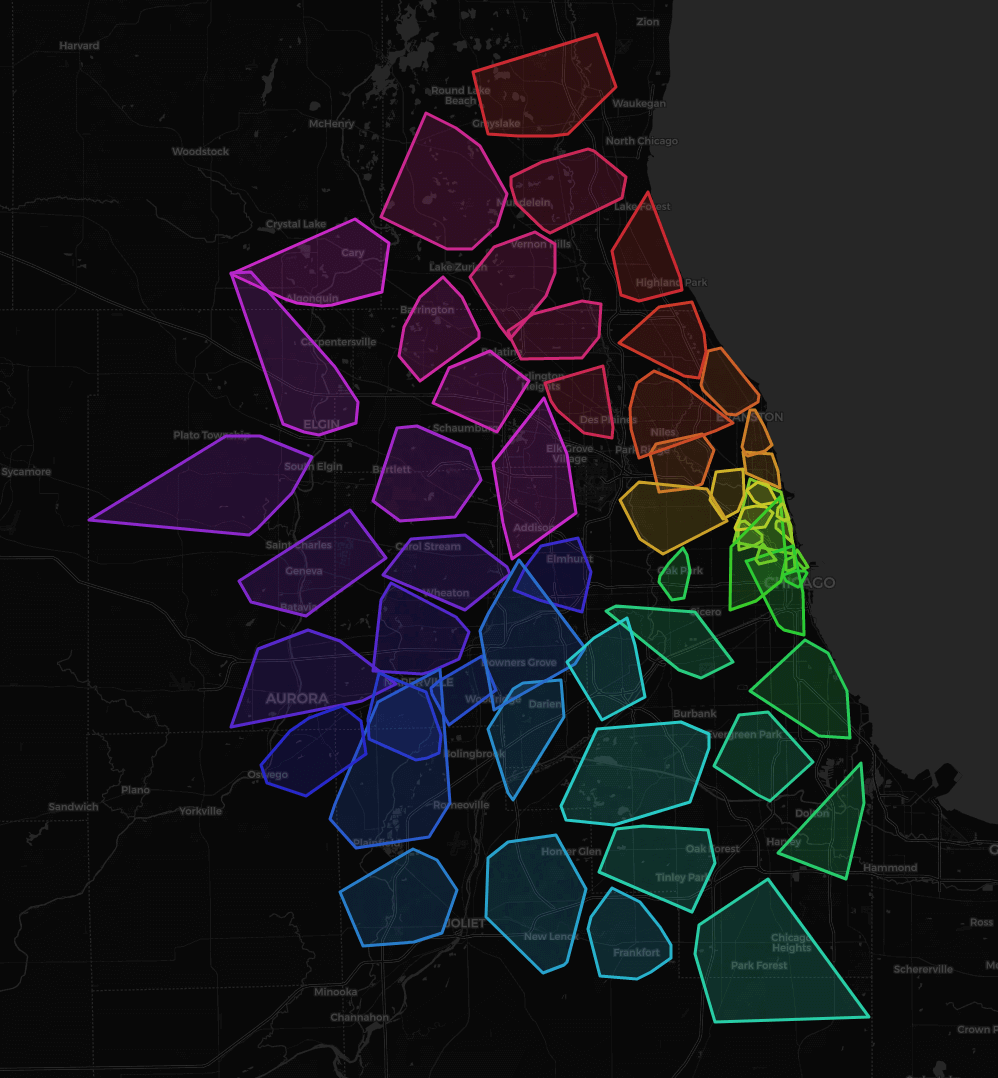

Preview cluster plot (screenshot of .html-file, cartodbdark_matter selected):

Auto-completion

Auto-completion (using tab) is supported via argcomplete. To enable it, install the package:

pip install argcomplete

Then, add the following line to your ~/.bashrc:

eval "$(register-python-argcomplete nextplot)"

Development setup

Install development dependencies

pip install -r requirements-dev.txt

Tests

Tests are located in tests/ and can be run via python -m pytest. Update test expectations (golden files) by running UPDATE=1 python test_cli.py from the test directory.
