Python PCB Assembly Test Toolkit

Project description

Info

A python based package providing a set of generation, measurement and communication building blocks, that can be used to perform PCB Assembly tests.

Author

National Instruments

About

The nipcbatt package contains an API (Application Programming Interface) for interacting with the NI-DAQmx driver and with LabVIEW runtime to perform measurement, generation and communication operations. The package is implemented in Python, as a highly object-oriented package.

Python PCB Assembly Test Toolkit or nipcbatt is a collection of Measurement Library, Automation Examples, Test Demo Example developed in Python along with Documentation for PCB Assembly electrical functional test.

nipcbatt package is focused on NI DAQ devices hardware, and compatible with NI PC Based DAQ, CompactDAQ, TestScale and high level enough to be applicable or scalable for other instruments with similar functionality and resources on any platform.

Documentation

Refer to the Python PCB Assembly Test Toolkit User Manual present in the location “\nipcbatt-1.x\src\docs\Python PCB Assembly Test Toolkit - User Manual.pdf” from the downloaded source code archive for an overview of Toolkit concepts, and measurement fundamentals.

Supported Features

Feature name

Description

Acronym

Power Supply Source and Measure Library

This feature allows initializing, configuring, sourcing, measuring, and closing user configurable power supply for power supply measurements (TestScale only).

PSSM

DC-RMS Voltage Measurement Library

This feature allows initializing, configuring, measuring, and closing user configurable analog input pins for voltage measurements.

DRVM

DC Voltage Generation Library

This feature allows initializing, configuring, generating, and closing user configurable analog output pins for DC voltage generations.

DRVG

DC-RMS Current Measurement Library

This feature allows initializing, configuring, measuring, and closing user configurable analog input pins for current measurements.

DRCM

Time Domain Voltage Measurement Library

This feature allows initializing, configuring, measuring, and closing user configurable analog input pins for voltage measurement and derive time domain measurement for the measured waveforms.

TDVM

Frequency Domain Voltage Measurement Library

This feature allows initializing, configuring, measuring, and closing user configurable analog input pins for voltage measurement and derive frequency domain measurement for the measured waveforms.

FDVM

Signal Voltage Generation Library

This feature allows initializing, configuring, generate, and closing different waveform voltage signals like tones (single/multi) or square windows, over a given generation time(s) on user configurable analog output pins.

SVG

Static Digital State Measurement Library

This feature allows initializing, configuring, sourcing, measuring, and closing user configurable digital input pins.

SDSM

Static Digital State Generation Library

This feature allows initializing, configuring, sourcing, generate, and close on user configurable digital output pins.

SDSG

Temperature Thermistor Measurement Library

This feature allows initializing, configuring, measuring, and closing user configurable analog input pins to derive temperature measurements from voltage excited NTC typed Thermistor devices.

TTRM

Temperature RTD Measurement Library

This feature allows initializing, configuring, sourcing, measuring, and closing user configurable analog input pins for temperature measurements from Resistance Temperature Detector (RTD).

TRTDM

Temperature Thermocouple Measurement Library

This feature allows initializing, configuring, sourcing, measuring, and closing user configurable analog input pins to derive temperature measurements from Thermocouples.

TTCM

Dynamic Digital Pattern Measurement Library

This feature provides options to measure digital patterns through the specified lines.

DDPM

Dynamic Digital Pattern Generation Library

This feature provides options to generate digital patterns, an array of digital samples in the specified IO lines.

DDPG

Digital Clock Generation Library

This feature allows initializing, configuring, generate and closing on user configurable terminals using counters.

DCG

Digital Pulse Generation Library

This feature allows initializing, configuring, generate and closing on user configurable terminals using counters.

DPG

Digital Frequency Measurement Library

This feature allows initializing, configuring, measuring and closing on user configurable PFI line using the selected counter for digital frequency measurement.

DFM

Digital PWM Measurement Library

This feature allows initializing, configuring, generating and closing on user configurable PFI line using the selected counter for digital PWM measurement.

DPWMM

Digital Edge Count Measurement Library

This feature allows initializing, configuring, generating and closing on user configurable PFI line using the selected counter for Edge Counting using Software and Hardware Timers.

DECM

Communication Library

This feature allows initializing, configuring, read and writing data, and closing on I2C, SPI and Serial Communication devices.

COM

Synchronization Library

This feature allows synchronizing between specified source and output terminals for the given DAQmx Task.

RSS

Required Drivers

NI-DAQmx: 2023 Q3 and above
LabVIEW Runtime: 2022 Q3 and above (64 bit)
NI-845x: 2022 Q3 and above
NI-VISA: 2023 Q2 and above
NI-Serial: 2023 Q2 and above

Supported Hardware

NI PC Based DAQ
CompactDAQ
TestScale
Any DAQmx devices with similar functionality and resources.

Operating System Support

nipcbatt supports Windows 10 and 11 systems where the supported drivers are installed. Refer to NI Hardware and Operating System Compatibility for which versions of the driver support your hardware on a given operating system.

Python Version Support

nipcbatt supports Python 3.9+

Installation

You can use pip to download nipcbatt from PyPI and install it:

$ python -m pip install nipcbatt

Manual Driver Installation

Visit ni.com/downloads to download the latest version of Python PCB Assembly Test Toolkit. It is recommended you continue to install the NI-DAQmx Runtime with Configuration Support and NI Hardware Configuration Utility from the Additional items checklist as it is required to access and manage hardware. All other recommended Additional items are not necessary for nipcbatt to function, and they can be removed to minimize installation size.

Getting Started

In order to use the nipcbatt package, you must have at least one DAQ (Data Acquisition) device installed on your system. Both physical and simulated devices are supported. The examples below use PC based DAQ device (PCIe-6363). You can use NI MAX or NI Hardware Configuration Utility to verify and configure your devices.

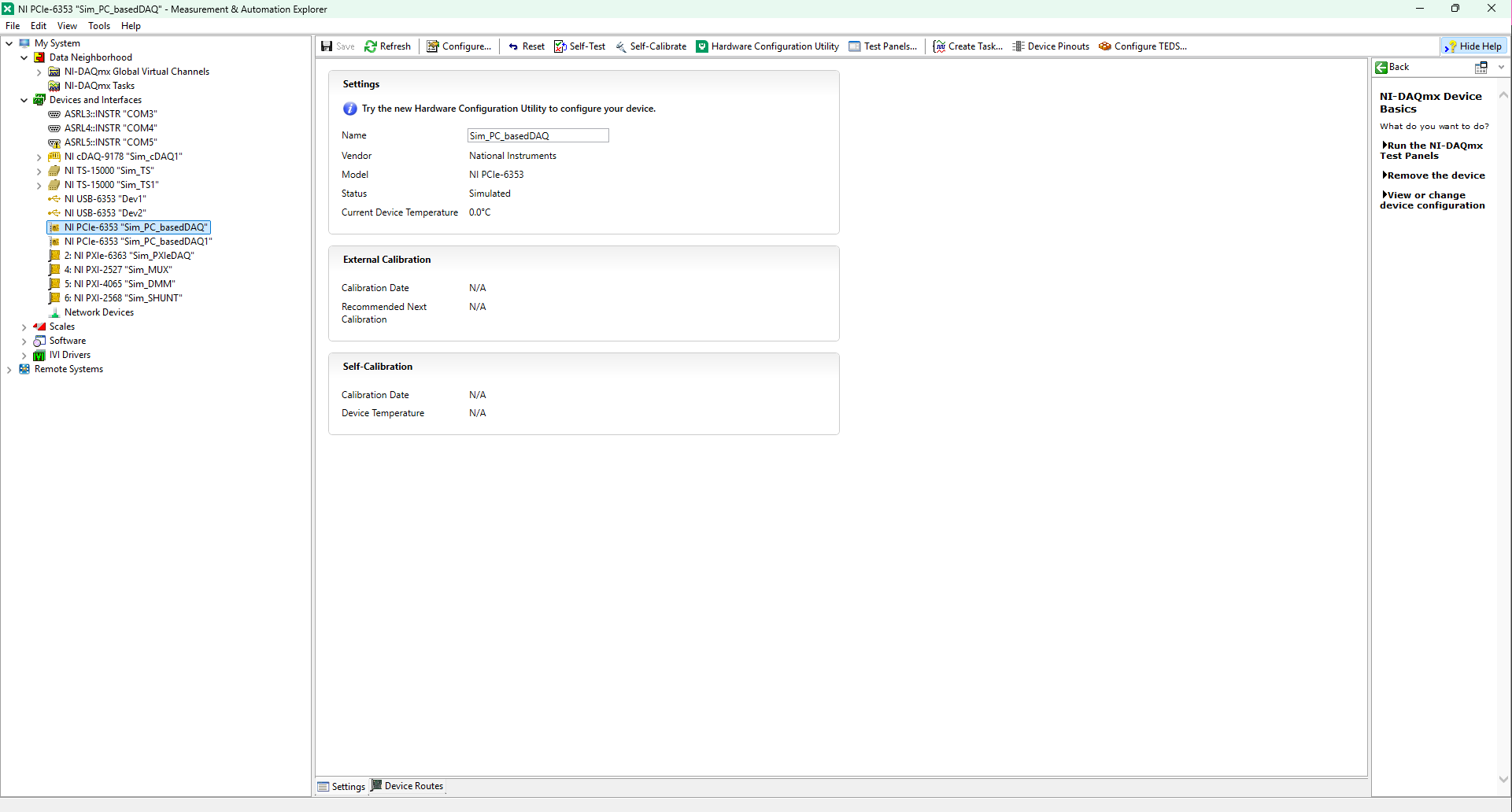

Finding and configuring device name in NI MAX:

https://raw.githubusercontent.com/ni/nidaqmx-python/ca9b8554e351a45172a3490a4716a52d8af6e95e/max_device_name.png

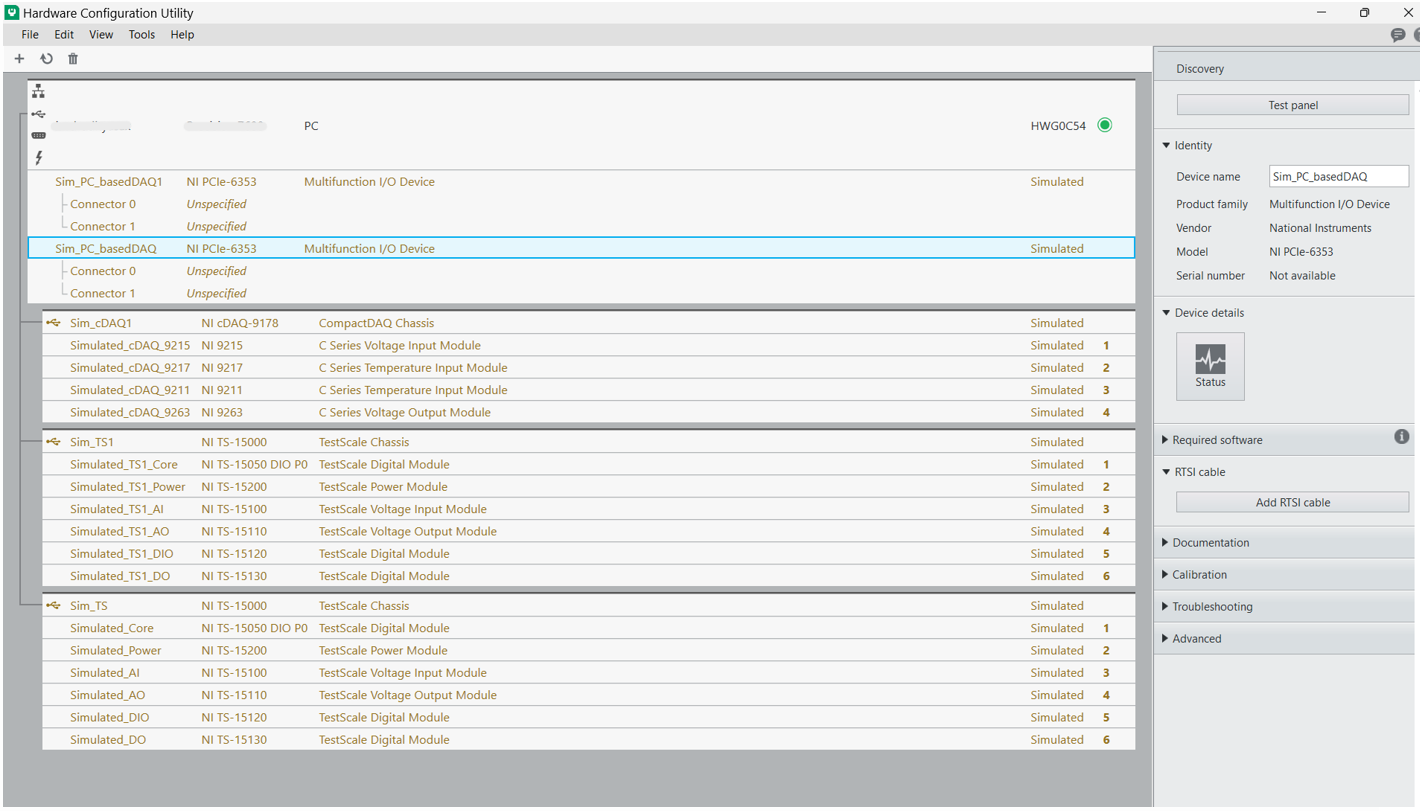

Finding and configuring device name in NI Hardware Configuration Utility:

https://raw.githubusercontent.com/ni/nidaqmx-python/ca9b8554e351a45172a3490a4716a52d8af6e95e/hwcu_device_name.png

Then refer to the Getting Started guide to proceed with testing. The Guide can be found at this location: “\nipcbatt-1.x\src\docs\Python PCB Assembly Test Toolkit - Getting Started.pdf”

Key Concepts in Python PCBATT

1. Libraries

All the measurement libraries consist of three main methods which have to be used in the following order:

  • Initialize:

    Used to initialize a DAQmx using either physical or global virtual channels provided to perform the respective task.

    This is done by calling the intialize() method on the class instance.

  • Configure and Generate/Configure and Measure:

    Configures, Initiates and Measure/Generate for an input/output task respectively. Also, can return raw data for external custom post analysis and measurements from embedded analysis(selectable/optional)

    This is done by calling the configure_and_measure()/configure_and_generate() method on the class instance.

  • Close:

    Closes the DAQmx tasks and clears resources.

    This is done by calling the close() method on the class instance.

2. Features and Utilities

  • Virtual Channels

    Virtual channels, or sometimes referred to generically as channels, are software entities that encapsulate the physical channel along with other channel specific information (e.g.: range, terminal configuration, and custom scaling) that formats the data. A physical channel is a terminal or pin at which you can measure or generate an analog or digital signal. A single physical channel can include more than one terminal, as in the case of a differential analog input channel or a digital port of eight lines. Every physical channel on a device has a unique name (for instance, cDAQ1Mod4/ai0, Dev2/ao5, and Dev6/ctr3) that follows the NI-DAQmx physical channel naming convention. Refer to NI-DAQmx Channel for more information.

  • Logger

    The logger is a feature which comes along with the package as a part of PCBATT Utilities and helps in storing configuration details and results for every run of the sequences. It can be used to store results in the .txt or .csv file formats. The logger stores results for every run in the same file. Example usage of the logger can be found in the automation sequences.

  • Save Traces

    This Utility works in a similar manner as the logger but it saves configuration settings and results for each run in separate files. Example usage of the save_traces module can be found in the validation examples.

Usage

1. Validation Examples

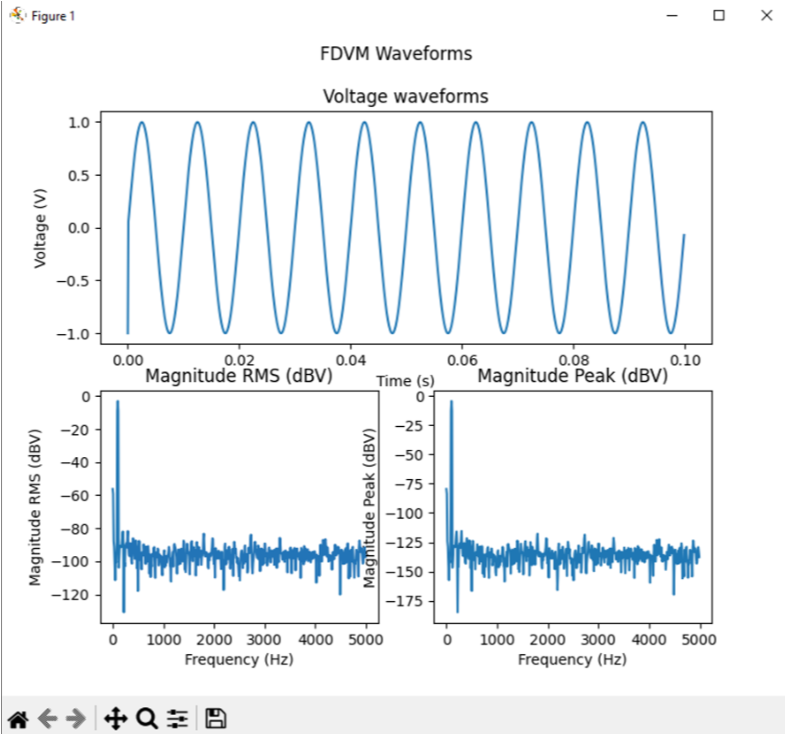

Validation examples are created as examples for testing and validating a pair of libraries together, where one library is used for generation and another for measurement. The validation examples can be found in this location in the installed library.

“\<venv>\Lib\site-packages\nipcbatt\pcbatt_validation_examples”

Or refer to the location given below if you are using the downloaded source code:

“\nipcbatt-1.x\src\nipcbatt\pcbatt_validation_examples”

2. Automation Sequences

Automation sequences are examples of using libraries for real time scenarios like microphone tests, LED tests and so on. Automation sequences are tested in simulation mode.

Following is the list of Automation Sequences provided as a part of the package.

  1. action_button_tests

  2. audio_tests

  3. communication_tests

  4. digital_io_tests

  5. led_tests

  6. microphone_tests

  7. power_supply_tests

  8. sensor_tests

  9. synchronization_tests

The Automation Sequences can be found in this location using the installed package:

“\<venv>\Lib\site-packages\nipcbatt\pcbatt_automation”

Or refer to the location given below if you are using source code:

“\nipcbatt-1.x\src\nipcbatt\pcbatt_automation”

3. Functional Test Demo Sequence

FT demo sequence is an example for creating a test sequence using libraries with applying test limits on the results to determine whether the test is a pass or a fail.

Please refer to the FT Demo Sequence in the location.

“\<venv>\Lib\site-packages\nipcbatt\pcbatt_ft_demo_test_sequence”

Or refer to the location given below if you are using source code:

“\nipcbatt-1.x\src\nipcbatt\pcbatt_ft_demo_test_sequence”

Bugs / Feature Requests

To report a bug or submit a feature request, please use this link. Or write an email to : Customer Requests

License

nipcbatt is licensed under an MIT-style license. Other incorporated projects may be licensed under different licenses. All licenses allow for non-commercial and commercial use.
