nobita

A non-verbal communication library for robot development using OAK-D

Japanese readme is here.

Preparing

To use this library, you need a Python environment running OAK-D and DepthAI.

Install by PyPi

pip install nobita

Install by the repository

pip install https://github.com/wbawakate/nobita

Overview

Since Nobita wraps the tedious process of DepthAI, two-step inference such as face detection and emotion estimation can be done with few lines of code.

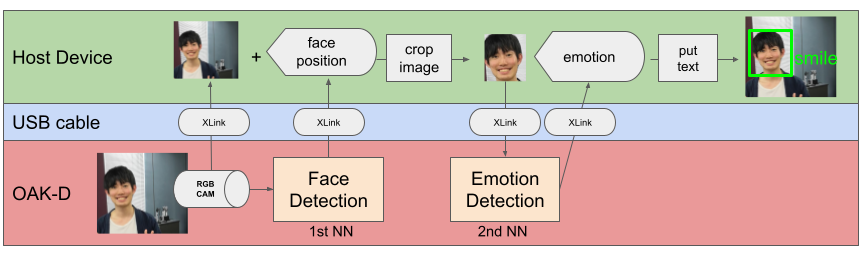

This figure shows the data flow when using DepthAI and OAK-D to handle multiple neural networks. First, the first neural network is used to infer the image obtained from the RGB of OAK-D. Then you need to convert the data into the input format of that second neural network. Therefore, it is necessary to transfer data between the OAK-D and the host computer many times. When using raw DepthAI, the amount of code to write tends to increase because all data transfer needs to be defined. With Nobita, you can more easily deploy multiple neural networks to OAK-D.

There are two main elements to Nobita; nobita.modules and nobita.VisionPipeline. nobita.modules is a set of neural network modules that handle typical tasks related to non-verbal communication, such as face detection and emotion inference. For more information, see Modules. nobita.VisionPipeline deploys nobita.modules as a pipeline to OAK-D and performs continuous inference.

Now, let's start emotion estimation from face images using nobita. The following is the code for face detection and emotion estimation.

import cv2
import numpy as np
from nobita import VisionPipeline
from nobita.modules import FaceDetection, EmotionEstimation

emotions = ["neutral", "happy", "sad", "surprise", "anger"]
# prepare VisionPipeline of nobita
#    pass `nobita.modules` to modules as a list
#    if you use OAK-D, set `use_oak=True`
with VisionPipeline(modules=[FaceDetection(), EmotionEstimation()], use_oak=True) as pipeline:
    while True:
        # get result of estimation and camera preview as dict
        #     key of the dict is name of `nobita.modules`.
        #     value of the dict is list of numpy.array, which is prediction values of estimation of the `nobita.module`.
        out_frame = pipeline.get()
        if out_frame["FaceDetection"] :
            # facial image by cropped by face detection
            face_cv2_frame = cv2.UMat(out_frame["FaceDetection"][0] )
            if out_frame["EmotionEstimation"]:
                    id_emo = np.argmax(out_frame["EmotionEstimation"][0])
                    max_prob = np.max(out_frame["FaceDetection"][0])
                    # put estimated emotion on a facial image as text
                    cv2.putText(face_cv2_frame, f"{emotions[id_emo]}",(5, 15),cv2.FONT_HERSHEY_TRIPLEX,0.6,(255,0,0))
            # show the facial image
            cv2.imshow(f"face 0", face_cv2_frame)
        if cv2.waitKey(1) == ord("q"):
            cv2.destroyAllWindows()
            break

Just pass nobita.modules such as FaceDetection and EmotionEstimation to nobita.VisionPipeline to perform two-step inference easily. The result of the inference can be retrieved as a dictionary with pipeline.get(). In the demo, the emotion text inferred by EmotionEstimation is pasted on the face image detected by FaceDetection and shown on the display.

Demo

There is demo code for each module in demo/.

Run the code as follows in the demo/ directory.

python face_emotion.py

Each demo has an option --device. This option allows you to specify the device to capture the video. If you are using OAK-D, specify -1 (default). When using other webcams, specify the same device ID as when specifying the device in OpenCV.

Module

Below table is a list of nobita.modules.

module	discription	source	blob file
FaceDetection	face detection	OpenVINO Toolkit	face-detection-retail-0004_openvino_2021.2_6shave.blob
PoseEstimation	human pose estimation	depthai_movenet	movenet_singlepose_lightning_U8_transpose.blob
EmotionEstimation	emotion estimation by facial imases	OpenVINO Toolkit	emotions-recognition-retail-0003.blob
AgeGender	age and gender estimation facial imases	OpenVINO Toolkit	age-gender-recognition-retail-0013_openvino_2021.2_6shave.blob
FaceLandmark	facial landmark detection by facial images	OpenVINO Toolkit	facial-landmarks-35-adas-0002-shaves6.blob
HeadPose	head pose estimation by facial images	OpenVINE	head-pose-estimation-adas-0001-shaves4.blob

Credit

• WBA Future Leaders ( https://wbawakate.jp )
