nxp-imu 0.0.1

python library to use the Adafruit NXP 9-Dof IMU

NXP IMU

Python drivers for Adafruit Precision NXP 9-DOF. This is basically a python version of Adafruit’s FXOS8700 and their FXAS21002C written in C++ for the Arduino.

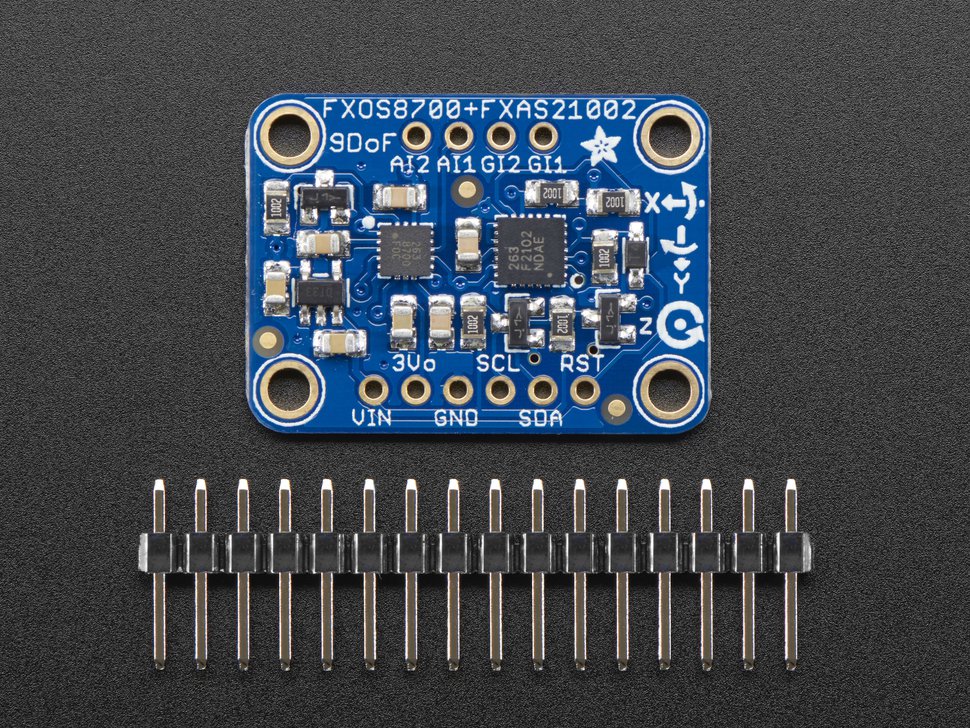

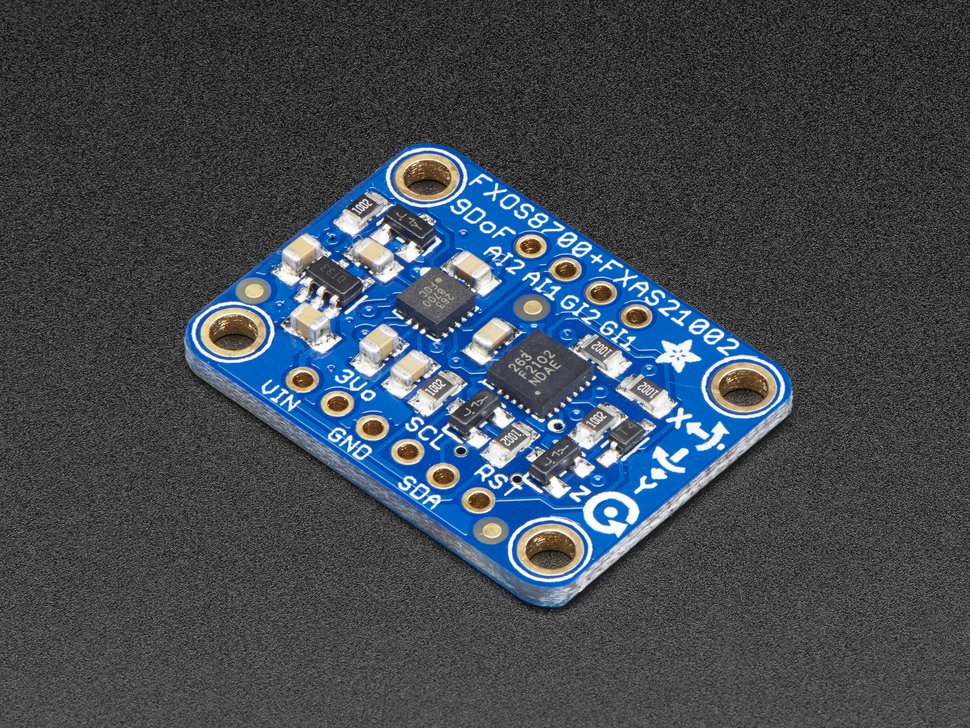

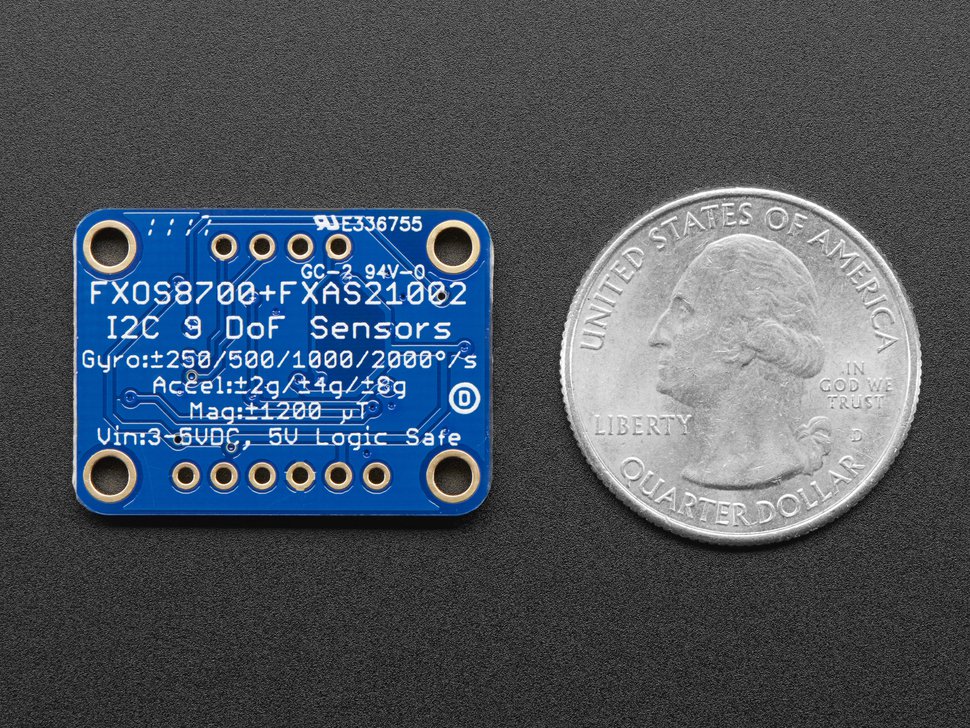

NXP Precision 9DoF

The board consists of two separate ICs, described below:

FXOS8700 3-Axis Accelerometer/Magnetometer

• 2-3.6V Supply

• ±2 g/±4 g/±8 g adjustable acceleration range

• ±1200 µT magnetic sensor range

• Output data rates (ODR) from 1.563 Hz to 800 Hz

• 14-bit ADC resolution for acceleration measurements

• 16-bit ADC resolution for magnetic measurements

FXAS21002 3-Axis Gyroscope

• 2-3.6V Supply

• ±250/500/1000/2000°/s configurable range

• Output Data Rates (ODR) from 12.5 to 800 Hz

• 16-bit digital output resolution

• 192 bytes FIFO buffer (32 X/Y/Z samples)

Setup

Adafruit setup tutorial

Documents

The /docs folder has the datasheets for both the accel/magnetometer and the gyros.

MIT License

Copyright (c) 2017 Kevin J. Walchko

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the “Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Misc

git config –global core.ignorecase false
