This script converts the OpenVINO IR model to Tensorflow's saved_model, tflite, h5 and pb. in (NCHW) format

Project description

openvino2tensorflow

This script converts the ONNX/OpenVINO IR model to Tensorflow's saved_model, tflite, h5, tfjs, tftrt(TensorRT), CoreML, EdgeTPU, ONNX and pb. PyTorch (NCHW) -> ONNX (NCHW) -> OpenVINO (NCHW) -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TFLite (NHWC/NCHW). And the conversion from .pb to saved_model and from saved_model to .pb and from .pb to .tflite and saved_model to .tflite and saved_model to onnx. Support for building environments with Docker. It is possible to directly access the host PC GUI and the camera to verify the operation. NVIDIA GPU (dGPU) support. Intel iHD GPU (iGPU) support.

Special custom TensorFlow binaries and special custom TensorFLow Lite binaries are used.

Work in progress now.

GitHub

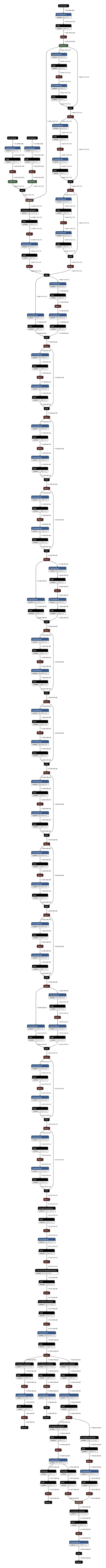

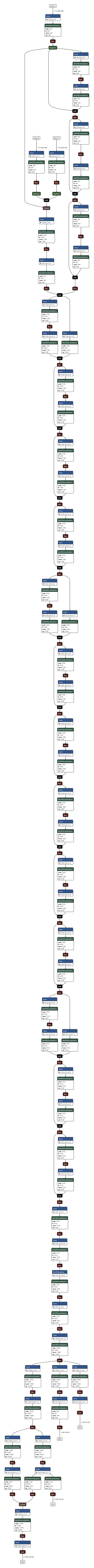

render1629515758354

1. Environment

Python 3.8+
TensorFlow v2.10.0+
PyTorch v1.12.1+
TorchVision
TorchAudio
OpenVINO 2022.1.0
TensorRT 8.4.0+
trtexec
pycuda 2022.1
tensorflowjs
coremltools
paddle2onnx
onnx
onnxruntime-gpu (CUDA, TensorRT, OpenVINO)
onnxruntime-extensions
onnx_graphsurgeon
onnx-simplifier
onnxconverter-common
onnxmltools
onnx-tensorrt
tf2onnx
torch2trt
onnx-tf
tensorflow-datasets
tf_slim
edgetpu_compiler
tflite2tensorflow
openvino2tensorflow
simple-onnx-processing-tools
gdown
pandas
matplotlib
paddlepaddle
paddle2onnx
pycocotools
scipy
blobconverter
Intel-Media-SDK
Intel iHD GPU (iGPU) support
OpenCL
gluoncv
LLVM
NNPACK
WSL2 OpenCL

↥ Back to top

2. Use case

PyTorch (NCHW) -> ONNX (NCHW) -> OpenVINO (NCHW) ->
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TFLite (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TFJS (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TF-TRT (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC) -> EdgeTPU (NHWC)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> CoreML (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> ONNX (NHWC/NCHW)
- -> openvino2tensorflow -> Myriad Inference Engine Blob (NCHW)
Caffe (NCHW) -> OpenVINO (NCHW) ->
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TFLite (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TFJS (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TF-TRT (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC) -> EdgeTPU (NHWC)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> CoreML (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> ONNX (NHWC/NCHW)
- -> openvino2tensorflow -> Myriad Inference Engine Blob (NCHW)
MXNet (NCHW) -> OpenVINO (NCHW) ->
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TFLite (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TFJS (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TF-TRT (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC) -> EdgeTPU (NHWC)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> CoreML (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> ONNX (NHWC/NCHW)
- -> openvino2tensorflow -> Myriad Inference Engine Blob (NCHW)
Keras (NHWC) -> OpenVINO (NCHW・Optimized) ->
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TFLite (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TFJS (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> TF-TRT (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC) -> EdgeTPU (NHWC)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> CoreML (NHWC/NCHW)
- -> openvino2tensorflow -> Tensorflow/Keras (NHWC/NCHW) -> ONNX (NHWC/NCHW)
- -> openvino2tensorflow -> Myriad Inference Engine Blob (NCHW)
saved_model -> saved_model_to_pb -> pb
saved_model ->
- -> saved_model_to_tflite -> TFLite
- -> saved_model_to_tflite -> TFJS
- -> saved_model_to_tflite -> TF-TRT
- -> saved_model_to_tflite -> EdgeTPU
- -> saved_model_to_tflite -> CoreML
- -> saved_model_to_tflite -> ONNX
pb -> pb_to_tflite -> TFLite
pb -> pb_to_saved_model -> saved_model

↥ Back to top

3. Supported Layers

Currently, there are problems with the Reshape and Transpose operation of 2D,3D,5D Tensor. Since it is difficult to accurately predict the shape of a simple shape change, I have added support for forced replacement of transposition parameters using JSON files. #6-7-replace-weights-or-constant-values-in-const-op-and-add-transpose-or-reshape-or-cast-or-squeeze-or-unsqueeze-or-add-or-multiply-just-beforeafter-the-operation-specified-by-layer_id

Supported Layers

No.	OpenVINO Layer	TF Layer	Remarks
1	Parameter	Input	Convert to NHWC (Default) or NCHW
2	Const	Constant, Bias
3	Convolution	Conv1D, Conv2D, Conv3D	Conv3D has limited support
4	Add	Add
5	ReLU	ReLU
6	PReLU	PReLU	Maximum(0.0,x)+Minimum(0.0,alpha*x)
7	MaxPool	MaxPool2D
8	AvgPool	AveragePooling1D, AveragePooling2D, AveragePooling3D
9	GroupConvolution	DepthwiseConv2D, Conv2D/Split/Concat
10	ConvolutionBackpropData	Conv2DTranspose, Conv3DTranspose	Conv3DTranspose has limited support
11	Concat	Concat
12	Multiply	Multiply
13	Tan	Tan
14	Tanh	Tanh
15	Elu	Elu
16	Sigmoid	Sigmoid
17	HardSigmoid	hard_sigmoid
18	SoftPlus	SoftPlus
19	Swish	Swish	You can replace swish and hard-swish with each other by using the "--replace_swish_and_hardswish" option
20	Interpolate	ResizeNearestNeighbor, ResizeBilinear	4D [N,H,W,C] or 5D [N,D,H,W,C]
21	ShapeOf	Shape
22	Convert	Cast
23	StridedSlice	Strided_Slice
24	Pad	Pad, MirrorPad
25	Clamp	ReLU6, Clip
26	TopK	ArgMax, top_k
27	Transpose	Transpose
28	Squeeze	Squeeze
29	Unsqueeze	Identity, expand_dims	WIP
30	ReduceMean	reduce_mean
31	ReduceMax	reduce_max
32	ReduceMin	reduce_min
33	ReduceSum	reduce_sum
34	ReduceProd	reduce_prod
35	Subtract	Subtract
36	MatMul	MatMul
37	Reshape	Reshape
38	Range	Range	WIP
39	Exp	Exp
40	Abs	Abs
41	SoftMax	SoftMax
42	Negative	Negative
43	Maximum	Maximum	No broadcast
44	Minimum	Minimum	No broadcast
45	Acos	Acos
46	Acosh	Acosh
47	Asin	Asin
48	Asinh	Asinh
49	Atan	Atan
50	Atanh	Atanh
51	Ceiling	Ceil
52	Cos	Cos
53	Cosh	Cosh
54	Sin	Sin
55	Sinh	Sinh
56	Gather	Gather
57	Divide	Divide, FloorDiv
58	Erf	Erf
59	Floor	Floor
60	FloorMod	FloorMod
61	HSwish	HardSwish	xReLU6(x+3)0.16666667, You can replace swish and hard-swish with each other by using the "--replace_swish_and_hardswish" option
62	Log	Log
63	Power	Pow	No broadcast
64	Mish	Mish	x*Tanh(softplus(x))
65	Selu	Selu
66	Equal	equal
67	NotEqual	not_equal
68	Greater	greater
69	GreaterEqual	greater_equal
70	Less	less
71	LessEqual	less_equal
72	Select	Select	No broadcast
73	LogicalAnd	logical_and
74	LogicalNot	logical_not
75	LogicalOr	logical_or
76	LogicalXor	logical_xor
77	Broadcast	broadcast_to, ones, Multiply	numpy / bidirectional mode, WIP
78	Split	Split
79	VariadicSplit	Split, Slice, SplitV
80	MVN	reduce_mean, sqrt, reduce_variance	(x - reduce_mean(x)) / sqrt(reduce_variance(x) + eps)
81	NonZero	not_equal, boolean_mask
82	ReduceL2	square, reduce_sum, sqrt
83	SpaceToDepth	SpaceToDepth
84	DepthToSpace	DepthToSpace
85	Sqrt	sqrt
86	SquaredDifference	squared_difference
87	FakeQuantize	subtract, multiply, round, greater, where, less_equal, add
88	Tile	tile
89	GatherND	gather_nd, reshape, cumprod, multiply, reduce_sum, gather, concat
90	NonMaxSuppression	non_max_suppression	WIP. Only available for batch size 1.
91	Gelu	gelu
92	NormalizeL2	tf.math.add, tf.math.l2_normalize	x/sqrt(max(sum(x2), eps)) or x/sqrt(add(sum(x2), eps))
93	ScatterElementsUpdate	shape, rank, floormod, add, cast, range, expand_dims, meshgrid, concat, reshape, tensor_scatter_nd_update
94	ROIAlign	crop_and_resize, avg_pool, max_pool
95	ScatterNDUpdate	tensor_scatter_nd_update
96	GatherElements	rank, add, shape, cast, floormod, range, tensor_scatter_nd_update, constant, transpose, meshgrid, expand_dims, concat, gather_nd	WIP
97	ConvertLike	Cast
98	ReduceL1	Abs, ReduceSum
99	ShuffleChannels	reshape, transpose
100	PriorBoxClustered	Constant
101	CumSum	cumsum
102	PriorBox	Constant
103	ReverseSequence	reverse
104	ExtractImagePatches	extract_patches
105	LogSoftmax	reduce_max, log, reduce_sum, exp
106	Einsum	einsum
107	ScatterUpdate	scatter_update
108	Result	Identity	Output

↥ Back to top

4. Setup

4-1. [Environment construction pattern 1] Execution by Docker (`strongly recommended`)

You do not need to install any packages other than Docker. It consumes 23.4GB of storage.

$ docker pull ghcr.io/pinto0309/openvino2tensorflow:latest
or
# $ mv .dockerignore d
# $ docker build \
# -t ghcr.io/pinto0309/openvino2tensorflow:base.11.7.1-cudnn8-tf2.10.0-trt8.4.3-openvino2022.1.0 \
# -f Dockerfile.base .
# $ mv d .dockerignore
$ docker build --no-cache -t ghcr.io/pinto0309/openvino2tensorflow:latest .

# If you don't need to access the GUI of the HostPC and the USB camera.
$ docker run -it --rm \
  -v `pwd`:/home/user/workdir \
  ghcr.io/pinto0309/openvino2tensorflow:latest

# If conversion to TF-TRT is not required. And if you need to access the HostPC GUI and USB camera.
$ xhost +local: && \
  docker run -it --rm \
  -v `pwd`:/home/user/workdir \
  -v /tmp/.X11-unix/:/tmp/.X11-unix:rw \
  --device /dev/video0:/dev/video0:mwr \
  --net=host \
  -e XDG_RUNTIME_DIR=$XDG_RUNTIME_DIR \
  -e DISPLAY=$DISPLAY \
  --privileged \
  ghcr.io/pinto0309/openvino2tensorflow:latest

# If you need to convert to TF-TRT. And if you need to access the HostPC GUI and USB camera.
$ xhost +local: && \
  docker run --gpus all -it --rm \
  -v `pwd`:/home/user/workdir \
  -v /tmp/.X11-unix/:/tmp/.X11-unix:rw \
  --device /dev/video0:/dev/video0:mwr \
  --net=host \
  -e XDG_RUNTIME_DIR=$XDG_RUNTIME_DIR \
  -e DISPLAY=$DISPLAY \
  --privileged \
  ghcr.io/pinto0309/openvino2tensorflow:latest

# If you are using iGPU (OpenCL). And if you need to access the HostPC GUI and USB camera.
$ xhost +local: && \
  docker run -it --rm \
  -v `pwd`:/home/user/workdir \
  -v /tmp/.X11-unix/:/tmp/.X11-unix:rw \
  --device /dev/video0:/dev/video0:mwr \
  --net=host \
  -e LIBVA_DRIVER_NAME=iHD \
  -e XDG_RUNTIME_DIR=$XDG_RUNTIME_DIR \
  -e DISPLAY=$DISPLAY \
  --privileged \
  ghcr.io/pinto0309/openvino2tensorflow:latest

↥ Back to top

4-2. [Environment construction pattern 2] Execution by Host machine

To install using the Python Package Index (PyPI), use the following command.

$ pip3 install --user --upgrade openvino2tensorflow

To install with the latest source code of the main branch, use the following command.

$ pip3 install --user --upgrade git+https://github.com/PINTO0309/openvino2tensorflow

↥ Back to top

5. Usage

5-1. openvino to tensorflow convert

usage: openvino2tensorflow
  [-h]
  --model_path MODEL_PATH
  [--model_output_path MODEL_OUTPUT_PATH]
  [--output_saved_model]
  [--output_h5]
  [--output_weight_and_json]
  [--output_pb]
  [--output_no_quant_float32_tflite]
  [--output_dynamic_range_quant_tflite]
  [--output_weight_quant_tflite]
  [--output_float16_quant_tflite]
  [--output_integer_quant_tflite]
  [--output_full_integer_quant_tflite]
  [--output_integer_quant_type OUTPUT_INTEGER_QUANT_TYPE]
  [--string_formulas_for_normalization STRING_FORMULAS_FOR_NORMALIZATION]
  [--calib_ds_type CALIB_DS_TYPE]
  [--ds_name_for_tfds_for_calibration DS_NAME_FOR_TFDS_FOR_CALIBRATION]
  [--split_name_for_tfds_for_calibration SPLIT_NAME_FOR_TFDS_FOR_CALIBRATION]
  [--download_dest_folder_path_for_the_calib_tfds DOWNLOAD_DEST_FOLDER_PATH_FOR_THE_CALIB_TFDS]
  [--tfds_download_flg]
  [--load_dest_file_path_for_the_calib_npy LOAD_DEST_FILE_PATH_FOR_THE_CALIB_NPY]
  [--output_tfjs]
  [--output_tftrt_float32]
  [--output_tftrt_float16]
  [--tftrt_maximum_cached_engines TFTRT_MAXIMUM_CACHED_ENGINES]
  [--output_coreml]
  [--output_edgetpu]
  [--edgetpu_compiler_timeout EDGETPU_COMPILER_TIMEOUT]
  [--edgetpu_num_segments EDGETPU_NUM_SEGMENTS]
  [--output_onnx]
  [--onnx_opset ONNX_OPSET]
  [--onnx_extra_opset ONNX_EXTRA_OPSET]
  [--disable_onnx_nchw_conversion]
  [--disable_onnx_optimization]
  [--output_myriad]
  [--vpu_number_of_shaves VPU_NUMBER_OF_SHAVES]
  [--vpu_number_of_cmx_slices VPU_NUMBER_OF_CMX_SLICES]
  [--replace_swish_and_hardswish]
  [--optimizing_hardswish_for_edgetpu]
  [--replace_prelu_and_minmax]
  [--replace_argmax]
  [--replace_argmax_indices_to_float32]
  [--restricted_resize_image_mode]

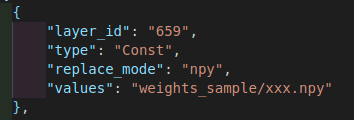

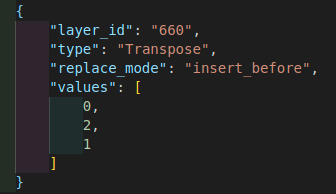

  [--weight_replacement_config WEIGHT_REPLACEMENT_CONFIG]
  [--disable_experimental_new_quantizer]
  [--disable_per_channel]
  [--optimizing_barracuda]
  [--layerids_of_the_terminating_output LAYERIDS_OF_THE_TERMINATING_OUTPUT]
  [--keep_input_tensor_in_nchw]
  [--input_as_ncdhw]
  [--non_verbose]

optional arguments:
  -h, --help
              show this help message and exit
  --model_path MODEL_PATH
              input IR model path (.xml)
  --model_output_path MODEL_OUTPUT_PATH
              The output folder path of the converted model file
  --output_saved_model
              saved_model output switch
  --output_h5
              .h5 output switch
  --output_weight_and_json
              weight of h5 and json output switch
  --output_pb
              .pb output switch
  --output_no_quant_float32_tflite
              float32 tflite output switch
  --output_dynamic_range_quant_tflite
              dynamic range quant tflite output switch
  --output_weight_quant_tflite
              weight quant tflite output switch
  --output_float16_quant_tflite
              float16 quant tflite output switch
  --output_integer_quant_tflite
              integer quant tflite output switch
  --output_full_integer_quant_tflite
              full integer quant tflite output switch
  --output_integer_quant_type OUTPUT_INTEGER_QUANT_TYPE
              Input and output types when doing Integer Quantization
              ('int8 (default)' or 'uint8')
  --string_formulas_for_normalization STRING_FORMULAS_FOR_NORMALIZATION
              String formulas for normalization. It is evaluated by
              Pythons eval() function.
              Default: '(data - [127.5,127.5,127.5]) / [127.5,127.5,127.5]'
  --calib_ds_type CALIB_DS_TYPE
              Types of data sets for calibration. tfds or numpy
              Default: numpy
  --ds_name_for_tfds_for_calibration DS_NAME_FOR_TFDS_FOR_CALIBRATION
              Dataset name for TensorFlow Datasets for calibration.
              https://www.tensorflow.org/datasets/catalog/overview
  --split_name_for_tfds_for_calibration SPLIT_NAME_FOR_TFDS_FOR_CALIBRATION
              Split name for TensorFlow Datasets for calibration.
              https://www.tensorflow.org/datasets/catalog/overview
  --download_dest_folder_path_for_the_calib_tfds DOWNLOAD_DEST_FOLDER_PATH_FOR_THE_CALIB_TFDS
              Download destination folder path for the calibration
              dataset. Default: $HOME/TFDS
  --tfds_download_flg
              True to automatically download datasets from
              TensorFlow Datasets. True or False
  --load_dest_file_path_for_the_calib_npy LOAD_DEST_FILE_PATH_FOR_THE_CALIB_NPY
              The path from which to load the .npy file containing
              the numpy binary version of the calibration data.
              Default: sample_npy/calibration_data_img_sample.npy
  --output_tfjs
              tfjs model output switch
  --output_tftrt_float32
              tftrt float32 model output switch
  --output_tftrt_float16
              tftrt float16 model output switch
  --tftrt_maximum_cached_engines
              Specifies the quantity of tftrt_maximum_cached_engines for TFTRT.
              Default: 10000
  --output_coreml
              coreml model output switch
  --output_edgetpu
              edgetpu model output switch
  --edgetpu_compiler_timeout
              edgetpu_compiler timeout for one compilation process in seconds.
              Default: 3600
  --edgetpu_num_segments
              Partition the model into 'num_segments' segments.
              Default: 1 (no partition)
  --output_onnx
              onnx model output switch
  --onnx_opset ONNX_OPSET
              onnx opset version number
  --onnx_extra_opset ONNX_EXTRA_OPSET
              The name of the onnx 'extra_opset' to enable.
              Default: ''
              'com.microsoft:1' or 'ai.onnx.contrib:1' or 'ai.onnx.ml:1'
  --disable_onnx_nchw_conversion
              Disable NCHW conversion
  --disable_onnx_optimization
              Disable onnx optimization
  --output_myriad
              myriad inference engine blob output switch
  --vpu_number_of_shaves VPU_NUMBER_OF_SHAVES
              vpu number of shaves. Default: 4
  --vpu_number_of_cmx_slices VPU_NUMBER_OF_CMX_SLICES
              vpu number of cmx slices. Default: 4
  --replace_swish_and_hardswish
              Replace swish and hard-swish with each other
  --optimizing_hardswish_for_edgetpu
              Optimizing hardswish for edgetpu
  --replace_prelu_and_minmax
              Replace prelu and minimum/maximum with each other
  --replace_argmax
              Replace 'ArgMax (TopK)' with a primitive operation.
              Optimizes 'ArgMax' to EdgeTPU. If you have 'ArgMax' at the end of your model,
              use the '--replace_argmax_indices_to_float32' option together.
  --replace_argmax_indices_to_float32
              Enabling this option may allow full mapping to EdgeTPU when 'ArgMax (TopK)'
              is at the end of the model for tasks such as SemanticSegmentation.
              If you apply it to 'ArgMax (TopK)', which is located in the middle of the model,
              the model transformation is more likely to fail.
  --restricted_resize_image_mode
              Specify this if the upsampling contains OPs that are
              not scaled by integer multiples. Optimization for
              EdgeTPU will be disabled.

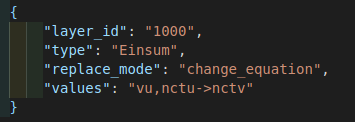

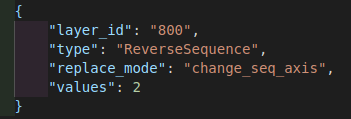

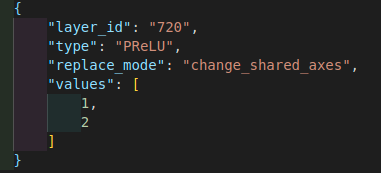

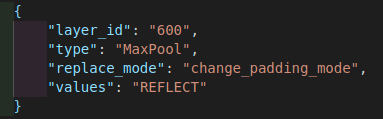

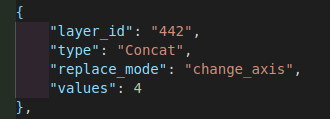

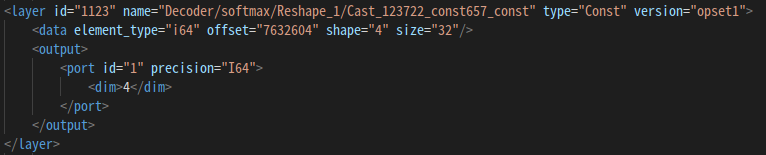

  --weight_replacement_config WEIGHT_REPLACEMENT_CONFIG
              Replaces the value of Const for each layer_id defined
              in json. Specify the path to the json file.
              'weight_replacement_config.json'
  --disable_experimental_new_quantizer
              Disable MLIRs new quantization feature during INT8 quantization
              in TensorFlowLite.
  --disable_per_channel
              Disable per-channel quantization for tflite.
  --optimizing_barracuda
              Generates ONNX by replacing Barracuda unsupported layers
              with standard layers. For example, GatherND.
  --layerids_of_the_terminating_output LAYERIDS_OF_THE_TERMINATING_OUTPUT
              A comma-separated list of layerIDs to be used as output layers.
              e.g. --layerids_of_the_terminating_output 100,201,560
              Default: ''
  --keep_input_tensor_in_nchw
              Does not convert the input to NHWC, but keeps the NCHW format.
              Transpose is inserted right after the input layer, and
              the model internals are handled by NHWC. Only 4D input is supported.
  --input_as_ncdhw
              Specify when the shape of INPUT is the 5D tensor of NCDHW.
              When converting to TensorFlow, the input geometry is automatically
              converted to NDHWC format.
  --non_verbose
              Do not show all the weight information of each layer in the
              conversion log.

↥ Back to top

5-2. saved_model to tflite convert

usage: saved_model_to_tflite
  [-h]
  --saved_model_dir_path SAVED_MODEL_DIR_PATH
  [--signature_def SIGNATURE_DEF]
  [--input_shapes INPUT_SHAPES]
  [--model_output_dir_path MODEL_OUTPUT_DIR_PATH]
  [--output_no_quant_float32_tflite]
  [--output_dynamic_range_quant_tflite]
  [--output_weight_quant_tflite]
  [--output_float16_quant_tflite]
  [--output_integer_quant_tflite]
  [--output_full_integer_quant_tflite]
  [--output_integer_quant_type OUTPUT_INTEGER_QUANT_TYPE]
  [--string_formulas_for_normalization STRING_FORMULAS_FOR_NORMALIZATION]
  [--calib_ds_type CALIB_DS_TYPE]
  [--ds_name_for_tfds_for_calibration DS_NAME_FOR_TFDS_FOR_CALIBRATION]
  [--split_name_for_tfds_for_calibration SPLIT_NAME_FOR_TFDS_FOR_CALIBRATION]
  [--download_dest_folder_path_for_the_calib_tfds DOWNLOAD_DEST_FOLDER_PATH_FOR_THE_CALIB_TFDS]
  [--tfds_download_flg]
  [--load_dest_file_path_for_the_calib_npy LOAD_DEST_FILE_PATH_FOR_THE_CALIB_NPY]
  [--output_tfjs]
  [--output_tftrt_float32]
  [--output_tftrt_float16]
  [--tftrt_maximum_cached_engines TFTRT_MAXIMUM_CACHED_ENGINES]
  [--output_coreml]
  [--output_edgetpu]
  [--edgetpu_compiler_timeout EDGETPU_COMPILER_TIMEOUT]
  [--edgetpu_num_segments EDGETPU_NUM_SEGMENTS]
  [--output_onnx]
  [--onnx_opset ONNX_OPSET]
  [--onnx_extra_opset ONNX_EXTRA_OPSET]
  [--disable_onnx_nchw_conversion]
  [--disable_onnx_optimization]
  [--disable_experimental_new_quantizer]
  [--disable_per_channel]

optional arguments:
  -h, --help
              show this help message and exit
  --saved_model_dir_path SAVED_MODEL_DIR_PATH
              Input saved_model dir path
  --signature_def SIGNATURE_DEF
              Specifies the signature name to load from saved_model
  --input_shapes INPUT_SHAPES
              Overwrites an undefined input dimension (None or -1).
              Specify the input shape in [n,h,w,c] format.
              For non-4D tensors, specify [a,b,c,d,e], [a,b], etc.
              A comma-separated list if there are multiple inputs.
              (e.g.) --input_shapes [1,256,256,3],[1,64,64,3],[1,2,16,16,3]
  --model_output_dir_path MODEL_OUTPUT_DIR_PATH
              The output folder path of the converted model file
  --output_no_quant_float32_tflite
              float32 tflite output switch
  --output_dynamic_range_quant_tflite
              dynamic range quant tflite output switch
  --output_weight_quant_tflite
              weight quant tflite output switch
  --output_float16_quant_tflite
              float16 quant tflite output switch
  --output_integer_quant_tflite
              integer quant tflite output switch
  --output_full_integer_quant_tflite
              full integer quant tflite output switch
  --output_integer_quant_type OUTPUT_INTEGER_QUANT_TYPE
              Input and output types when doing Integer Quantization
              ('int8 (default)' or 'uint8')
  --string_formulas_for_normalization STRING_FORMULAS_FOR_NORMALIZATION
              String formulas for normalization. It is evaluated by
              Pythons eval() function.
              Default: '(data - [127.5,127.5,127.5]) / [127.5,127.5,127.5]'
  --calib_ds_type CALIB_DS_TYPE
              Types of data sets for calibration. tfds or numpy
              Default: numpy
  --ds_name_for_tfds_for_calibration DS_NAME_FOR_TFDS_FOR_CALIBRATION
              Dataset name for TensorFlow Datasets for calibration.
              https://www.tensorflow.org/datasets/catalog/overview
  --split_name_for_tfds_for_calibration SPLIT_NAME_FOR_TFDS_FOR_CALIBRATION
              Split name for TensorFlow Datasets for calibration.
              https://www.tensorflow.org/datasets/catalog/overview
  --download_dest_folder_path_for_the_calib_tfds DOWNLOAD_DEST_FOLDER_PATH_FOR_THE_CALIB_TFDS
              Download destination folder path for the calibration
              dataset. Default: $HOME/TFDS
  --tfds_download_flg
              True to automatically download datasets from
              TensorFlow Datasets. True or False
  --load_dest_file_path_for_the_calib_npy LOAD_DEST_FILE_PATH_FOR_THE_CALIB_NPY
              The path from which to load the .npy file containing
              the numpy binary version of the calibration data.
              Default: sample_npy/calibration_data_img_sample.npy
  --output_tfjs
              tfjs model output switch
  --output_tftrt_float32
              tftrt float32 model output switch
  --output_tftrt_float16
              tftrt float16 model output switch
  --tftrt_maximum_cached_engines
              Specifies the quantity of tftrt_maximum_cached_engines for TFTRT.
              Default: 10000
  --output_coreml
              coreml model output switch
  --output_edgetpu
              edgetpu model output switch
  --edgetpu_compiler_timeout
              edgetpu_compiler timeout for one compilation process in seconds.
              Default: 3600
  --edgetpu_num_segments
              Partition the model into 'num_segments' segments.
              Default: 1 (no partition)
  --output_onnx
              onnx model output switch
  --onnx_opset ONNX_OPSET
              onnx opset version number
  --onnx_extra_opset ONNX_EXTRA_OPSET
              The name of the onnx 'extra_opset' to enable.
              Default: ''
              'com.microsoft:1' or 'ai.onnx.contrib:1' or 'ai.onnx.ml:1'
  --disable_onnx_nchw_conversion
              Disable NCHW conversion
  --disable_onnx_optimization
              Disable onnx optimization
  --disable_experimental_new_quantizer
              Disable MLIRs new quantization feature during INT8 quantization
              in TensorFlowLite.
  --disable_per_channel
              Disable per-channel quantization for tflite.

↥ Back to top

5-3. pb to saved_model convert

usage: pb_to_saved_model
  [-h]
  --pb_file_path PB_FILE_PATH
  --inputs INPUTS
  --outputs OUTPUTS
  [--model_output_path MODEL_OUTPUT_PATH]

optional arguments:
  -h, --help
              show this help message and exit
  --pb_file_path PB_FILE_PATH
              Input .pb file path (.pb)
  --inputs INPUTS
              (e.g.1) input:0,input:1,input:2
              (e.g.2) images:0,input:0,param:0
  --outputs OUTPUTS
              (e.g.1) output:0,output:1,output:2
              (e.g.2) Identity:0,Identity:1,output:0
  --model_output_path MODEL_OUTPUT_PATH
              The output folder path of the converted model file

↥ Back to top

5-4. pb to tflite convert

usage: pb_to_tflite
  [-h]
  --pb_file_path PB_FILE_PATH
  --inputs INPUTS
  --outputs OUTPUTS
  [--model_output_path MODEL_OUTPUT_PATH]

optional arguments:
  -h, --help
              show this help message and exit
  --pb_file_path PB_FILE_PATH
              Input .pb file path (.pb)
  --inputs INPUTS
              (e.g.1) input,input_1,input_2
              (e.g.2) images,input,param
  --outputs OUTPUTS
              (e.g.1) output,output_1,output_2
              (e.g.2) Identity,Identity_1,output
  --model_output_path MODEL_OUTPUT_PATH
              The output folder path of the converted model file

↥ Back to top

5-5. saved_model to pb convert

usage: saved_model_to_pb
  [-h]
  --saved_model_dir_path SAVED_MODEL_DIR_PATH
  [--model_output_dir_path MODEL_OUTPUT_DIR_PATH]
  [--signature_name SIGNATURE_NAME]

optional arguments:
  -h, --help
              show this help message and exit
  --saved_model_dir_path SAVED_MODEL_DIR_PATH
              Input saved_model dir path
  --model_output_dir_path MODEL_OUTPUT_DIR_PATH
              The output folder path of the converted model file (.pb)
  --signature_name SIGNATURE_NAME
              Signature name to be extracted from saved_model

↥ Back to top

5-6. Extraction of IR weight

usage: ir_weight_extractor
  [-h]
  -m MODEL
  -o OUTPUT_PATH

optional arguments:
  -h, --help
              show this help message and exit
  -m MODEL, --model MODEL
              input IR model path
  -o OUTPUT_PATH, --output_path OUTPUT_PATH
              weights output folder path

↥ Back to top

6. Execution sample

6-1. Conversion of OpenVINO IR to Tensorflow models

OutOfMemory may occur when converting to saved_model or h5 when the file size of the original model is large, please try the conversion to a pb file alone.

$ openvino2tensorflow \
  --model_path openvino/448x448/FP32/Resnet34_3inputs_448x448_20200609.xml \
  --output_saved_model \
  --output_pb \
  --output_weight_quant_tflite \
  --output_float16_quant_tflite \
  --output_no_quant_float32_tflite

↥ Back to top

6-2. Convert Protocol Buffer (.pb) to saved_model

This tool is useful if you want to check the internal structure of pb files, tflite files, .h5 files, coreml files and IR (.xml) files. https://lutzroeder.github.io/netron/

$ pb_to_saved_model \
  --pb_file_path model_float32.pb \
  --inputs inputs:0 \
  --outputs Identity:0

↥ Back to top

6-3. Convert Protocol Buffer (.pb) to tflite

$ pb_to_tflite \
  --pb_file_path model_float32.pb \
  --inputs inputs \
  --outputs Identity,Identity_1,Identity_2

↥ Back to top

6-4. Convert saved_model to Protocol Buffer (.pb)

$ saved_model_to_pb \
  --saved_model_dir_path saved_model \
  --model_output_dir_path pb_from_saved_model \
  --signature_name serving_default

↥ Back to top

6-5. Converts saved_model to OpenVINO IR

$ python3 ${INTEL_OPENVINO_DIR}/deployment_tools/model_optimizer/mo_tf.py \
  --saved_model_dir saved_model \
  --output_dir openvino/reverse

↥ Back to top

6-6. Checking the structure of saved_model

$ saved_model_cli show \
  --dir saved_model \
  --tag_set serve \
  --signature_def serving_default

↥ Back to top

6-7. Replace weights or constant values in `Const` OP, and add `Transpose` or `Reshape` or `Cast` or `Squeeze` or `Unsqueeze` or `Add` or `Multiply` just before/after the operation specified by layer_id

6-7-1. Overview

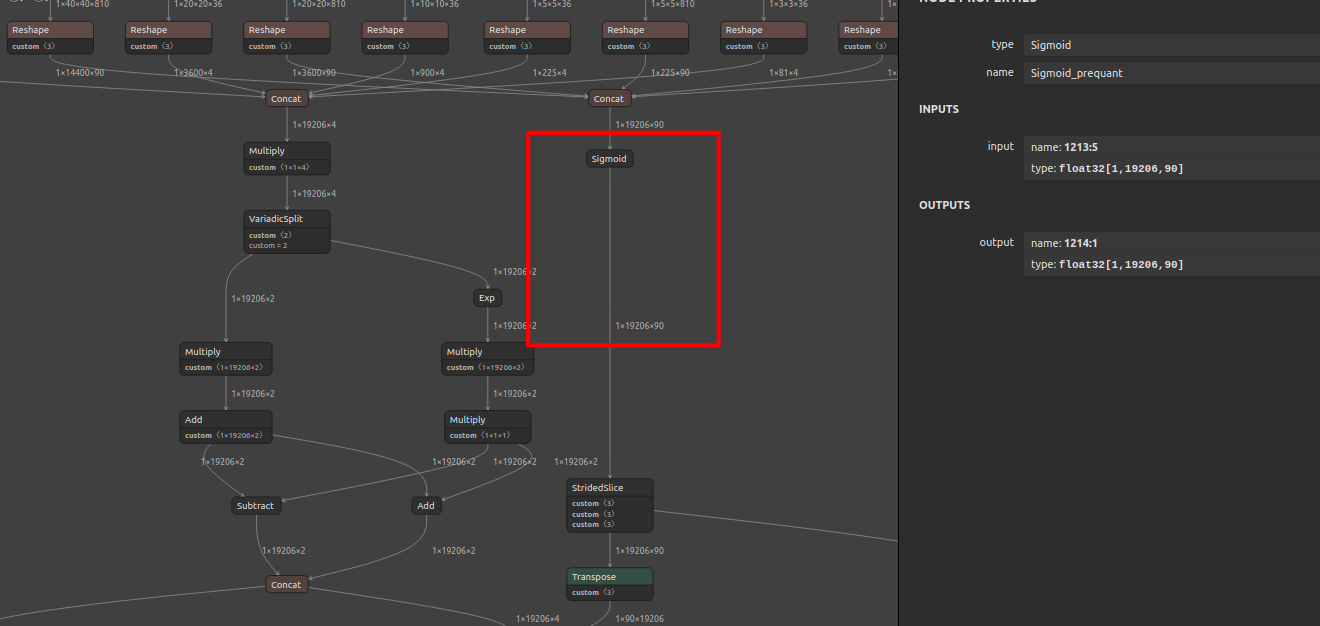

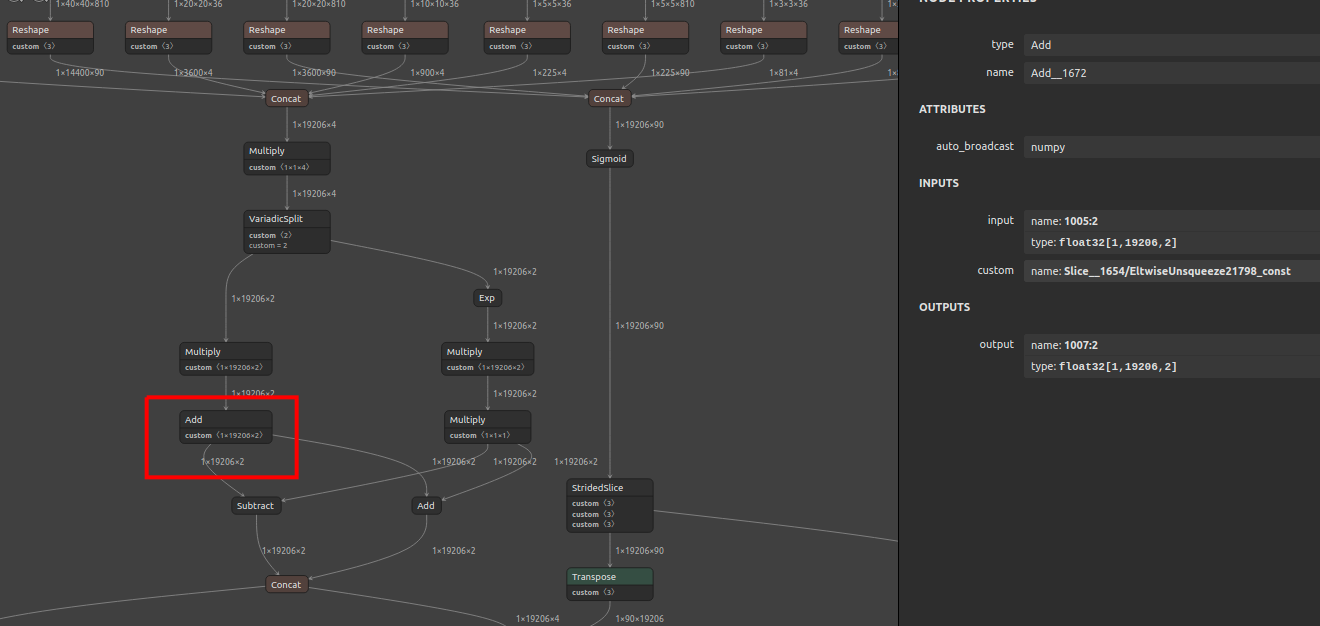

If the transformation behavior of Reshape, Transpose, etc. does not go as expected, you can force the Const content to change by defining weights and constant values in a JSON file and having it read in. Alternatively, Transpose or Reshape or Cast or Squeeze or Unsqueeze or Add or Multiply can be added just before the operation specified by layer_id. After changing the structure, you need to carefully check the consistency of Reshape, Transpose and Interpolate before and after. Even if the model is successfully transformed, there is a possibility that the dimension that should be changed is transformed incorrectly. In particular, Reshape and Interpolate are often able to transform the model even if the number of elements in the dimension is messed up.

$ openvino2tensorflow \
  --model_path xxx.xml \
  --output_saved_model \
  --output_pb \
  --output_weight_quant_tflite \
  --output_float16_quant_tflite \
  --output_no_quant_float32_tflite \
  --weight_replacement_config weight_replacement_config_sample.json

Structure of JSON sample

{
    "format_version": 2,
    "layers": [
        {
            "layer_id": "659",
            "type": "Const",
            "replace_mode": "direct",
            "values": [
                0,
                1,
                2
            ]
        },
        {

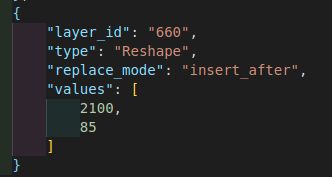

            "layer_id": "660",
            "type": "Reshape",
            "replace_mode": "insert_after",
            "values": [
                2100,
                85
            ]
        },
        {
            "layer_id": "680",
            "type": "Cast",
            "replace_mode": "insert_after",
            "values": "i64"
        },
        {
            "layer_id": "442",
            "type": "Concat",
            "replace_mode": "change_axis",
            "values": 4
        },
        {
            "layer_id": "450",
            "type": "SoftMax",
            "replace_mode": "change_axis",
            "values": 2
        },
        {
            "layer_id": "500",
            "type": "StridedSlice",
            "replace_mode": "change_attributes",
            "values": [
                0,
                0,
                0,
                0,
                0
            ]
        },
        {
            "layer_id": "550",
            "type": "StridedSlice",
            "replace_mode": "replace",
            "values": [
                [0,0,0,8],
                [2,7,11,16],
                [1,1,1,1],
                0,
                0,
                0,
                0,
                0
            ]
        },
        {
            "layer_id": "600",
            "type": "MaxPool",
            "replace_mode": "change_padding_mode",
            "values": "REFLECT"
        },
        {
            "layer_id": "720",
            "type": "PReLU",
            "replace_mode": "change_shared_axes",
            "values": [
                1,
                2
            ]
        },
        {
            "layer_id": "800",
            "type": "ReverseSequence",
            "replace_mode": "change_seq_axis",
            "values": 2
        },
        {
            "layer_id": "850",
            "type": "Squeeze",
            "replace_mode": "insert_after",
            "values": 1
        },
        {
            "layer_id": "900",
            "type": "Unsqueeze",
            "replace_mode": "insert_before",
            "values": 2
        },
        {
            "layer_id": "1000",
            "type": "Einsum",
            "replace_mode": "change_equation",
            "values": "vu,nctu->nctv"
        },
        {
            "layer_id": "1005",
            "type": "Add",
            "replace_mode": "insert_after",
            "values": [
                0,
                0,
                0,
                2
            ]
        },
        {
            "layer_id": "1010",
            "type": "Multiply",
            "replace_mode": "insert_after",
            "values": [
                1.0,
                1.0,
                -0.5,
                1.0
            ]
        }
    ]
}

No.	Elements	Description
1	format_version	Format version of weight_replacement_config. Values less than or equal to 2.
2	layers	A list of layers. Enclose it with "[ ]" to define multiple layers to child elements.
2-1	layer_id	ID of the Const layer whose weight/constant parameter is to be swapped. The important thing to note is that you cannot create multiple settings for a single layer_id. There should always be a single setting for a single layer_id. For example, specify "1123" for layer id="1123" for type="Const" in .xml.
2-2	type	Fixed value replacement or type of operation to be added. "Const" or "Transpose" or "Reshape" or "Cast" or "Concat" or "SoftMax" or "StridedSlice" or "MaxPool" or "PReLU" or "ReverseSequence" or "Squeeze" or "Unsqueeze" or "LogSoftmax" or "Einsum" or "Add" or "Multiply"
2-3	replace_mode	"direct" or "npy" or "insert_before" or "insert_after" or "change_axis" or "change_attributes". "direct": Specify the values of the Numpy matrix directly in the "values" attribute. Ignores the values recorded in the .bin file and replaces them with the values specified in "values". "npy": Load a Numpy binary file with the matrix output by `np.save('xyz', a)`. The "values" attribute specifies the path to the Numpy binary file. "insert_before": Add `Transpose` or `Reshape` or `Cast` or `Squeeze` or `Unsqueeze` or `Add` or `Multiply` just before the operation specified by layer_id. Note that when `Squeeze` and `Unsqueeze` are specified, the value to set for "values" is the axis of the dimension operation target. "insert_after": Add `Transpose` or `Reshape` or `Cast` or `Squeeze` or `Unsqueeze` or `Add` or `Multiply` just after the operation specified by layer_id. Note that when `Squeeze` and `Unsqueeze` are specified, the value to set for "values" is the axis of the dimension operation target. "change_axis": Changes the `axis` of the `Concat` or `SoftMax` or `ShuffleChannels` or `LogSoftmax` attribute value. "change_attributes": Changes the `ATTRIBUTES` of the `StridedSlice` attribute value. Specify five values in numerical list format in the order of `begin_mask`, `end_mask`, `ellipsis_mask`, `new_axis_mask`, `shrink_axis_mask`. "replace": Replaces OP by specifying parameters directly in TensorFlow `Strided_Slice` specification. `begin`, `end`, `strides`, `begin_mask`, `end_mask`, `ellipsis_mask`, `new_axis_mask`, `shrink_axis_mask` https://www.tensorflow.org/api_docs/python/tf/strided_slice "change_padding_mode": Change the padding mode of `MaxPool`. "change_shared_axes": Changed shared_axes in `PReLU`. "change_batch_axis","change_seq_axis": Changed axis in `ReverseSequence`. "change_equation": Changed equation in `Einsum`.
2-4	values	Specify the value or the path to the Numpy binary file to replace the weight/constant value recorded in .bin. The way to specify is as described in the description of 'replace_mode'. The table below shows the correspondence between the strings that can be specified for the "Cast" operation and the TensorFlow types. In most cases, you will probably only use "i32", "i64", "f32", and "f16". change_padding_mode: `"ZERO"` or `"SYMMETRIC"` or `"REFLECT"`. https://www.tensorflow.org/api_docs/python/tf/pad change_shared_axes: https://www.tensorflow.org/api_docs/python/tf/keras/layers/PReLU change_batch_axis, change_seq_axis: https://docs.openvino.ai/2021.4/openvino_docs_ops_movement_ReverseSequence_1.html "change_equation": https://numpy.org/doc/stable/reference/generated/numpy.einsum.html

↥ Back to top

6-7-2. Example

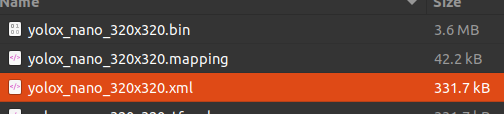

YOLOX Nano 320x320 (NCHW format)
yolox_nano_320x320.xml
yolox_nano_320x320.bin

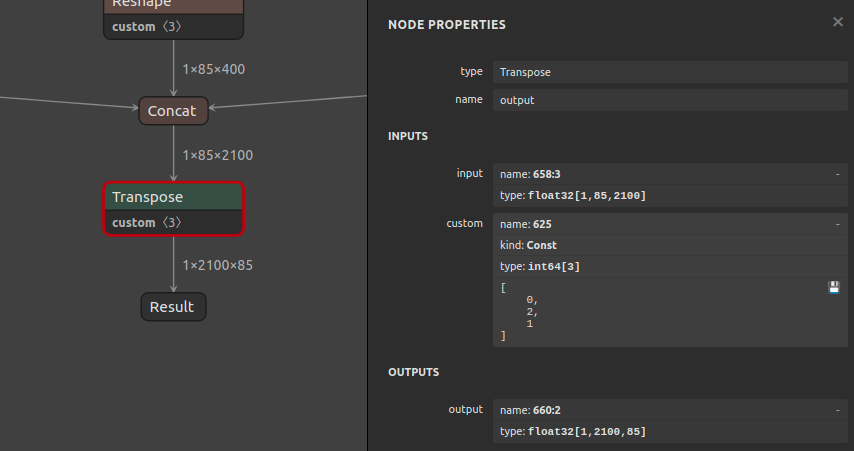

Let's assume that you don't need Transpose in the final layer of the model. Here you have [1, 85, 2100] as input, and the original OpenVINO model transposes [0, 2, 1] in that order to obtain the tensor [1, 2100, 85]. This figure shows the visualization of a yolox_nano_320x320.xml file using Netron. The number shown in the OUTPUTS - output - name: is the layer ID of Transpose. The layer ID 660 is the number in the part before the colon. The number in the part after the colon is called the port number 2. However, what you are trying to change is the transposition parameter of the INPUTS - custom - name: part. The name of the parameter you are trying to change is 625. Note that 625 is not a layer ID, just a name.

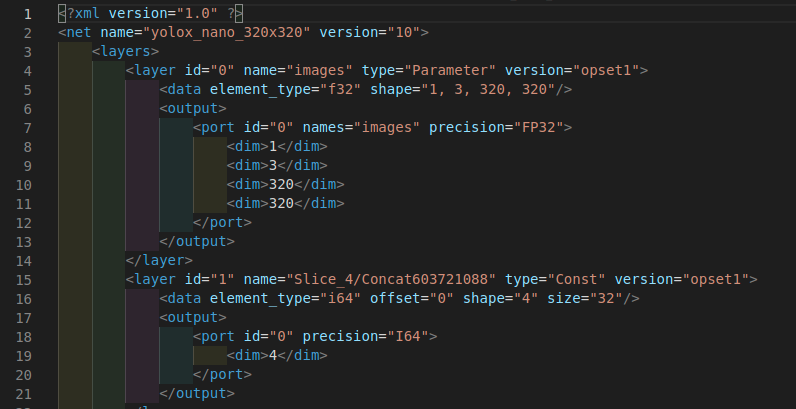

Check the model structure as recorded in .xml. First, open yolox_nano_320x320.xml in your favorite IDE.

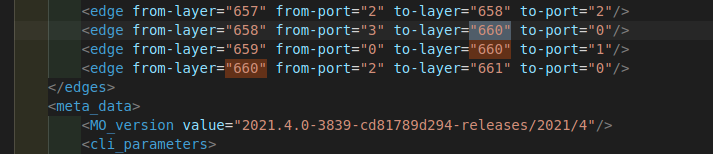

Search for to-layer="660" (Transpose) in the IDE. In the figure below, Layer ID 658 and Layer ID 659 are represented as input values connected to Layer ID 660.

In the figure below, one of them is 658 and one of them is 659. It is difficult to determine exactly what it is from the image alone. You must again note that 658:3 in the image is only a name, not a layer ID. It is worth noting here that the type of value you want to replace is Const.

Screenshot 2021-08-05 00:26:29

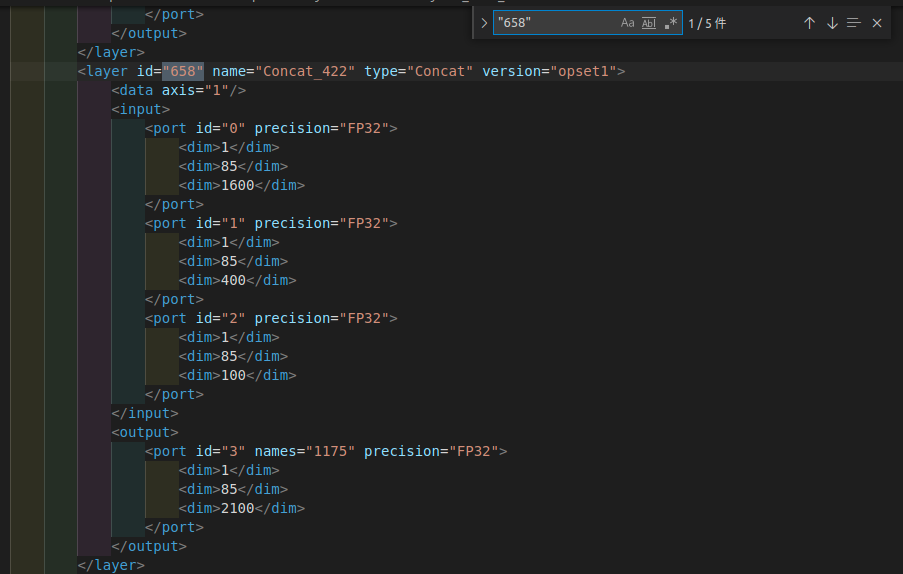

Now you will search for layer ID "658" in the IDE. The type is "Concat", so the desired layer was not this one. What you are looking for is "Const".

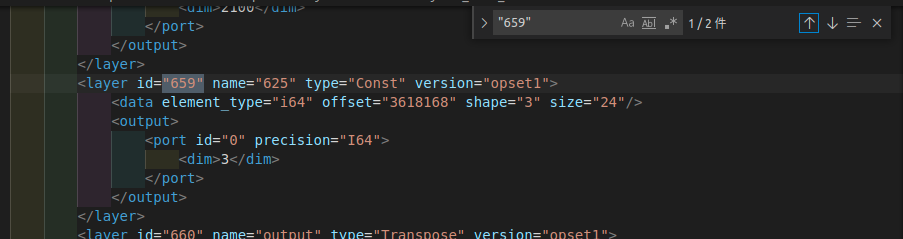

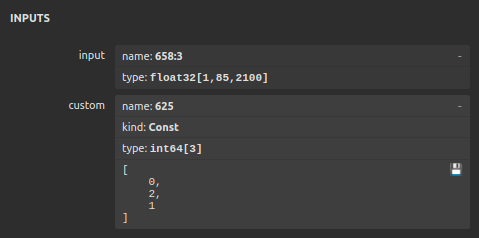

Now, search for layer ID 659 in the IDE. The type is "Const". Now you can finally identify that the layer ID of the layer you want to replace is 659.

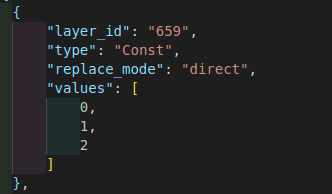

Create a JSON file to replace the constants [0, 2, 1] with [0, 1, 2], and you can use any name for the JSON file. Suppose you save the file with the name replace.json. If you want to replace it with a numpy matrix, specify "npy" for "replace_mode": and the path to the .npy file for "values":.

{
  "format_version": 2,
  "layers": [
      {
          "layer_id": "659",
          "type": "Const",
          "replace_mode": "direct",
          "values": [
              0,
              1,
              2
          ]
      }
  ]
}

{
  "format_version": 2,
  "layers": [
      {
          "layer_id": "659",
          "type": "Const",
          "replace_mode": "npy",
          "values": "path/to/your/xxx.npy"
      }
  ]
}

Specify the created JSON file as the argument of the --weight_replacement_config parameter of the conversion command and execute it. This is the end of the explanation of how to replace weights and constants.

$ openvino2tensorflow \
--model_path yolox_nano_320x320.xml \
--output_saved_model \
--output_pb \
--output_no_quant_float32_tflite \
--weight_replacement_config replace.json

↥ Back to top

6-8. Check the contents of the .npy file, which is a binary version of the image file

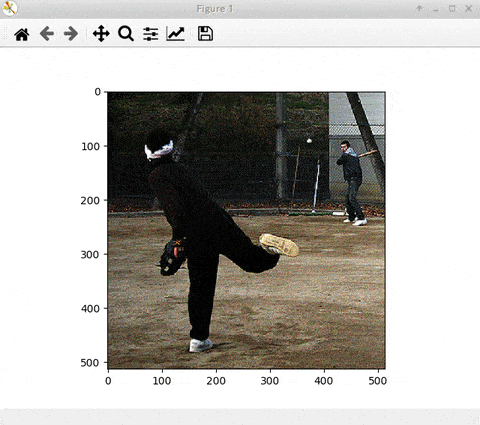

$ view_npy --npy_file_path sample_npy/calibration_data_img_sample.npy

Press the Q button to display the next image. calibration_data_img_sample.npy contains 20 images extracted from the MS-COCO data set.

aaa

↥ Back to top

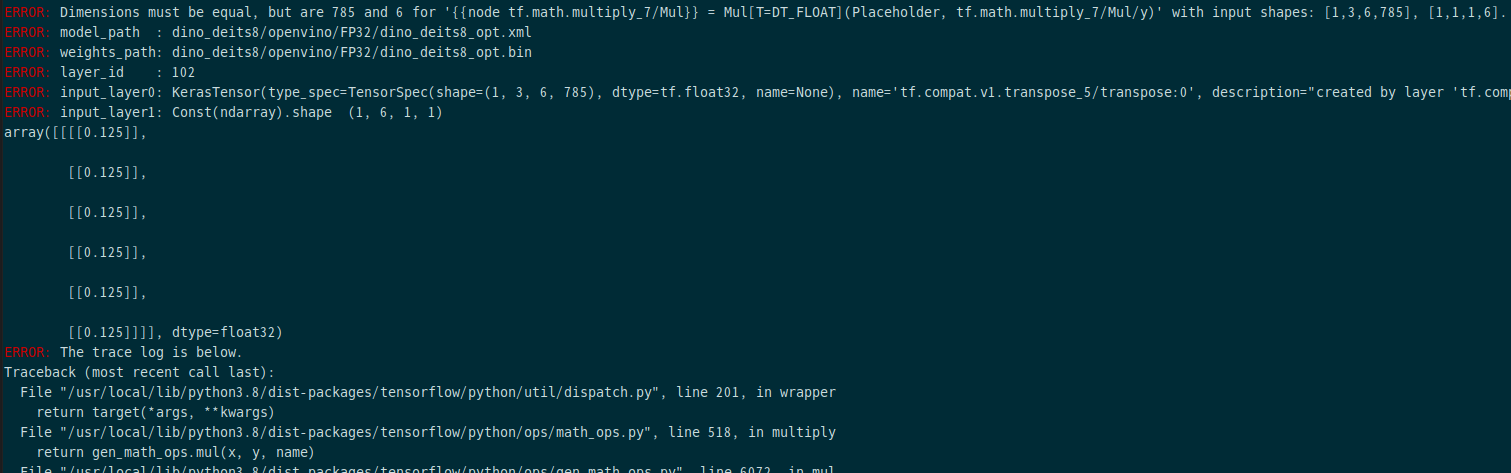

6-9. Sample image of a conversion error message

Since it is very difficult to mechanically predict the correct behavior of Transpose and Reshape, errors like the one shown below may occur. Using the information in the figure below, try several times to force the replacement of constants and weights using the --weight_replacement_config option #6-7-replace-weights-or-constant-values-in-const-op-and-add-transpose-or-reshape-or-cast-or-squeeze-or-unsqueeze-or-add-or-multiply-just-beforeafter-the-operation-specified-by-layer_id. This is a very patient process, but if you take the time, you should be able to convert it correctly. error_sample2

↥ Back to top

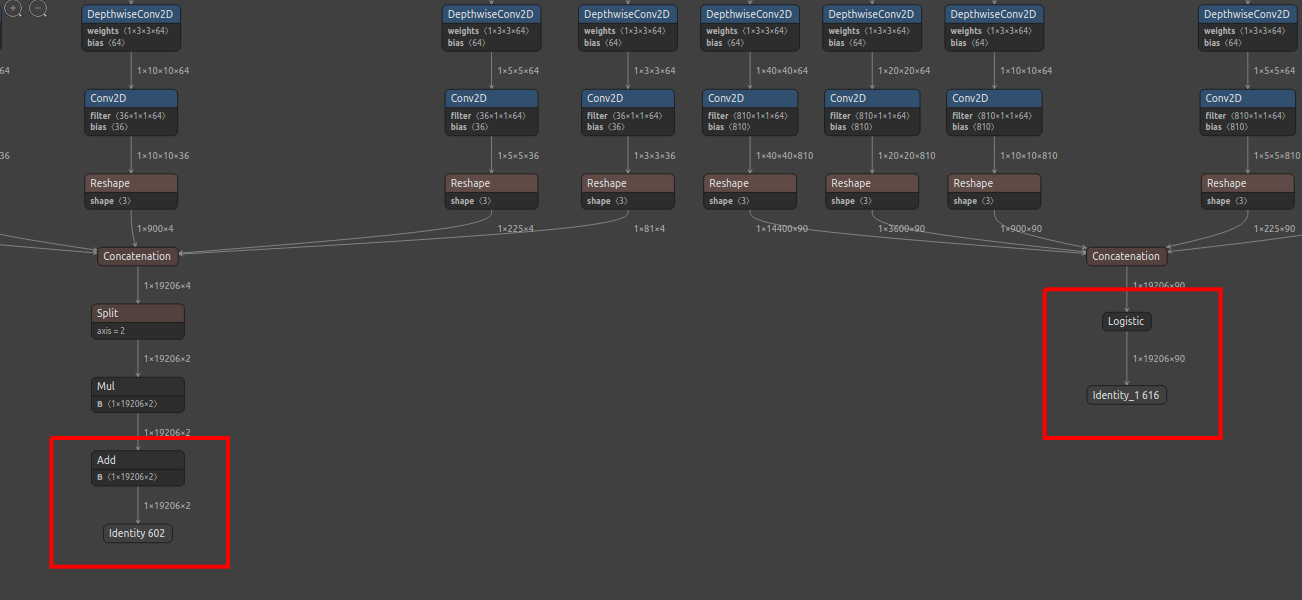

6-10. Ability to specify an output layer for debugging the output values of the model

If you want to debug the output values of each layer, specify multiple layer IDs separated by commas in the --layerids_of_the_terminating_output option to check the output values. For example, if you want to debug the output values of two layers, LayerID=1007 (Add) and LayerID=1214 (Sigmoid), as shown in the figure below, specify as --layerids_of_the_terminating_output 1007,1214. Screenshot 2021-09-06 21:33:19 Screenshot 2021-09-06 21:33:28 When you convert a model, the output will be censored at the two specified layer IDs, and the model will be generated with the output of the model available for review. Note that if you specify a layer ID for an operation that has multiple outputs, such as Split, VariadicSplit, TopK, or NonMaxSuppression, all output values will be used as outputs. Screenshot 2021-09-06 21:43:17

↥ Back to top

7. Output sample

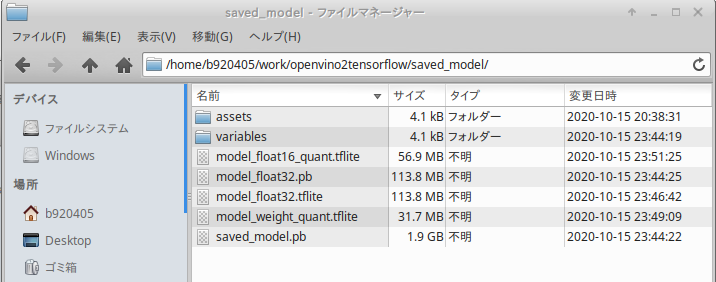

Screenshot 2020-10-16 00:08:40

↥ Back to top

8. Model Structure

https://digital-standard.com/threedpose/models/Resnet34_3inputs_448x448_20200609.onnx

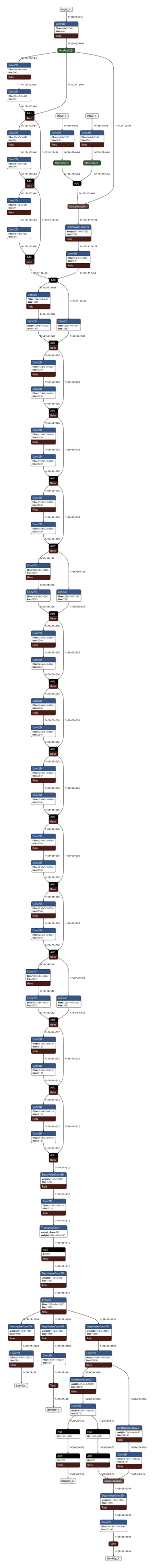

ONNX (NCHW)	OpenVINO (NCHW)	TFLite (NHWC)

↥ Back to top

9. My article

↥ Back to top

10. Conversion Confirmed Models

u-2-net
mobilenet-v2-pytorch
midasnet
footprints
efficientnet-b0-pytorch
efficientdet-d0
dense_depth
deeplabv3
colorization-v2-norebal
age-gender-recognition-retail-0013
resnet
arcface
emotion-ferplus
mosaic
retinanet
shufflenet-v2
squeezenet
version-RFB-320
yolov4
yolov4x-mish
ThreeDPoseUnityBarracuda - Resnet34_3inputs_448x448
efficientnet-lite4
nanodet
yolov4-tiny
yolov5s
yolact
MiDaS v2
MODNet
Person Reidentification
DeepSort
DINO (Transformer)

↥ Back to top

Project details

Release history Release notifications | RSS feed

This version

1.34.0

Sep 8, 2022

1.33.1

Aug 26, 2022

1.33.0

Aug 21, 2022

1.32.1

Aug 2, 2022

1.32.0

Jul 16, 2022

1.31.6

Jul 12, 2022

1.31.5

Jun 30, 2022

1.31.4

Jun 24, 2022

1.31.3

Jun 1, 2022

1.31.2

May 30, 2022

1.31.1

May 25, 2022

1.31.0

May 23, 2022

1.30.3

May 17, 2022

1.30.2

May 16, 2022

1.30.1

May 7, 2022

1.30.0

May 1, 2022

1.29.6

Apr 28, 2022

1.29.5

Apr 18, 2022

1.29.4

Mar 28, 2022

1.29.3

Mar 19, 2022

1.29.2

Mar 6, 2022

1.29.1

Feb 27, 2022

1.29.0

Feb 26, 2022

1.28.8

Feb 17, 2022

1.28.7

Feb 7, 2022

1.28.6

Feb 3, 2022

1.28.5

Feb 1, 2022

1.28.4

Jan 31, 2022

1.28.3

Jan 27, 2022

1.28.2

Jan 27, 2022

1.28.1

Jan 27, 2022

1.28.0

Jan 21, 2022

1.27.6

Jan 20, 2022

1.27.5

Jan 17, 2022

1.27.4

Jan 11, 2022

1.27.3

Jan 11, 2022

1.27.2

Jan 9, 2022

1.27.1

Jan 5, 2022

1.27.0

Jan 2, 2022

1.26.9

Dec 20, 2021

1.26.8

Dec 15, 2021

1.26.7

Dec 15, 2021

1.26.6

Dec 14, 2021

1.26.5

Dec 12, 2021

1.26.4

Dec 12, 2021

1.26.3

Dec 4, 2021

1.26.2

Dec 3, 2021

1.26.1

Dec 2, 2021

1.26.0

Nov 27, 2021

1.25.12

Nov 25, 2021

1.25.11

Nov 24, 2021

1.25.10

Nov 24, 2021

1.25.9

Nov 23, 2021

1.25.8

Nov 23, 2021

1.25.7

Nov 21, 2021

1.25.6

Nov 20, 2021

1.25.5

Nov 19, 2021

1.25.4

Nov 19, 2021

1.25.3

Nov 19, 2021

1.25.2

Nov 17, 2021

1.25.1

Nov 14, 2021

1.25.0

Nov 11, 2021

1.24.8

Nov 5, 2021

1.24.7

Nov 5, 2021

1.24.6

Nov 4, 2021

1.24.5

Nov 1, 2021

1.24.4

Nov 1, 2021

1.24.3

Nov 1, 2021

1.24.2

Oct 30, 2021

1.24.1

Oct 30, 2021

1.23.3

Oct 26, 2021

1.23.2

Oct 25, 2021

1.23.1

Oct 17, 2021

1.23.0

Oct 16, 2021

1.22.4

Oct 16, 2021

1.22.3

Oct 15, 2021

1.22.2

Oct 15, 2021

1.22.1

Oct 11, 2021

1.22.0

Oct 10, 2021

1.21.5

Oct 3, 2021

1.21.4

Oct 3, 2021

1.21.3

Sep 26, 2021

1.21.2

Sep 25, 2021

1.21.1

Sep 25, 2021

1.21.0

Sep 24, 2021

1.20.16

Sep 22, 2021

1.20.15

Sep 21, 2021

1.20.14

Sep 21, 2021

1.20.13

Sep 21, 2021

1.20.12

Sep 19, 2021

1.20.11

Sep 18, 2021

1.20.10

Sep 18, 2021

1.20.9

Sep 17, 2021

1.20.8

Sep 16, 2021

1.20.7

Sep 16, 2021

1.20.6

Sep 14, 2021

1.20.5

Sep 14, 2021

1.20.4

Sep 13, 2021

1.20.3

Sep 9, 2021

1.20.2

Sep 7, 2021

1.20.1

Sep 7, 2021

1.20.0

Sep 6, 2021

1.19.4

Sep 4, 2021

1.19.3

Sep 1, 2021

1.19.2

Aug 30, 2021

1.19.1

Aug 29, 2021

1.19.0

Aug 24, 2021

1.18.3

Aug 21, 2021

1.18.2

Aug 21, 2021

1.18.1

Aug 20, 2021

1.18.0

Aug 20, 2021

1.17.9

Aug 16, 2021

1.17.8

Aug 16, 2021

1.17.7

Aug 15, 2021

1.17.6

Aug 15, 2021

1.17.5

Aug 13, 2021

1.17.4

Aug 13, 2021

1.17.3

Aug 13, 2021

1.17.2

Aug 12, 2021

1.17.1

Aug 11, 2021

1.17.0

Aug 10, 2021

1.16.1

Aug 8, 2021

1.16.0

Aug 5, 2021

1.15.5

Aug 4, 2021

1.15.4

Aug 3, 2021

1.15.3

Jul 31, 2021

1.15.2

Jul 30, 2021

1.15.1

Jul 27, 2021

1.15.0

Jul 24, 2021

1.14.7

Jul 11, 2021

1.14.6

Jul 4, 2021

1.14.5

Jul 4, 2021

1.14.4

Jul 4, 2021

1.14.3

Jul 3, 2021

1.14.2

Jul 3, 2021

1.14.1

Jul 3, 2021

1.14.0

Jul 2, 2021

1.13.1

Jun 27, 2021

1.13.0

May 15, 2021

1.12.6

May 5, 2021

1.12.5

May 5, 2021

1.12.4

May 5, 2021

1.12.3

May 4, 2021

1.12.2

May 3, 2021

1.12.1

May 3, 2021

1.12.0

May 3, 2021

1.11.4

May 2, 2021

1.11.3

May 1, 2021

1.11.2

Apr 25, 2021

1.11.1

Apr 18, 2021

1.11.0

Apr 18, 2021

1.10.6

Mar 11, 2021

1.10.5

Mar 8, 2021

1.10.4

Mar 6, 2021

1.10.3

Mar 6, 2021

1.10.2

Mar 2, 2021

1.10.1

Feb 28, 2021

1.10.0

Feb 27, 2021

1.9.1

Feb 13, 2021

1.9.0

Feb 13, 2021

1.8.3

Feb 9, 2021

1.8.2

Feb 8, 2021

1.8.1

Feb 8, 2021

1.8.0

Feb 8, 2021

1.7.0

Feb 7, 2021

1.6.3

Feb 7, 2021

1.6.2

Feb 7, 2021

1.6.1

Feb 7, 2021

1.6.0

Feb 6, 2021

1.5.10

Feb 3, 2021

1.5.9

Feb 3, 2021

1.5.8

Jan 24, 2021

1.5.7

Jan 18, 2021

1.5.6

Jan 17, 2021

1.5.5

Jan 10, 2021

1.5.4

Jan 3, 2021

1.5.3

Jan 3, 2021

1.5.2

Jan 2, 2021

1.5.1

Jan 1, 2021

1.5.0

Dec 30, 2020

1.4.10

Dec 29, 2020

1.4.9

Dec 29, 2020

1.4.8

Dec 29, 2020

1.4.7

Dec 28, 2020

1.4.6

Dec 28, 2020

1.4.5

Dec 28, 2020

1.4.4

Dec 27, 2020

1.4.3

Dec 25, 2020

1.4.2

Dec 23, 2020

1.4.1

Dec 22, 2020

1.4.0

Dec 22, 2020

1.3.0

Dec 19, 2020

1.2.1

Dec 14, 2020

1.2.0

Dec 14, 2020

1.1.3

Dec 13, 2020

1.1.2

Dec 12, 2020

1.1.1

Dec 12, 2020

1.1.0

Dec 10, 2020

1.0.2

Dec 7, 2020

1.0.1

Dec 7, 2020

1.0.0

Dec 7, 2020

0.5.2

Dec 5, 2020

0.5.1

Dec 5, 2020

0.5.0

Dec 4, 2020

0.4.8

Dec 3, 2020

0.4.7

Nov 29, 2020

0.4.6

Nov 28, 2020

0.4.5

Nov 27, 2020

0.4.4

Nov 27, 2020

0.4.3

Nov 26, 2020

0.4.2

Nov 24, 2020

0.4.1

Nov 23, 2020

0.4.0

Nov 23, 2020

0.3.6

Nov 23, 2020

0.3.5

Nov 22, 2020

0.3.4

Nov 22, 2020

0.3.3

Nov 21, 2020

0.3.2

Nov 21, 2020

0.3.1

Nov 21, 2020

0.3.0

Nov 21, 2020

0.2.16

Nov 21, 2020

0.2.15

Nov 21, 2020

0.2.14

Nov 19, 2020

0.2.13

Nov 18, 2020

0.2.12

Nov 17, 2020

0.2.11

Nov 17, 2020

0.2.10

Nov 16, 2020

0.2.9

Nov 15, 2020

0.2.8

Nov 15, 2020

0.2.7

Nov 11, 2020

0.2.6

Nov 10, 2020

0.2.5

Nov 9, 2020

0.2.4

Nov 8, 2020

0.2.3

Nov 8, 2020

0.2.2

Nov 8, 2020

0.2.1

Nov 8, 2020

0.2.0

Nov 7, 2020

0.1.20

Nov 4, 2020

0.1.19

Nov 4, 2020

0.1.18

Nov 4, 2020

0.1.17

Nov 3, 2020

0.1.16

Nov 3, 2020

0.1.15

Nov 3, 2020

0.1.14

Nov 1, 2020

0.1.13

Oct 31, 2020

0.1.12

Oct 31, 2020

0.1.11

Oct 31, 2020

0.1.10

Oct 31, 2020

0.1.9

Oct 31, 2020

0.1.8

Oct 31, 2020

0.1.7

Oct 31, 2020

0.1.6

Oct 31, 2020

0.1.3

Oct 31, 2020

0.1.2

Oct 31, 2020

Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Source Distribution

openvino2tensorflow-1.34.0.tar.gz (90.6 kB view details)

Uploaded Sep 8, 2022 Source

Built Distribution

openvino2tensorflow-1.34.0-py3-none-any.whl (69.9 kB view details)

Uploaded Sep 8, 2022 Python 3

File details

Details for the file openvino2tensorflow-1.34.0.tar.gz.

File metadata

Download URL: openvino2tensorflow-1.34.0.tar.gz
Upload date: Sep 8, 2022
Size: 90.6 kB
Tags: Source
Uploaded using Trusted Publishing? No
Uploaded via: twine/4.0.1 CPython/3.9.14

File hashes

Hashes for openvino2tensorflow-1.34.0.tar.gz
Algorithm	Hash digest
SHA256	`d5a34a4d11e531343868155e696177e37fbcf850a9c9e38bd849475fa0bc529a`
MD5	`aa9640d9b352a68819f356048616023b`
BLAKE2b-256	`6c7879276824bfa3a78405fcc7dfa5f7fb2c9f0913a70ab8198d5455bf40ba0d`

See more details on using hashes here.

File details

Details for the file openvino2tensorflow-1.34.0-py3-none-any.whl.

File metadata

Download URL: openvino2tensorflow-1.34.0-py3-none-any.whl
Upload date: Sep 8, 2022
Size: 69.9 kB
Tags: Python 3
Uploaded using Trusted Publishing? No
Uploaded via: twine/4.0.1 CPython/3.9.14

File hashes

Hashes for openvino2tensorflow-1.34.0-py3-none-any.whl
Algorithm	Hash digest
SHA256	`6b04f0c533474275e446a7ba465f3845b3ef11ab4fa6df03ed9c0d2e717dc1c1`
MD5	`9857301d47a3e2355614198eb71542ac`
BLAKE2b-256	`8ea6b6a059609b4086b0303444c460f73438789b61bd2d1120d259299e5c98d4`

See more details on using hashes here.

openvino2tensorflow 1.34.0

Navigation

Verified details

Maintainers

Unverified details

Project links

Meta

Project description

openvino2tensorflow

1. Environment

2. Use case

3. Supported Layers

4. Setup

4-1. [Environment construction pattern 1] Execution by Docker (strongly recommended)

4-2. [Environment construction pattern 2] Execution by Host machine

5. Usage

5-1. openvino to tensorflow convert

5-2. saved_model to tflite convert

5-3. pb to saved_model convert

5-4. pb to tflite convert

5-5. saved_model to pb convert

5-6. Extraction of IR weight

6. Execution sample

6-1. Conversion of OpenVINO IR to Tensorflow models

6-2. Convert Protocol Buffer (.pb) to saved_model

6-3. Convert Protocol Buffer (.pb) to tflite

6-4. Convert saved_model to Protocol Buffer (.pb)

6-5. Converts saved_model to OpenVINO IR

6-6. Checking the structure of saved_model

6-7. Replace weights or constant values in Const OP, and add Transpose or Reshape or Cast or Squeeze or Unsqueeze or Add or Multiply just before/after the operation specified by layer_id

6-7-1. Overview

6-7-2. Example

6-8. Check the contents of the .npy file, which is a binary version of the image file

6-9. Sample image of a conversion error message

6-10. Ability to specify an output layer for debugging the output values of the model

7. Output sample

8. Model Structure

9. My article

10. Conversion Confirmed Models

Project details

Verified details

Maintainers

Unverified details

Project links

Meta

Release history Release notifications | RSS feed

Download files

Source Distribution

Built Distribution

File details

File metadata

File hashes

File details

File metadata

File hashes

4-1. [Environment construction pattern 1] Execution by Docker (`strongly recommended`)

6-7. Replace weights or constant values in `Const` OP, and add `Transpose` or `Reshape` or `Cast` or `Squeeze` or `Unsqueeze` or `Add` or `Multiply` just before/after the operation specified by layer_id
