Python implementation persistent images representation of persistence diagrams.

Project description

PyPI version Build Status codecov License: MIT


Persim is a Python implementation of Persistence Images as first introduced in

It is designed to interface with Ripser, though any persistence diagram should work fine.


Currently, the only option is to install the library from source:

pip install persim


First, construct a diagram. In this example, we will use Ripser.

import numpy as np
from ripser import Rips
from sklearn import datasets

data = np.concatenate([150 * np.random.random((300,2)),
                       10 + 10 * datasets.make_circles(n_samples=100)[0],
                       100 + 20 * datasets.make_circles(n_samples=100)[0]])

rips = Rips()
dgm = rips.fit_transform(data)
diagram = dgm[1] # Just diagram for H1

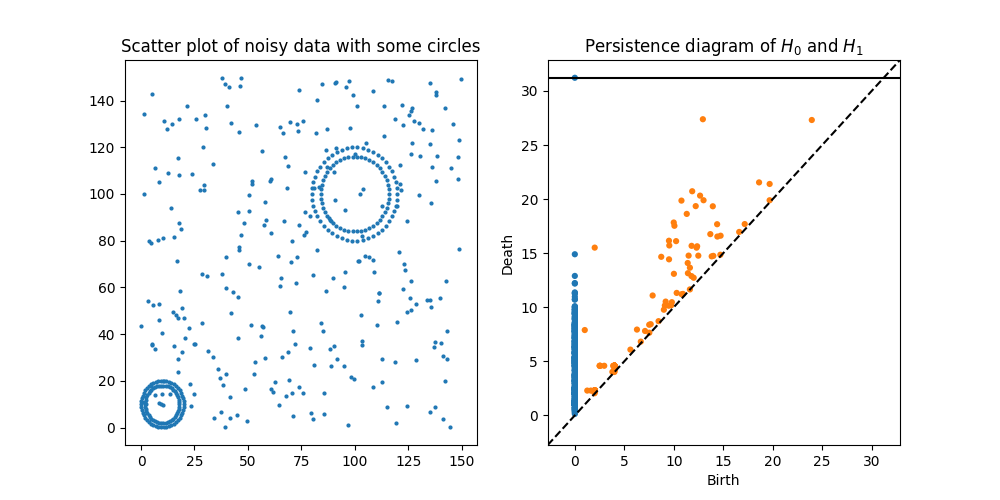

data and diagram

Then from this diagram, we construct the persistence image

from persim import PersImage

pim = PersImage()
img = pim.transform(diagram)

pers image of H1 diagram

Batch processing

If PersImage is given a list of diagrams, the dimensions will be the same for all resulting images. This is helpful if you want to process diagrams in batch and require them to be comparable.

diagrams = [rips.fit_transform(obs) for obs in observations]
imgs = pim.transform(diagrams)


Persistence Images were first introduced in Adams et al, 2017. Much of this work, an examples contained herein are inspired by the work of Obayashi and Hiraoka, 2017. Choices of weightings and general methods are often derived from Kusano, Fukumizu, and Yasuaki Hiraoka, 2016.
